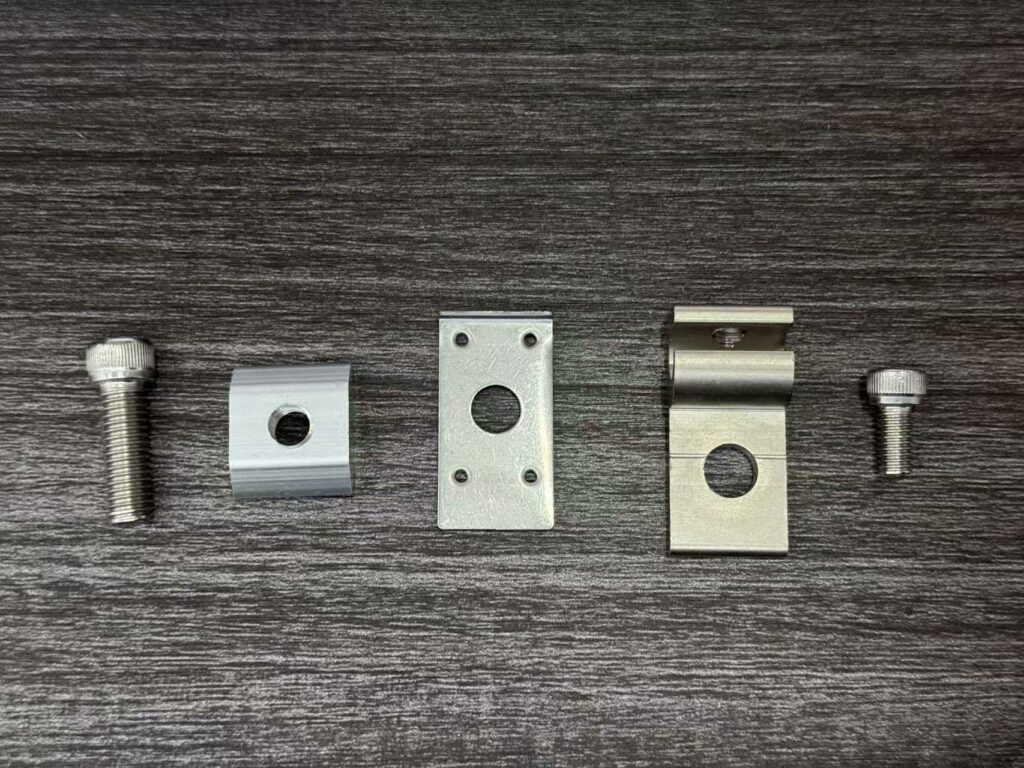

Solar Panel Earthing Plates
- Product Type: PV module grounding clips
- Product Model: SPC-GW-16
- Material: Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: household / commercial
Product Description :
Model : Solar Earthing Plate-SPC-GW-16
This Solar earthing washers are used in PV module mounting systems .
Solar mounting earthing plate is very important for solar earthing systems, this earth plates can be installed together with earth lugs, can be easily and quickly
penetrately surface of rails and generate a conductive way .
In solar mounting system ,
Each solar panel should have one earthing plates;
Each two rails span should have one splice as joint;
Each splice should be connected with jumper or grounding lugs.
Our engineer will help caculating total amount of grounding clips / splice / jumbers / lugs for each mounting projects .
With our PV installation kits technology, we can make your home / commerical hybrid eco power station a success !
(1) A must parts for solar photovoltaic system ;
(2) 3 times faster comparing old traditional earthing method ;
(3) Suitable for outdoor application , all weather compatible ;
(4) Combined well with our solar mounting systems .
|PV earthing plates Parameter|
|Model Number :||Solar-Grounding-Clips|
|Material||SUS 304 Stainless Steel SPC-GW-16|
|Specification||As per drawing / Tailored|
|Application||All solar panel mounting projects|
|Delivery Date||3 – 5 days|
|Type||solar earthing plates|
We are a professional manufacturer of photovoltaic panel installation PV earthing plates, provide full sizes of earthing clips to meet the needs of different types of clamps. At the same time we also provide more solar grounding system accessories, welcome to contact us. More information is available on the company’s website: www.SolarPartsComponents.com.
|Brief Descriptions :|
|Solar Grounding Earthing Plates Model 19 for solar earthing kits|
|Item type:||Solar Mounting Components|
|Technical Parameters :|
|Installation Site :||solar panel mounts|
|Profile Material :||SUS 304 Steel|
|Color :||Polish milling|
|Wind Load :||60 m / s|
|Snow Load :||1.4 KN/M2|
|Module Orientation :||Portait and Landscape|
|Standards :||AS/NZS 1170|
|JIS C 8955 : 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed Life Span||25 years|
|Packing Details :|
|Inner :||Bubble bag+inner box+Carton|
|Outer :||Wooden Box, Steel Pallet, MDF, etc|
Drawing & Size for Solar earthing plates SPC-GW-16
Solar earthing plates factory

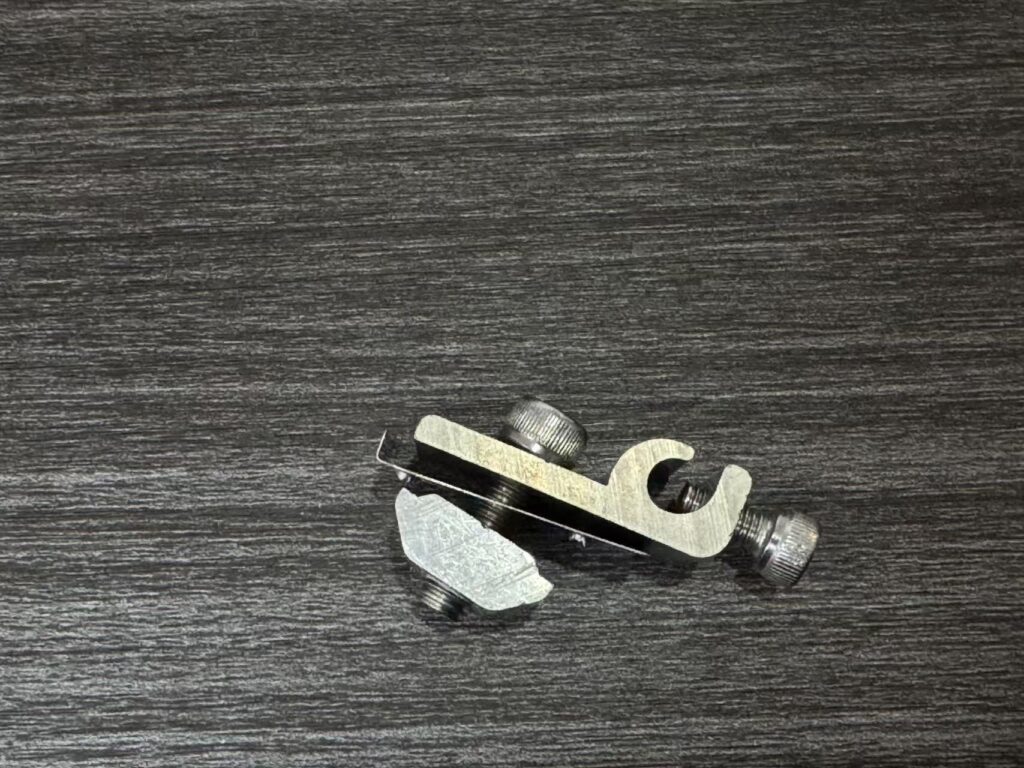

Solar earthing plates is necessary for solar panel mounting. In order to ground the solar installation and prevent damage from lightning strike.This model of earthing plate is usually work with SPC ground lug,it provide a easy path for lightning to get to the earth.
All SPC earthing plate,grounding clips are made of good quality stainless steel 304. Wholesale price, professional service, welcome purchase from us.
What is the features of this solar earthing plates?
Features of this solar earthing plates:
- Quick installation without other tools;
- Perfect coincidence with ground block;
- Light weight, easy to carry;
- Save installation space.
