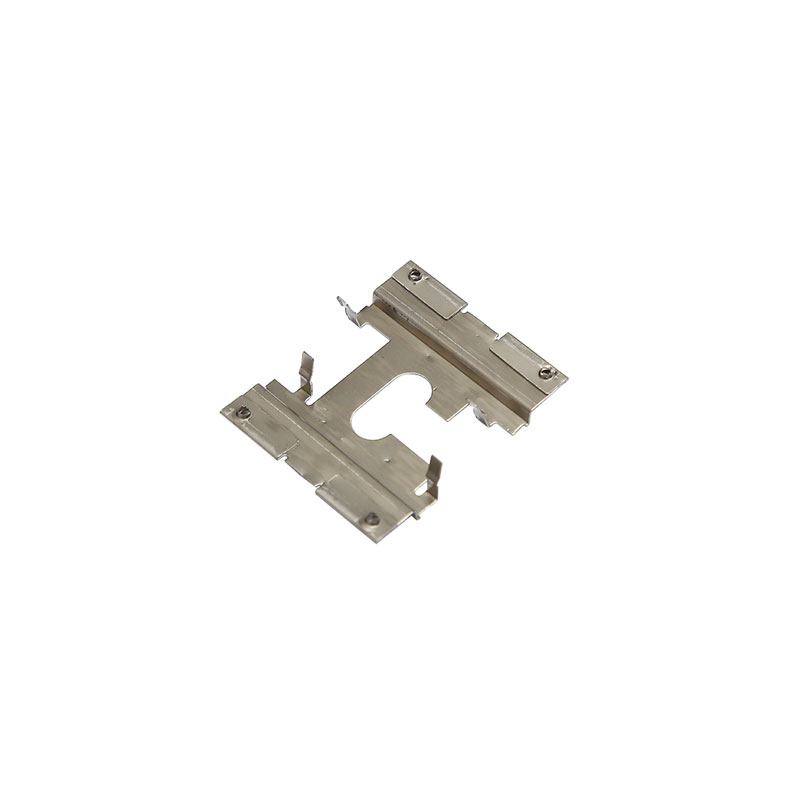

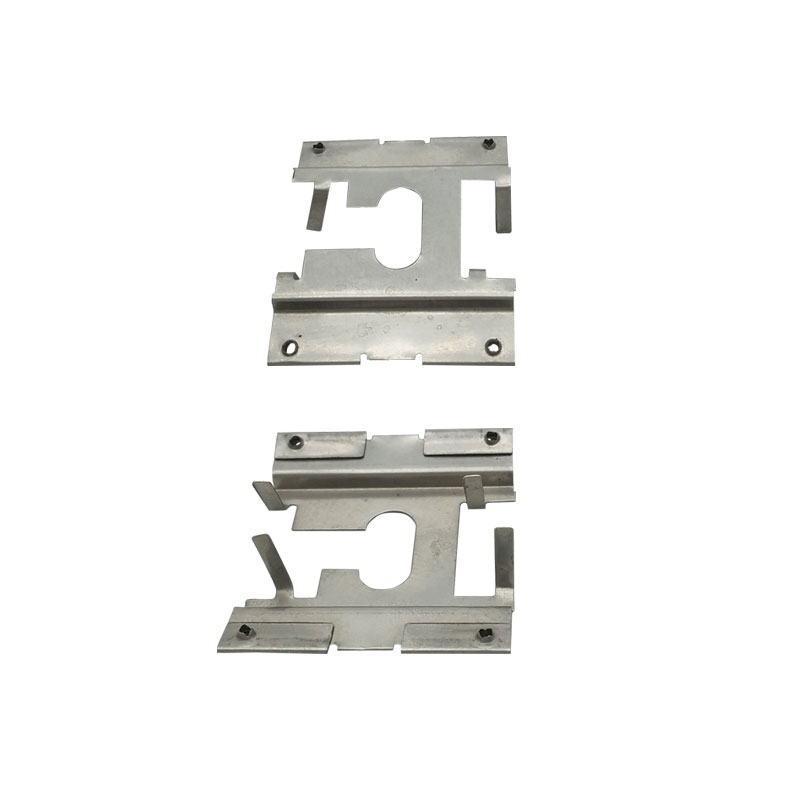

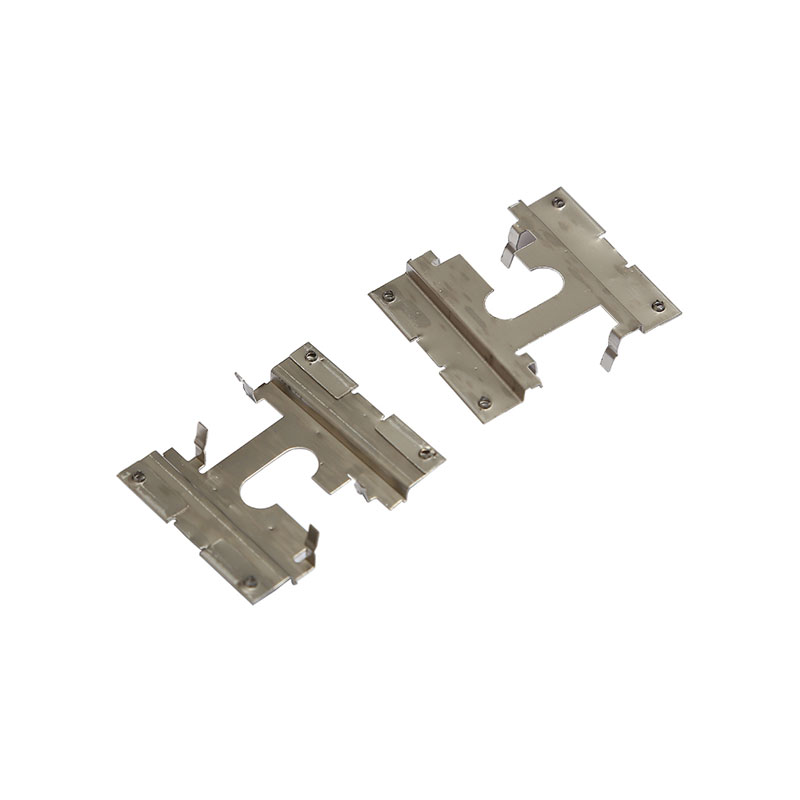

Solar Grounding Washer
- Product Type: Solar Panel Mounting Components
- Product Model: SPC-GW-09
- Material: Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Conduct Electric to ground earth
Product Description :
Model : Solar-Ground-Washer-SPC-GW-09
This solar ground washer is made of SUS 304 Stainless steel .
It’s designed for solar mounting system accessories which can earth electrical to the ground .
The teeth of clips can pierce surface of aluminium rails .
PV Grounding plates is essential in storm and thunder weather, it can prevent solar panels from damage .
Usually it’s fixed between PV modules and aluminum rails as grounding conductor .
This ground washer is IP 65 waterproof class, suitable for outdoor long time using .
Advantages of this PV grounding washer:
(1) Good quality steel ;
(2) excellent electric conductivity ;
(3) Bond Solar Panels to mounting rails ;
(4) Less costly, easy installation ;
(5) Gas tight connection for aluminum , steel , metal ;
(6) Customized size clips are available .
| Solar Grounding clips Information | |
| Model Number : | Solar-grounding-washer-SPC-GW-09 |
| Material | Stainless Steel |
| Specification | As per drawing / Customized |
| Application | Home/Indurstrial/ Commercial |
| Warranty | 10 years |
| Sample | available |
| Delivery Date | 7-15 days |
| Type | PV Ground Washer Clips |
| Duration | more than 20 years |
We are professional PV ground washer manufacturers, provide more types of photovoltaic panel grounding washer, can meet the needs of different types of guide rail and clamps. Welcome to contact us. Our professional engineers and sales team provide the best service for your solar installation, please visit our website for more information : www.SolarPartsComponents.com.
| Brief Descriptions : | |
| Solar Grounding Clips / Ground Washer Model 9I for solar earthing kits | |
| Item type: | Solar Mounting Components |
| Technical Parameters : | |
| Installation Site : | solar panel mounting |
| Profile Material : | SUS 304 Steel |
| Color : | Polish milling |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN/M2 |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Drawing sizes for solar panel grounding plate 9I
solar panel grounding washer Size & drawing for model 9I
SUS 304 solar panel pv grounding washer is used for mounting earth system .
solar panel grounding washer
This grounding washer fit for different installation places like : ground, roofing, shed …
Our solar panel grounding washer 9I can well performance in lightning protection .
– Auto embed washer teeth into anodized aluminum / galvanized steel rails ;
– Gas tight connection, anti-corrosive stainless steel in extreme environments ;
Factory direct solar panel grounding washer 9I wholesale with size and drawing details
Solar Parts & Components have whole series of grounding lugs, connectors, bonding jumpers,washers and other hardware for earth systems .
