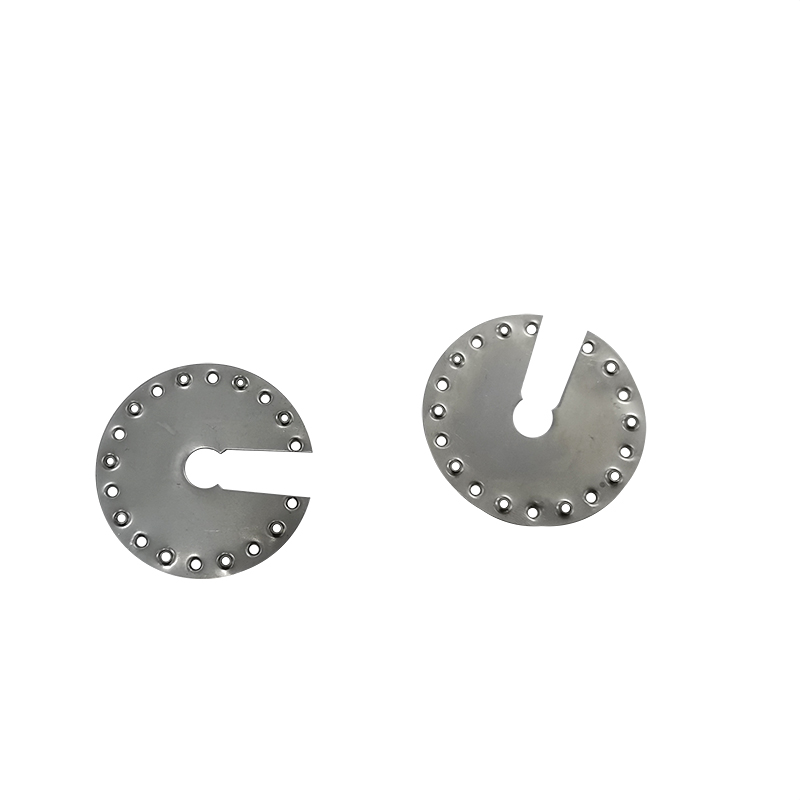

Solar ground plate with the function of good electric conduction for PV modules. Which is suitable for most mid clamps, rails, frame or frameless solar panels. Its material is SUS 304 stainless steel anti corrosion protection. Which can pierce anodized of racks and solar frames, keep good electric path and creating an conductive path to the ground. It is essential for solar panels can prevent solar modules damage from fire, shock.
Electrical ground plate can pierce into aluminum anodized surface, are used for fixing solar structure and PV modules. Electrical ground plat, solar panels, aluminum racks make the whole combined earthling network. We also can do OEM, you provide me the drawings or detail sizes, we can custom for you. Its specifications below:
|Specification:||As per drawing / OEM|
|Application:||Solar panels earthling parts|
|Delivery Date:||3 – 5 working days|
|Type:||solar grounding clips|

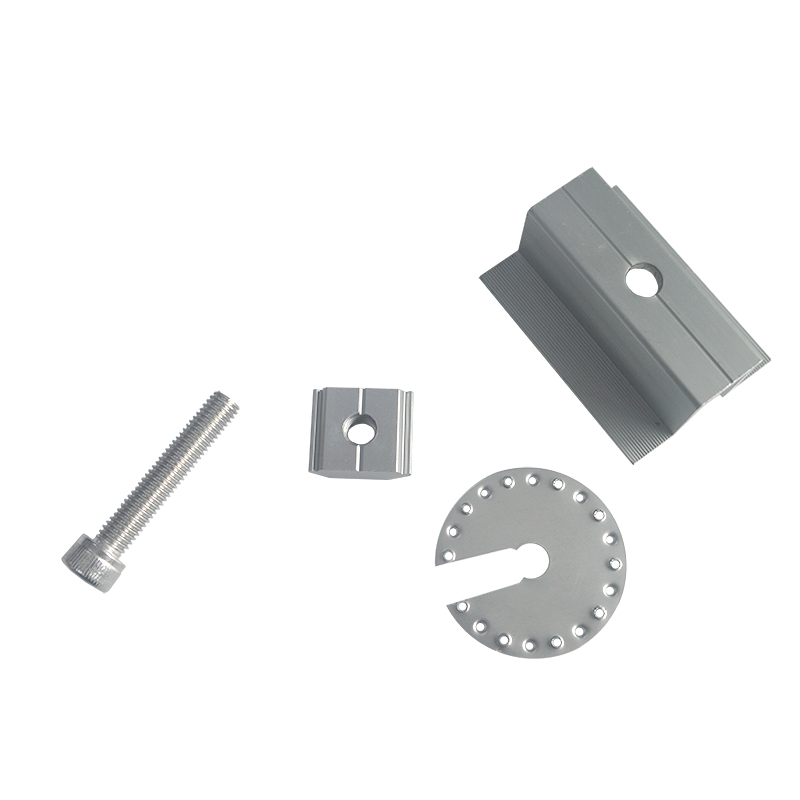

Pv module ground plates is designed to match solar panels and mounting rail systems . Connect one piece of grounding plate with one mid clamp, it’s the newest method for module grounding. Its belong to solar array grounding electrode for lightening protection. In this way, solar PV modules can be connected and grounded through the rack rails and grounding clips, clamps , ground lugs and so on. We have various kinds of Pv module ground plates for your choosing.
Below is the installation of Pv module ground plates:
1.Put the ground plates slot on the M8 bolt;
2.Then put it flat on the rail surface;
3.Check the installation is correct or not.
