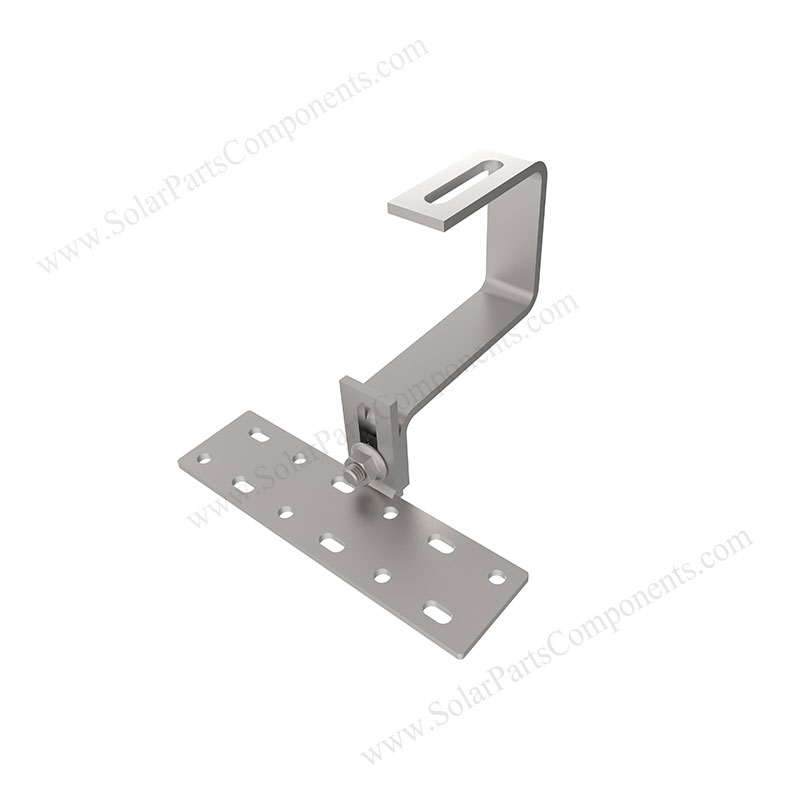

Curved Tile Roof Hooks, Height adjustable, Bottom Mounting
- Product Type: Solar Curved Tile Roof Hooks
- Product Model:SPC-IK-09
- Material: Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Pitched Tile Roof Installation
Product Description :
The adjustability range of this curved roof tile hooks (SPC-IK-09) is 30 mm.
There is one 10 mm wide and 46 mm long slot from lower hook for this solar mounting kit.
180 degree bottom mounting height adjustable solar hooks means : Solar panels and hooks are parallel .
We use good quality 304 stainless steel for this adjusted curved tile roofing hooks.
By using our bolts, nuts, screws , helping installing pitched Roman tile roof simply and quickly .
Our optional solar component T sliding blocks is made of premium Alum with anodizing surface finishing.

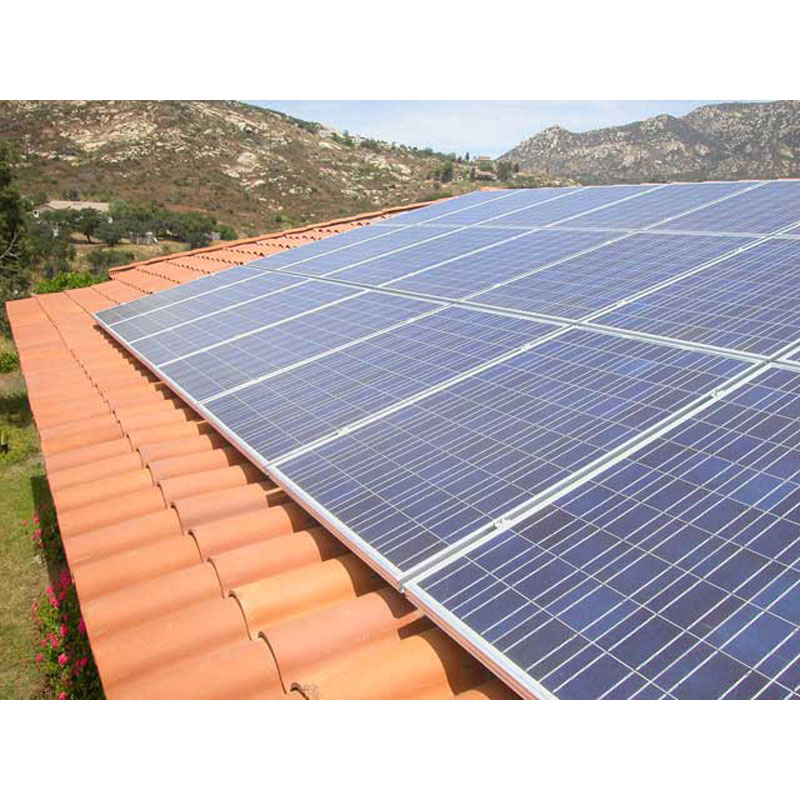

This adjustable solar tile hook can be applied for sloping roofing which is builded by Curved , Spanish , Roman , Clay tiles … Whatever for landscape or portrait PV panels installation .
We have prefessional design team which can assist using this height adjustable solar tile roof hooks for PV projects sucessfully.
Advantages of solar tile hooks SPC-IK-09:
- Quick Installation : Pre-assembly with international standard , turnkey-job ;
- Quality Guarantee : Strict Quality Controlling keep reliable service ;
- Expert Service : Professional manufacturing solar components more than 6 years;
- Warranty : Offer 10 Yrs Warranty for our Bottom mounted rails roofing hooks .

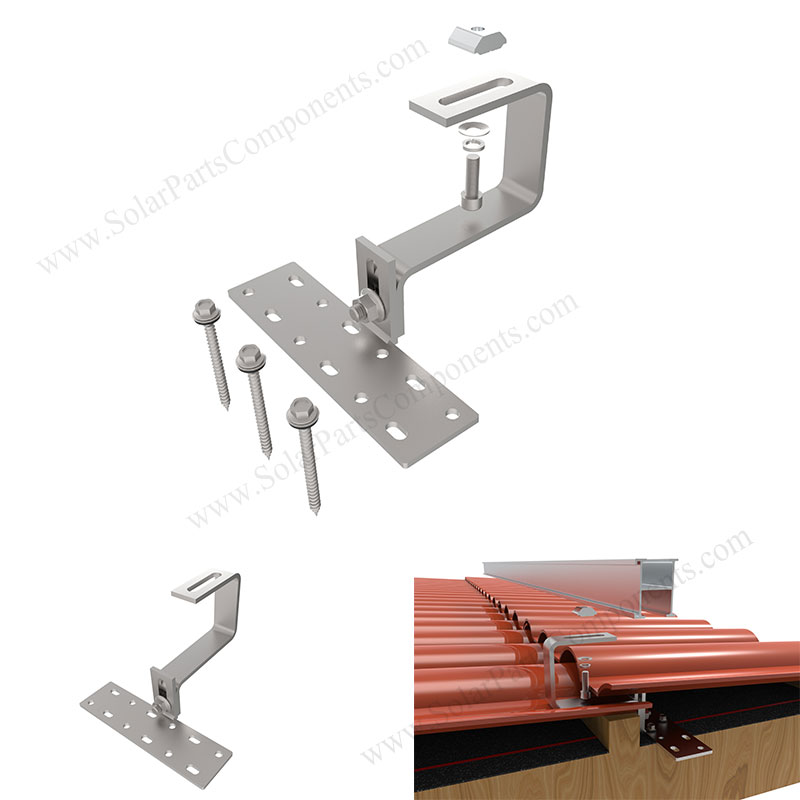

Parts and Components for Solar Curved Tile Roof Hooks, Height adjustable, Bottom Mounting :

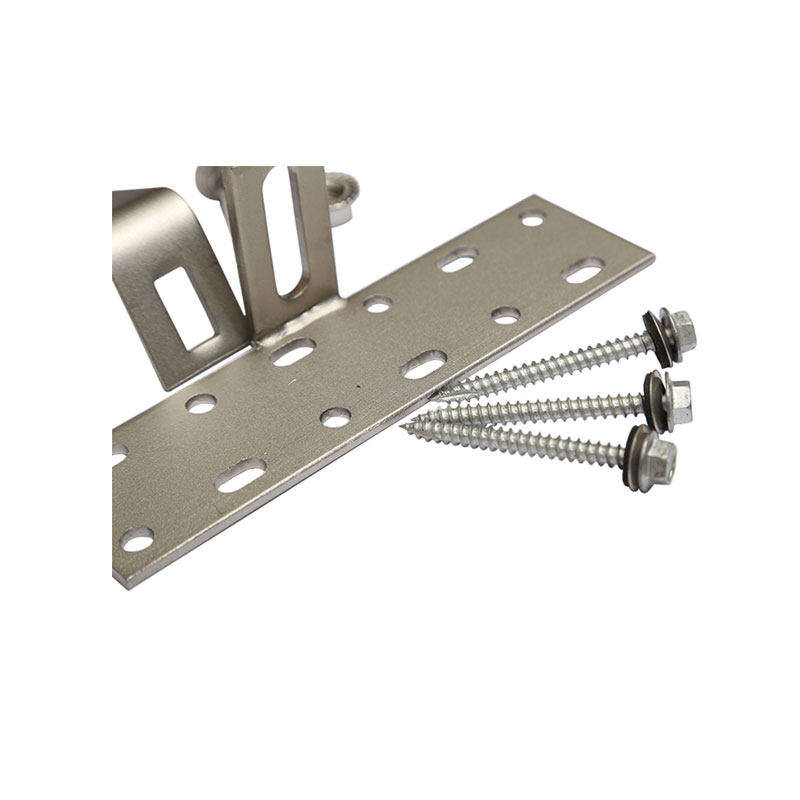

Stainless adjustment 304 hook with slot;
Carriage bolt bolts and nuts ;
T sliding nut block (Optional);
Solar Mounting Screws .
The products for solar vary from components to the whole mounting system. Buy from our SPC is the best choice. We can meet your needs.
Contact us by our website:
|Brief Descriptions :|
|Solar Mounting Components – Curved Tile Roof Hooks, Height adjustable, Bottom Mounting , 180°|
|Item type:||Solar Curved Tile Roof Hooks|
|Type :||Roof Hooks|
|Installation Site :||Pitched Roofing|
|Profile Material :||SUS 304 Stainless Steel|
|Fasten Parts :||Stainless Steel / Aluminum 6005-T5|
|Color :||Silvery or according to customer requirements|
|Wind Load :||60 m / s|
|Snow Load :||≤ 1.4 KN / M2|
|PV Modules :||Framed, Frameless|
|Module Orientation :||Portrait and Landscape|
|Standards :||AS/NZS 1170|
|JIS C 8955 : 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed Life Span||25 years|
|Packing Details :|
|Inner :||Bubble bag+inner box+Carton|
|Outer :||Wooden Box, Steel Pallet, MDF, etc|

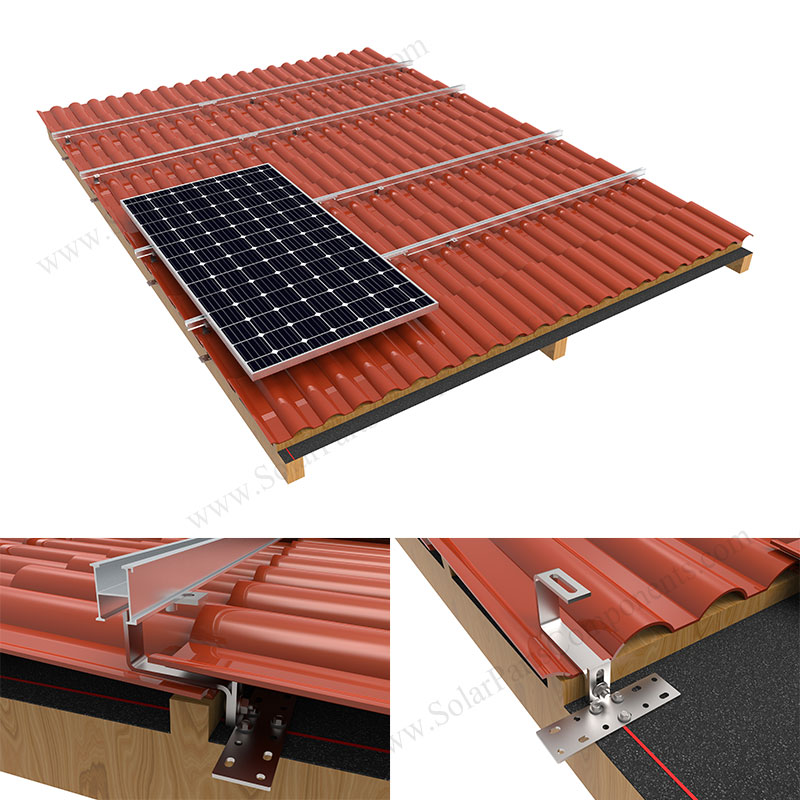

Installation Manual for Solar Roof Hooks SPC-IK-09
Size details for this adjustable solar roof hooks
Dimension & sizes for this height adjustable solar roof hooks
Fixed Clamp for This Solar Curved Tile Roof Hooks , Height adjustable, For bottom Mount Rails
We have fixed clip / clamp / hoop , stainless steel made for this Solar Curved Tile Roof Hooks , Height adjustable, For bottom Mount Rails
Solar Tile Roof Hooks Height adjustable bottom Mounts
This model solar tile roof hook SPC-IK-09 is design for height bottom adjustable, rails bottom mount style.
It is made of superior quality stainless steel material,strong and durable. Reasonal factory price from professional solar tile roof hooks manufacturer.The tile roof hook is suitable for most types of the Roman/Spanish/Clay tile roofing solar mounting.

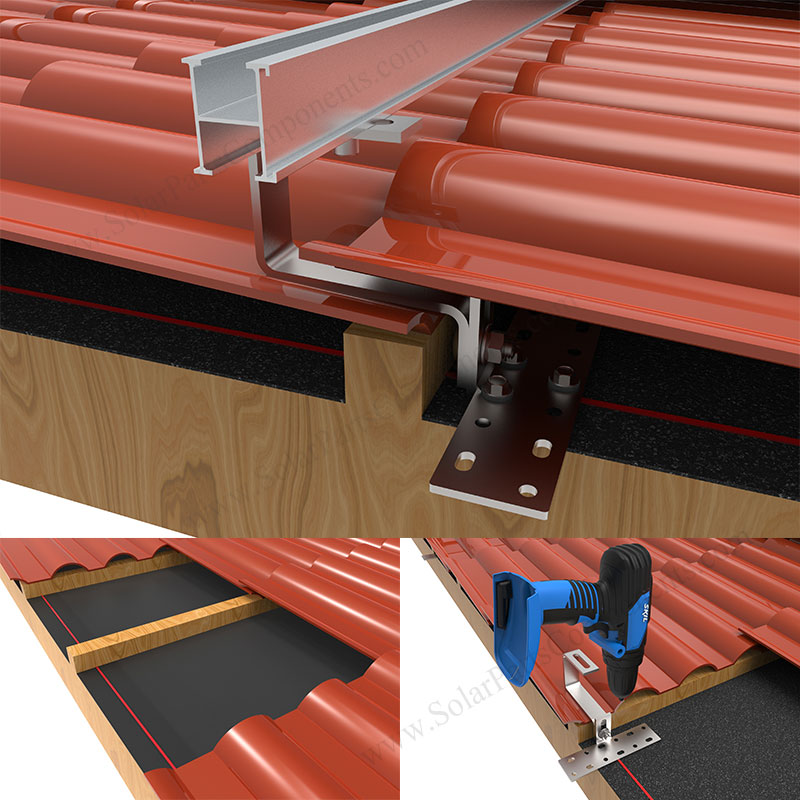

Tile roof hook #09 installation

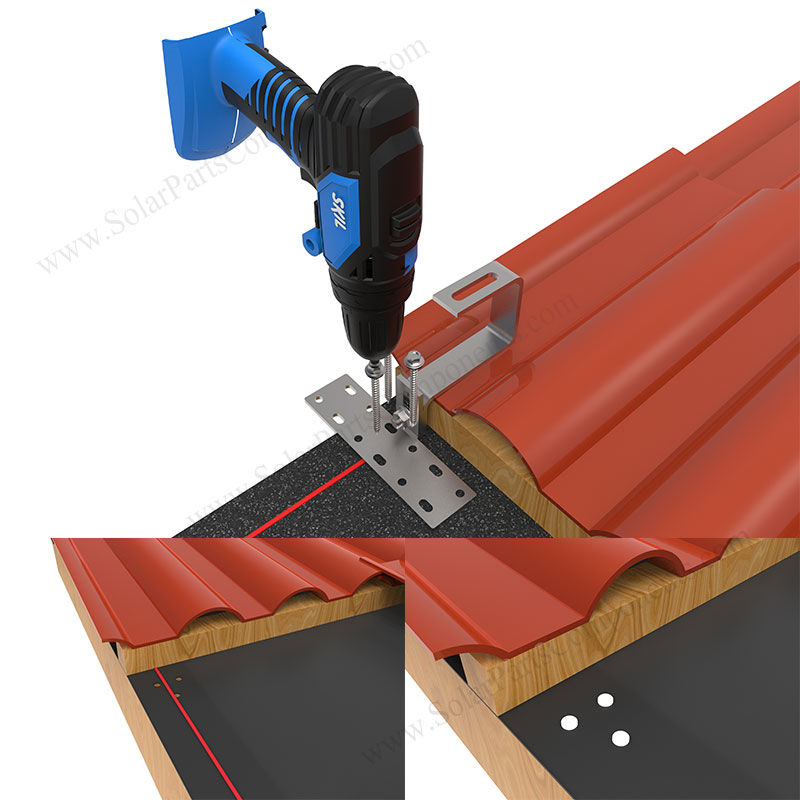

Installation instructions for stainless steel hook#09

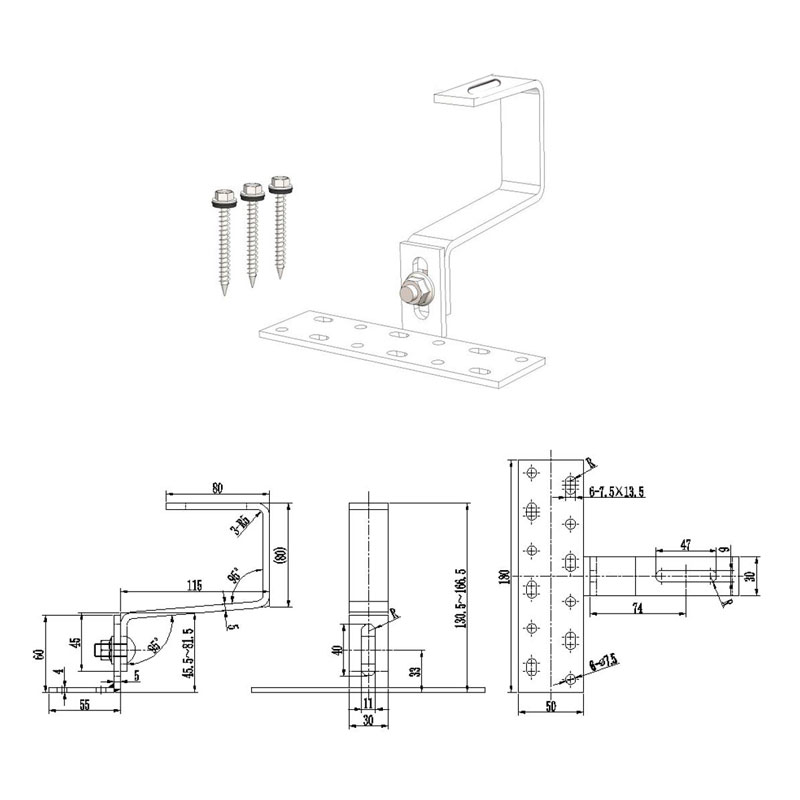

Drawing of This Height Adjustable Solar Curved Tile Roof Hooks
Sizes, profile and drawing details for this lower adjustable roof hooks .
