Solar Metal Roof Reinforced L Foot Clamps for Corrugated Tin Zinc Roofing
- Product Type: solar corrugated metal roof mounting clamps
- Product Model: Solar-Corrugated-Tin-Zinc-Metal-Roof-Reinforced-L-Foot-Clamp
- Material: Alum
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Pitched Zinc Tin Metal Roofing Solar Panels Installation
Product Description :

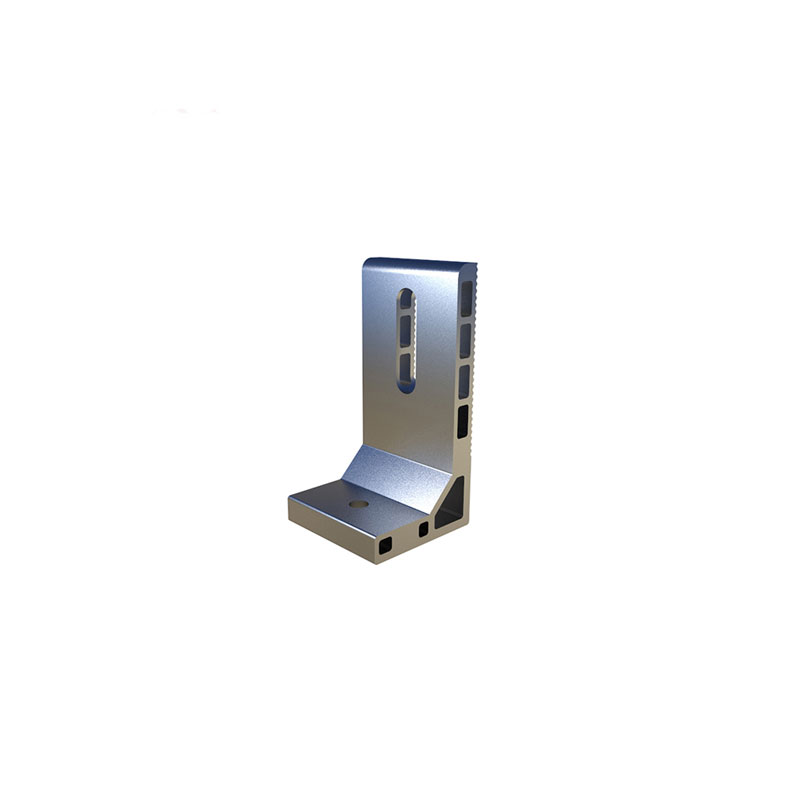

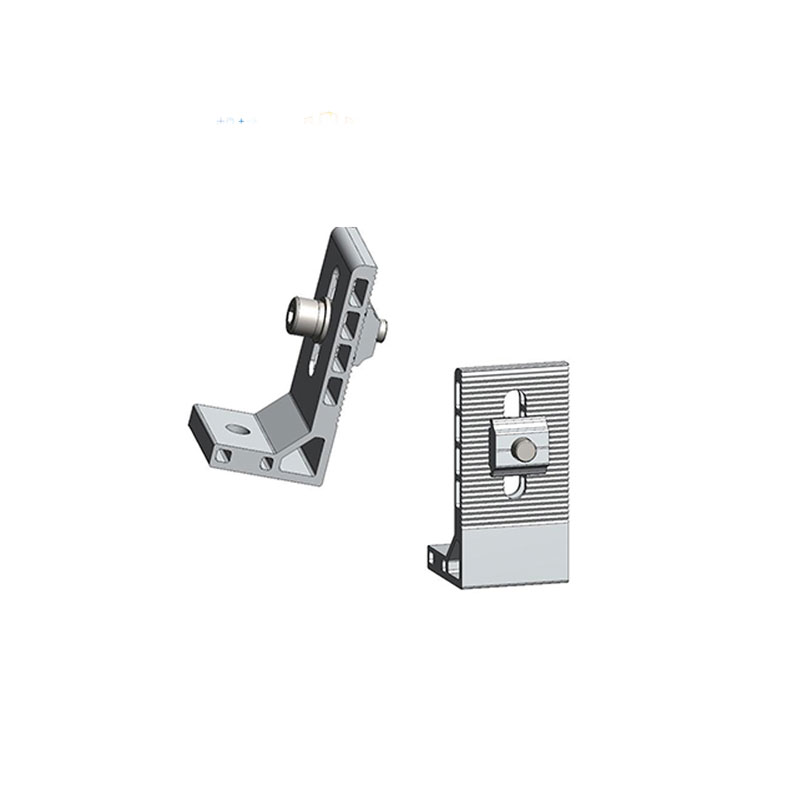

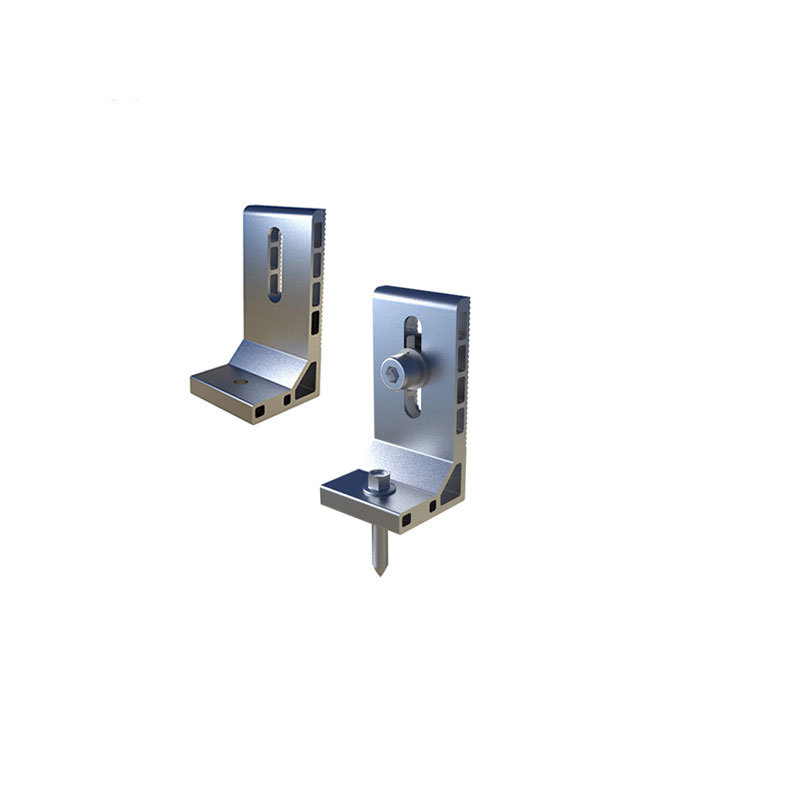

Reinforced solar L foot clamp is designed for frameless / framed solar panels.

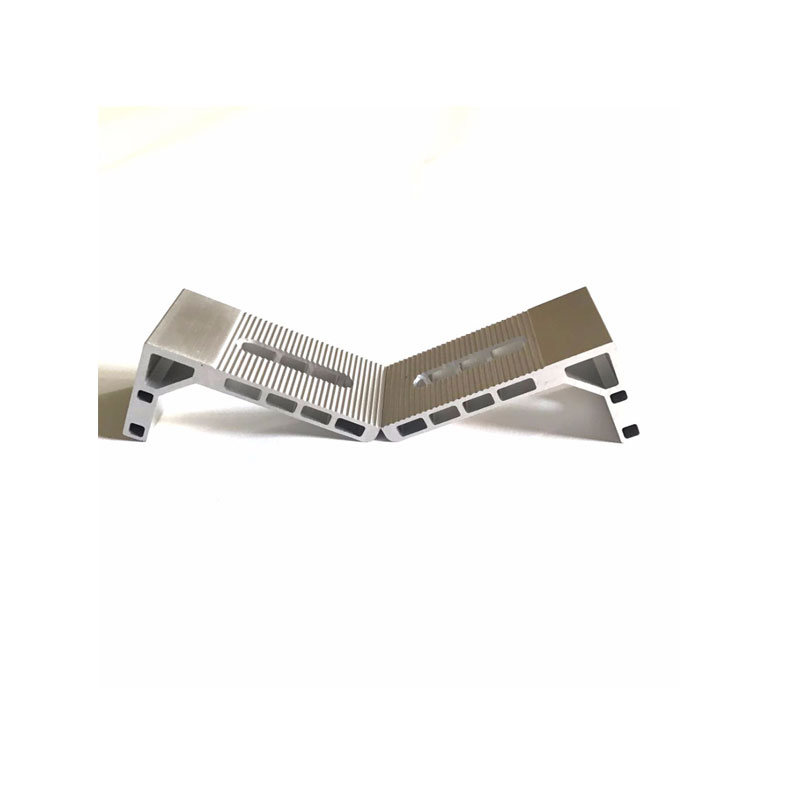

It’s so-called “REINFORCED” is because of the aluminium special profile which can afford more heavy panels and be strong in any severe weather .
This enhanced L foot is suitable for both flat and sloping roofings. It can matched our alum alloy rails and other components well.
Re-inforced L bracket is convenient and easy to use with 10 years’ warranty and 25 years’ life designed .
Our re-inforced solar L bracket is a standard component in PV industry, it’s engineered for zinc metal roofing mount jobs.
Advantages :
- Good quality 6005-T5 alum in material for this zinc metal roofing reinforced L foot ;
- Mill finishing, anodized surface treatment ;
- Silvery color as default, bronze, black, sanding and other colors are available for customized ;
- Pre-assembly packing, simple and easy for installation, no necessary on-site processing ;
- Our L-type bracket offer strengthen structure for tin metal roofs ;
- Anti-corrision in technical for alum L feet clamp .

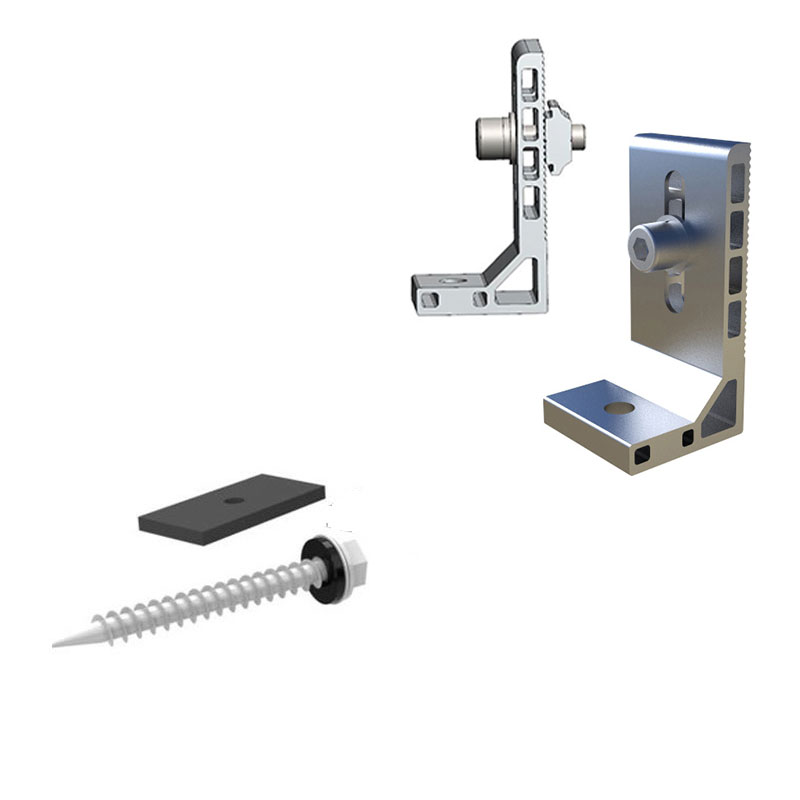

Parts and Components for Reinforced L foot Metal Roof clamps for Solar Panels :
a) 1 unit of reinforced L-Foot solar bracket ;
b) 1 unit of rubber gasket ;
c) Screws, inner hexagon bolt, nut
| Brief Descriptions : | |
| Solar Metal Roof Reinforced L Foot Clamps for Corrugated Tin Zinc Roofing | |
| Item type: | Solar Corrugated Metal Roof Brackets |
| Type : | Solar Roofing Mounting Clamps |
| Installation Site : | Corrugated Metal Roofing |
| Profile Material : | 6005- T5 Aluminium alloy |
| Fasten Parts : | Stainless Steel |
| Color : | Silver anodized / OEM |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN each square meter |
| PV Modules : | Framed or Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |

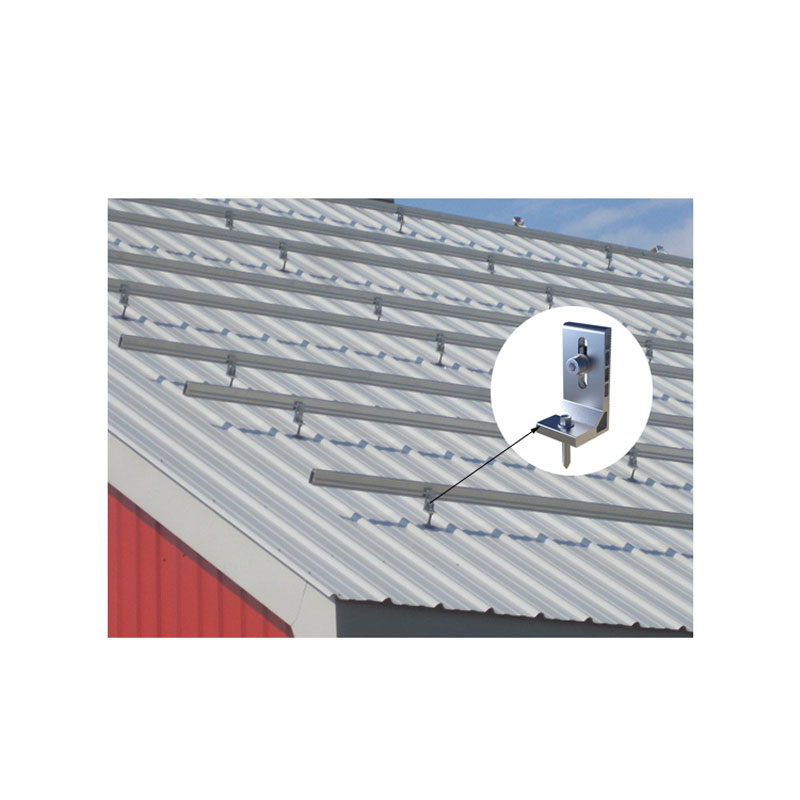

How to using this Solar Metal Roof Reinforced L Foot Brackets for Corrugated Tin Zinc Roofing ?
