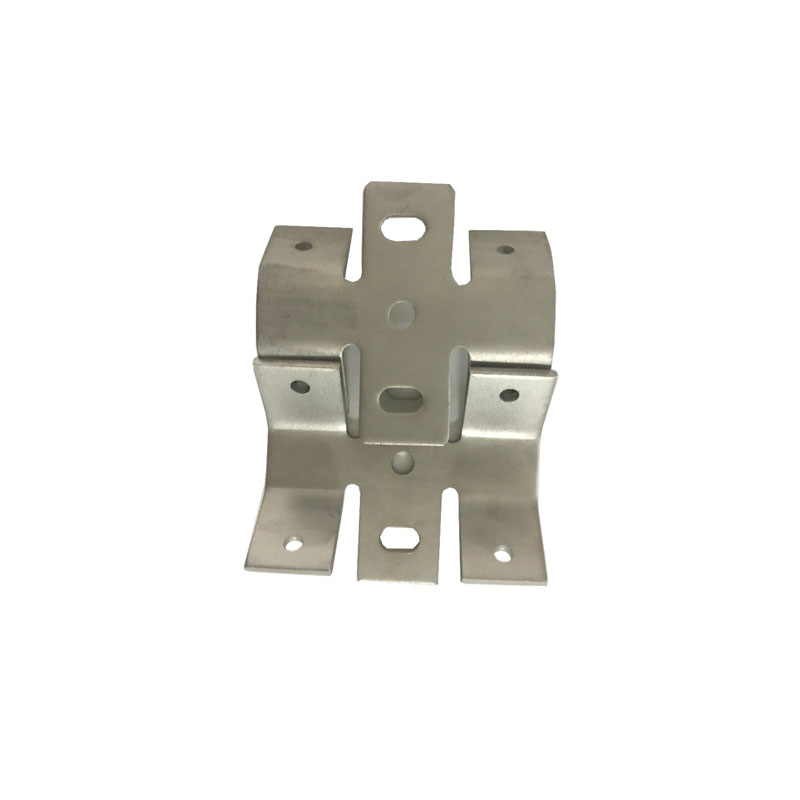

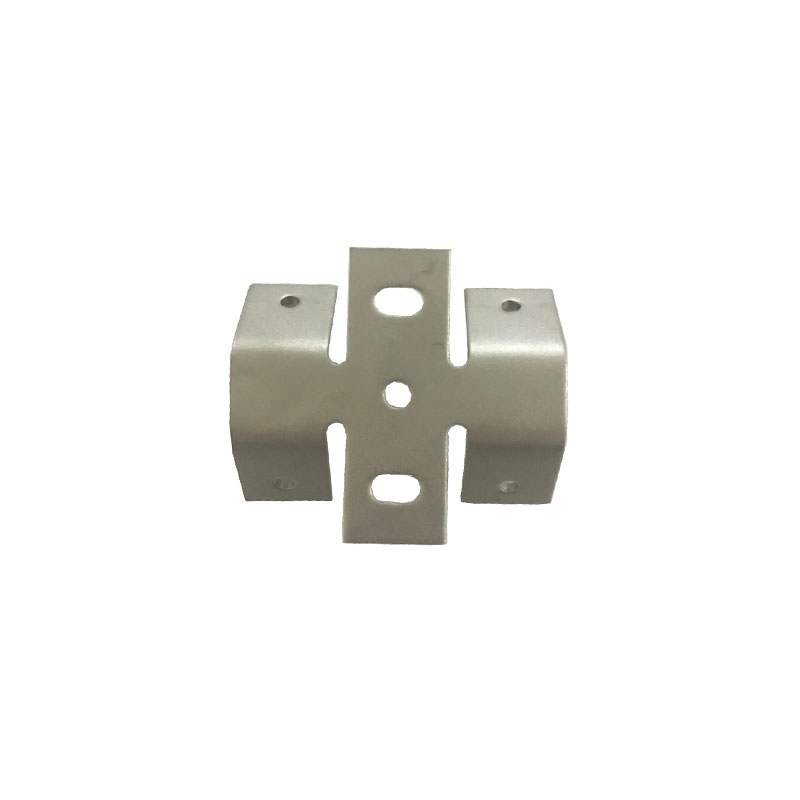

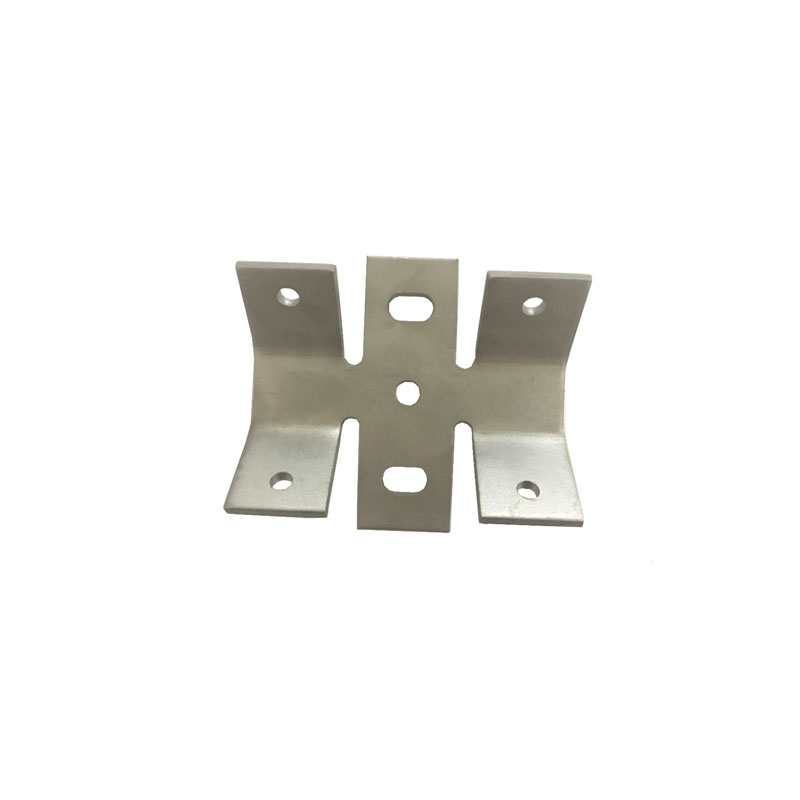

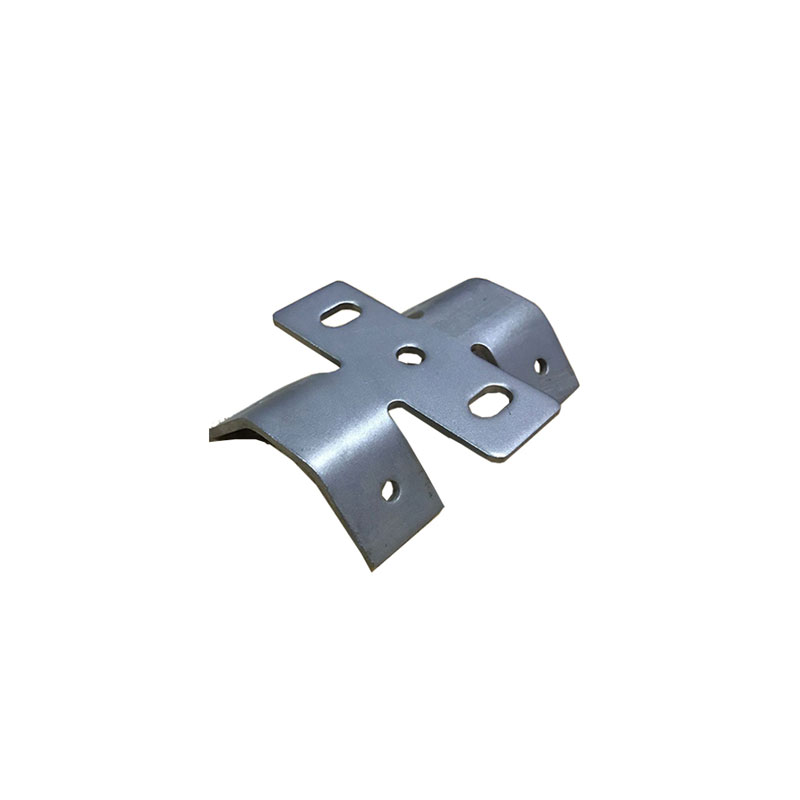

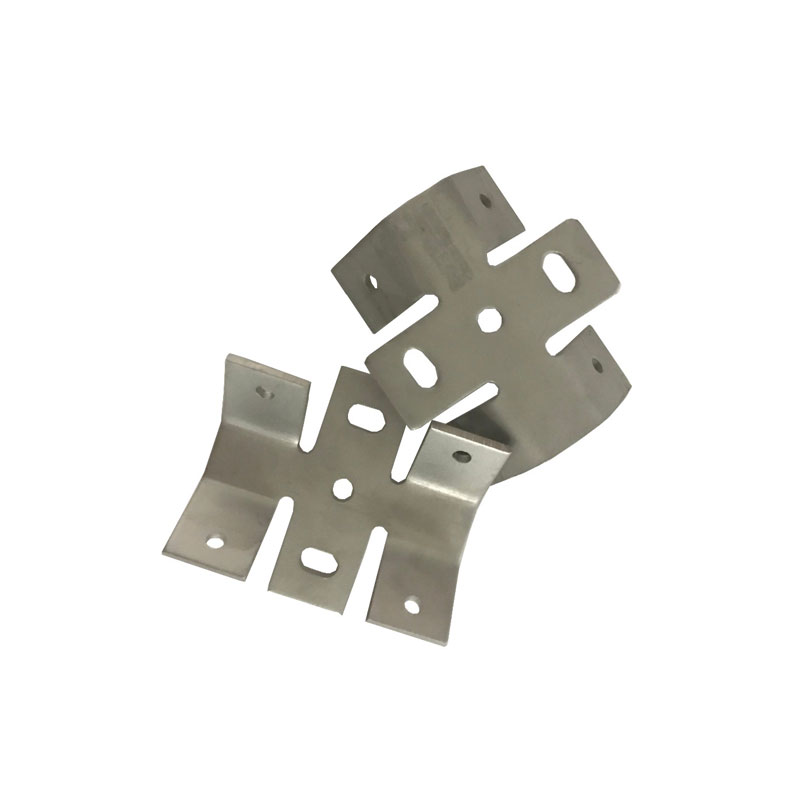

Solar Metal Roof Clamps for Corrugated Tin Zinc Roofing, Bottom Mounting
- Product Type: solar corrugated metal roof mounting clamps
- Product Model: Solar-Corrugated-Tin-Zinc-Metal-Roof-Clamp-Bottom-Mounting
- Material: Alum, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Tin zinc Metal Roofing Solar Panels Installation
Product Description :
This corrugated metal roofing clamp is mounted on crest of roof ridge .
We supply four pieces of rubber gasket pads to prevent rain waters go through bracket holes after solar panels installed .
Using four units of stainless steel Hex Washer Head screws as fasteners .
Strong enough to support roof material .
This zinc metal roof clamp , straddling the roof ridge, match the tin metal roofing profile well.
Simply wipe away ,dust, oil and debris, align, and apply for this metal roof bracket .
Perfect match for PV kit by using our solar mounting kits for aluminium rails .
Our bottom mounting tin metal roofing clamps is economical, quick and easy installing.
It’s a perfect solution for most common metal roof mounting.
With factory-applied rubber pads, water-proof become easy, no messy sealents ,makes installation easily with our solar metal roofing clamps.
- Installation is simple ;
- No surface clearing is necessary;
- Strongly and securely fasten by screws or rivets through holes ;
- Excellent matched for other ancillary solar mounting kits

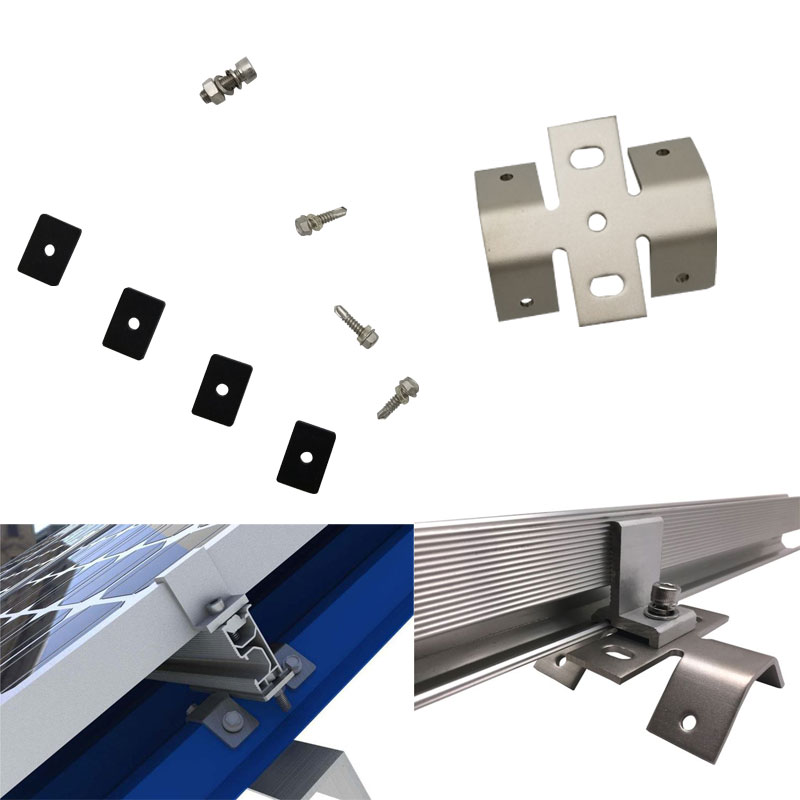

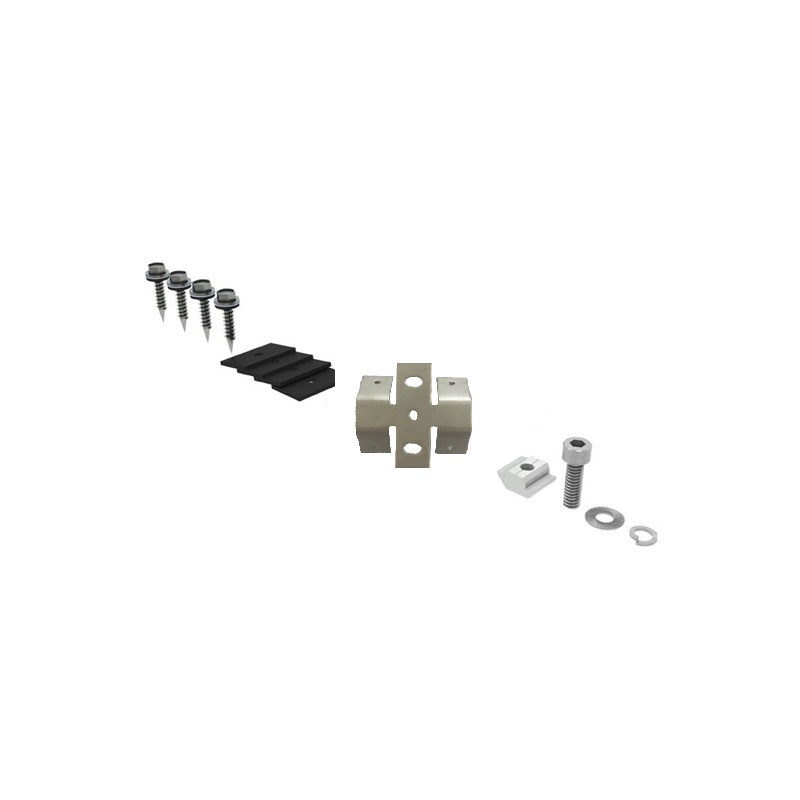

Parts and Components for Bottom mounting corrugated Metal Roof clamps for Solar Panels :
a) one solar bottom mount clamp for corrugated metal roofs ;
b) 4 pieces of rubber gasket seal pads ;
c) 4 pieces of fasten screws ;
d) one set of solar mounting kits for alum rail . ( Optional )
|Brief Descriptions :|
|Solar Metal Roof Clamps for Corrugated Tin Zinc Roofing, Bottom Mounting|
|Item type:||Solar Metal Roof Brackets|
|Type :||Solar Roofing Bottom Mounting Clamps|
|Installation Site :||Corrugated Metal Roofing|
|Profile Material :||Aluminium 6005- T5+ SUS 304|
|Fasten Parts :||Stainless Steel|
|Color :||Silvery or according to customer requirements|
|Wind Load :||60 m / s|
|Snow Load :||1.4 KN / M2|
|PV Modules :||Framed, Frameless|
|Module Orientation :||Portait and Landscape|
|Standards :||AS/NZS 1170|
|JIS C 8955 : 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed Life Span||25 years|
|Packing Details :|
|Inner :||Bubble bag+inner box+Carton|
|Outer :||Wooden Box, Steel Pallet, MDF, etc|
Metal Sheet Solar Mounting Clamp, bottom mounting installation More details kindly check >>>
Metal Sheet Solar Mounting Clamp, bottom mounted installation

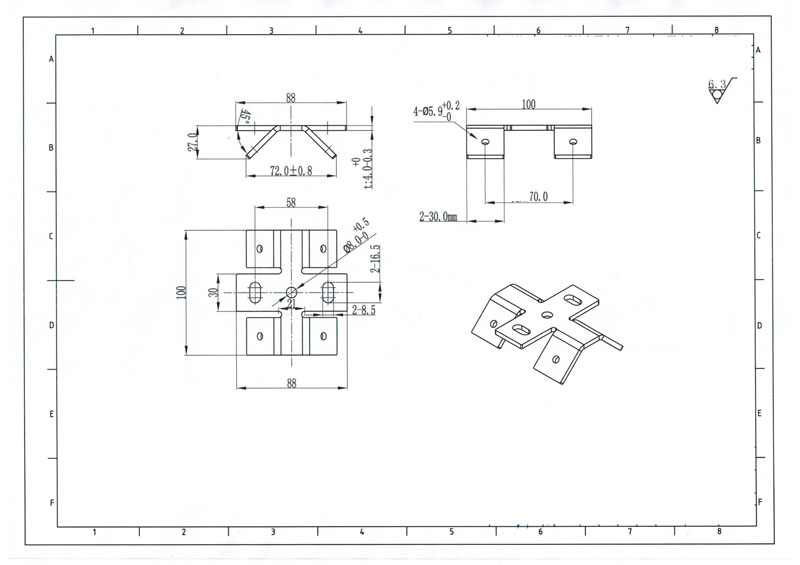

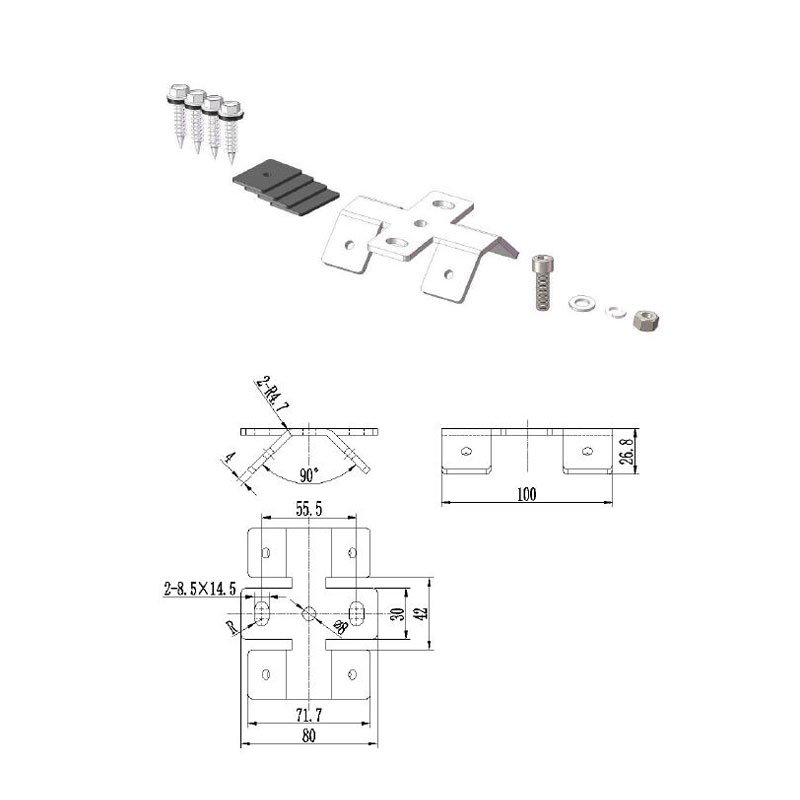

Solar Trapezoid Metal Roof Clamps Bottom Mounted Drawing Size Profile
– Designed for metal sheet rooftops, SUS 304 stainless steel, high durable ;
– Matched with L-Foot kit for various metal roof racking systems ;
