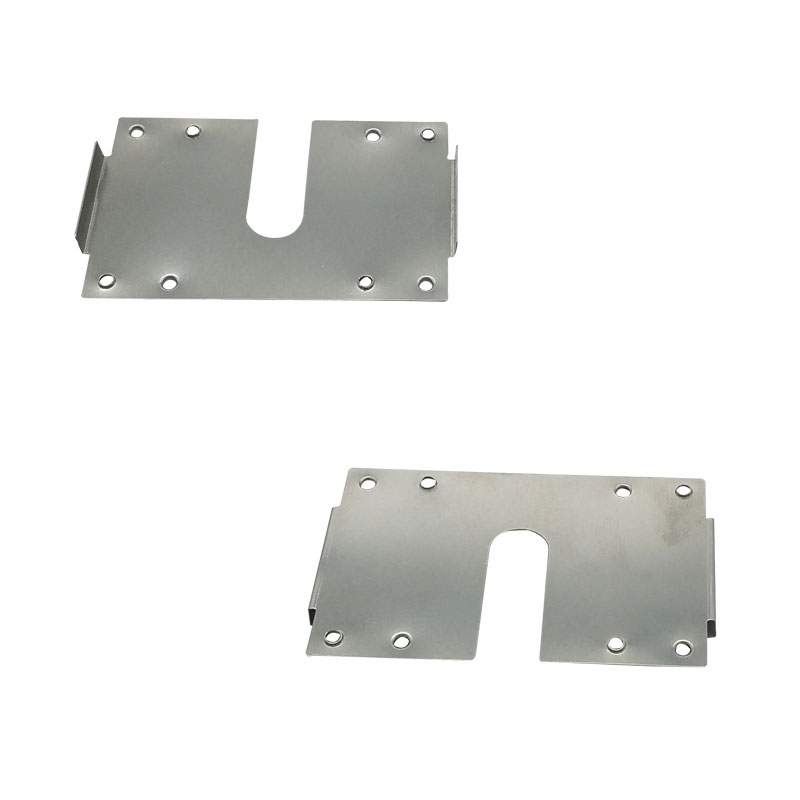

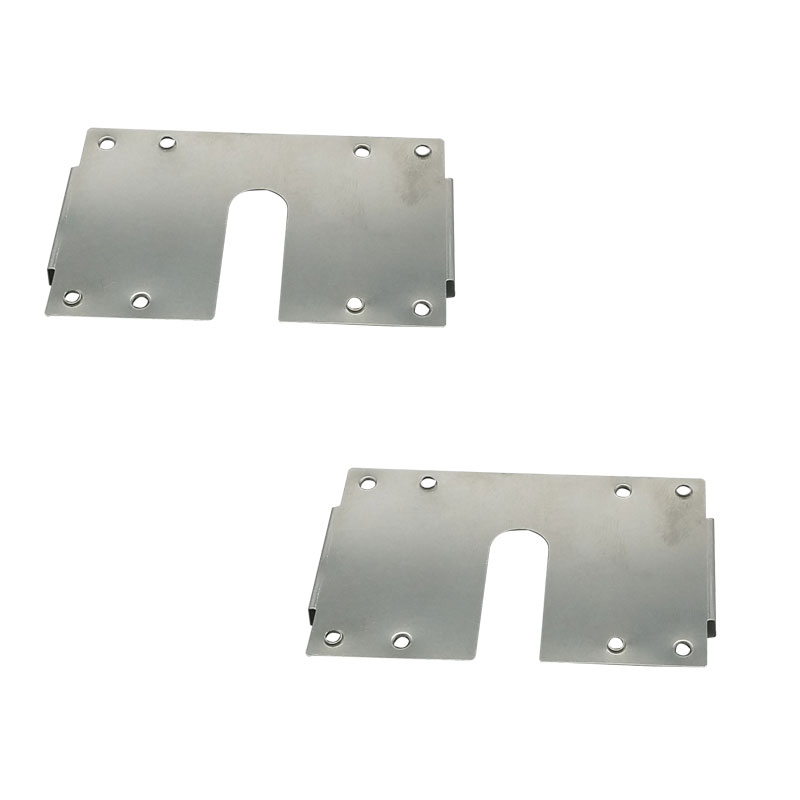

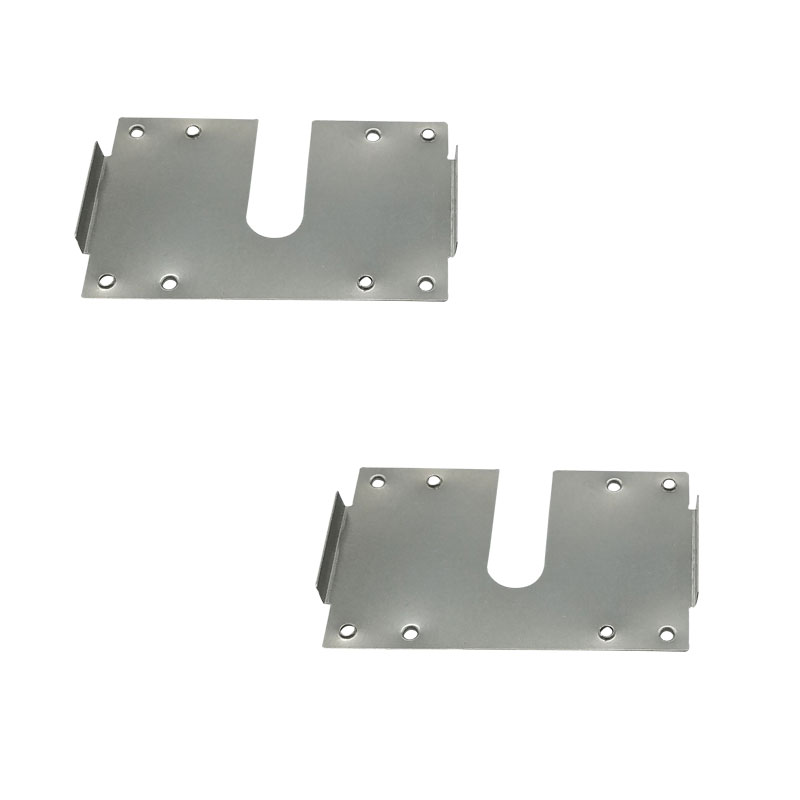

PV Module Grounding Clips SPC-GW-10

Product Description :

Model : PV-Module-Grounding-Clips-SPC-GW-10

PV module grounding clips modelSPC-GW-10 is a kind of new array grounding methods ,
by using this ground washer , it can bond solar panels to aluminium rails .

The protrusions of SPC-GW-10 solar grounding clips can pierce anodized of racks and solar frames, creating an conductive path to ground .

PV grounding system play an very import roll in ensure safety of public , electricians, installers, maintainer …
Grounding clip is essential but easy for ignoring in quality .

Advantages :

– Bonding Metallic frames and PV modules with penetrating clip teeth ;
– Reduce labor and materials in solar mounting projects ;
– Simple and less cost by using this 17Q photovoltaic electrical clips ;
– Conjunction mid / end clamps with PV modules with 17Q washer plate ;

PV Module Grounding Clips for Solar Panel Racks
Model Number :	PV Module Grounding Clips 17Q
Material	304 SUS Steel
Specification	As per drawing / OEM
Application	Photovoltaic Panels earthing Parts
Warranty	10 years
Sample	3 working days
Delivery Date	One week
Type	solar panel grounding clips
Duration	20 years up



Different type of guide rails and Clamps need different type of grounding washer, we are professional solar grounding washer manufacturers, provide more models of photovoltaic panel grounding washer.  Our professional engineers and sales team provide the best service for your solar installation, please visit our website for more information : www.SolarPartsComponents.com.



Brief Descriptions :
PV Modules Grounding Clips for Solar mounting earthing kits
Item type:	Solar Panel Grounding Components
Technical Parameters :
Installation Site :	Solar mounting racks
Profile Material :	304 Steel Stainless
Color :	Mill finish
Wind Load :	60 m / s
Snow Load :	1.4 KN/M2
Module Orientation :	Portrait / Landscape
Standards :	AS/NZS 1170
	DIN 1055
	GB50009-2012
	IBC2009
	TUV
	JIS C 8955 : 2011
	International   Building Code IBC 2009
	California   Building Code CBC 2010
Warranty	10 years
Designed Life Span	25 years
Packing Details :
Inner :	Bubble bag+inner box+Carton
Outer :	Wooden Box, Steel Pallet, MDF, etc
