Electrical Clips Solar Mounting Components
- Product Type: Solar Panel Earthing Systems Hardware
- Product Model: PV-Module-Electrical-Grounding-Clips-14N
- Material: Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Solar Panels Installation
Product Description :

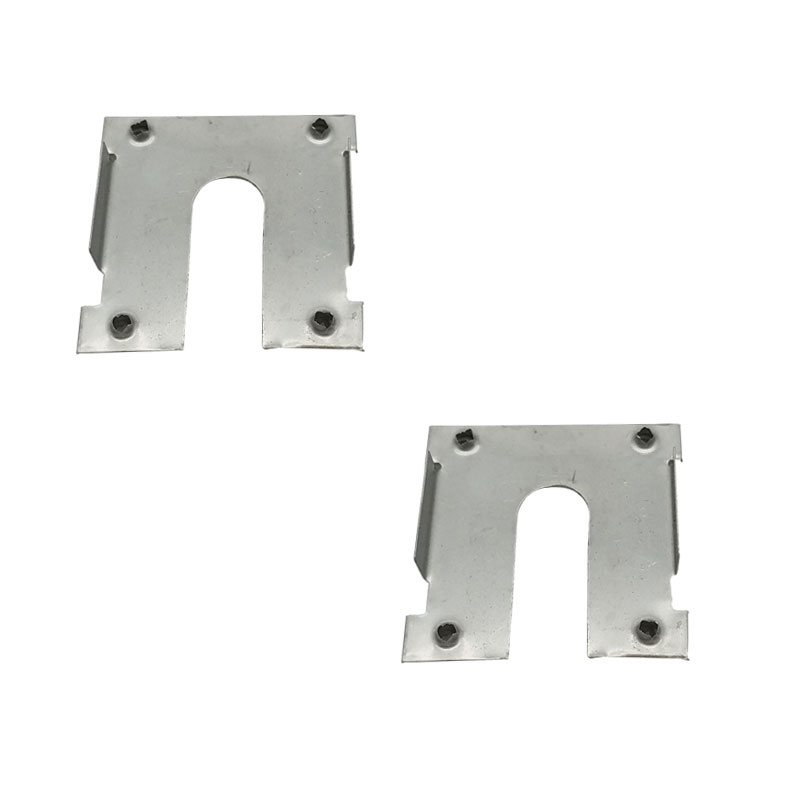

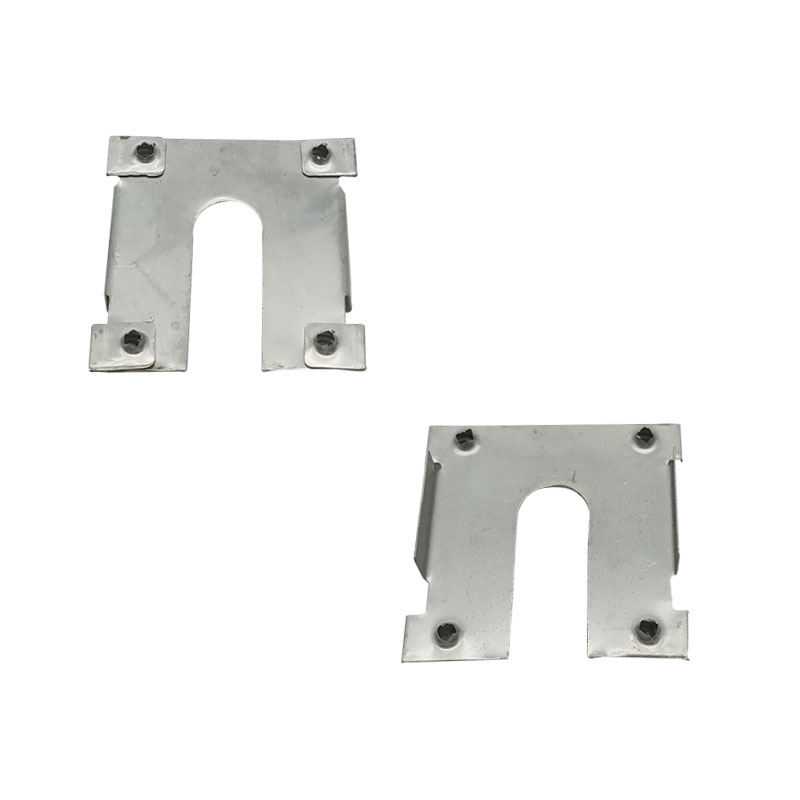

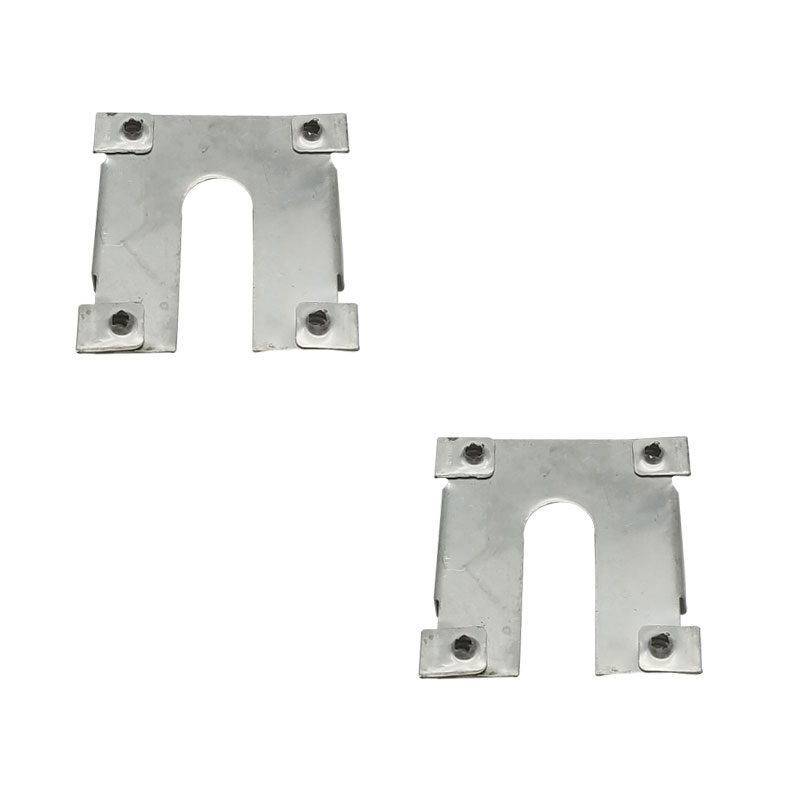

Model : PV-Module-Grounding-Electrical-Clips-14N
Photovoltaic module grounding eldctrical clips (14N) is made for solar earthing systems .
This PV grounding clip is a essential piece to establish an parth for grounding fault current .
This solar clips – 14N creates grounded between potential current-carrying solar frames and mounting racks .
Our 14N grounding washer work as middile conductor which connect photovoltaic modules and aluminum racks ,
it’s a new earthing method comparing traditional one .
Four holes on the 14N grounding clip can punctrue non-conductive coating surfaces of rails ,which can make one path to let electric go through .
SUS 304 stainless steel in material for all our earthing plates, good performance in outdoor application and severe electric circumstance like galvanic influences .
It’s recommended using anti-oxidation compounds between conductor surface and aluminum point which is penetrated .
Advantages :
– Quick fixing for grounding and bonding solar installatioin projects;
– Prevent risks and dangers from fault current ;
– Fixing solar panels via alum racking with clamps and grounding clips ;
– Adequate connecting between aluminum rails and PV modules ;
– Matched with unique aluminum extruded basbar rails ;
– Well breach aluminum rails by holes on grounding clip – 14N ;
– Piercing aluminum coating with grounded washer nibs ;
PV Module Electrical Grounding Clips for Solar Racks | |
Model Number : | PV-Module-Electrical-Grounding-Clips-14N |
Material | 304 Steel |
Specification | As per drawing / Tailored |
Application | Solar panel mounting Parts |
Warranty | 10 years |
Sample | Available |
Delivery Date | 3 working days |
Type | solar panel grounding washers |
Duration | 25 years |
Brief Descriptions : | |
PV Module Grounding Electrical Clips for solar earthing kits | |
Item type: | PV Modules Grounding Components |
Technical Parameters : | |
Installation Site : | Solar Panel Racking |
Profile Material : | SUS 304 Stainless Steel |
Color : | Anodized coating |
Wind Load : | 60 m / s |
Snow Load : | 1.4 KN/M2 |
Module Orientation : | Landscape / Portrait |
Standards : | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C 8955 : 2011 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed Life Span | 25 years |
Packing Details : | |
Inner : | Bubble bag+inner box+Carton |
Outer : | Wooden Box, Steel Pallet, MDF, etc |
How to using this PV Module Grounding Electrical Clips 14N Components ?
