Solar Grounding Mounting Components
- Product Type: Solar Panel Earthing Systems Hardware
- Product Model: PV-Module-Earthing-Ground-Plate-21U
- Material: Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Frame Solar Panels Installation
Product Description :

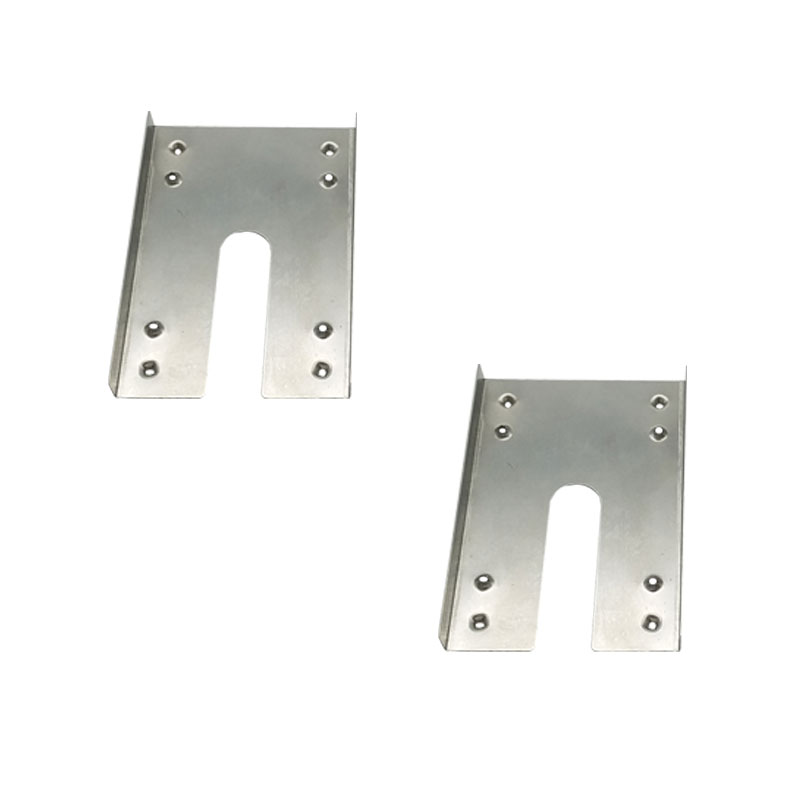

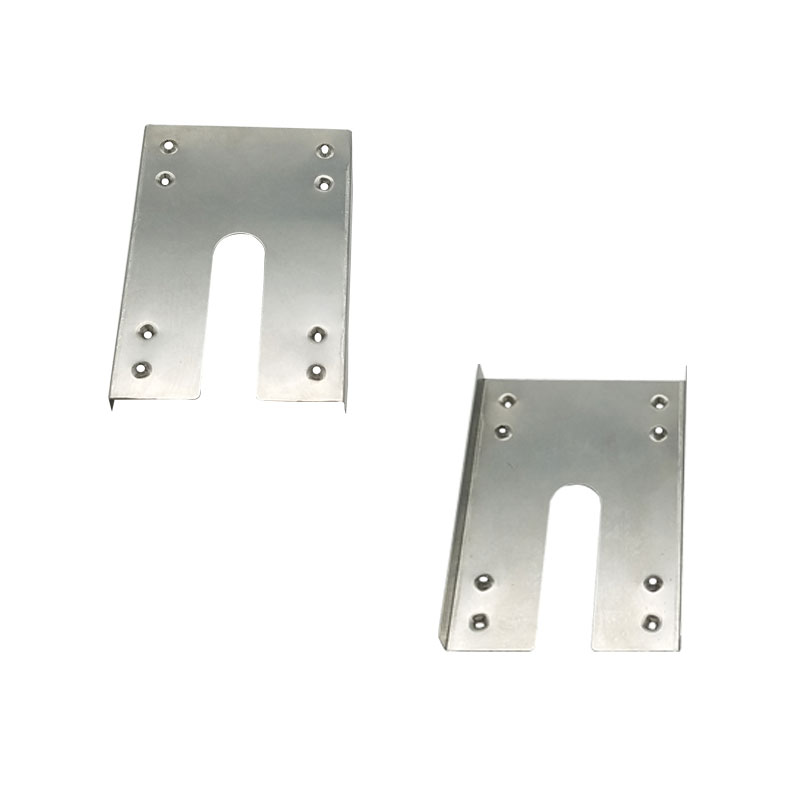

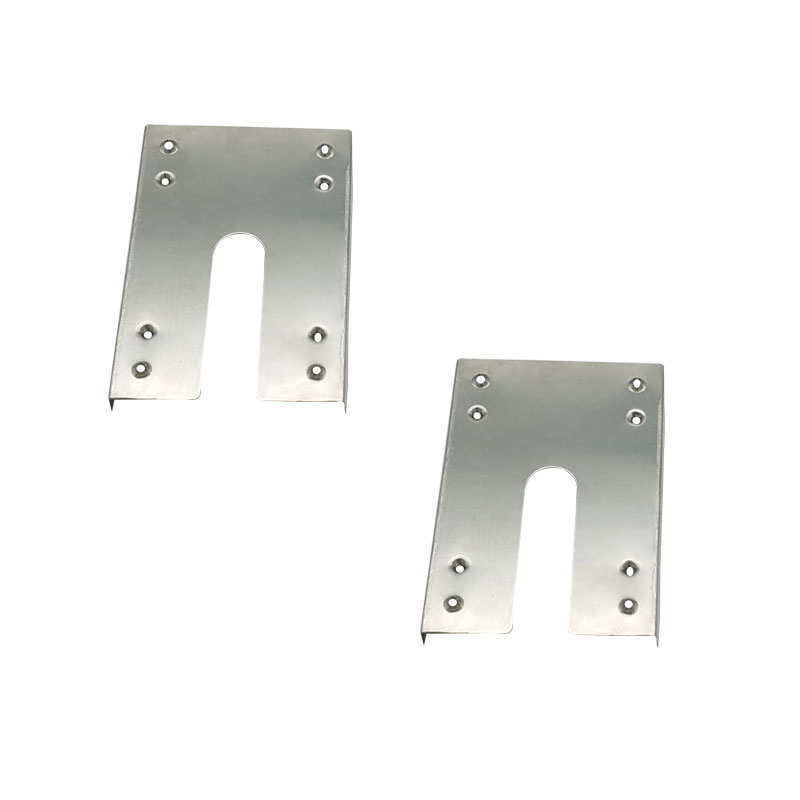

Model : PV-Module-Earthing-Ground-Plate-21U
This 21U stainless SUS 304 plate is used for connecting solar panels and aluminum rails .
Earthing is very important for any solar panel plants . This grounding plate can bond solar panel frames / middle clamp / mounting system
together by sharp teeth , generate conductive path to earth ground .
Don’t need to set up earthing system by ground wires for each panels, just embed our 21U ground plate into conductive metal surfaces .
Advantages :
– 21U grounding clip is accordance national earthing standard requirements;
– Quickly and easily fixing PV modules and aluminum racks;
– Secure firmly PV modules with alum mounting structure by our 21U grounding plate;
– Reliable and ecomonic method by using this earth wahser ;
– Waterproof SUS 304 rated , can be used for outdoor ;
– Lightning & high tension / current protecting ;
PV Module Earthing Ground Plate for Solar Panel Racking | |
Model Number : | PV-Module-Earthing-Ground-Plate-21U |
Material | Stainless Steel SUS 304 |
Specification | As per drawing / Customized |
Application | Solar Panel Grounding Parts |
Warranty | 12 years |
Sample | 5 working days |
Delivery Date | 1 -2 weeks |
Type | solar panel earth washer |
Duration | 25 yrs |
Brief Descriptions : | |
PV Module Earthing Ground Plate for Solar panel mounting earthing kits | |
Item type: | Solar Panel Grounding Components |
Technical Parameters : | |
Installation Site : | Photo-voltaic module mounting rail |
Profile Material : | 304 Steel Stainless |
Color : | Mill finish |
Wind Load : | 60 m / s |
Snow Load : | 1.4 KN/M2 |
Module Orientation : | All Directions |
Standards : | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C 8955 : 2011 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed Life Span | 25 years |
Packing Details : | |
Inner : | Bubble bag+inner box+Carton |
Outer : | Wooden Box, Steel Pallet, MDF, etc |
How to using this PV Module Earthing Ground Plates Components ?
