Curved Tile Roof Bracket, adjustable, Side Mounted
- Product Type: Solar Curved Tile Roof Brackets
- Product Model:SPC-IK-05
- Material: Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Clay Tile Roof Installation
Product Description:
Nowadays, more and more people DIY the idle roof. So, what kind of choice is the right one? Of course, choose a solar installation system suitable for your roof. The solar roof installation system designs different hooks and flashing according to different roofs, not only is it sturdy and reliable to install on the roof, but also ensures high-efficiency waterproofing.
Our high-quality stainless steel solar panel roof brackets SPC-IK-05 can easily install solar energy on tiled roofs without cutting the tiles. The number of roof hooks required for a particular system design can always be easily calculated and meets building standards.
Solar modules can be installed easily, quickly and efficiently. After inserting the module into the aluminum profile, the module is fixed in place by its own weight and friction. The photovoltaic module does not need to be screwed in. The practical design of the hook allows you to easily install it simply by fixing the wood screw on the wooden beam and fixing the hook and the guide rail with a clip. No need to drill.
The tile roof hook is a complete accessory solution series for tile roofs. The solar roof bracket SPC-IK-05 adopts a unique technology, and compared with the traditional tile hook, the strength is increased to improve the span and eliminate the broken tiles.
Feature of solar roof bracket SPC-IK-05:
1. Suitable for Spanish tiles;
2. High-quality solar panel roof installation accessories;
3. Aluminum rail for side installation;
4. Quick installation without pressure;
5. The hook base provides three adjustment points, providing greater flexibility;
The pv module roof bracket SPC-IK-05 reduces material, manufacturing and type design to achieve maximum capacity and optimal handling. Hooks with new functions for solar tile roof installation or additional height adjustment.
The SPC solar mounting system is easy to install and is designed for maximum convenience. With universal design and special shape, it is suitable for Clay/Roman/curved tile roof hook, equipped with stainless steel wood screw kit, and has a sandblasted stainless steel finish. If you have any needs, please feel free to contact us: www.solarpartscomponents.com.
| Brief Descriptions: | |
| Solar Roof Mounting Hooks – SPC-IK-05 | |
| Item type: | Solar Rooftop Mounting Bracket |
| Type: | SPC-IK-05 |
| Installation Site: | Tile Roofing Top |
| Profile Material: | A2 / SUS304 |
| Fasten Parts: | Timber Screws / Expansion Bolts |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |

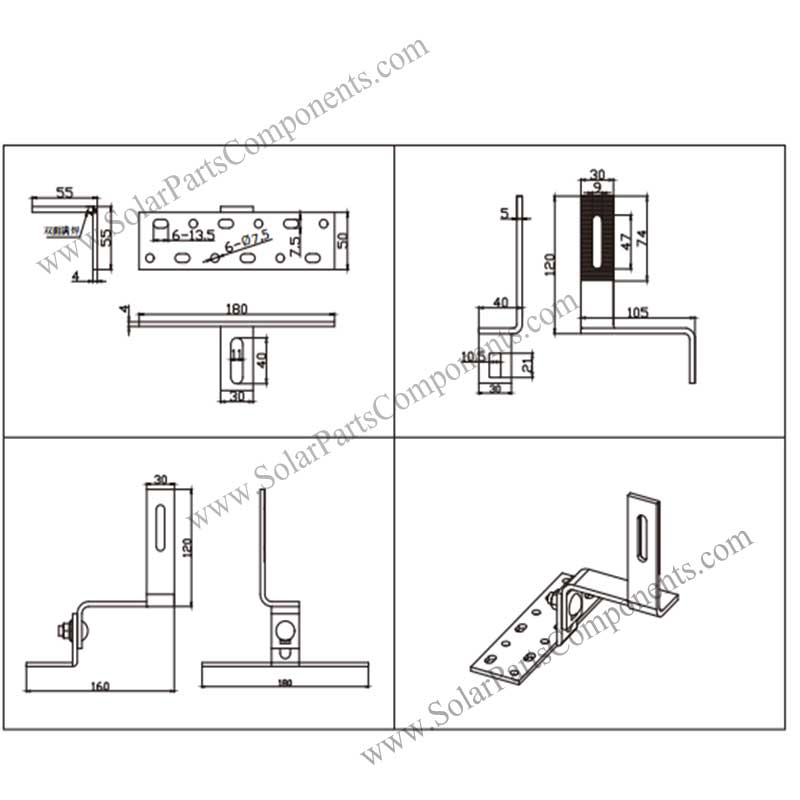

Installation Manual for Solar Roof Hooks SPC-IK-05
side mounted of solar tile roof hooks
Q:
Anfrage von 18 Stk
Montagehalterungen fur Solarziegeldacher zur seitlichen Montage, SPC-IK-05
A:
For details, see attached.
Q:
what is the shipping date?
Can you please let us know how much time does it take to receive this samples once we’ve done the payment?
Thank you！
A:
We will arrange the shipment in 2 to 3 work days after we receive the payment.
And usually the express delivery will take around 1 weeks.
Just let me know when you arrange the payment.
Thank you and have a nice day!
High quality material
Solar tile roof mounting hooks
Description：
Side mounting adjustable roof hook can be adjusted, and the solar panel installation direction can be installed horizontally or vertically. The product is strictly processed through layers of technology, the internal structure is compressed with high strength, and has the characteristics of high hardness and strong corrosion resistance. The product has a wide range of applications and can be applied to different climate regions.
Product Data：
—SUS304 material;
—Total weight 0.554KG;
—Includes hook base plate, hook upper part, M10*25 screws, SUS304 flange nut M10.
Product feature：
—High strength, corrosion resistance;
—No limit plate direction, horizontal row/vertical row;
—21mm adjustable range at the bottom;
—The versatility is wide.
Product details：
Side mounting adjustable roof hook is suitable for the side installation of the slanted roof solar support system, and the upper height of the hook is precisely calculated, which can be used for the installation of Spanish tile, Roman tile, curved tile roof and other components. The bottom has an adjustable range of 21mm, which can be adjusted according to the thickness of different components, and the requirements for component installation are loose and adaptable.
Side mounting roof hook supplier in the production and processing process in strict compliance with industry standards, according to the 25 year life period and 10 years of shelf life standards, after the completion of all the process will be the product quality sampling and other links, product quality is guaranteed, you can rest assured to buy.

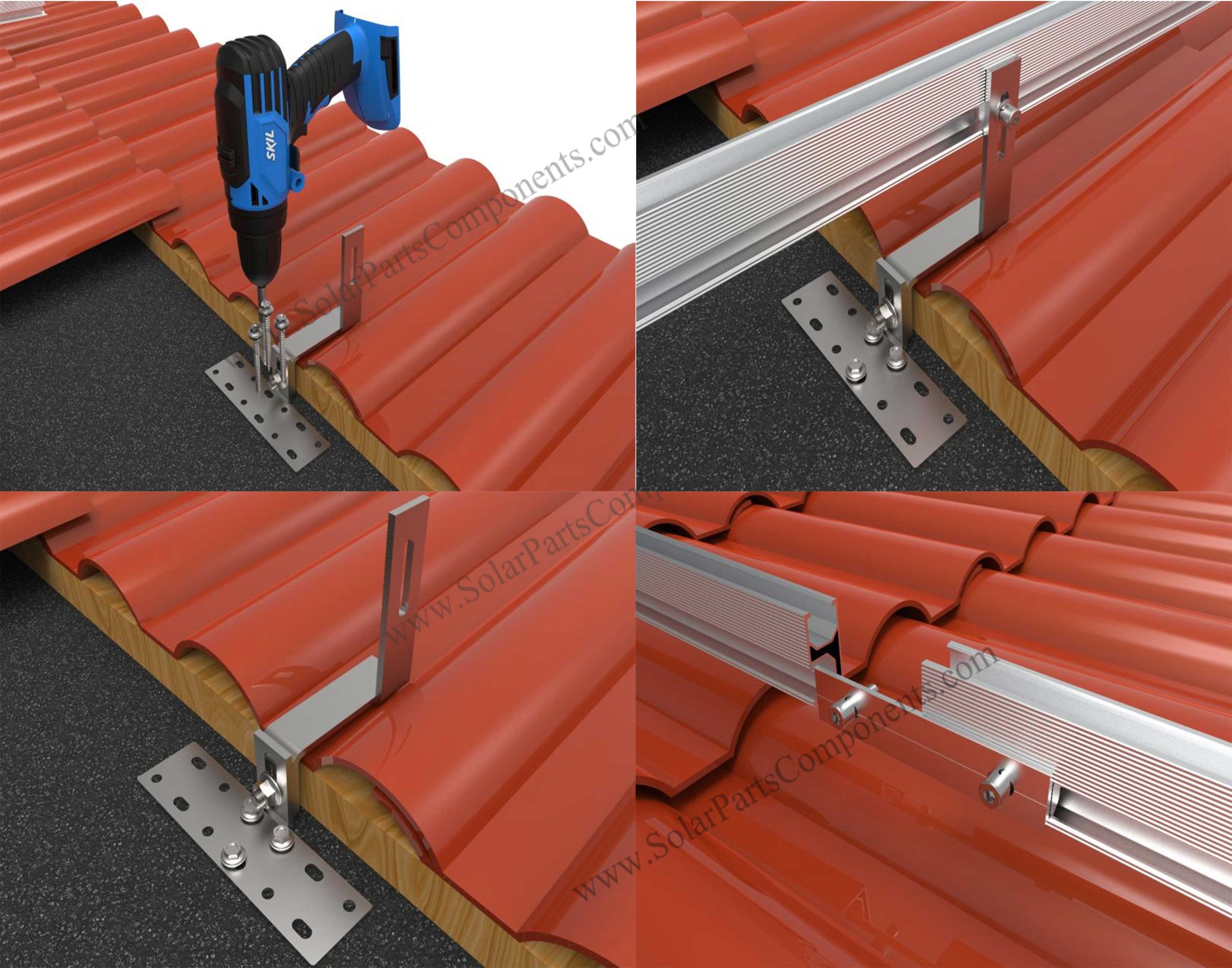

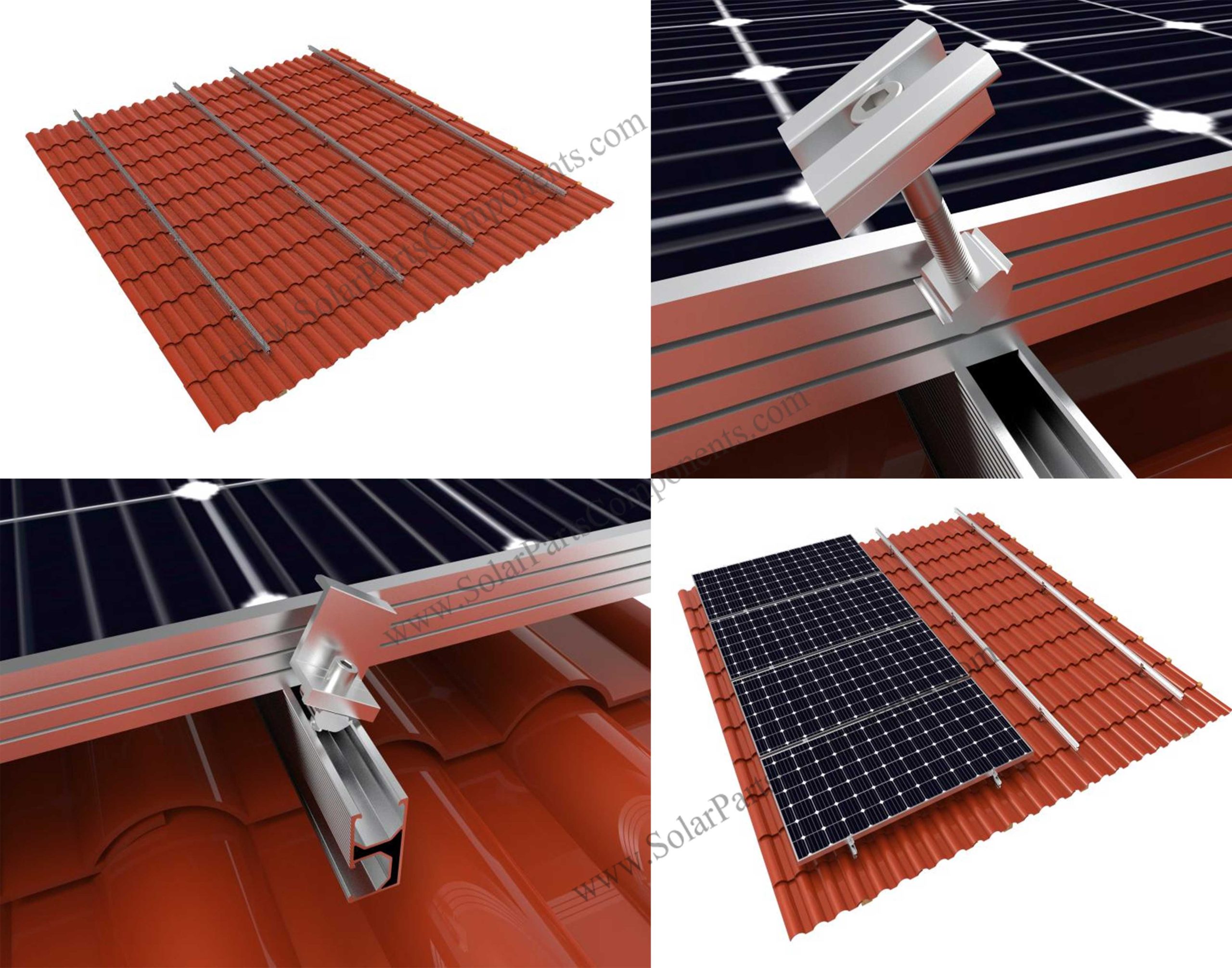

Installation method：
—Confirm the installation point of the hook according to the size of the construction drawing, and fix the hook on the main beam with three sets of ST6.3*80 wood screws;
—Install the track on the No. 5 stainless steel hook with the block bolt assembly of M8*25;
—Use rail connectors to connect the rail to the rail, then insert it into the groove behind the rail, and lock it with bolts;
—Lock the rail and the hook;
—Put the solar panel vertically (horizontally) on the two rails, and lock it with end clamp and mid clamp.
Side mounting adjustable roof hook, it can also be used for horizontal and vertical solar panel installation.
Side mounting roof hook supplier
Solar tile roof mounting brackets for side mounted
SPC solar tile roof mounting brackets is an affordable,simple roof attachment for mounting PV modules on tile roof.
Solar tile roof mounting brackets for side mounted
It can work work with most types of pitched tile roofing.This model is designed as bottom adjustable, makes more flexible and easy to intall the solar panels. Adjustable aluminium roof hooks with pre-assembled components, save on site installtion time.
Solar tile roof mounting brackets for side mounted
SPC solar tile roof mounting brackets is an affordable,simple roof attachment for mounting PV modules on tile roof.
Solar tile roof mounting brackets for side mounted
It can work work with most types of pitched tile roofing.This model is designed as bottom adjustable, makes more flexible and easy to intall the solar panels. Adjustable aluminium roof hooks with pre-assembled components, save on site installtion time.
How to using this Solar Curved Tile Roof Bracket ?
How to install this Solar Curved Tile Roof Bracket ?
This Solar Curved Tile Roof Bracket products are installed with medium pressure, side pressure, track and track connectors. Clean the tile roof surface during installation, and fix the hook with three wood screws;
The upper part of the track is installed on the hook with M8*25 clamp bolt assembly; The track is connected with the track connecting piece; Between the solar panel and the track, the medium pressure block (side pressure block) and the clamp block are fixed.
