Solar Mounting Earthing Components
- Product Type: Solar Panel Grounding Mounting Hardware
- Product Model: Photovoltaic-Panel-Grounding-Clips-19S
- Material: Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Solar Panels Installation
Product Description :

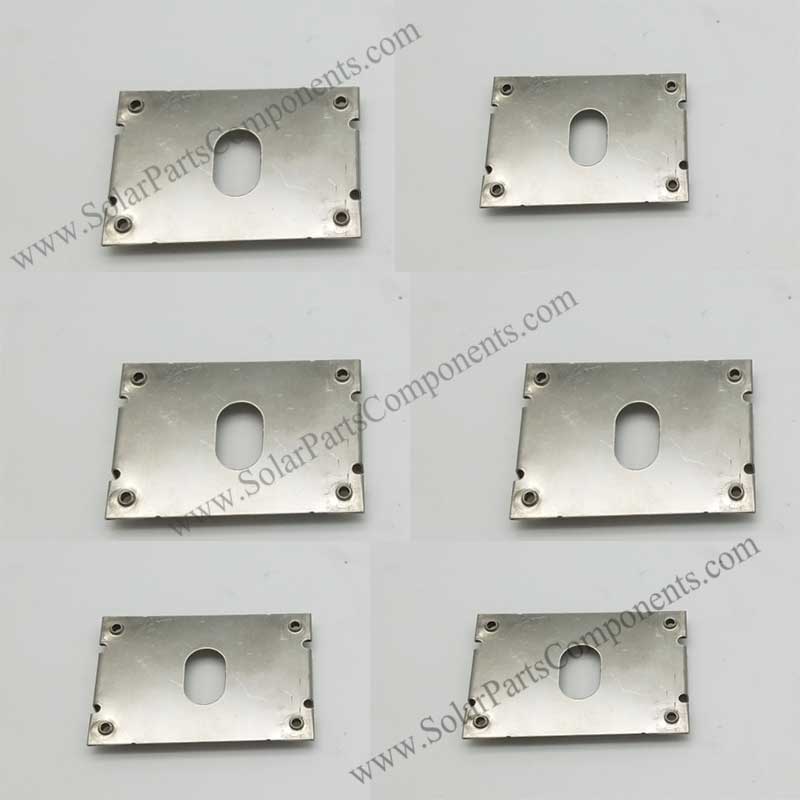

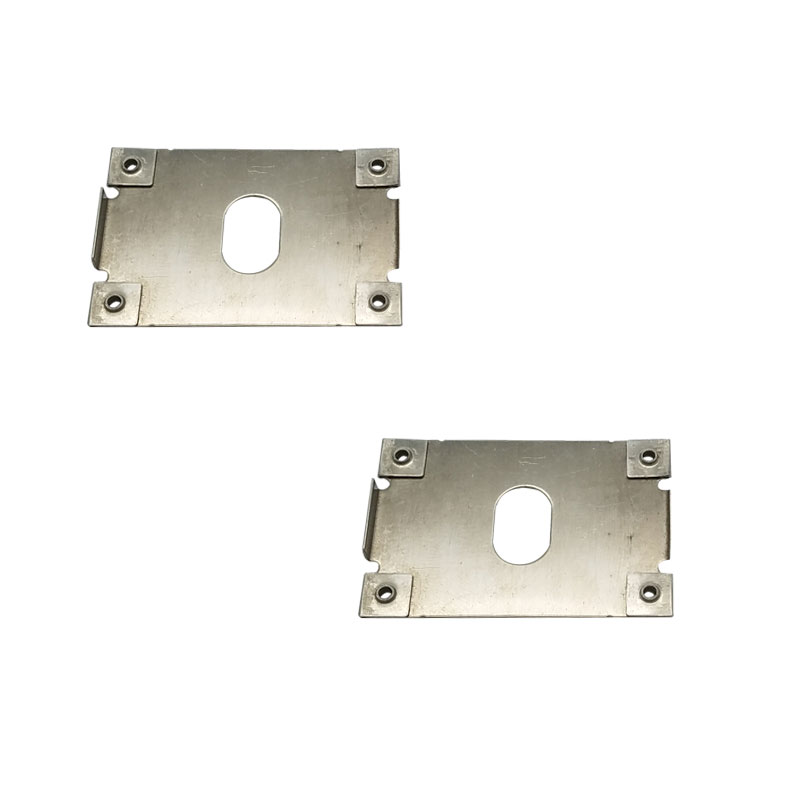

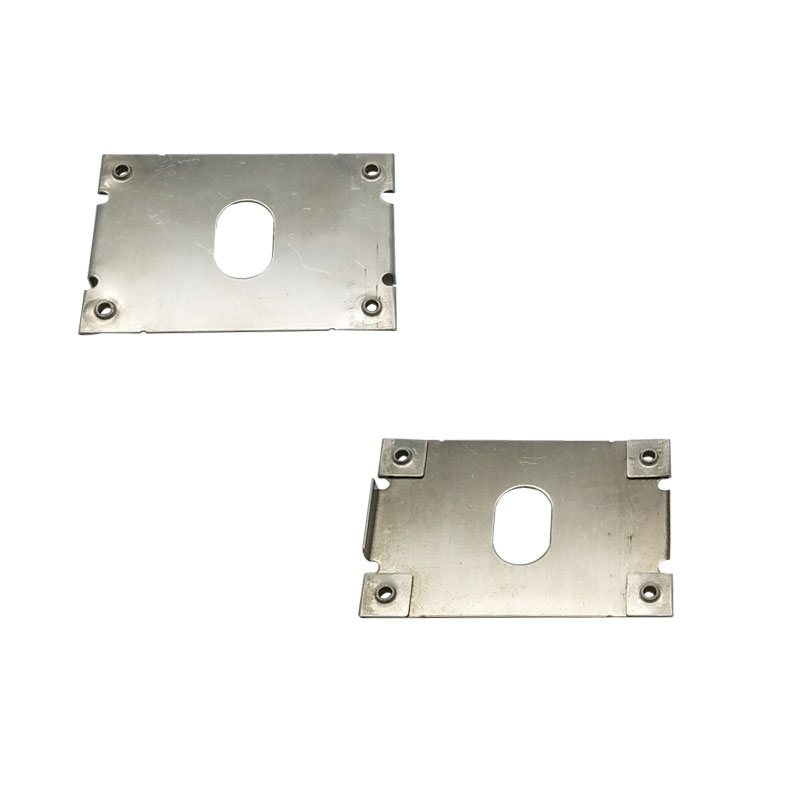

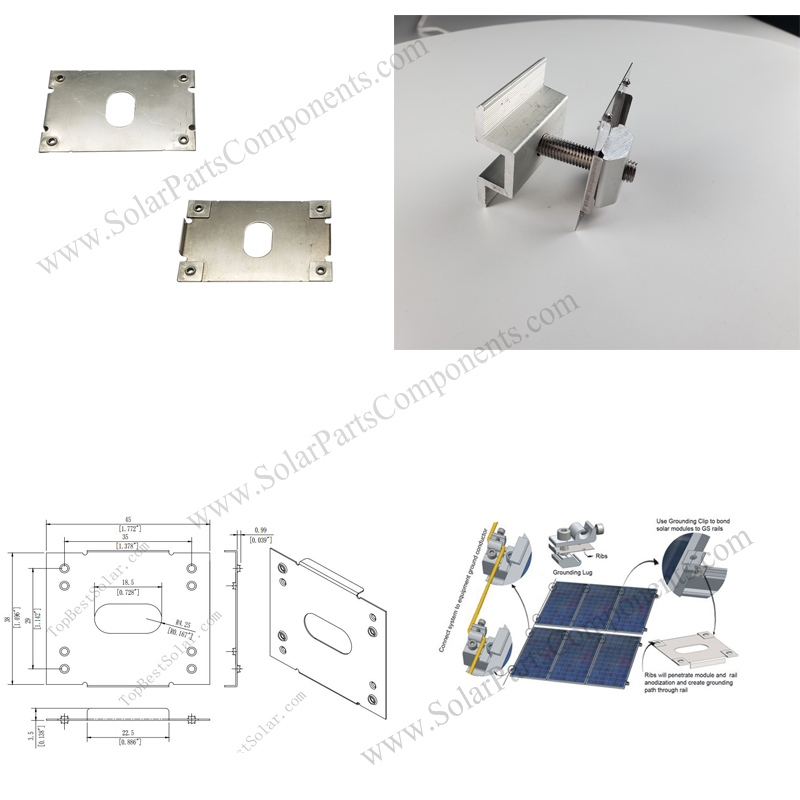

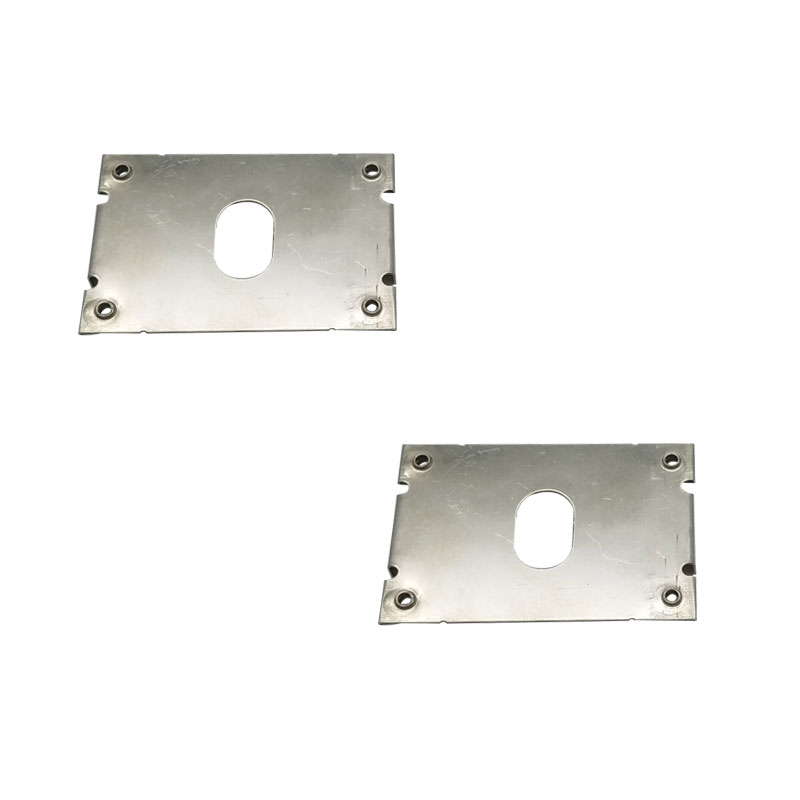

Model : Photovoltaic-Panel-Grounding-Clips-19S
19S photovoltaic module clips is designed to match solar panel frames with mounting rail systems .

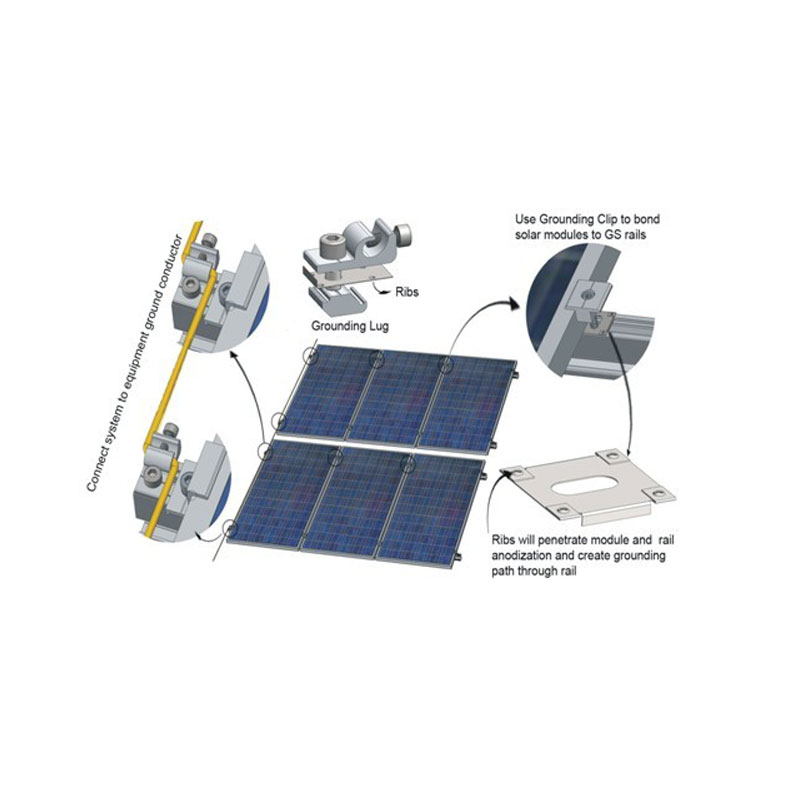

Bonding one piece of grounding clip Model 19S with one mid clamp , it’s updated method for module grounding .
We accept custom design according to aluminum rail extrusion profile because of factory direct service .
So that stainless steel grounded washers can accommodate different requirements .
Gas-tight bonds by sharp teeth between clamps and rack surface, this 19S photovoltaic (PV) module grounding clips can prevent solar power
station from lightning devastation .
Advantages :
– Diverse selection of grounding clips for options;
– Saving labor and cost comparing old connecting frames / wires to grounding lugs ;
– Well conducting performance by using 19S PV module earthing plate ;
– SUS 304 stainless steel , anti-corrosion, with long life service ;
Photovoltaic Panel Grounding Clip for PV Module Racks | |
Model Number : | Photovoltaic-Panel-Grounding-Clips-19S |
Material | Stainless 304 Steel |

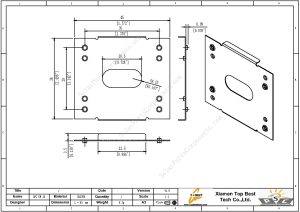

Specification | As per drawing / OEM |
Application | Solar Panel Grounding Parts |
Warranty | 15 years |
Sample | 7 working days |
Delivery Date | One – Two week |
Type | solar panel grounding washer |
Duration | 25 years |
Brief Descriptions : | |
Photovoltaic Panel Grounding Clips for Solar mounting earthing kits | |
Item type: | PV Panel Grounding Components |
Technical Parameters : | |
Installation Site : | Solar panel mounting racks |
Profile Material : | 304 Steel Stainless |
Color : | Mill finish |
Wind Load : | 60 m / s |
Snow Load : | 1.4 KN/M2 |
Module Orientation : | All Directions |
Standards : | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C 8955 : 2011 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed LifeSpan | 25 years |
Packing Details : | |
Inner : | Bubble bag+inner box+Carton |
Outer : | Wooden Box, Steel Pallet, MDF, etc |
How to using this Photovoltaic module Grounding Clips Components ?
