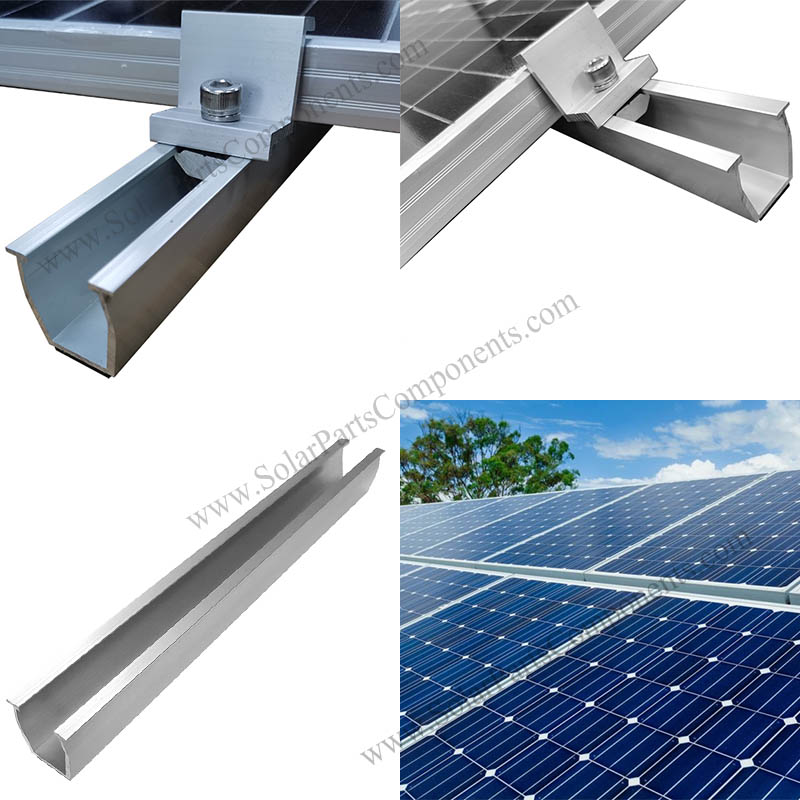

High-Strength, Corrosion-Resistant Aluminium Rails for Solar Mounting
Solar Parts Components manufactures high-strength aluminium solar rails for rooftop, ground-mounted, and BIPV mounting systems.
Made from AL6005-T5 aluminium alloy with anodized surface treatment, our solar mounting rails provide excellent corrosion resistance, lightweight installation, and reliable structural performance for residential, commercial, and utility-scale solar projects.
We provide OEM/ODM service, customized rail lengths, and complete mounting component solutions for installers, EPC contractors, and solar distributors worldwide.
Key Features of Aluminium Solar Rails
| Feature | Benefit |
|---|---|
| AL6005-T5 Aluminium Alloy | High strength-to-weight ratio |
| Anodized Surface Treatment | Improved corrosion resistance |
| Multiple Length Options | Flexible installation for different roof spans |
| Custom Extrusion Service | OEM project support |
| Pre-Assembled Components | Faster on-site installation |
| Compatible Mounting Components | Easy system integration |
Technical Specifications
| Parameter | Specification |
| Material | AL6005-T5 Aluminium |
| Surface Finish | Anodized (Silver / Black) |
| Length | 2560 mm / 3405 mm / 4200 mm / Custom |
| Max Wind Load | 60 m/s |
| Max Snow Load | 3.6 KN / M 2 |
| Application | Roof / Ground / BIPV Mounting |
| Service Life | 25+ Years |
Applications of Aluminium Solar Rails
1. Residential Solar Roof Mounting
Suitable for tile roofs, metal roofs, and asphalt shingle roofs, providing a secure and low-profile mounting structure for home PV systems.
2. Commercial Solar Projects
Widely used on warehouse and factory rooftops, where large-span installations require rails with proven wind and snow load performance.
3. Ground-Mounted PV Systems
Suitable for solar farms and utility-scale ground mount projects that require long-term structural stability.
4. Solar Carport Structures
Suitable for commercial parking areas and solar carport projects requiring durable aluminium support structures.

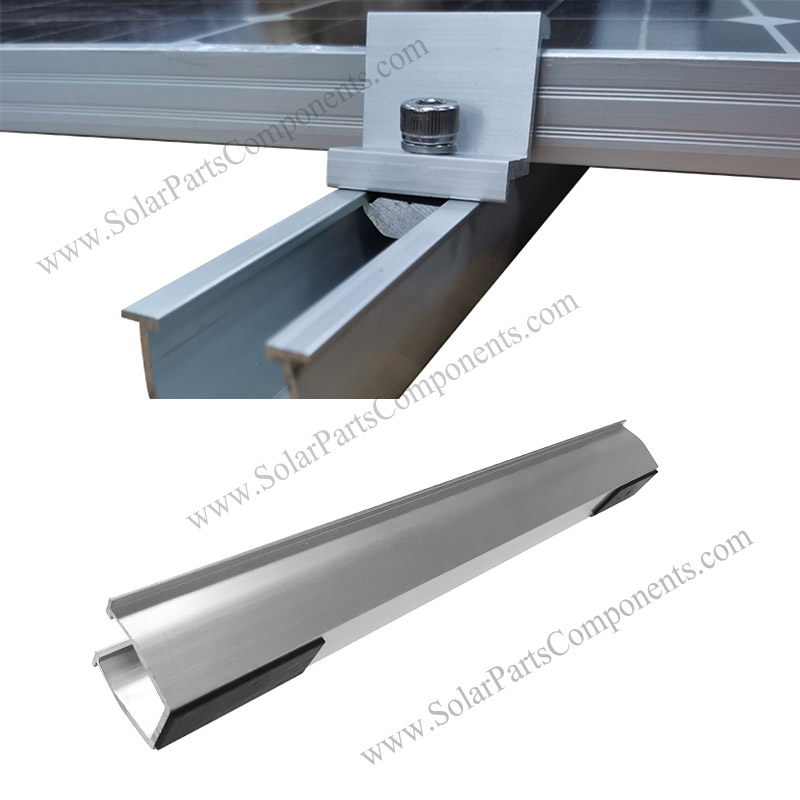

It perfectly matches with mid clamps, end clamps, and roof hooks for metal or tile roofs.
Compatible Accessories
Our aluminium solar rail system is compatible with the following components:
Why Choose SPC Aluminium Solar Rails?
✓ 10+ years experience in solar mounting solutions
✓ Factory direct aluminium extrusion supply
✓ OEM/ODM customization capability
✓ Complete mounting components supply
✓ Support for global EPC and distributor projects
FAQs about Aluminium Solar Rails
Q1: Can aluminium solar rails resist corrosion?
Yes. All our rails are anodized to ensure superior corrosion resistance even in coastal or humid environments.
Q2: What is the load capacity of your aluminium solar rails?
The load capacity depends on rail profile, span distance, and project-specific conditions. Solar Parts Components aluminium solar rails are engineered according to project wind and snow load requirements, and are suitable for residential, commercial, and industrial-scale PV applications.
Q3: Do you offer customized lengths or hole patterns?
Absolutely. We provide OEM & ODM service to meet different roof designs or installation standards.
Q4: Are aluminium solar rails strong enough for large PV arrays?
Absolutely. Our rails are tested for high tensile strength and meet international wind/snow load standards.
Q5: Can the rails be used for both metal and tile roofs?
Yes, with appropriate clamps and mounting kits, aluminium rails fit multiple roof types.
📞 Get a quote today
For an economical and reliable solar mounting solution, choose our aluminium solar rail system.
