How many solar panels do I need for a carport, waterproof, concrete block?
”
Hi guys,
I am interested in your solar carport
Waterproof Solar Carport Mounting System, SPC-GPA-V3-RW

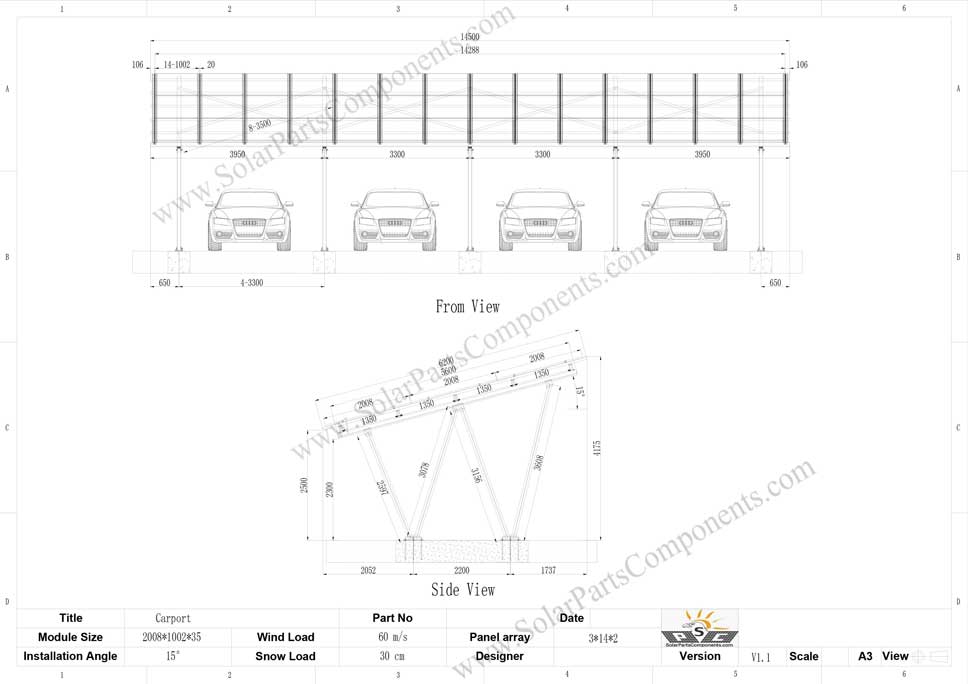

I need 3 solar concrete base carport;
(1)2 for parking long 14 m x 6 meter
Panels size 2008mm × 1002mm × 35mm; panels 370 Watt
Height from ground to lowest part of roof is 250 cm.
Tilt is 15 degrees.
Panels in landscape or picture (potrait) choose which one is the cheapest.

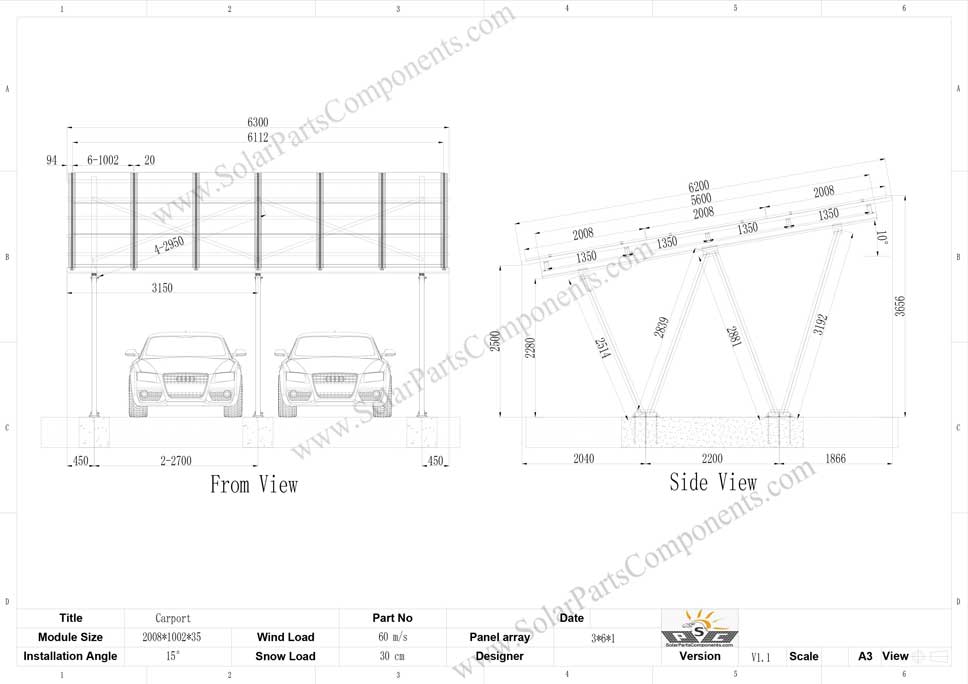

(2) 1 solar concrete block carport;
long 6.30 m
height from ground to lowest part of roof is 250 cm.
tilt is 10 degrees.
Panels in landscape 6 rows of 3 panels, I presume.
The carport must be strong for windspeed is 60m/s.
Can you help me figure out
how many solar panels do I need for these solar solar concrete foundation carports ?
Could you please give me your price FOB?
Kind regards,
Desmond
“
”
Dear Desmond
Appreciated for your interested in our solar concrete block carport mounts.
Our engineer propose peofessional advise for solar panel quantities for your carports
| Project No. | Waterproof Carport | Customer No. | The Netherland | Total Project(W) | 37740 | ||||||
| Ground Clearance(mm) | 2500 | Array Amount: | 3 | Total Module Amount: | 102 | ||||||
| Installation Site: | Flat Terrain | Wind Speed(m/s:) | 60 | Snow Loading(cm): | 30 | ||||||
| Module Length (mm) | 2008 | Module Width (mm) | 1002 | Module Thickness(mm) | 35 | ||||||
| Module Power(W): | 370 | Module Weight(KG): | 19 | Pile Length(mm) | / | ||||||
| Tilt Angle: | 15 | Foundation Type: | Concrete Base | ||||||||
| Mounting System Type: | SPC-GPA-V3-RW | Array Orientation: | Portrait | ||||||||
We adding more aluminum supporting poles and shorten span range from two cars to one car comparing our usual design.
Solar concrete base carport can generate electricity using solar PV arrays above parking lots, simultaneously providing shade and reliably protection the vehicles from intense solar irradiation, snow, rain and hail.
This solar carport effectively uses existing parking space, professional design making it ideal choice to present environmentally friendly image or work as electrical vehicle charging station.
Solar concrete foundation carport is a cost performance ideal designed; the supporting brackets can highly be pre-assembled, fast to install at site and save labor time.
The solar concrete block carport creates a turn-key solar car park solution for commercial and industrial customers.
Parts and Components for this Solar concrete base carport:
– Aluminum rail;
– Splice;
– End clamp;
– Mid clamp;
– base connector;

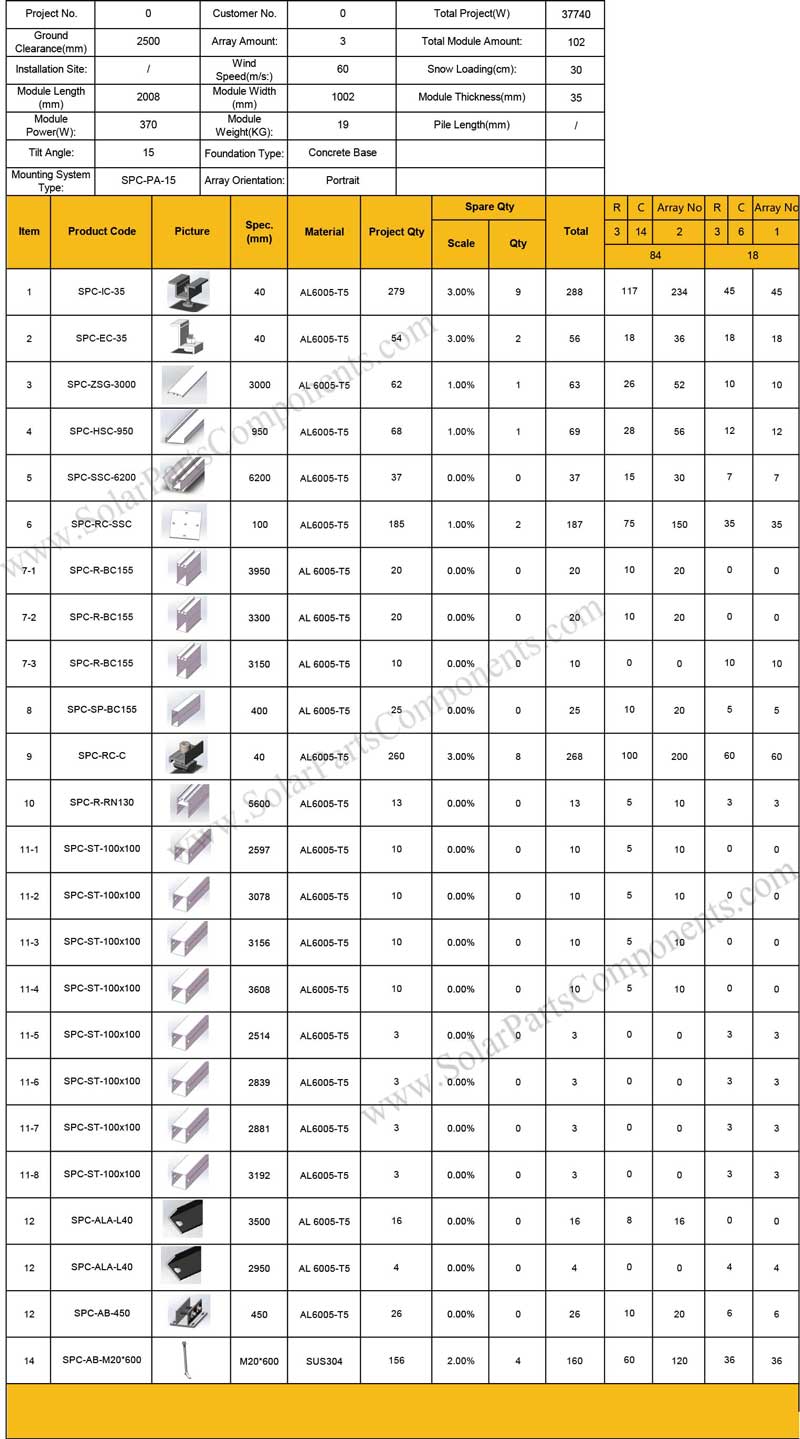

| Item | Product Code | Spec. (mm) |
Material | Project Qty | Spare Qty | Total | R | C | Array No | R | C | Array No | |||||||||||||||||||
| Scale | Qty | 3 | 14 | 2 | 3 | 6 | 1 | ||||||||||||||||||||||||
| 84 | 18 | ||||||||||||||||||||||||||||||
| 1 | SPC-IC-35 |
|
40 | AL6005-T5 | 279 | 3.00% | 9 | 288 | 117 | 234 | 45 | 45 | |||||||||||||||||||
| 2 | SPC-EC-35 |
|
40 | AL6005-T5 | 54 | 3.00% | 2 | 56 | 18 | 36 | 18 | 18 | |||||||||||||||||||
| 3 | SPC-ZSG-3000 |
|
3000 | AL 6005-T5 | 62 | 1.00% | 1 | 63 | 26 | 52 | 10 | 10 | |||||||||||||||||||
| 4 | SPC-HSC-950 |
|
950 | AL6005-T5 | 68 | 1.00% | 1 | 69 | 28 | 56 | 12 | 12 | |||||||||||||||||||
| 5 | SPC-SSC-6200 |
|
6200 | AL6005-T5 | 37 | 0.00% | 0 | 37 | 15 | 30 | 7 | 7 | |||||||||||||||||||
| 6 | SPC-RC-SSC |
|
100 | AL6005-T5 | 185 | 1.00% | 2 | 187 | 75 | 150 | 35 | 35 | |||||||||||||||||||
| 7-1 | SPC-R-BC155 |
|
3950 | AL 6005-T5 | 20 | 0.00% | 0 | 20 | 10 | 20 | 0 | 0 | |||||||||||||||||||
| 7-2 | SPC-R-BC155 |
|
3300 | AL 6005-T5 | 20 | 0.00% | 0 | 20 | 10 | 20 | 0 | 0 | |||||||||||||||||||
| 7-3 | SPC-R-BC155 | 3150 | AL 6005-T5 | 10 | 0.00% | 0 | 10 | 0 | 0 | 10 | 10 | ||||||||||||||||||||
| 8 | SPC-SP-BC155 |
|
400 | AL 6005-T5 | 25 | 0.00% | 0 | 25 | 10 | 20 | 5 | 5 | |||||||||||||||||||
| 9 | SPC-RC-C | 40 | AL6005-T5 | 260 | 3.00% | 8 | 268 | 100 | 200 | 60 | 60 | ||||||||||||||||||||
| 10 | SPC-R-RN130 |
|
5600 | AL6005-T5 | 13 | 0.00% | 0 | 13 | 5 | 10 | 3 | 3 | |||||||||||||||||||
| 11-1 | SPC-ST-100×100 | 2597 | AL6005-T5 | 10 | 0.00% | 0 | 10 | 5 | 10 | 0 | 0 | ||||||||||||||||||||
| 11-2 | SPC-ST-100×100 |
|
3078 | AL6005-T5 | 10 | 0.00% | 0 | 10 | 5 | 10 | 0 | 0 | |||||||||||||||||||
| 11-3 | SPC-ST-100×100 |
|
3156 | AL6005-T5 | 10 | 0.00% | 0 | 10 | 5 | 10 | 0 | 0 | |||||||||||||||||||
| 11-4 | SPC-ST-100×100 |
|
3608 | AL6005-T5 | 10 | 0.00% | 0 | 10 | 5 | 10 | 0 | 0 | |||||||||||||||||||
| 11-5 | SPC-ST-100×100 |
|
2514 | AL6005-T5 | 3 | 0.00% | 0 | 3 | 0 | 0 | 3 | 3 | |||||||||||||||||||
| 11-6 | SPC-ST-100×100 |
|
2839 | AL6005-T5 | 3 | 0.00% | 0 | 3 | 0 | 0 | 3 | 3 | |||||||||||||||||||
| 11-7 | SPC-ST-100×100 |
|
2881 | AL6005-T5 | 3 | 0.00% | 0 | 3 | 0 | 0 | 3 | 3 | |||||||||||||||||||
| 11-8 | SPC-ST-100×100 |
|
3192 | AL6005-T5 | 3 | 0.00% | 0 | 3 | 0 | 0 | 3 | 3 | |||||||||||||||||||
| 12 | SPC-ALA-L40 |
|
3500 | AL 6005-T5 | 16 | 0.00% | 0 | 16 | 8 | 16 | 0 | 0 | |||||||||||||||||||
| 12 | SPC-ALA-L40 |
|
2950 | AL 6005-T5 | 4 | 0.00% | 0 | 4 | 0 | 0 | 4 | 4 | |||||||||||||||||||
| 12 | SPC-AB-450 |
|
450 | AL6005-T5 | 26 | 0.00% | 0 | 26 | 10 | 20 | 6 | 6 | |||||||||||||||||||
| 14 | SPC-AB-M20*600 | M20*600 | SUS304 | 156 | 2.00% | 4 | 160 | 60 | 120 | 36 | 36 | ||||||||||||||||||||
Features of this solar concrete foundation carport:
- Can be highly pre-assembled in factory to save labor time;
- Safety and reliability;
- Extremely low-maintenance;
- Fully recyclable, aesthetically pleasing, quick installation;
- Durable and lightweight material, easy for mounting and transportation.
All car port design details have replied to email with FOB prices offer.
Please advise whether is it workable for you.
Thank you !
Best regards,
Solar Carport Factory
Sales Team
“
