Solar Parts Components Factory can customized defferent solar mounting structure according to different requirements .
Following is one instance which we help to design an adustable concrete ground PV module system for one Casablanca, Morocco client .
The special requirement from customer as following :
“I need a structure of 3 panels in landscape with an adjustable tilt between 20 and 40 degrees.

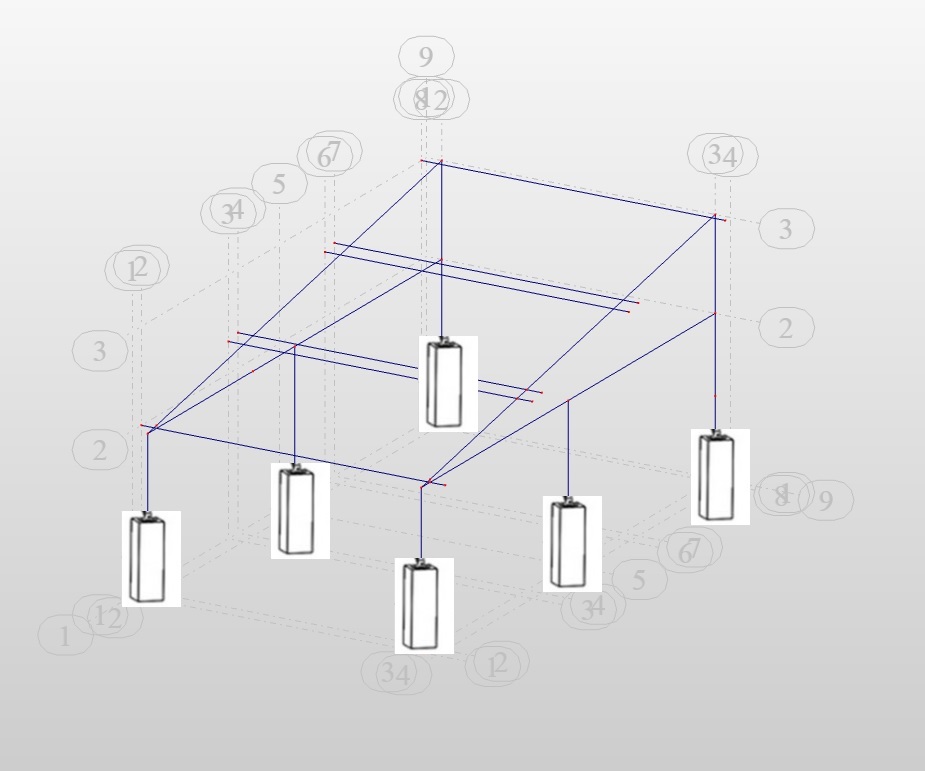

the structure must be fixed on 6 concrete bases with the dimensions: 40x40x40mm, and the distance between the ground and the bottom side of the panels is 1m.
the distance between the panels must be 10 cm. the wind speed is: 140 km / h
the attached image is a close representation of this structure but without concrete bases, it can help you understand our need.
thank you for sending me please the design of the structure with the quote for 300 sets “
According email content above, we sort out basic solar panel installation list :
Concrete Pier Adjustable Solar Ground Mounting Systems ,
(1) Quantity : 300 sets, 900 pieces of PV modules total ;
(2) Solar Panel Size : 1650 × 992 × 40 mm ;
(3) Installing Orientation: Landscape ;
(4) Tilt angle : Adjustable from 20 degree – 40 degree;
(5) Wind loading : 140 km / h (MAX) ;
(6) Installation Site: Casablanca, Morocco, Africa;
We design two systems for this solar mounting project ,

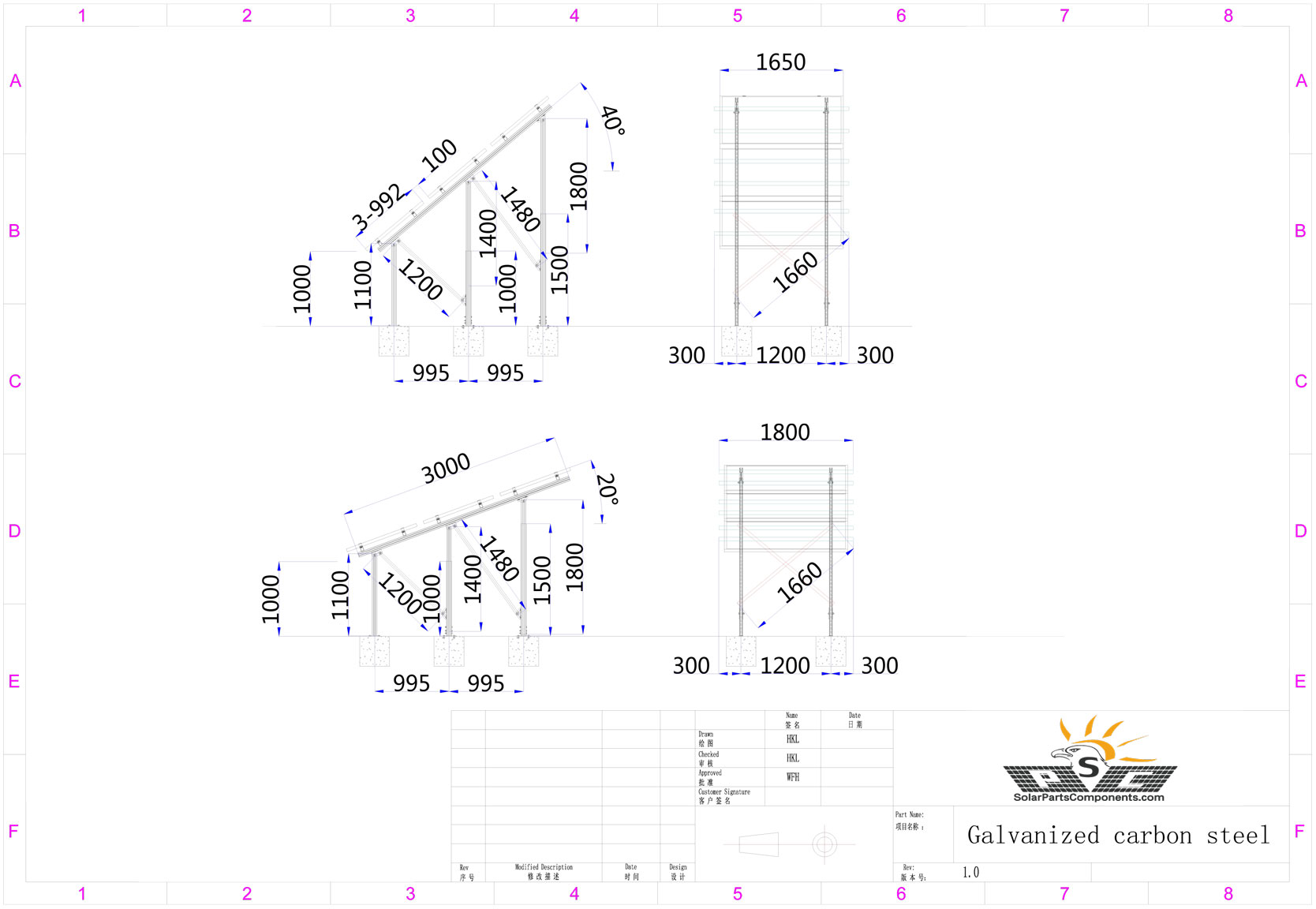

– one is made of galvanized steel ground rack system, Q235 , the foundation can be ground screws / concrete base ;
Hot-dipped galvanized carbon steel;

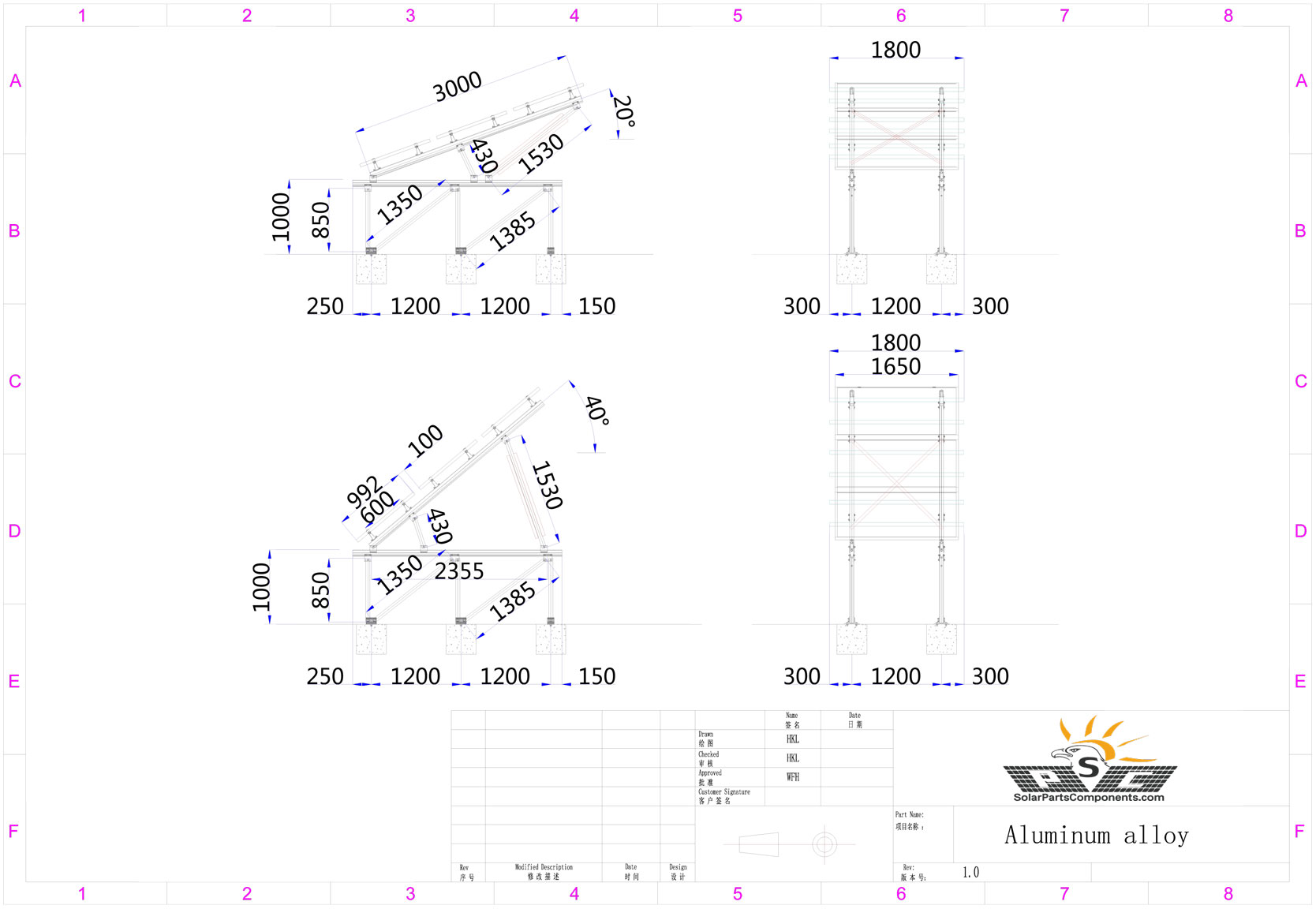

– the other is aluminum solar module racking system ;
Simulate by software / anti-corrosion ;
| Mounting information | Setting conditions | |||||
| Solar panel size | 1650x992x40 | Wind speed | 140km/h | Snow load: | 0cm | |
| Plate power | 300Wp | Off the ground | 1000mm | Power generation | 900Wp | |
| angle | 20-40 | basis | Concrete | |||
| arrangement | 3 Rows | 1 columns | Set number | 300 | ||
| ITEM NO. | Description | Material | Specifications | |
| SPC-CB2-1800 | 2# Rail-1800 | AL6005-T5 | 1800mm | |
| SPC-CBC-C40 | Rail Clamp | AL6005-T5+SUS304 | 40mm | |
| SPC-EC-F35 | End Clamp | AL6005-T5+SUS304 | 40mm | |
| SPC-PBC2-3000 | 2# Longitudinal beam | AL6005-T5 | 3000mm | |
| SPC-HTC2-90 | H-Type Connector 90 | AL6005-T5+SUS304 | 90mm | |
| SPC-SP55-430 | 55×55 Square tube | AL6005-T5 | 430mm | |
| SPC-SP55-1530 | 55×55 Square tube | AL6005-T5 | 1530mm | |
| SPC-HTC2-KM8-90 | H-Type Connector 90 | AL6005-T5+SUS304 | 90mm | |
| SPC-HTC2-KM10-90 | H-Type Connector 90 | AL6005-T5+SUS304 | 90mm | |
| SPC-PBC2-2800 | 2# Longitudinal beam | AL6005-T5 | 2800mm | |
| SPC-HTC2-90 | H-Type Connector 90 | AL6005-T5+SUS304 | 90mm | |
| SPC-HTC2-120 | H-Type Connector 120 | AL6005-T5+SUS304 | 120mm | |
| SPC-SP55-850 | 55×55 Square tube | AL6005-T5 | 850mm | |
| SPC-SP55-1350 | 55×55 Square tube | AL6005-T5 | 1350mm | |
| SPC-SP55-1385 | 55×55 Square tube | AL6005-T5 | 1385mm | |
| SPC-BA2-C160-90 | Hind Foot Seat 90 | AL6005-T5+SUS304 | 90mm | |
| SPC-BA2-C160-140 | Hind Foot Seat 140 | AL6005-T5+SUS304 | 140mm | |
| SPC-AL-1715 | Angular aluminum | AL6005-T5 | 1715mm | |
| SPC-AL-1335 | Angular aluminum | AL6005-T5 | 1335mm | |
| SPC-OHB-M10x80 | M10x80 hex bolt assembly | SUS304 | M10x80 | |
This adjustable concrete foundation ground PV mounting system can be used for desert , gravel, grassland, concrete ground …
