Solar panel curved / flat tile hooks SPC-Tile-Hooks-AC009-B001, super sturdy to support tile roofing structure .
180° Tile Roof Hook Arm – 178 mm ～188 mm Height, adjustable range 10 mm , with proper screws, nuts and slots for tile roofing .
Model : SPC-Tile-Hooks-AC008-001
Item : Solar Tile Roof mounting Hooks ;
Finishing : Sandblasting;
Material : SUS 304 Stainless Steel ;
Total Size : 140 mm ( Long) × 169 mm ( Deepth) × 130 mm ～140 mm (Height) /
5 1/2″ (L) × 6 5/8″ (D) × 5 1/8″ ～ 5 1/2″(H) ;
Bottom End to Top End : 130 mm ～140 mm (Height) / 5 1/8″ ～ 5 1/2″ ;
Thickness : Base Plate 4 mm / arm 5 mm ;
Rail Slot Size : 9 mm × 47 mm ( 3/8″ ×1 7/8″ );
Matched Bolts & Nuts Sizes:
1) SUS 304 Hexagon Head Allen Bolt M8 mm X 25 mm x 1 unit;
2) M8 x 13 Ribbed Lock washers ( SUS304 ) x 1 unit;
3) D8 spring SUS 304 washer x 1 units ;
4) Aluminum M8 T Sliding Nut x1 unit ;
Base Plate Size : 140 mm X 54 mm X 33 mm ( 5 1/2″ × 2 1/8″ × 1 5/16″ ) ;
Matched Bolt & Nut for plate and lower arm joint ( 3 holes size : 10.5mm × 10.5mm):
(1) SUS 304 stainless steel Carriage bolt M10 mm X 25 mm x 1 unit ;
(2) SUS304 stainless steel hex flange nut x 1 unit ;
Mounting Screw Slots Size : 7.5mm X 13.5mm ( 5 holes ) & Φ 7.5 mm ( 5 holes )Cross Arrangement ;
Matched Screw Size: Hex Washer Head timber screws 6.3 mm (1/4″) x 80 mm ( 3 1/8” ) x 3 units;
Weight : 852 (g) / 1.88 (lb) ;
Packing : 50 pieces / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21 1/4″ × 8 11/16″ × 7 7/8″
The Solar Tile Hook Model SPC-Tile-Hooks-AC009-B001 is an stainless steel bracket fixed roof support used for curved or flat tile roofing .
Our Solar Parts & Components QC Team
stictly test following parameters of this tile hooks SPC-Tile-Hooks-AC009-B001 item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…

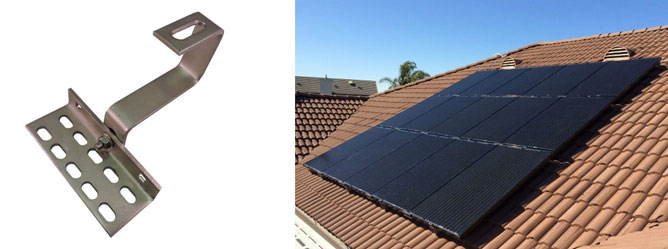

SUS 304 Solar bottom mounting tile roof hooks drawing, sizes, profile for tile roofing, adjustable .
