Waterproof Solar pergola
- Product Type: Unframed / Framed Solar Racking
- Product Model: SPC-SPCP
- Material: ZAM275 & Steel/Aluminum
- Max Wind Load : 60 m/s
- Max Snow Load : 3.6KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: open area
- Installation angle: 5-15 degrees
Product Description:
Solar pergola system is a typical solar pergola with solar PV panels mounted on top to serve as a roof shade and solar power system. They are a type of solar shade structure that combines the beautiful design of traditional pergolas with solar panels.
If you’re looking for a way to enjoy your backyard space while also harnessing the power of the sun, then look no further than our metal pergola with solar panels!
Not only will our Solar pergola system with solar PV panels provide shade and a comfortable outdoor space for you to relax and entertain in, but it will also allow you to do your part in reducing your carbon footprint.
Empty spaces can be of use now with solar pergola.
It can supply your home with the needed energy to run efficientl
Our new Solar pergola system , When roof mount systems are not viable this adaptable and flexible solution will provide as much if not more power for your home or business.
Some customers also use this as a waterproof carport, which is very popular among the public.
Solar Pergola Advantages:
A solar pergola offers both aesthetic and functional benefits—providing shelter, defining outdoor spaces, and serving as a structure for climbing plants—while also generating renewable energy.
- Enhance outdoor living spacesProvides cover for relaxing outdoors
- Minimalistic & modern design aesthetics
- Economic advantagesReduce monthly electricity bills
- Increase property value
- Environmental benefitsClean energy system
- Helps fight climate change
Customize Your Solar pergola system
Our Solar pergola system are tailored to fit your needs and budget. We work with you to understand your solar energy and design needs letting you personalize your pergola.
Materials
Metal: Aluminum or ZAM steel
Size & Shape
We deliver custom designs and square footages based on your energy production needs and the available space of your property.
Welcome to contact us anytime, our company website: www.solarpartscomponents.com
| Datasheet | |
| Description: | |
| BIPV double support steel waterproof carport | |
| NO.： | SPC-SPCP |
| Product Type: | Solar pergola |
| Installation location: | open area |
| Installation angle: | 5-15 degrees |
| Material : | ZAM275 & Steel/Aluminum |
| Module: | Frame/frame less solar Module |
| Warranty: | 10 Years |
| Lifetime: | 20 Years |
| Orientation： | Landscape,Portrait |
| Wind speed： | 60 M/s |
| Snow load： | 3.6 KN / M2 |
| Height; | Above 2m |
| Standard: | AS/NZS1170 & DIN 1055 |
Installation Manual for Solar Waterproof Pergola Structure
Installation Steps：

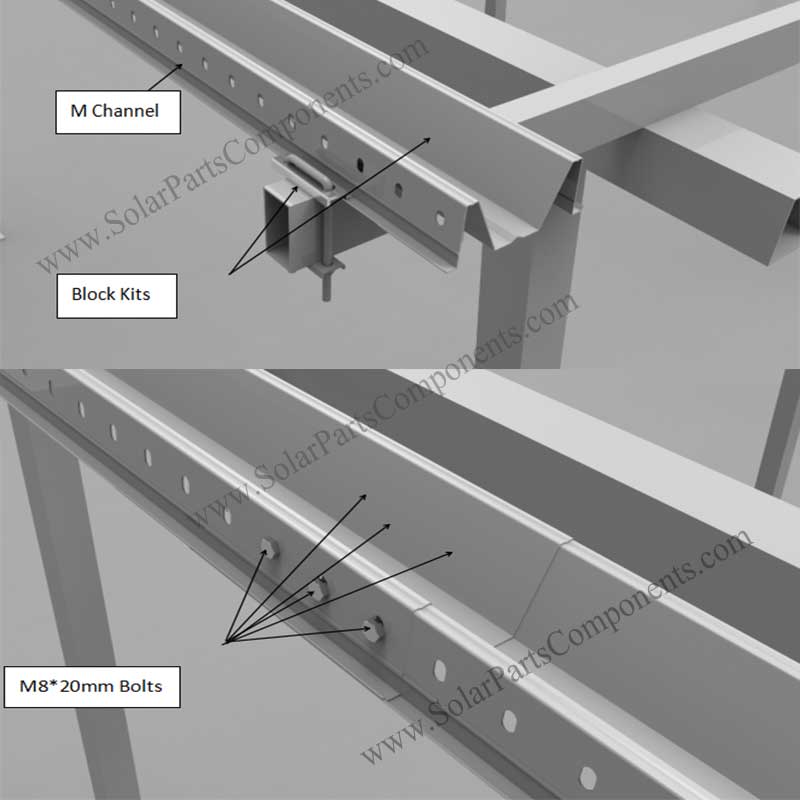

- Use the Block kits to fix the M Channel. When connecting two M channels, use the M8*20mm bolt assembly to fix them. It is best to apply glue to the gap between the two channels.
New Material solar waterproof structure
- Install the second M channel, before install the second M channel, please make sure the span according to the design drawing.
- Place U Channel horizontally and fix the mid clamp kits and end clamp kits on the M channel.

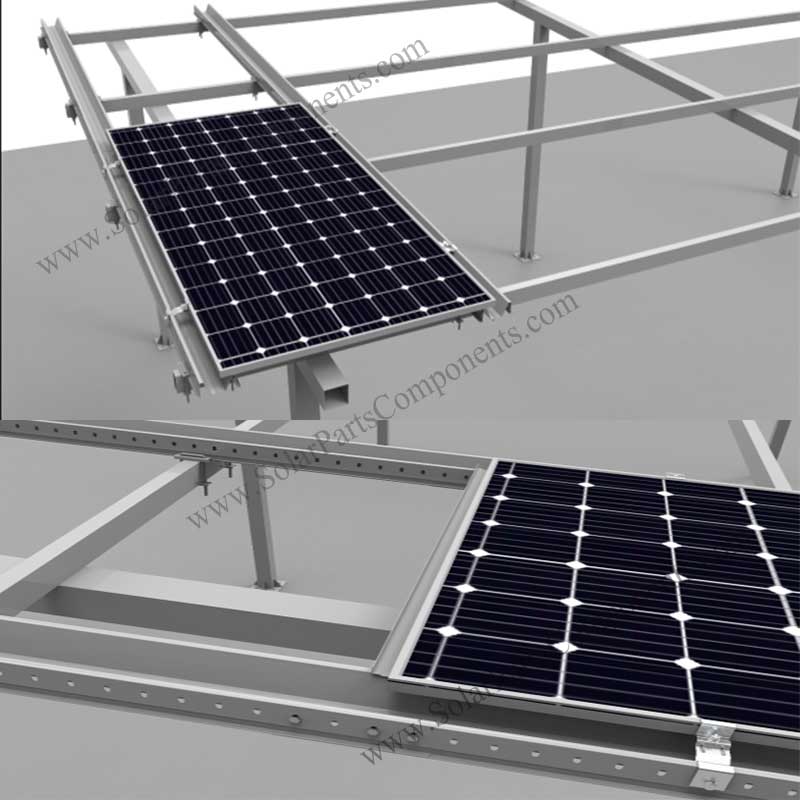

Waterproof Solar pergola mounting
- Fixed the solar panel on M channel.
- Use mid clamp and end clamp to fix the solar modules, with a spacing of 6mm between the modules.

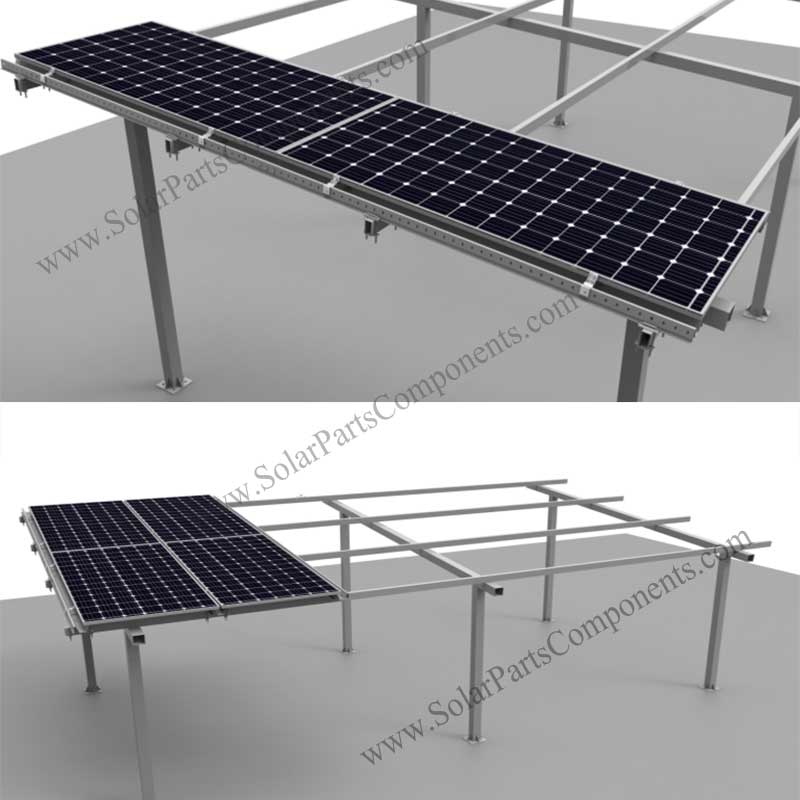

Waterproof Solar pergola installation
- Continue the installation according to the above steps.
- Use self-tapping screws to fix the front channel and the side channel.
- The installation is complete.
Why use waterproof solar pergola ?
waterproof Solar Pergolas: Ultimate Guide to Choosing The Best Solar Pergola. The added advantage of solar power production with full waterproof . Solar panels on a pergola give you the dual functionality and benefits of a shade and drain off structure and a solar energy system! There are a lot of benefits such as Enhance outdoor living spaces provides cover for relaxing outdoors, Economic advantagesReduce monthly electricity bills and Helps fight climate change.
If you want to know more about waterproof Solar Pergola please click this link: https://www.solarpartscomponents.com/waterproof-solar-pergolas-carport
Are solar waterproof pergolas worth it?
Our Solar waterproof pergolas are designed like our standard solar pergola to withstand high winds and elements, but engineered to accommodate solar panel mounting with with waterproof. The Solar waterproof pergolas can be used to mount panels for a variety of solar projects. Configure your install to provide power for outdoor living environments, carport with power for charging, for backup power, or many other uses.
Solar waterproof pergola carport
Configure your Solar waterproof pergolas to be freestanding or attached to your home or other building. Support small sizes. Engineered drawings that may be required for non-standard sizes. Like all of our solar pergola, all structure is pre-cut, pre-drilled and marked for easy assembly. Follow the step-by-step instructions for DIY installation.
This Solar waterproof pergolas includes all materials required to assemble your solar pergola, but does not include solar panels, racks, or other solar related equipment. If you need a complete set including solar panel, battery, inverter, etc. please state clearly, we can also provide it.
Homeowners: Need a Solar waterproof pergolas? Check out our Solar Pergola installation steps for installing.
Solar Contractors: Are you a solar contractor and have customers interested in a Solar waterproof pergolas? Consider applying for our Contractor Discount Program for discounts on the pergola kits for your customers.
The new Waterproof solar pergola
New Waterproof solar pergola
Looking for a stylish pergola or carport for your outdoor space?
Introducing the NEW Steel solar waterproof Carport/pergola – a solution to mount your solar modules in whole new way. Crafted from high-performance, all-galvanized materials, this system is built to endure, boasting a service life of over 25 years.
solar waterproof pergolas
Streamlined for quick and easy assembly, all components come pre-cut and pre-drilled. With multiple sizing options available, there is one to meet every need.
What’s a Solar pergola?
Outdoor Solar pergola
Waterproof solar pergola carports
Our new Solar pergola system , When roof mount systems are not viable this adaptable and flexible solution will provide as much if not more power for your home or business.
Some customers also use this as a Waterproof solar pergola carports, which is very popular among the public.
Waterproof solar pergola carports
Please see a case below
Q：Dear Madam/Sir,
I am currently looking for a Waterproof solar pergola carports as described below. Could you please return with a proposal?
solar pergola
Please state prices and delivery terms to the Port of Gothenburg (Sweden) or Landvetter Airport (Gothenburg) FOB and CIP (CIF).
Is airfreight possible?
What is your delivery time?
I am also interested in finding suppliers of Waterproof solar pergola carports installations. Do you have any suppliers of carports and similar builds that you can recommend? We need to meet the snow and wind loads as described below. Of high interest are modular systems that can be adapted to cover >2 parking places.
Kind regards,
A：
Dear Daniel
Appreciated for your inquiry,
following details need your advise:
(1) Should these Waterproof solar pergola carports should be waterproof?
(2) We just need offer the upper mounting structure, right?
The lower wood roof structure are already be built.
(3) airfly will be costive, we recommend you ship by sea.
But I will help you compare them after purchase list come out.
(4) For Waterproof solar pergola carports
Usually our carport is 2 cars .
File attached is one of our 4 cars Waterproof solar pergola carports with bificial pv modules manual instruction.
solar pergola carports
Looking forward for your response.
Q:
Hi,
My primary interest is to find weather/Waterproof solar pergola carports that fit our panels (dimensions as below) -the special solutions.
Ideally I would like to have a modular (2+2+….+2 or 2+…+1) carport that has a panel mounting system that is waterproof. The width of standard parking spaces are 2.5 m (but is growing upto 2.7 m more recently). Is your system flexible so that we can adapt it according to the existing space? Of course the number of panels will be a parameter to take into account!
Snow load: 2.5 kN/m2
Wind load: 1.01 kN/m2
Panel sizes l/w/h (mm): 1759/1042/7,3
If doubleglass panels are not working with your mounting system we are ok to use framed panels… I will send you the dimensions if needed…
Direction of panels flexible as to maximize the number of panels.
The preferred material is hot dip galvanized steel but an alternative in aluminium is also of interest. Could you get back with a proposal and technical details. Please state prices and delivery terms to the Port of Gothenburg (Sweden) FOB and CIP (CIF).
Kind regards,
Daniel
A:
Hi Mr. Daniel
Thanks for your informations.
Our Waterproof solar pergola carports are flexible and can support 1/2/4 car parking.
waterproof solar pergola
Please refer to Waterproof solar pergola carports from vision 1-5.
Let me know if you need any changes, then we’ll proceed quote later.
Q：
Hi,
I know you sent me a message in WhatsApp… Unfortunately I have lost my conversation with you as my phone decided to update itself… I did not have a backup of our conversation.
Can we use e-mail as the first choice for communication? For some unknown reasons WhatsApp has started to give me troubles lately.
I reviewed the attached drawings for the Waterproof solar pergola carports for version 1-5…
The design is OK.
I would like pricing as previously described.
Furthermore, and you may have answered me in the lost WhatsApp-message, I really would like bulk pricing for a suitable hot dipped galvanized steel carport based on our double glass panels that are 1759×1042 mm… As described earlier we would like to have a system that is modular so that we easily can adapt the solution for different projects from parts we can carry in stock… that is… What is the price buying full containers from you… I understand that it might be hard to be 100% accurate as some components may vary with the numer of moduls used in the builds…
A：
Hi Mr. Daniel
Thank you for your reply and explanation, then we will communicate by email.
Please check the attached reference quotation.
Please note that this offer is divided into 2 parts. Part of it is just the upper waterproof mounting structure used to match the wooden columns and beams you have already built. The other part is the reference quotation of a complete set of 1/2/4 car parking waterproof solar pergola carports. This is a quote for a full container.
waterproof solar structure
Any question, please feel free contact me.
Q:
Hi,
Thank you for the quotation.
Your quotation is OK and I have communicated it with my boss. We think this solution is feasible.
Do you support samples? We need market testing and feedback for mass production. Please provide us with a sample invoice. Let’s go ahead this project
