” W ” Type Solar Mounting Systems
- Product Type: Ground Solar Panel Mounting System
- Product Model: Solar-Ground-Mounting-Systems-W-Type
- Material: Aluminium, Carbon Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Ground field / Flat Roof
Product Description :
This W type aliminum mounting systems for solar panels are designed for ground area with easy and quick installing .
The so called “W” type means we using two pieces of the lateral braces accross mounting structure .
These two support braces together with frong column and back column make a shape like letter ” W ” .
By using flange plate, thise alum mounting racking can be connected on ground screws or concrete piers .
This beautiful and sturdy W type PV solar panel ground mounts is light weight and anti-rust , suitable in desert , sea side , grassland …
With pure alum ” W ” type mounted system can have excellent anti-corrosive in bad weather condition on concrete block / screw pile ground area .
Customized aluminum extrusion available for our ground mounting system, just send me profile details, we’ll do rest for client ;
anodized / powder coating / electrophoreis treatment can be tailored ;
Milling, chamfer, welding, drilling deep procession can be required for producing ;
We use AL6005-T5 for this “W” type solar parts and components , chemical composion as following:
Al 6005 Alloy
Si : 0.6-0.9 ;
Fe : 0.35 ;
Cu : <0.1 ;
Mn : <0.1 ;
Mg :0.4-0.6 ;
Cr : <0.1 ;
Zn :<0.1 ;
Ti : <0.1 ;
Impurity :<0.15 ;
AL: Rest
Advantages :
- Suitable for soil conditions with C-Steel screw piles or on cement plinth ;
- Fasten parts : SUS 304 screws, bolts, nuts can be included as required ;
- OEM service is acceptable for our mounting kits ;
- Optimized engineer design with reasonable structure and cost budget ;
- More than 8 years producing experience .
Parts and Components for ” W ” Type Solar Ground Mounting Systems :

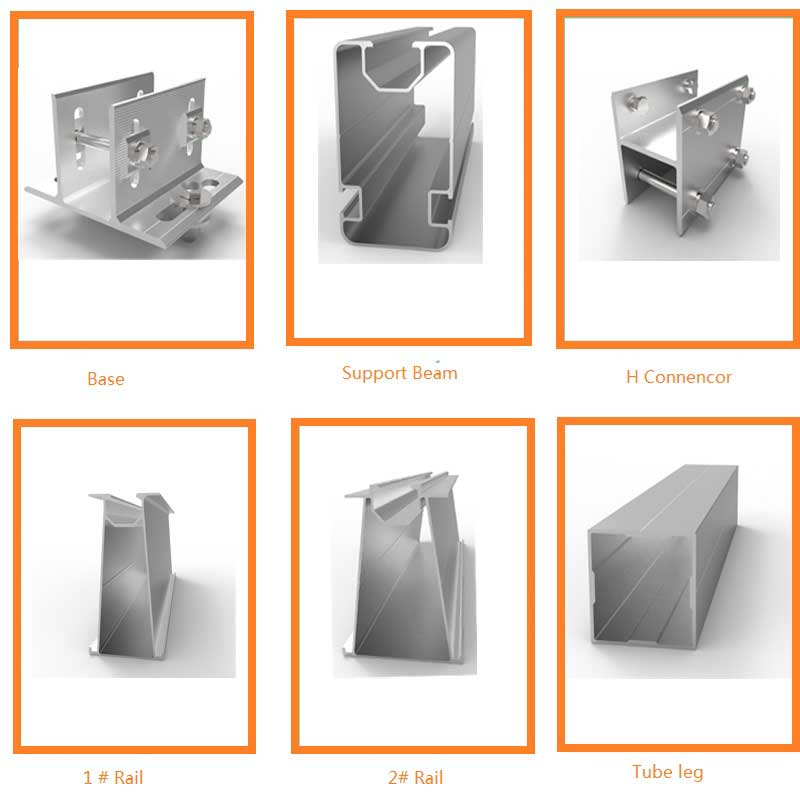

Alum rails, Splice, pre-assembled support , inter clamps, end clamps , beams, screws …
Solar Panel Ground Mounting Systems “W” Type , With Ground Screws Installation Components












Solar Panel Mounting Systems W Type Installation :

(1) Install ground screws and fasten the base ;
(2) Fasten 1# H shape connector ;
(3) Fasten 2# H shape connector and pre-assembled support beams ;
(4) Fasten the rail clamps / rails / rail splices ;
(5) Fasten Mid / End clamps ;

Brief Descriptions : | |
“W” Type Solar Ground Mounting Systems for ground solar panel installation | |
Item type: | Ground Mount Systems |
Technical Parameters : | |
Type : | ground solar mounting system |
Installation Site : | Ground / Flat Roofs |
Installation Angle : | 0° ~ 30° |
Profile Material : | AL 6005 – T5 ( Anodized ) / Hot-Dip Galvanized Steel |
Fasten Parts : | Aluminum / Stainless Steel |
Small Components : | AL 6005 – T5 ( Anodized ) |
Color : | Silvery or according to customer requirements |
Wind Load : | 60 m / s |
Snow Load : | 1.4 KN / M2 |
PV Modules : | Framed, unframed |
Module Orientation : | Portait and Landscape |
Standards : | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C 8955 : 2011 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed Life Span | 25 years |
Packing Details : | |
Inner : | Bubble bag+inner box+Carton |
Outer : | Wooden Box, Steel Pallet, MDF, etc |
Project Case for This " W " Type, Screw Pile Solar Mounting Systems

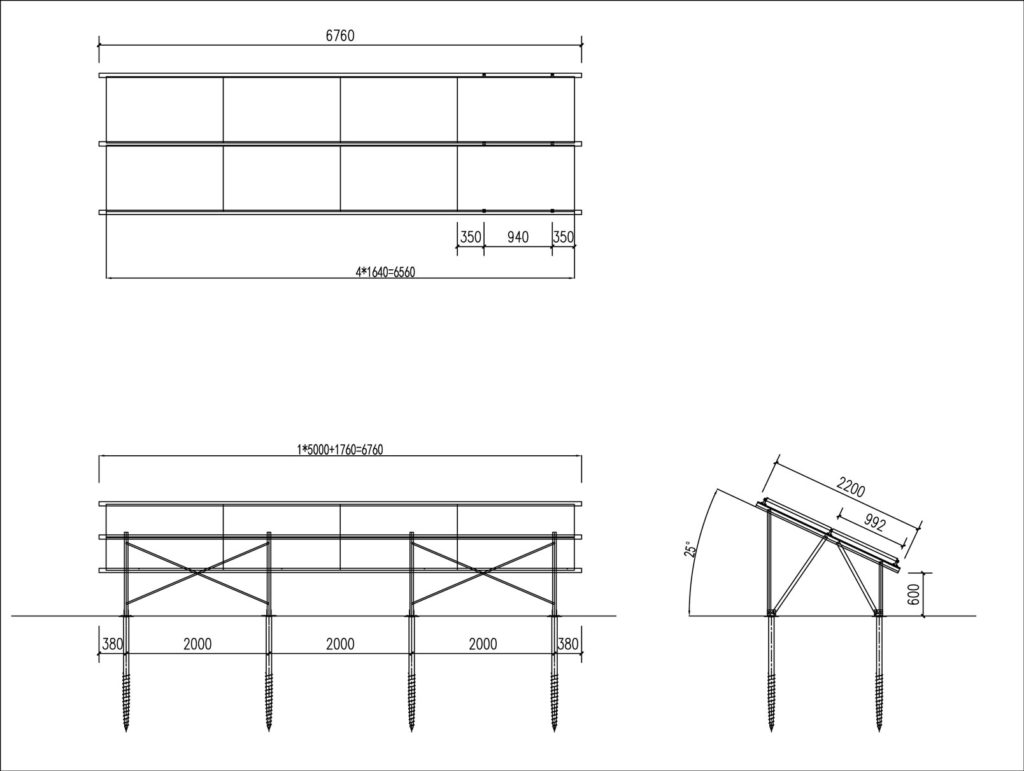

Design case for ” W ” Type, Screw Pile Solar Mounting Systems with screw pile

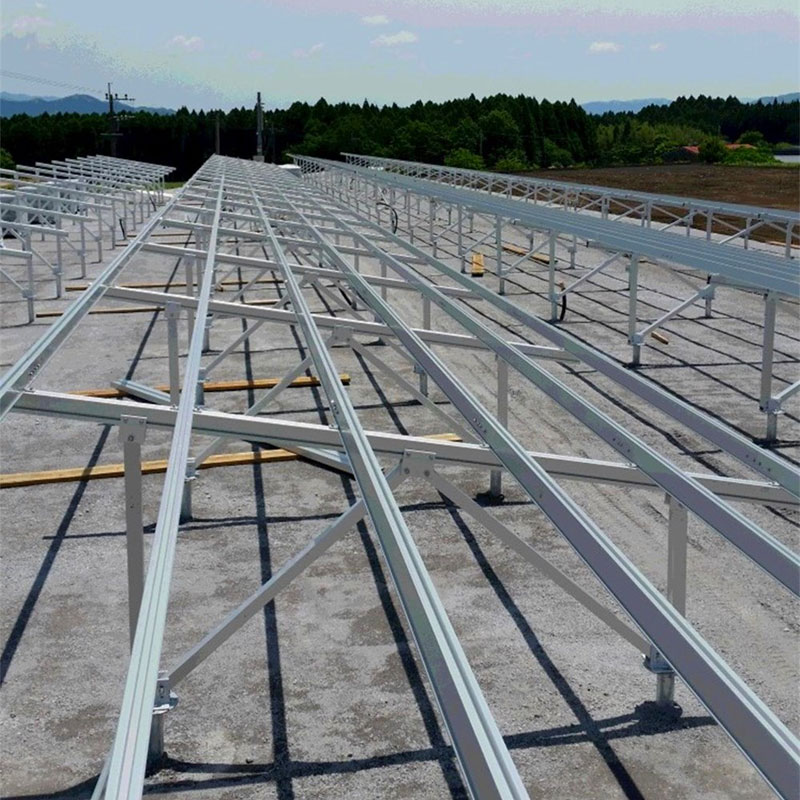

3.2MW Ground Mount Structure with screw anchor project
Solar Panel ground mount structure with ground screw, 3.2 MW, South Africa .

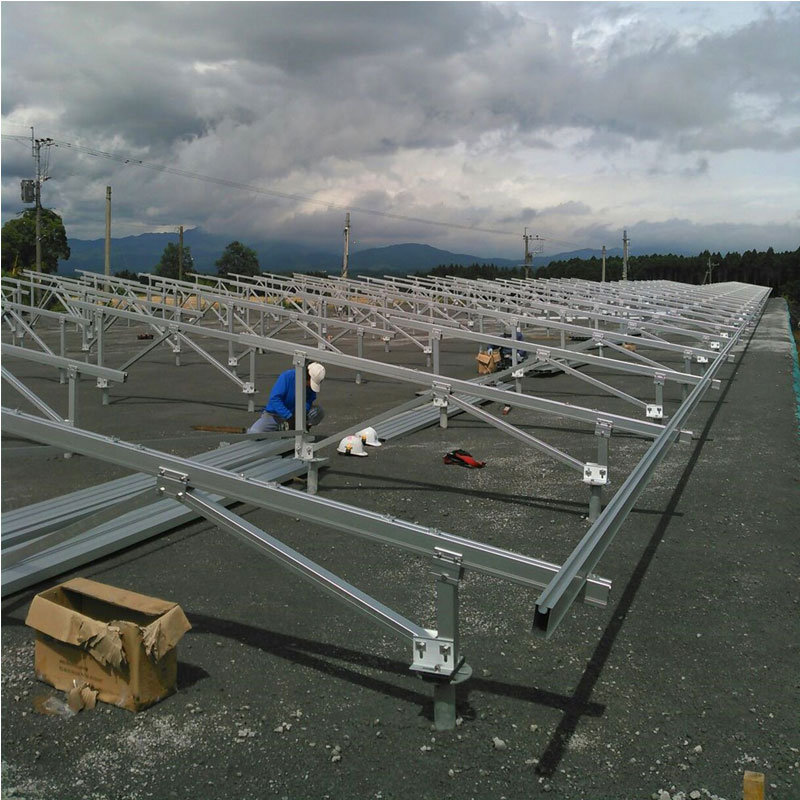

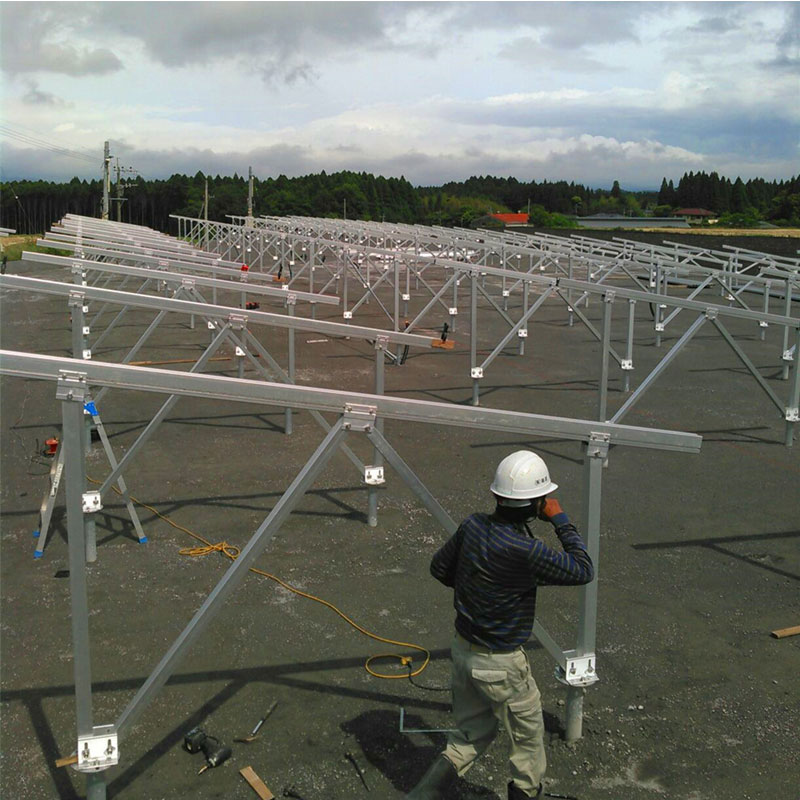

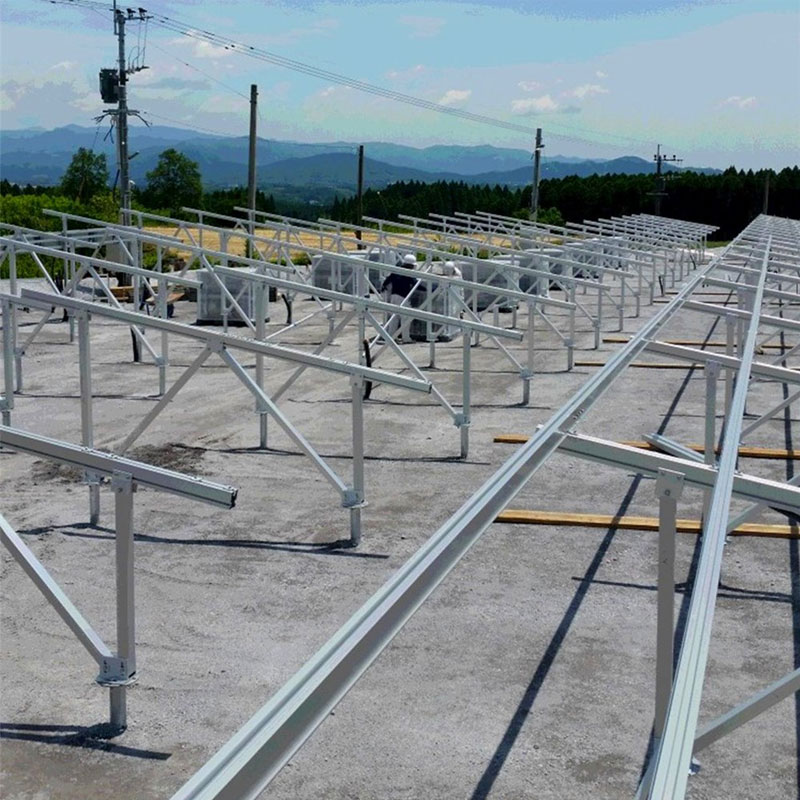

PV modules ground mounting Hokkaido project
solar ground mounting Hokkaido project design with ground screws
Aluminum Racking Ground Mounting System Introduction
Solar aluminum ground mounting system
There are several types of ground mounting methods like :
concrete foundation mounted ,
pillar (pole) mounted ;
ground screw mounted ;
ground anchor (concrete pile) mounted …
This PV module ground mounting system is made of aluminum in material with ground screws for support
foundation .
Features of this solar panel aluminum ground mounting system :
– light in weight but strong in tensile force ;
– Quick and easy for installation ;
– Pre-assembled for labor cost saving ;

Ground Mounting System Aluminum Racking
Can aluminum grounding mounting structure be used for farm ?
Yes, with taller pillar / pole , Solar Mounting System for Farm is definitely wonderful .
Farm Solar Mounting System
Our PV module ground mounting system can also be used for farms .
Features of our solar mounting system for farm :
– Durability ;
– Fast & easy for installing ;
– Tilt adjustable for seasons ;
The agriculture farm solar mounting system can maximize usage space of farm land .
Welcome to choose solar panel mounting structure for agriculture farm from www.SolarPartsComponents.com.

Solar Mounting System for Farm

solar power systems for farms
