BALLASTED PV MODULE MOUNTING PROJECT, 900 SOLAR PANELS, BRAZIL
One of Brazil customer inquire one roof top solar panel project as below :
hello dear
PLEASE FIND THE BUILDINGS INTO GOOGLE MAPS
Solar Flat Roof Ballasted Mounting Project, map
DUE TO DIFFICULTY TO SEND THE 3D DRAWING I SEND YOU SOME FILES IN ORDER TO UNDERSTAND THE PROJECT
WE HAVE 3 ROOF TOP TOWERS
Ballasted Flat Roof Mounting Project blue plan
Ballasted Flat Roof Mounting Systems Project planta
Ballasted Flat Roof Mounting Structure Project Towers
1. TOWER 1 AND TOWER 2 EXACTLY THE SAME SIZE
2. TOWER 3 IS BIGGER
3. THE 3 MIDDLE LANES WE HAVE A FLAT CONCRETE ROOF IN ALL 3 TOWERS
4. THE REST OF PANEL LANES WE NEED TO INSTALL THEM SUSPENDED DUE TO HAVE A WHOLE IN THE ROOF, WE NEED TO FIX THE STRUCTURES ON THE SIDE WALLS AND DOWN THE LOWER LEVEL SHOWN IN
THE DRAWING
5. TOWER 1 AND TOWER 2 TOTAL: 180 SUSPENDED PANELS + 96 PANELS ON TOP OF FLAT ROOF CONCRETE = 276 PANELS FOR EACH TOWER 1 AND TOWER 2
6. TOWER 3 TOTAL: 234 SUSPENDED PANELS + 114 PANLES ON TOP OF FLAT ROOF CONCRETE = 348 PANELS FOR TOWER 3
7. TOTAL 900 PANELS
Our engineer recommend using ballasted mounting racking solution for this Brazil power plant project .

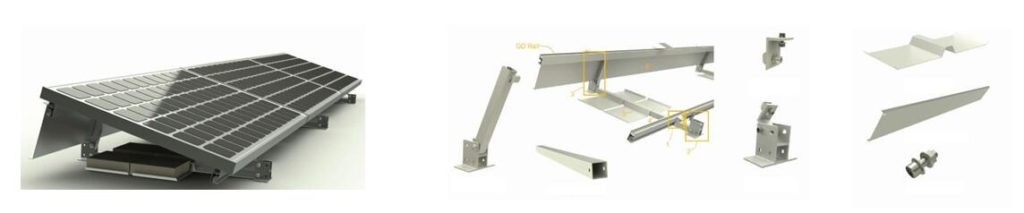

Solar Panel Flat Roof Mounting Ballasted
– Up to 135 MPH wind loading ;
– Cost effective, economical ;
– Tilt adjustable to obtain best sun shine angle ;
– Lightweight aluminum made ;
The mounting parts & components for ADJUSTABLE TILT MOUNTING SYSTEM as below :
*FRONT LEG
Solar Ballasted Flat Roof Mounting Front Leg
*REAR LEG
Solar Ballasted Flat Roof Mounting Rear Leg
*RAIL
Solar Ballasted Flat Roof Mounting Rail
*END CLAMP
Solar Ballasted Flat Roof Mounting End Clamps
*MIDDLE CLAMP
Solar Ballasted Flat Roof Mounting mid clamps
*RAIL SPLICE
Solar Ballasted Flat Roof Mounting Rail Splice
*2# Connect Tube
Solar Ballasted Flat Roof Mounting Connect Tube
*Ballasted Pan
Solar Ballasted Flat Roof Mounting pan
* Wind Defection Plate
Solar Ballasted Flat Roof Mounting Wind Defector
| Ballasted Flat Roof Mounting System – 900 PV Modules, Brazil Project | |||
| PV Array： | Portrait; | Size： | 1960×992×40 |
| Name | Item Number | Specification | Qty |
| 2#Rail | 11-R2 | 5000mm | 236 |
| 3100mm | 36 | ||
| 3200mm | 16 | ||
| 5200mm | 12 | ||
| 3650mm | 24 | ||
| 1100mm | 48 | ||
| 5300mm | 36 | ||
| 5400mm | 4 | ||
| 4300mm | 12 | ||
| 2100mm | 28 | ||
| 2#-Splice-150 | SPC-15-R2-150 | L:150mm | 256 |
| Front Leg-adjustable | SPC-BM-FL | L:40mm | 503 |
| Rear Leg (adjustable) | SPC-24-KT-BM | L:410mm | 503 |
| 2#-Mid-Clamp-40 | SPC-17-IC1740-D50 | L:40mm | 1550 |
| 1#-End-Clamp-40 | SPC-18-EC4040-D25 | L:40mm | 300 |
| 2# Connect Tube | 13-ATW35 | 1395mm | 503 |
| Ballasted Pan | 26-BM-200 | L:200mm | 1006 |
| Wind Defection Plate | 26-DF-400 | 1960mm | 204 |
| 2160mm | 136 | ||
| 2010mm | 252 | ||
| 760mm | 48 | ||
| 2135mm | 152 | ||
| 2110mm | 36 | ||
| 1560mm | 28 | ||
Welcome to choose this roof mounting systems with every aspect supports from design to installation .
