End Clamp Solar Mounting Components
- Product Type: Solar Panel Mounting Systems Hardware
- Product Model:Solar-Mounting-Components-End-Clamp
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Framed Solar Panels Installation
Product Description
Our end clamp solar mounting components are using high quality anodized aluminum (AL6005-T5) which is complied with international stardards.
Great tensile strenth and excellent anticorrosion.
This solar mounting end clamps are designed for framed solar panels, the height can be from 35 mm to 50 mm.
It’s used in the end of panels, fasten well and good corrosion resistance.
We have natural silver or black color for choosing.
The end clamp is a must for PV module installation, our specially designed can making it significantly stronger.
The fasten bolt is made of stainless steel, can be customized according to solar panel’s thickness.
Our end clamp solar mounting brackets is suitable for whatever roofing or ground solar panel systems installation.
Advantages
- Standard size of end clamp facilitate PV module installing;
- Easy & fast end clamp hardware installation with pre-assemble packing ;
- Affordable in budget cost for aluminium brackets ;
- 10-years Warranty for our solar clamp components, Quick response for after-sale service .
- Our aluminum end clamps can be widely-used for residential, commercial, remote area and marine applications .
Material List for End Clamp Solar Mounting Components :

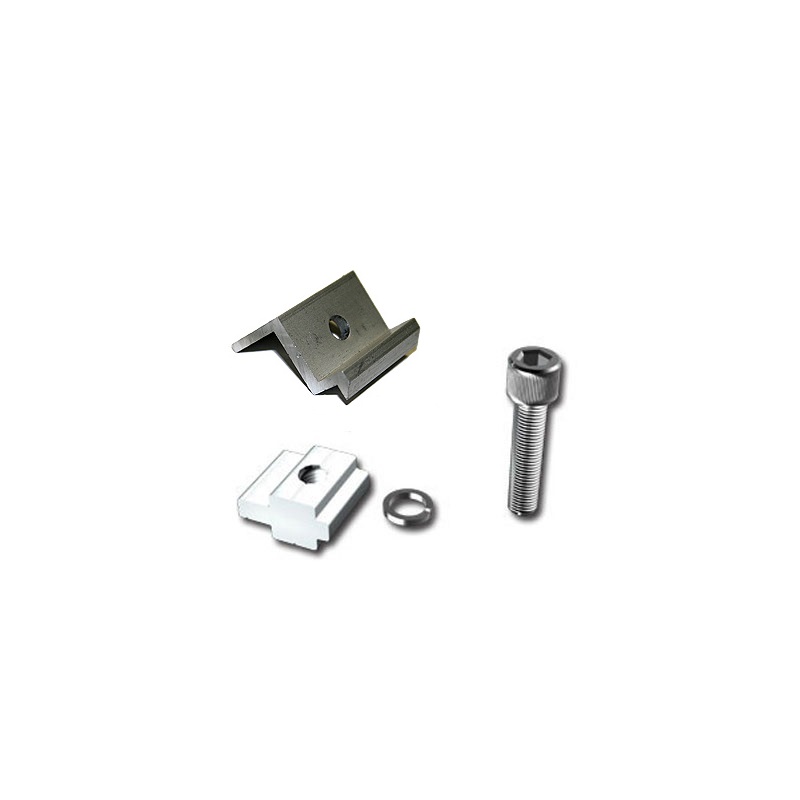

End clamp ;

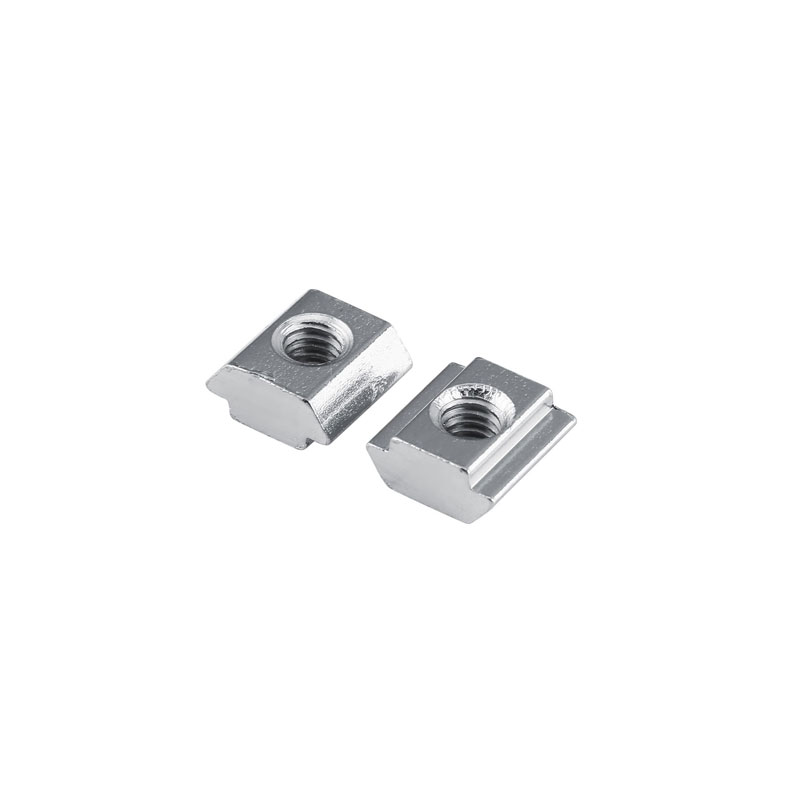

T sliding nut block;
Hexagon Socket head bolt M8 Χ 25 mm ( 30, 40, 45, 50 mm);;
Spring Washer .
| Solar Panel End Clamps Standard Size Chart | ||||
| Item | Height | Material | Includes | For Use With |
| 1 | 30mm | Aluminum | Bracket, Arm, Clamps, Bolts, Washers, Nuts | Solar Mounting Systems |
| 2 | 35mm | Aluminum | L-Bracket, Bolts, Washers, Nuts | Solar Mounting Systems |
| 3 | 40mm | Aluminum | Mounting Rail, Channels, Support Rails, Brackets, Bolts, Washers, and Nuts | Solar Mounting Systems |
| 4 | 45mm | Aluminum | Bracket, Arm, Brackets, Bolts, Washers, Nuts | Solar Mounting Systems |
| 5 | 50mm | Aluminum | Mounting Rail, Channels, Support Rails, Brackets, Bolts, Washers, and Nuts | Solar Mounting Systems |
| Brief Descriptions : | |
| Solar mounting end clamps for framed solar panels installation | |
| Item type: | Solar Mounting Components |
| Technical Parameters : | |
| Installation Site : | Ground or Roof solar panel mounting |
| Profile Material : | AL 6005 – T5 ( Anodized ) |
| Fasten Parts : | SUS 304 Steel |
| Color : | Silvery or Black |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN/M2 |
| PV Modules : | Framed |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Need solar end clamps with nut for steel rail
Client:
Also what is the length of the clamps? We want them 70mm at least.
Following is purchase list:
(1)
| ITEM NO. | Description | Specifications | Total QTY |
| Mid clamp kit –70mmL | one piece of aluminum section ; one piece of spring washer; one piece of hexagon socket screw ; one piece of SUS304 sliding nut ; |
Solar Panel Thickness 40mm | 250 PCS |
(2)
| ITEM NO. | Description | Specifications | Total QTY |
| End clamp kit –70mmL | one piece of aluminum section ; one piece of spring washer; one piece of hexagon socket screw ; one piece of SUS304 sliding nut ; |
Solar Panel Thickness 40mm | 50 PCS |
Dear Andreas
Sure ,
If not specified our standard is 40mm in length.
we can customized 70mm length as you need.

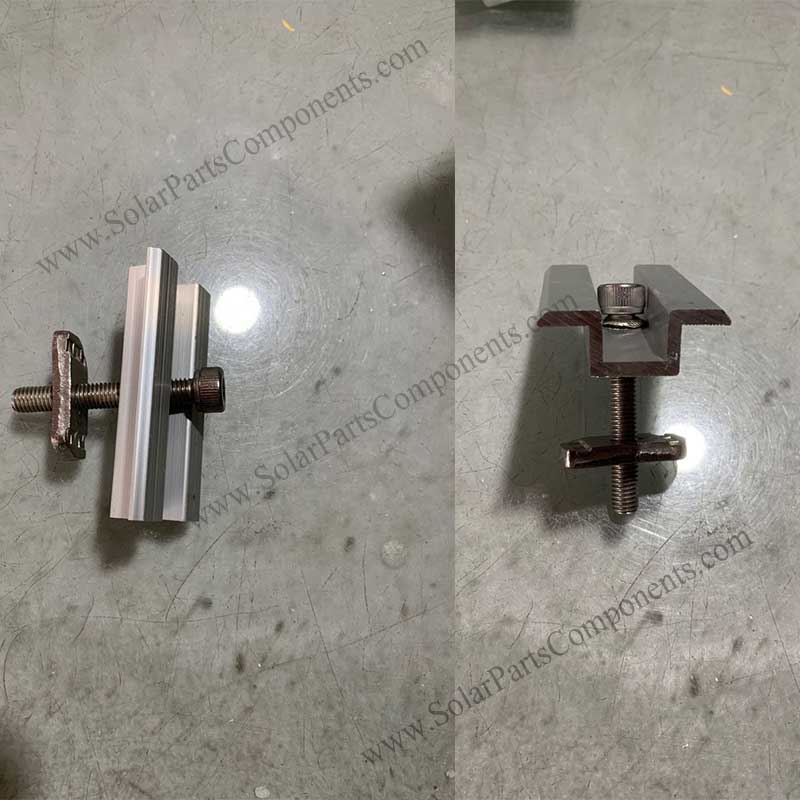

(1) 70mm solar end clamp kit:
