Solar Panel Mounting Rail SPC-R001
- Product Type: Solar Panel Mounting Components
- Product Model: Solar-Mounting-Rails-SPC-R001
- Material: Aluminium, Anodized
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Solar Panels Installation
Specification:
Item : Solar PV Mounting Rail Model – SPC-R001
Weight(kg/m) : 0.7 kg / meter ;
Packing : 500 Pieces / Carton ;

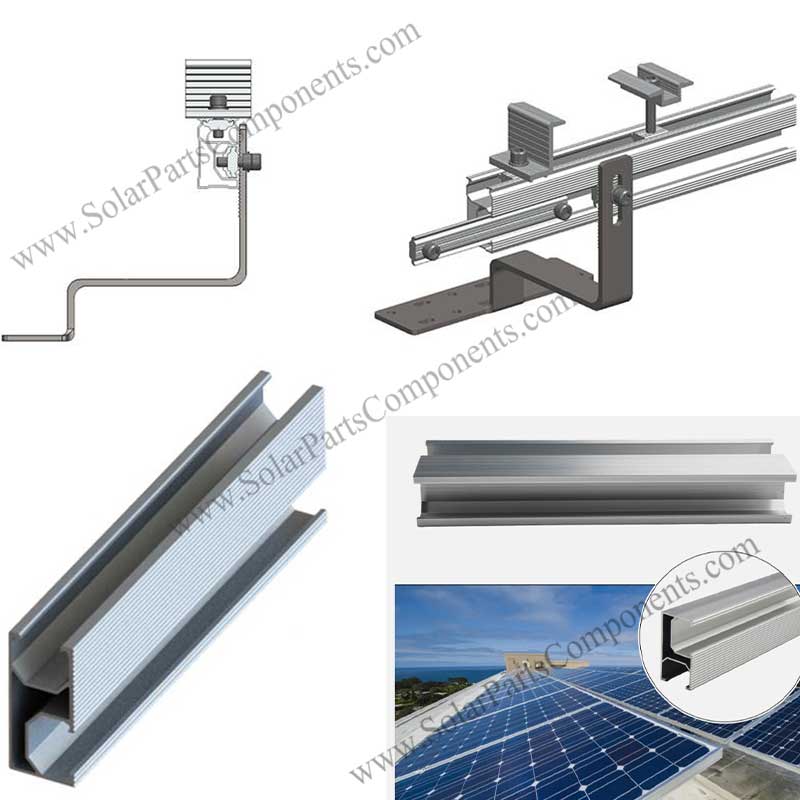

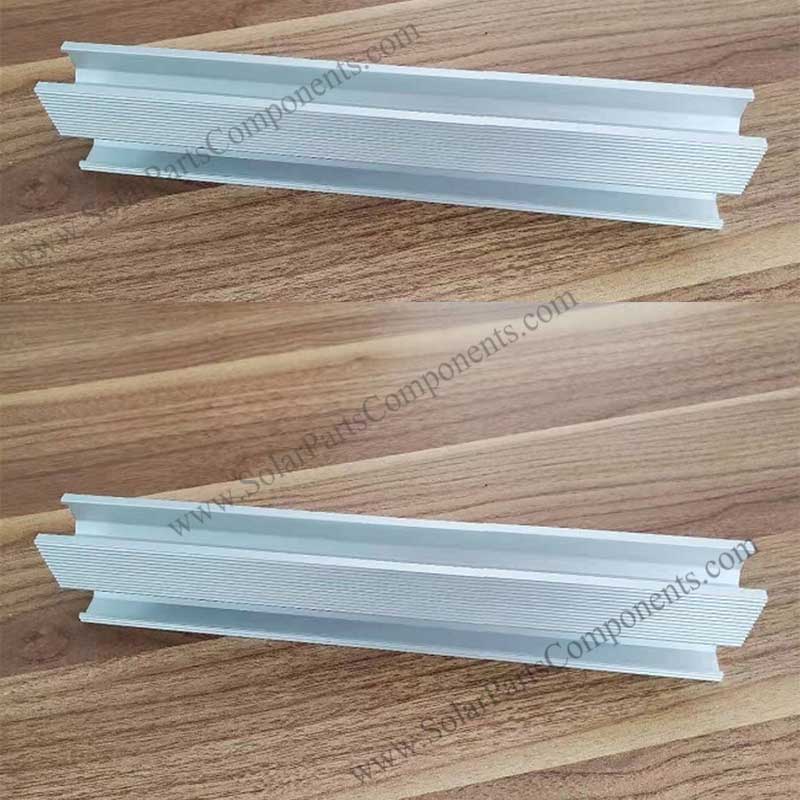

1. SPC-R001 Mounting Rail has 3 sides for installing, top side for Solar Panel , Bottom
and Side for tile hook , Top and Side are for Bolts, bottom side is for T-Bolt or ordinary bolt.
2. Tilt in Nut Bolt is esay for installing, labor, time, cost effective .

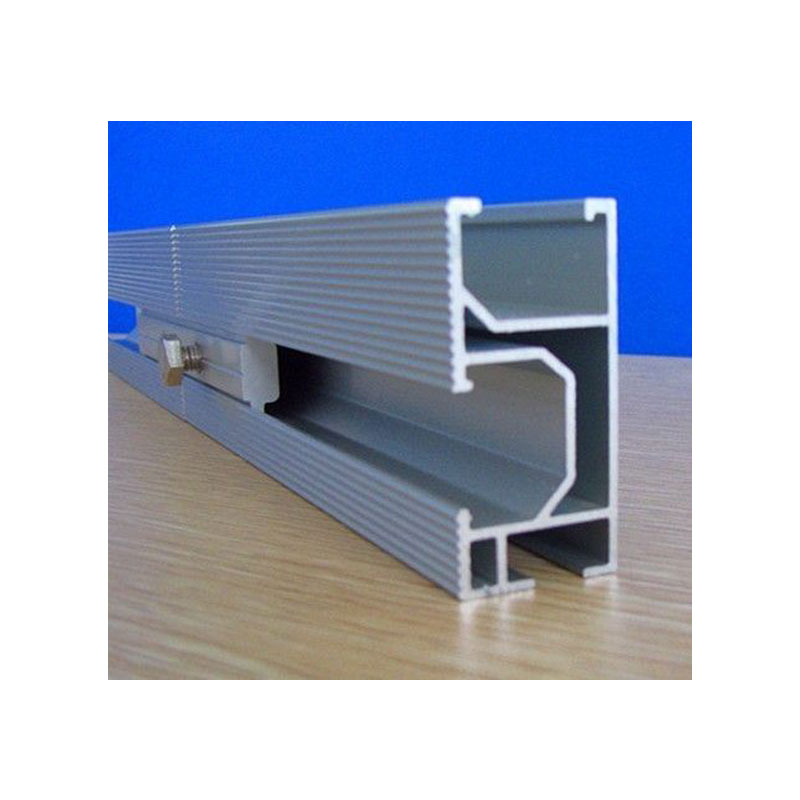

3. Rail splice kit can be convenient to connect together for this solar mounting rail model : SPC-R001,
it's light in weight, easy for transportation, fast installation .

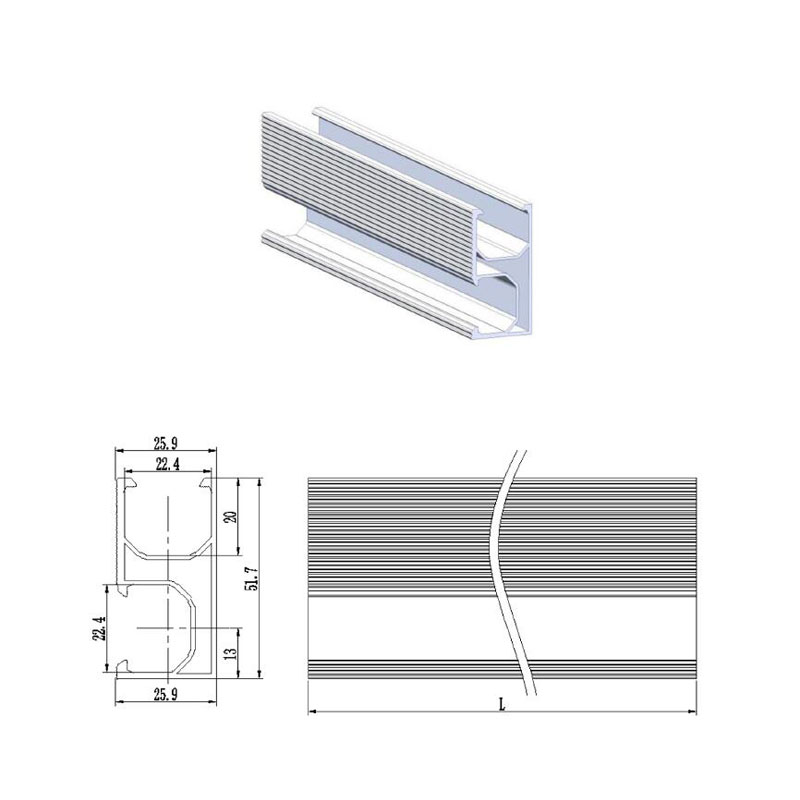

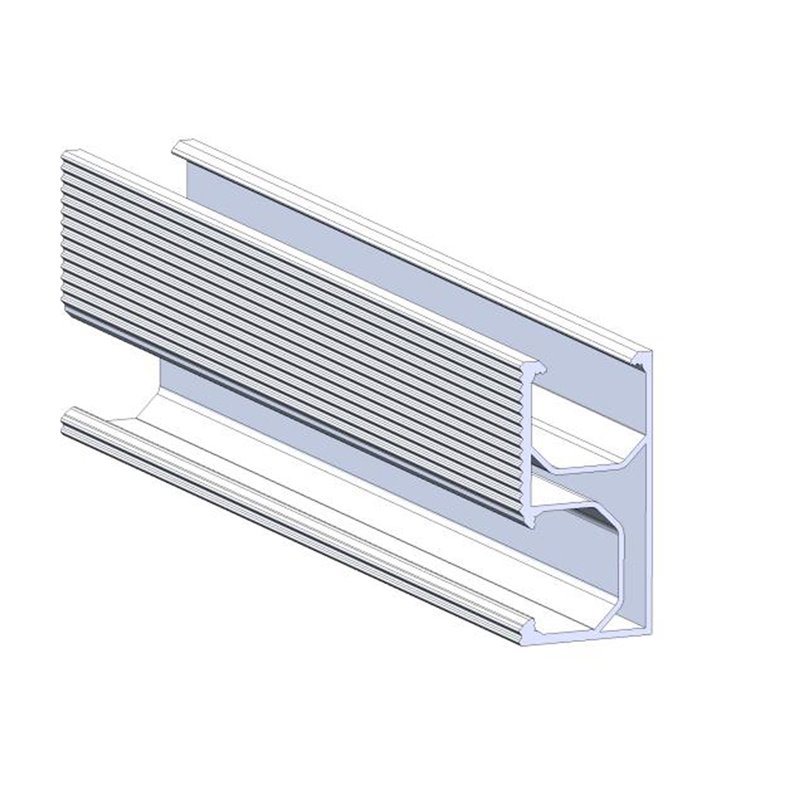

4. Section profile and drawing of Solar PV Mounting Rail SPC-R001 as below .
Standard size of this solar panel mounting rails SPC-R001 series:
(1) Rail Model :SPC-R001-2560
Standard length 2560 mm, suitatable for 3 units of 808 mm- 826 mm width PV modules mounting;
(2) Rail Model :SPC-R001-3405
Standard length 3405 mm, suitatable for 4 units of 808 mm- 826 mm width PV modules mounts;
(3) Rail Model :SPC-R001-4200
Standard length 4200 mm, suitatable for 4 units of 990 mm- 996 mm width PV modules mounted;
Cusmomized length aluminum rails are acceptable for solar installing projects ,
sizes can from 50 cm to 600 cm .
Our mounting rails SPC-R001 can support solar panels with stronge strength when install on tile roofs .
Optional matched components you may used are :
1. Inner Hexagon bolt : M8 X 25 mm ;
2. Alum T sliding nuts ;
3. Mid Clamps / end clamps ;
4. Rail Splice ;
…
| Brief Descriptions : | |
| Solar Mounting Components – Solar Mounting Rails SPC-R001 | |
| Item type: | Solar Aluminum Rails |
| Type : | Mounting Constructure Parts |
| Installation Site : | Tile Roof |
| Profile Material : | AL 6005 – T5 Alum |
| Fasten Parts : | Mid & End Clamps |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Features of Solar Mounting Rails
Features of Solar Mounting Rails:
- Good corrosion resistance: Due to the material of aluminum and anodized treatment on surface, it's safe and durable, which could be used for very long time.
- High-quality aluminum: It has advantages of good toughness and light texture, so that the installation can be easy and fast.
- Strong strength: Can be used in extremely harsh conditions. It must meet your target strength, such as wind load and snow load.
- Stable internal structure: Support the solar panel safely.
- High Pre-assembly: Save labor costs and time at the installation site.
- Simple to install and easy to use, bring much convenience to you. With high construction efficiency.
- Factory direct sales, higher cost performance.
- Wide variety to meet the pv mounting installation.
Easy Installation PV module rails SPC-R001, well design for wide flexibility mounting structures .

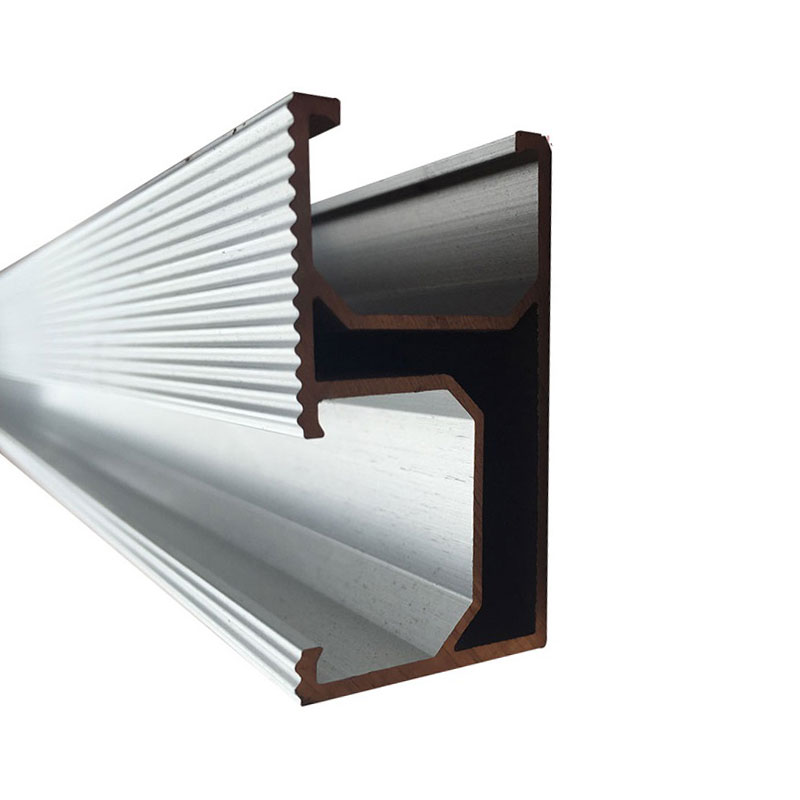

PV module mounting Aluminum Rail SPC-R001
Anodized PV Modules Aluminum Rails (SPC-R001) for compatible mounting systems .
Following is specification details for PV module grounding clip model No. SPC-R001 :
– AL6005-T5 , anodized material;
– 1 / 2 / 3 / 4 / 5 Meters in length ;
– Widly used for carport / roof top / ground mounting systems ;
– Mill finishing / black color can be choosing ;
– Core components with premium quanity aluminum extrusion ;
– Factory direct PV module mounting aluminum rails, light-weight, anodized finished .
PV modules mounting rail, easy installation, 6005-T5 aluminum extrusion
Installation for this PV module mounting kits including :
– PM module Aluminum Rails (SPC-R001) ;

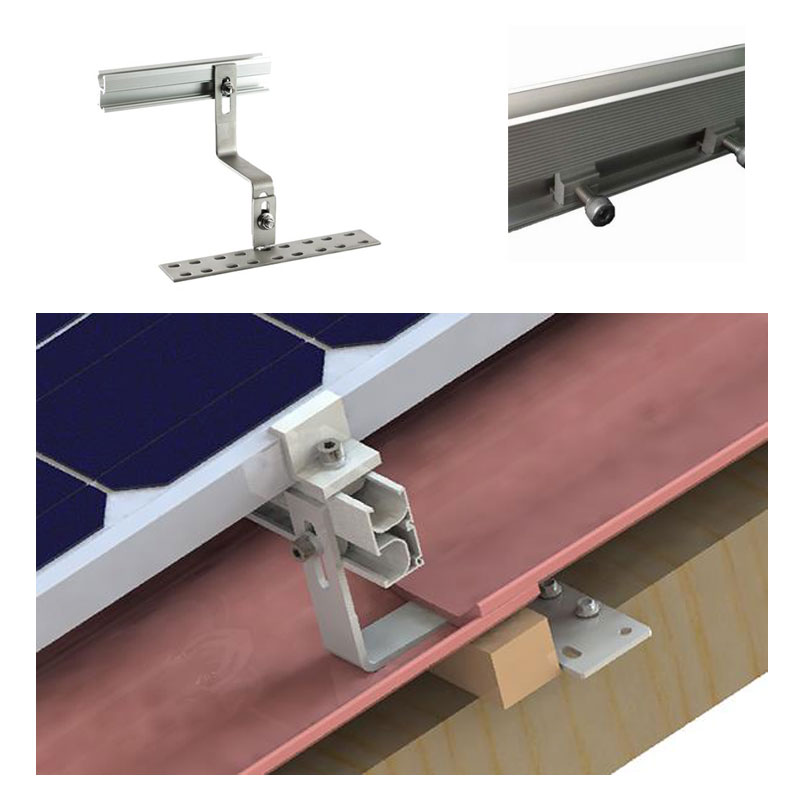

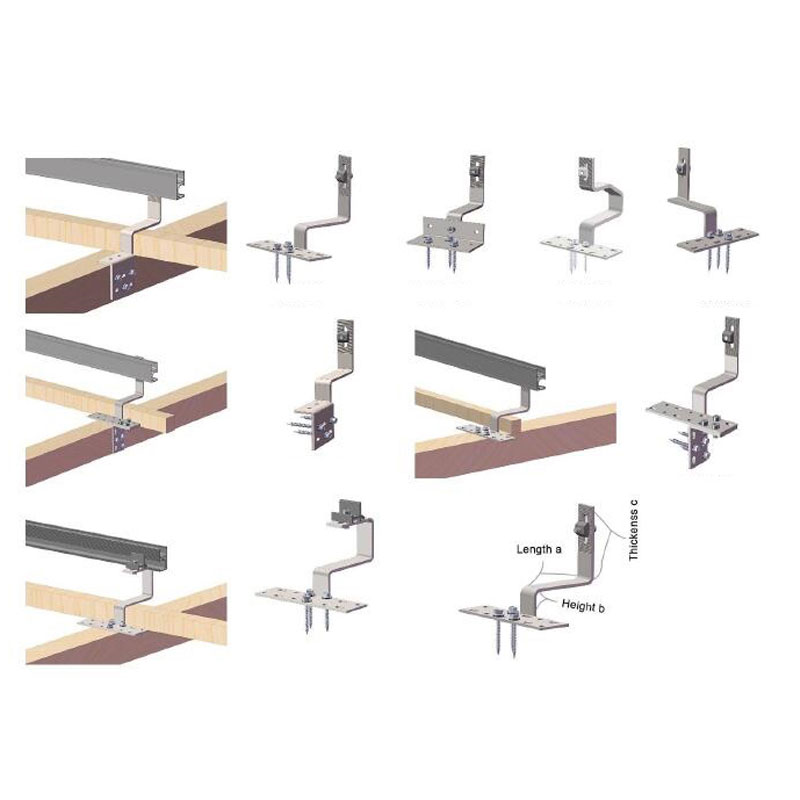

– Tile roof bracket / solar hooks / L foot / fold tripod legs …
– Mid / End clamps ;
– Earthing washer ( grounding plate) ;
– Rail joiner ;
– Earthing lugs;
– Roofing Screws ;
Welcome to purchase PV panel rails for your solar energy system.
SolarPartsComponents.com are manufacturing of solar module mounting accessories & structures .
Can you ship Solar Mounting Rails to Ontario, Canada?
Q:
solar mounting rail factory
PV module mounting rails, aluminum AL6005-T5, Anodized, side-mounting structure .
PV module mounting rails are one of key components for many kinds of solar mounting structure expecially on grounding
and roof installation .
Our PV moudule aluminum rail is 4200 mm in length and can be cutted in any sizes according to mounting project required
.
This aluminum rail is made of high quality material and thick profile which can keep sturdy in bad storm / heavy snowfall
weathers .
Features :
– Anti-buckle , safe structure ;
– Suitable for curve tile / iron roofing ;
– Corrosive resistant in anodized aluminum alloy;
– Very suitable for snowless area ;
PV module mounting rails SPC-001
Factory direct PV module rails, AL-6005-T5 aluminum anodized finishes, side mounted, SPC-001
How to hold firmly PV modules after laying on the top of rail racking ?

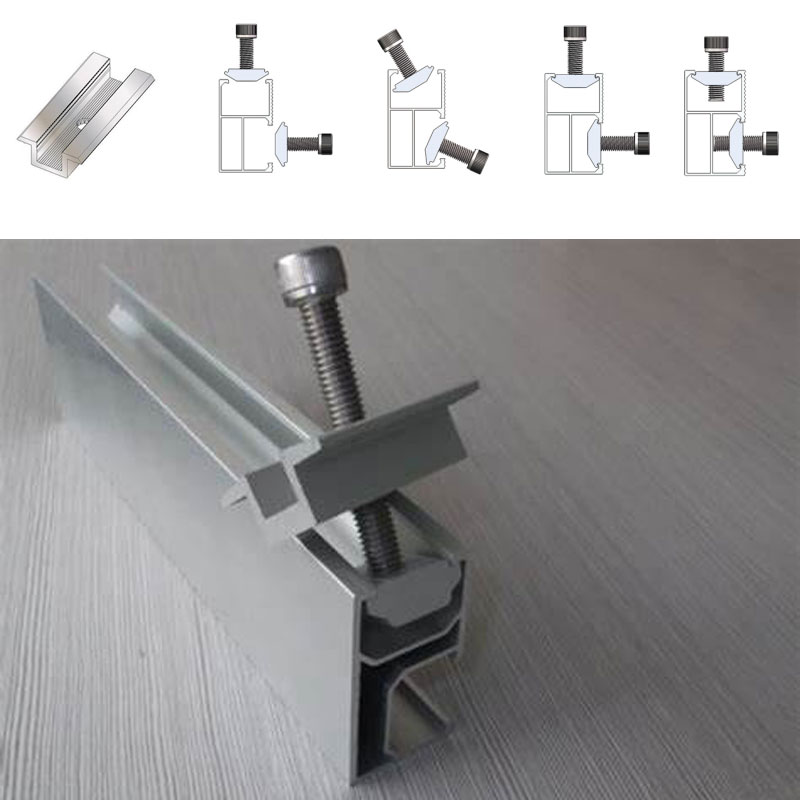

With our matched solar mounting mid / end clamps , you can quick and easy to install PV modules on our #1 alu rails :
Solar Panel Rail Racking
