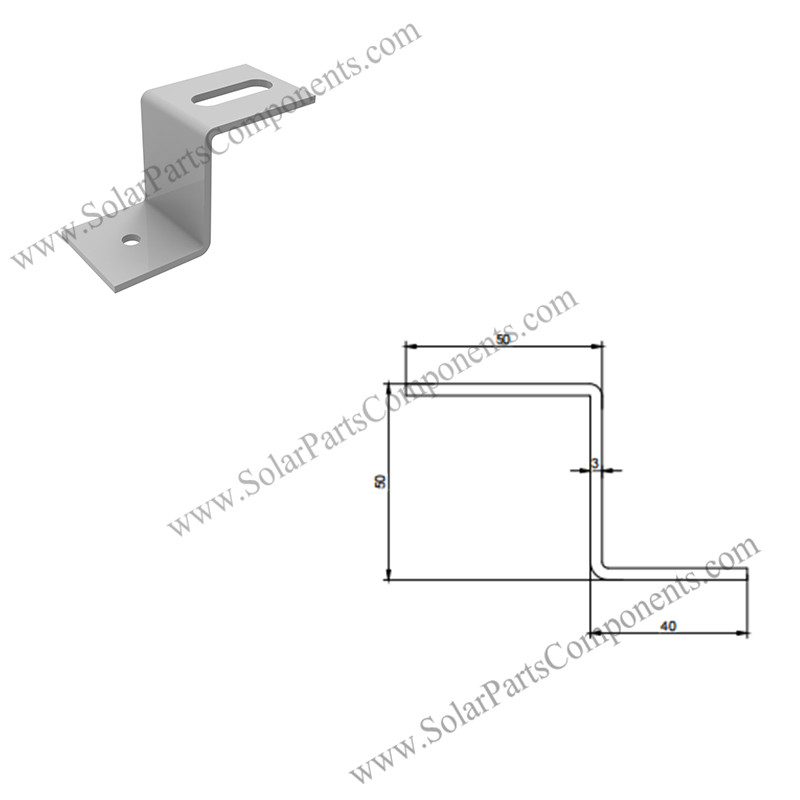

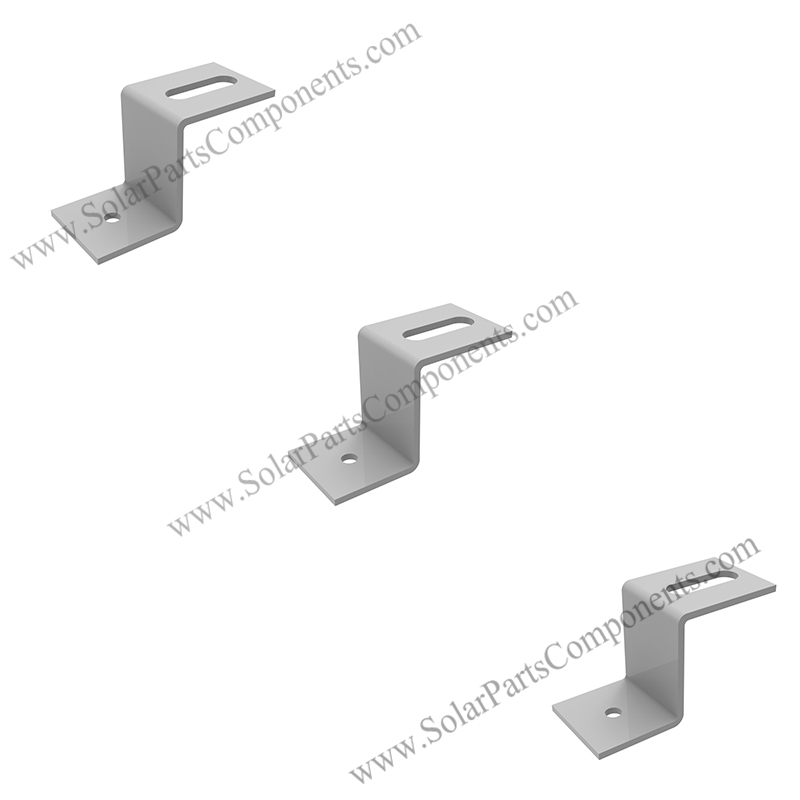

Solar Panel Mounting Bracket – Z Bracket
- Product Type: Solar Racking
- Product Model: SPC-RM-Z
- Material: S350-ZM
- Max Wind Load : 60 m/s
- Max Snow Load : 3.6 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Unframed / Frameless modules
Product Description:

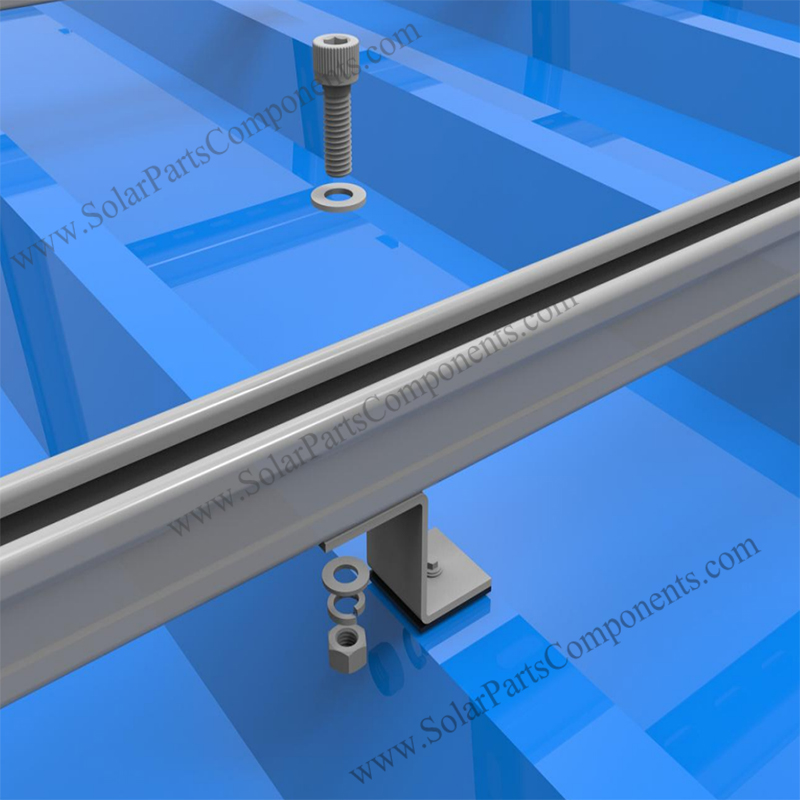

This solar panel mounting bracket is specially engineered for trapezoidal roof installation, perfectly matching various conventional trapezoidal metal roof profiles for residential, commercial and industrial rooftop solar PV projects. Designed for practical and standardized installation, the bracket is installed with matched wood screws and waterproof rubber gaskets. Meanwhile, the top reserved structure of the bracket allows stable and flexible installation of solar mounting rails, providing a solid and reliable foundation for subsequent solar panel layout and fixation.
Advantages of solar panel mounting bracket – Z bracket:
1. Custom-designed for trapezoidal metal roofs, it fits most standard trapezoidal roof profiles, suitable for residential, commercial and industrial solar PV installation scenarios with strong universality.

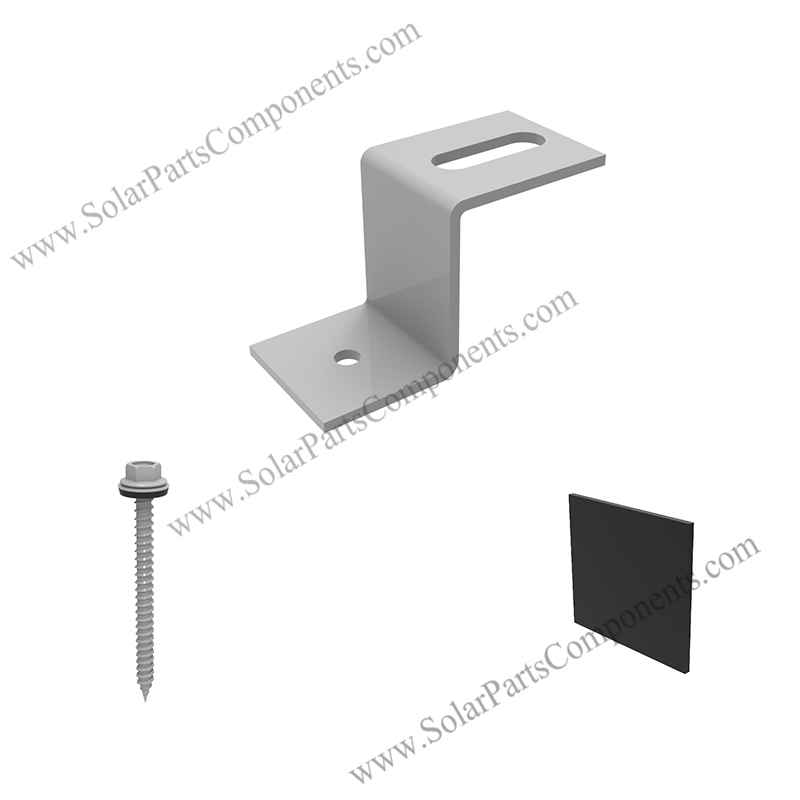

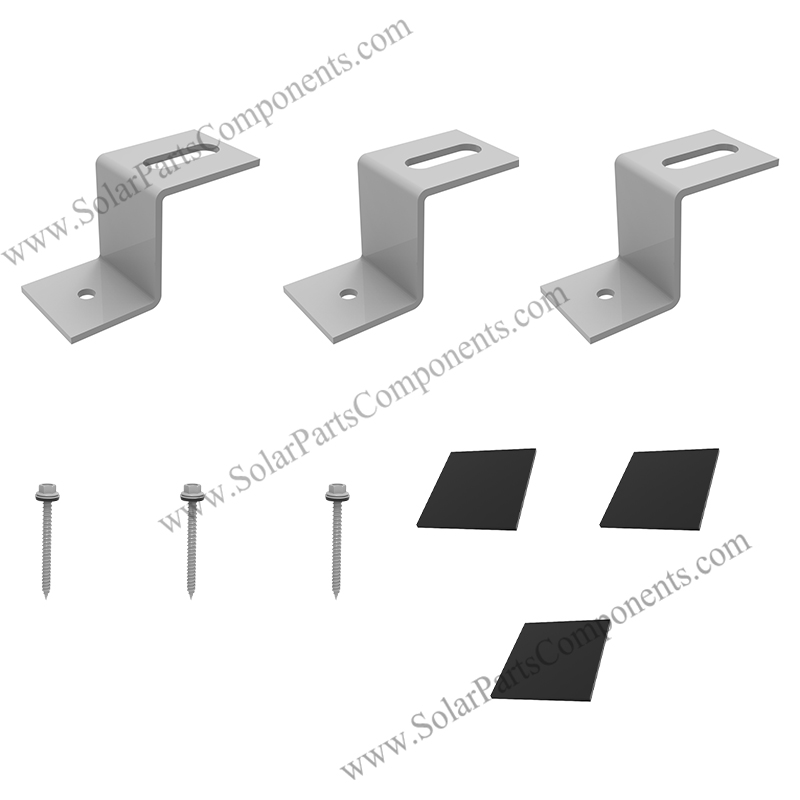

2. Equipped with matched wood screws and premium rubber gaskets, which can effectively preventing roof leakage.
3. Integrated lightweight structure with precise positioning holes eliminates tedious assembly steps. It requires no complicated tools or professional skills, greatly saving construction time and labor costs.
Welcome to contact us anytime, our company website: solarpartscomponents.com
| Datasheet | |
| Description: | |
| Solar Panel Mounting Bracket – Z Bracket | |
| NO.: | SPC-RM-Z |
| Product Type: | Solar roof mounting component |
| Installation location: | Metal Roof |
| Installation angle: | Parallel to rooftop |
| Material : | S350GD-ZM / Q235 / EPDM |
| Module: | Frame / frameless solar Module |
| Warranty: | 10 Years |
| Lifetime: | 20 Years |
| Orientation: | Landscape,Portrait |
| Wind speed: | 60 M/s |
| Snow load: | 3.6 KN / M2 |
| Standard: | AS/NZS1170 & DIN 1055 |
- Overview
-
Product Description:
This solar panel mounting bracket is specially engineered for trapezoidal roof installation, perfectly matching various conventional trapezoidal metal roof profiles for residential, commercial and industrial rooftop solar PV projects. Designed for practical and standardized installation, the bracket is installed with matched wood screws and waterproof rubber gaskets. Meanwhile, the top reserved structure of the bracket allows stable and flexible installation of solar mounting rails, providing a solid and reliable foundation for subsequent solar panel layout and fixation.
Advantages of solar panel mounting bracket – Z bracket:
1. Custom-designed for trapezoidal metal roofs, it fits most standard trapezoidal roof profiles, suitable for residential, commercial and industrial solar PV installation scenarios with strong universality.
2. Equipped with matched wood screws and premium rubber gaskets, which can effectively preventing roof leakage.
3. Integrated lightweight structure with precise positioning holes eliminates tedious assembly steps. It requires no complicated tools or professional skills, greatly saving construction time and labor costs.

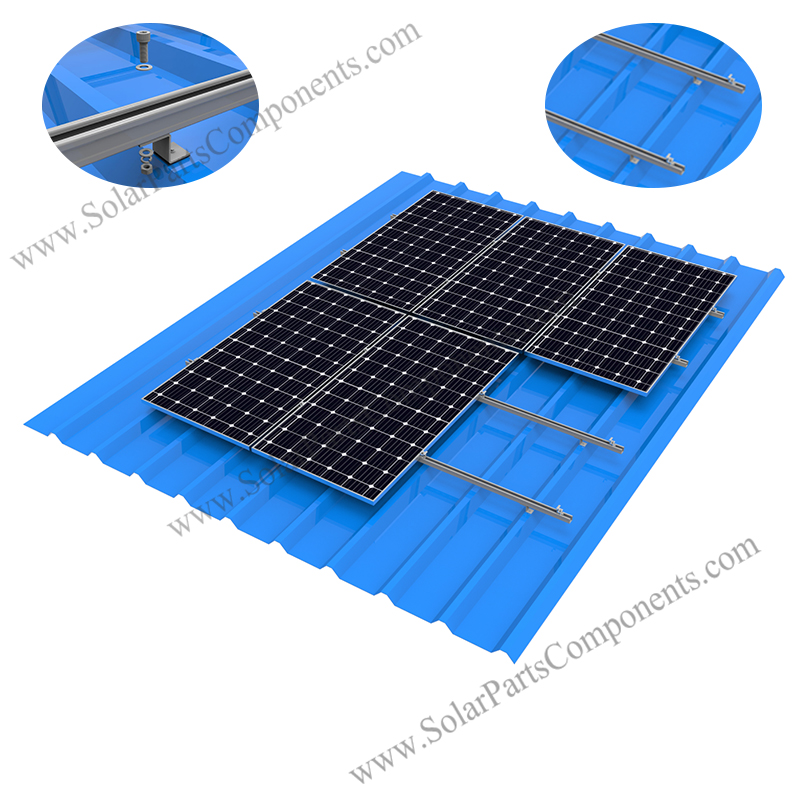

This trapezoidal roof solar panel mounting bracket – Z bracket is an ideal matching solution for trapezoidal roof solar panel installation, widely applicable to various civilian and industrial solar power generation projects.Welcome to contact us anytime, our company website: solarpartscomponents.com
- Specification
-
Datasheet Description: Solar Panel Mounting Bracket – Z Bracket NO.: SPC-RM-Z Product Type: Solar roof mounting component Installation location: Metal Roof Installation angle: Parallel to rooftop Material : S350GD-ZM / Q235 / EPDM Module: Frame / frameless solar Module Warranty: 10 Years Lifetime: 20 Years Orientation: Landscape,Portrait Wind speed: 60 M/s Snow load: 3.6 KN / M2 Standard: AS/NZS1170 & DIN 1055 - Leave Message
-
