Curved Tile Roof Hooks, Top adjustable, Bottom Mounting
- Product Type: Solar Curved Tile Roof Hooks
- Product Model:SPC-IK-10
- Material: A2 Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Pitched Tile Roof Installation
Product Description :

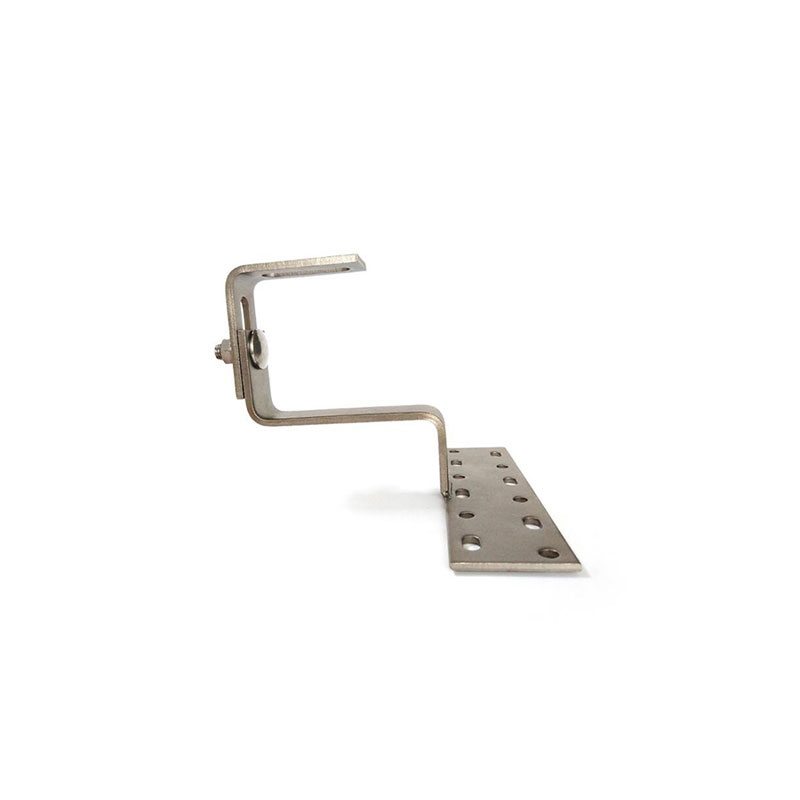

The adjustability range of our curved roof tile hooks is 15 mm.
There is one 10 mm wide and 46 mm long slot from upper hook for this solar mounting kit.
180 degree bottom mounting top adjustable solar hooks means : the solar panels and hooks are parallel .
We use good quality 304 stainless steel for this adjusted curved tile roofing hooks.
By using our bolts, nuts, screws , helping installing pitched Roman tile roof simply and quickly .
Our optional solar component T sliding blocks is made of premium Alum with anodizing surface finishing.

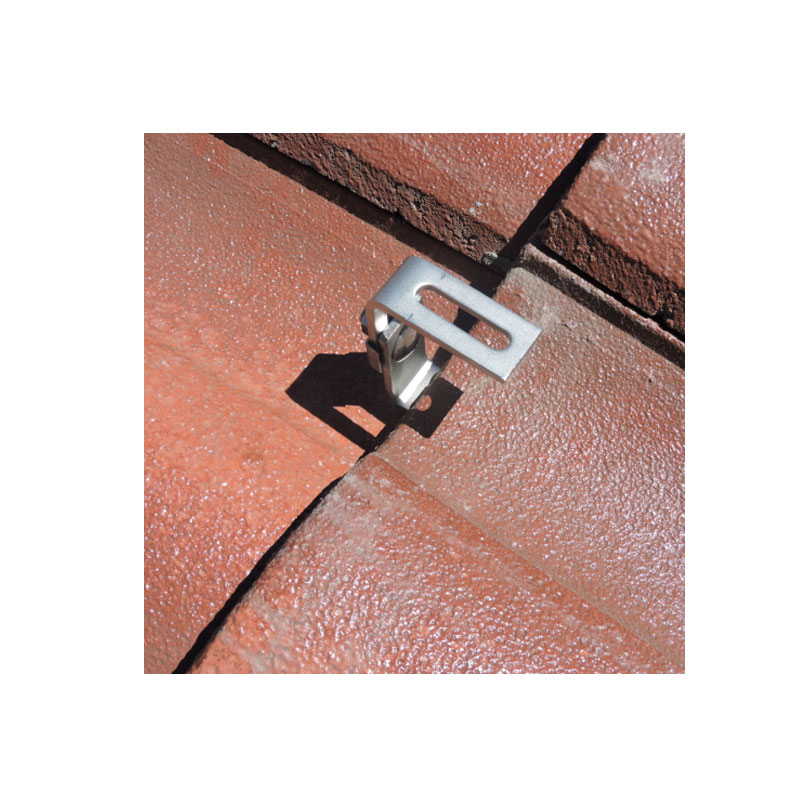

This adjustable solar tile hook can be applied for sloping roofing which is builded by Curved , Spanish , Roman , Clay tiles …

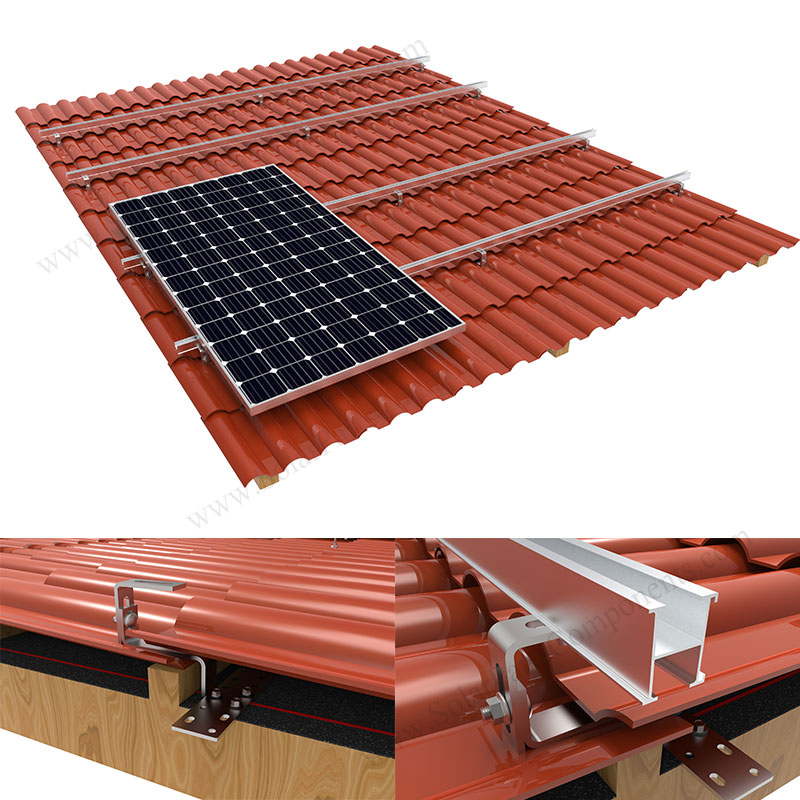

Whatever for landscape or portrait PV panels installation .
We have prefessional design team which can assist using this top adjustable solar tile roof hooks for PV projects sucessfully.
- Quick Installation : Pre-assembly with international standard , turnkey-job ;
- Quality Guarantee : Strict Quality Controlling keep reliable service ;
- Expert Service : Professional manufacturing solar components more than 6 years;
- Warranty : Offer 10 Yrs Warranty for our Bottom mounted rails roofing hooks .

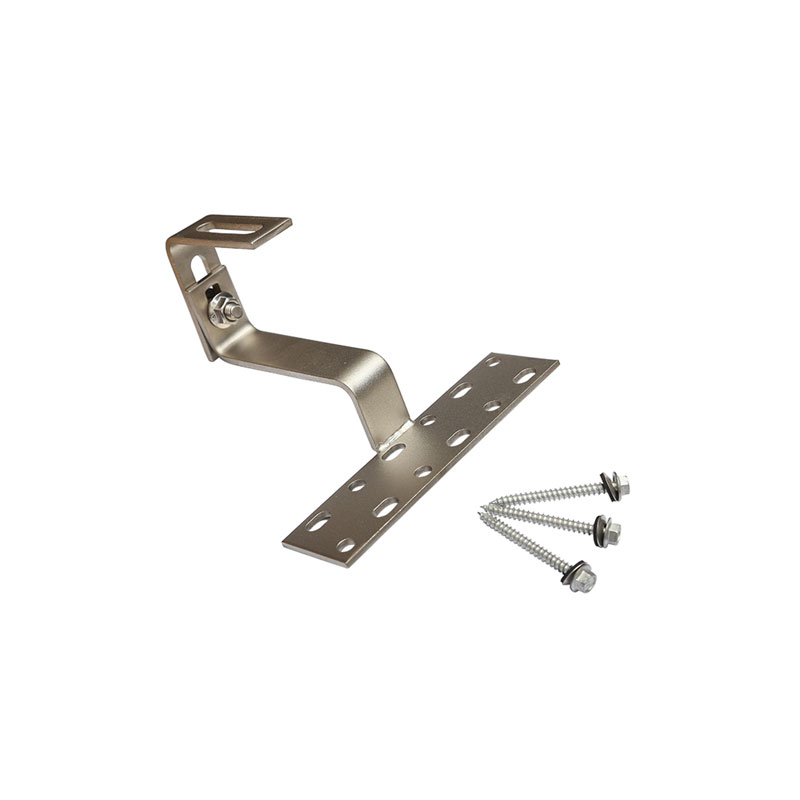

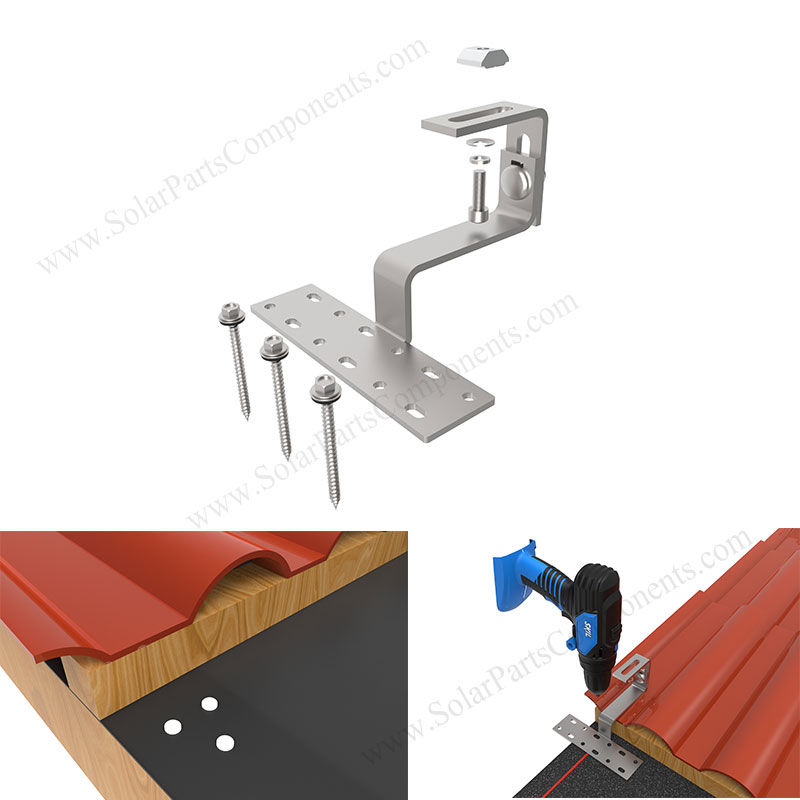

Parts and Components for Solar Curved Tile Roof Hooks, Top adjustable, Bottom Mounting :
Stainless adjustment 304 hook with slot;
Carriage bolt bolts and nuts ;
T sliding nut block (Optional);
Solar Mounting Screws .
If you’re interested in solar mounting system, we’d love to discuss with you about more and answer any questions you might have. As a professional manufacturer of PV mounting system, SPC is a great option for you.
Click here for more details and information:
|Brief Descriptions :|
|Solar Mounting Components – Curved Tile Roof Hooks, Top adjustable, Bottom Mounting , 180°|
|Item type:||Solar Curved Tile Roof Hooks|
|Type :||Roof Hooks|
|Installation Site :||Pitched Roofing|
|Profile Material :||SUS 304 Stainless Steel|
|Fasten Parts :||Stainless Steel / Aluminum 6005-T5|
|Color :||Silvery or according to customer requirements|
|Wind Load :||60 m / s|
|Snow Load :||≤ 1.4 KN / M2|
|PV Modules :||Framed, Frameless|
|Module Orientation :||Portrait and Landscape|
|Standards :||AS/NZS 1170|
|JIS C 8955 : 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed LifeSpan||25 years|
|Packing Details :|
|Inner :||Bubble bag+inner box+Carton|
|Outer :||Wooden Box, Steel Pallet, MDF, etc|
Installation Manual for Solar Roof Hooks SPC-IK-10
Solar Tile Roof Hooks Railless solution
Hi can you please provide a price for solar panel mounting kit for a tiled roof (Photovoltaic energy mounts for tile roof, Solar Tile Roof Hooks railless solution) the amount needed is for 3 panels in landscape mode 1 over 2 as a triangle shape, dimensions of the roof are 5.5m to a point at 3.4m, this will hold 3 panels, and total need 200 sets. A: Thank you for your inquiry for our solar tile roof mounting brackets. Yes, we can provide this railless solution. Each set of the components list for the 3 panels as below:
It looks good, please give me your best price for 200 sets for test.
Thank you, I have sent our quotation to your mail box.
Solar Tile Roof Hooks Factory
Solar Tile Roof Hooks top adjustable
SPC Solar tile roof hooks are made of superior high quality stainless steel 304 material, super strong and durable.

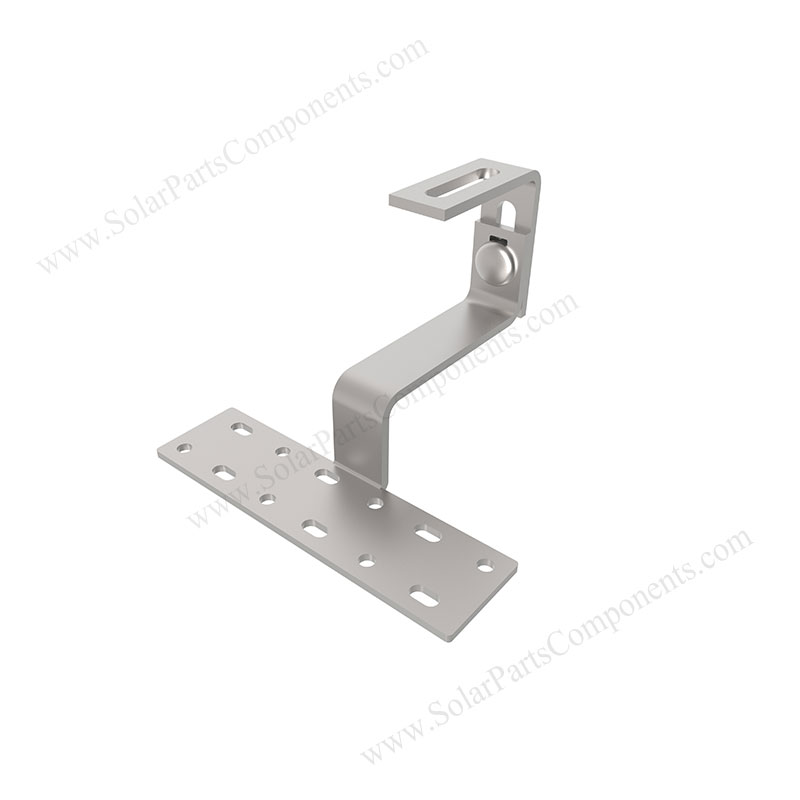

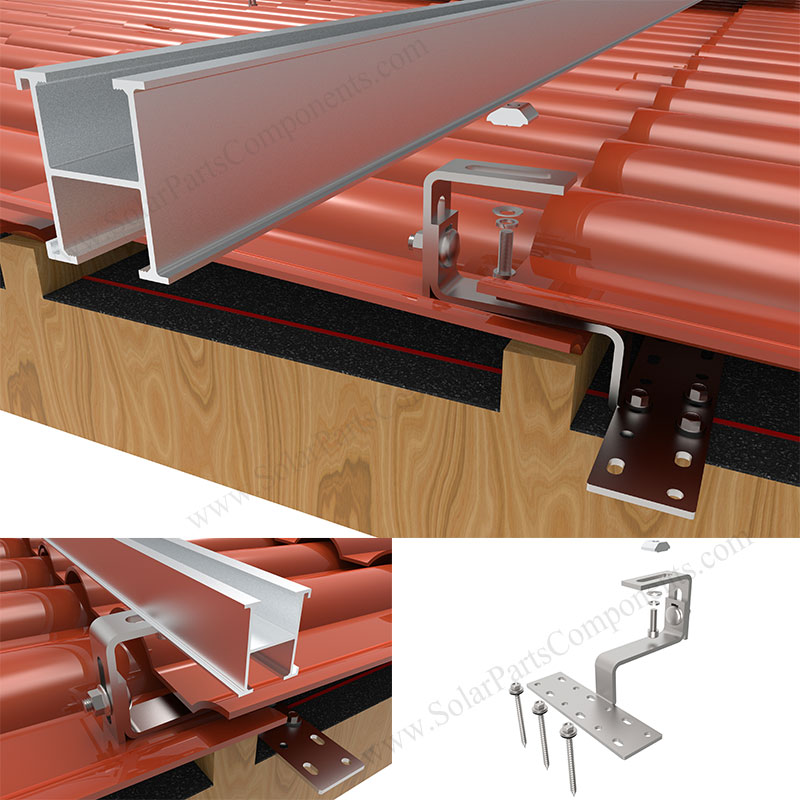

This model SPC-IK-10 is design for top adjustable, aluminum rail bottom mount vertical style. It is suitable for most type of pitched roof solar mounting.
Dimension details of this tile roof hook:

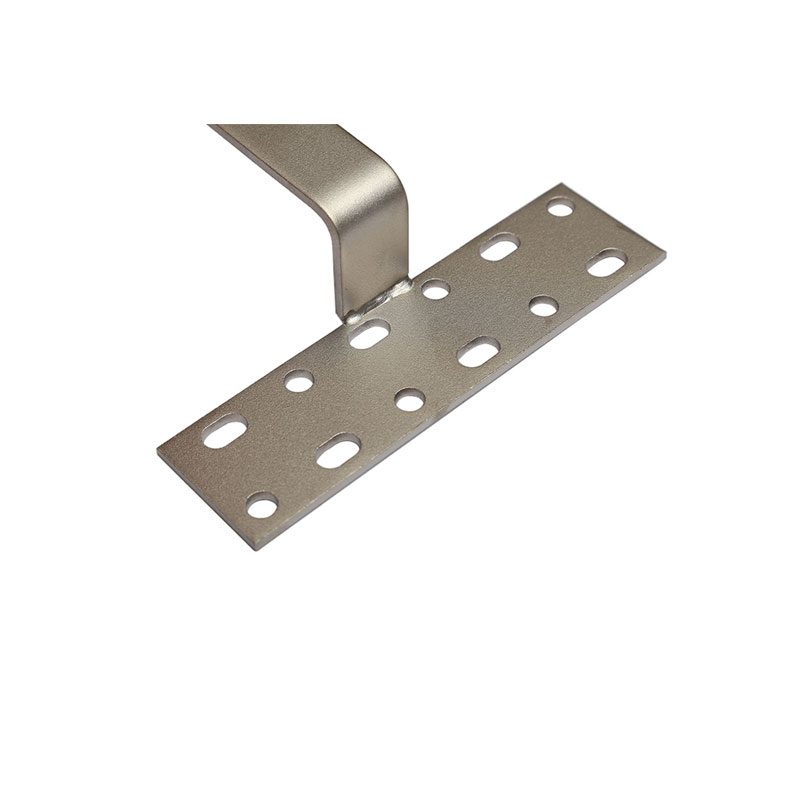

The base plate: 180mm x 50mm x 4mm
The bar height is 52mm(2.05″)
Length of the long hole:51mm
Adjustable range from 40mm to 90mm
Solar Tile Roof Hooks Factory OEM & ODM

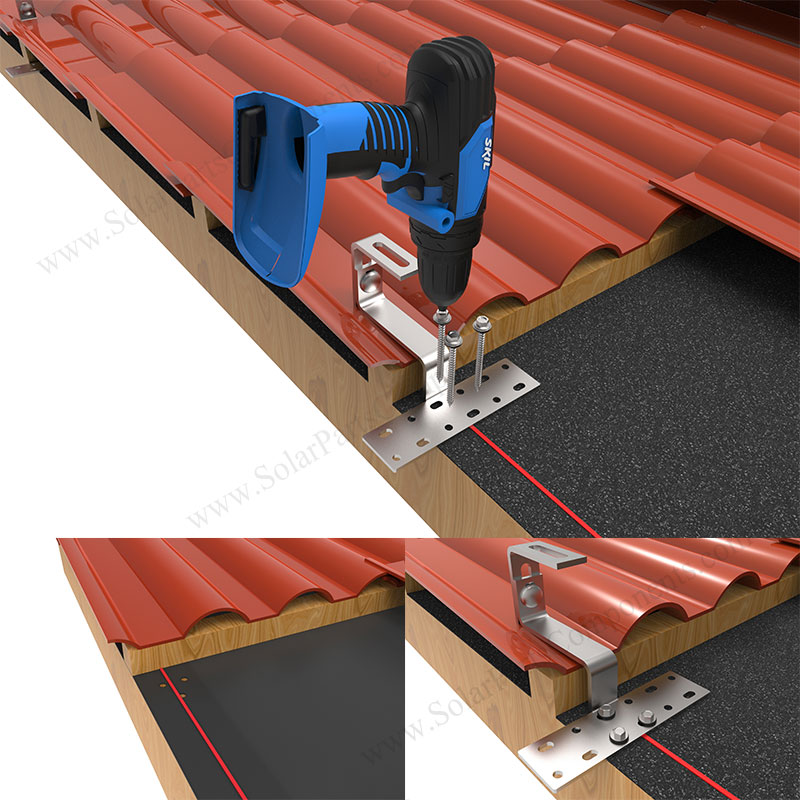

Tile roof hook #10 installation
Installation instructions for stainless steel hook#10
Introduction of tile roof hook #10, Single adjustment, bottom mounted
Solar Mounting Components -tile roof hook #10, Single adjustment, bottom mounted
