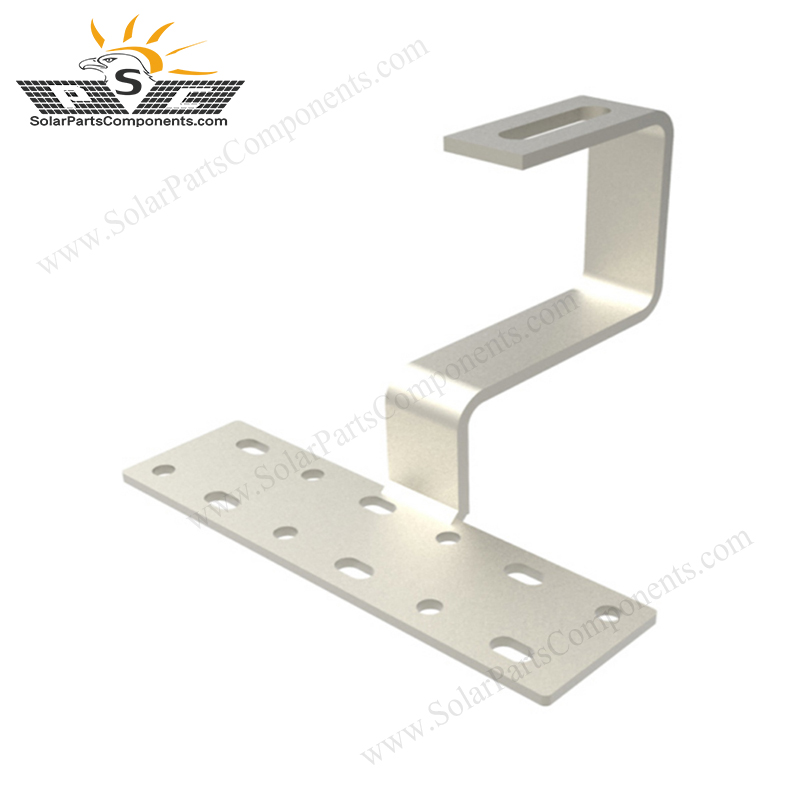

Solar Curved Tile Roof Hooks , Non-adjustable for Bottom Mounting Rails

Curved Tile Roof Hooks, Non-adjustable, Bottom Mounting

Product Type: Solar Curved Tile Roof Hooks
Product Model:SPC-IK-07
Material: 304 Stainless Steel
Max Wind Load : 60 m/s
Max Snow Load : 1.4 KN / M ²

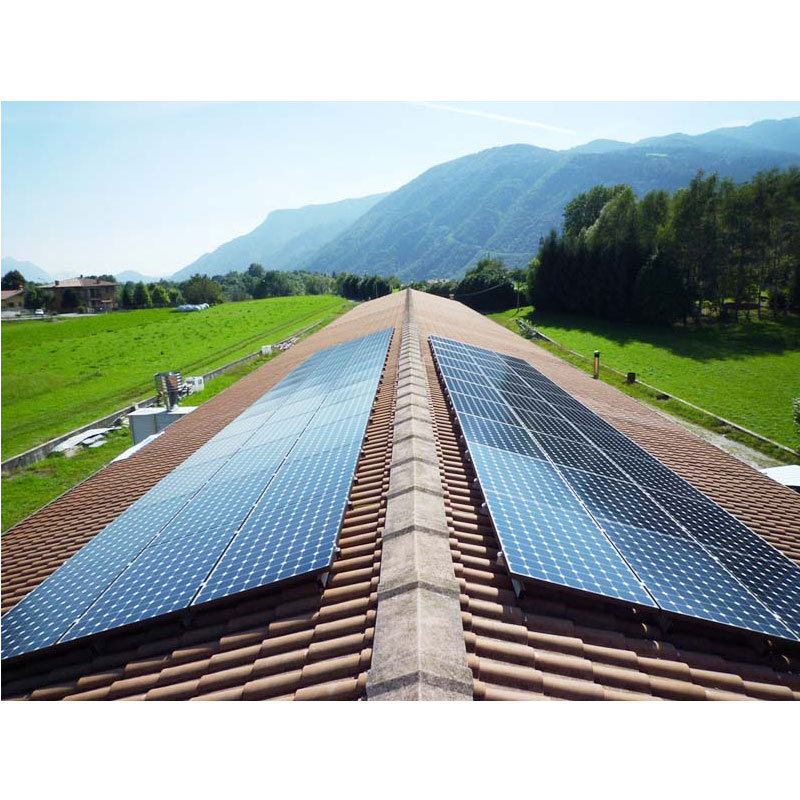

Application: Pitched Tile Roof Installation

Contact by Email

Solar Curved Tile Roof Hook with lag screws

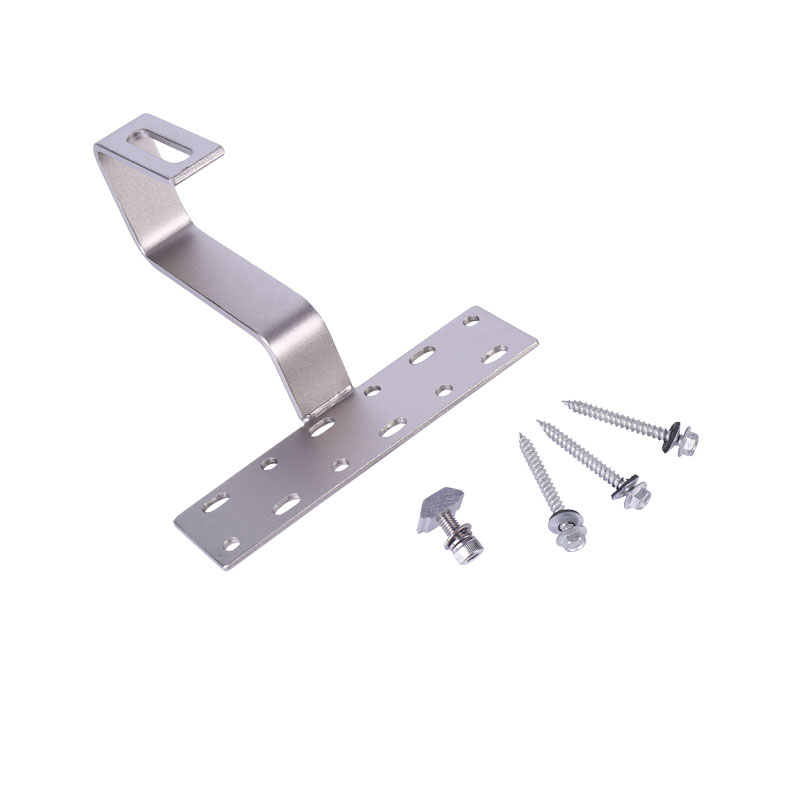

Solar Roof Hooks, Bottom Mounted , Model: SPC-IK-10-S

solar roof hooks non-adjustable bottom mounting

Product Description :

Our non-adjustable solar hooks are designed for bottom mounting, it’s 180 degrees parallel with solar panels.

This curved tile roofing hooks are fixed in height and made of SUS 304 stainless steel.

Choosing our matched bolts, nuts, screws , installers can finished pitched Roman tile projects quickly and labor effective.

Our optional solar component T mid-blocks is made of premium Alum with anodizing surface finishint.

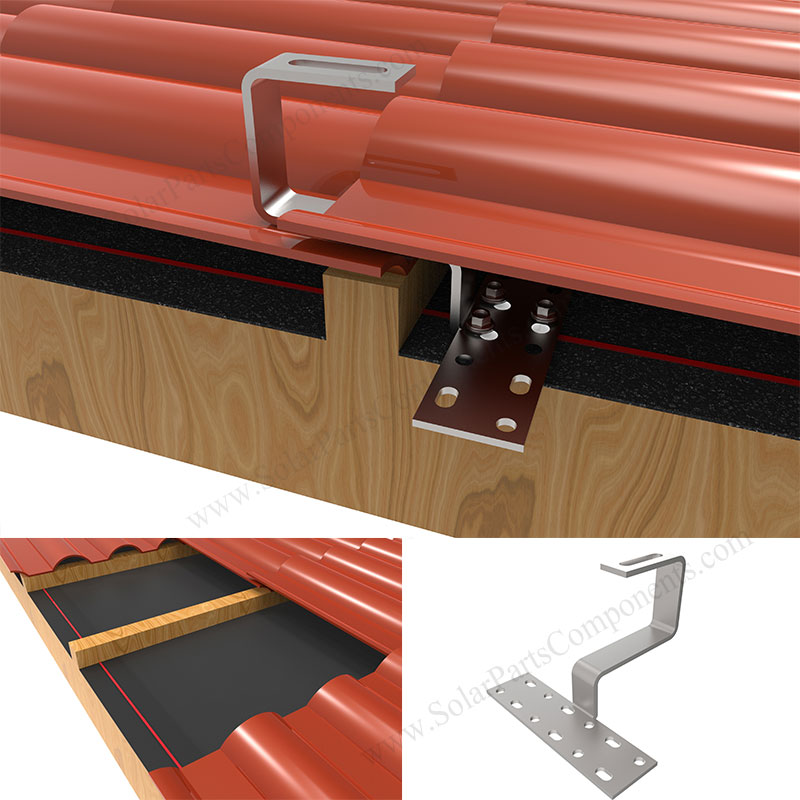

This not adjustable solar tile hook can be applied for sloping roofing which is builded by Curved tiles, Spanish tiles, Roman tiles, Clay tiles …

Whatever for vertical or horizontal PV panels installation .

None adjustable solar PV structure should be accompanied with projects with whole solar kits .

Advantages :

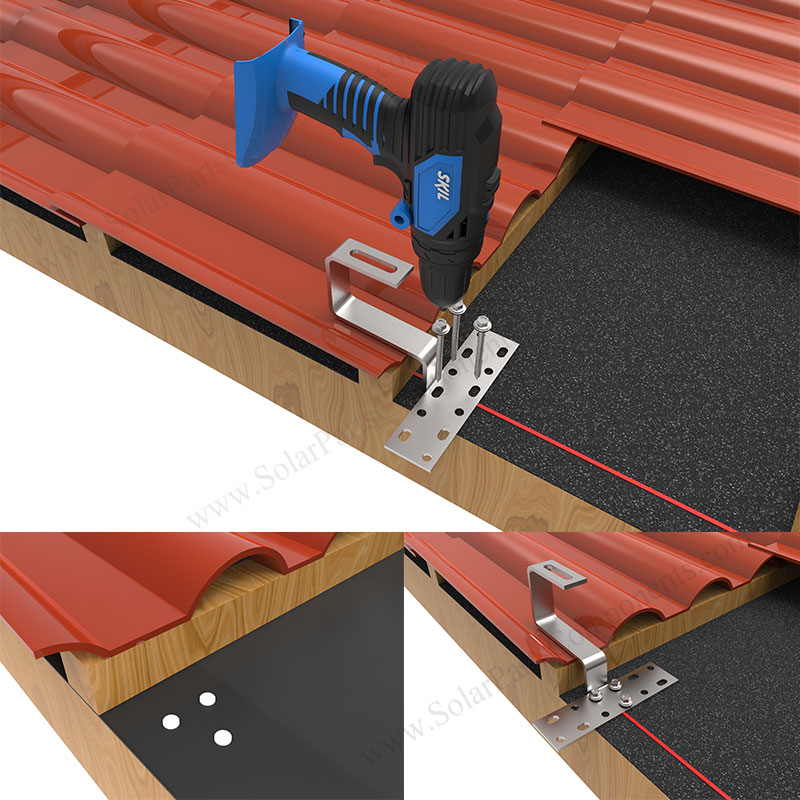

Simply Installing : Pre-assembly with international standard , turnkey-job ;

QC Guarantee : Strict Quality Controlling keep reliable service ;

Rich Experience : Professional manufacturing solar components more than 6 years;

Long life span : Offer 10-Years Warranty for our Bottom mounted rails roofing hooks .

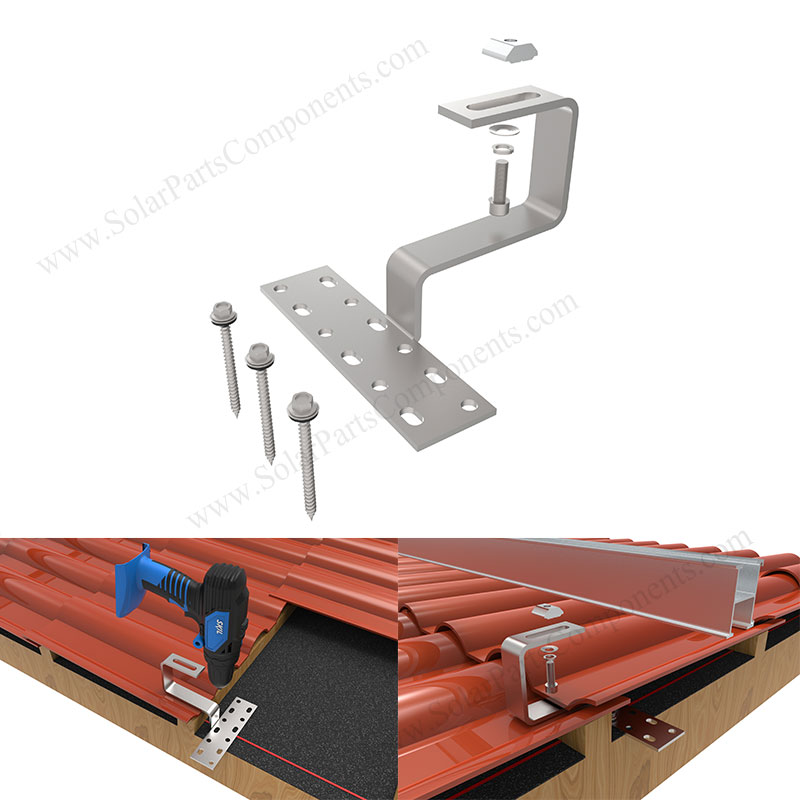

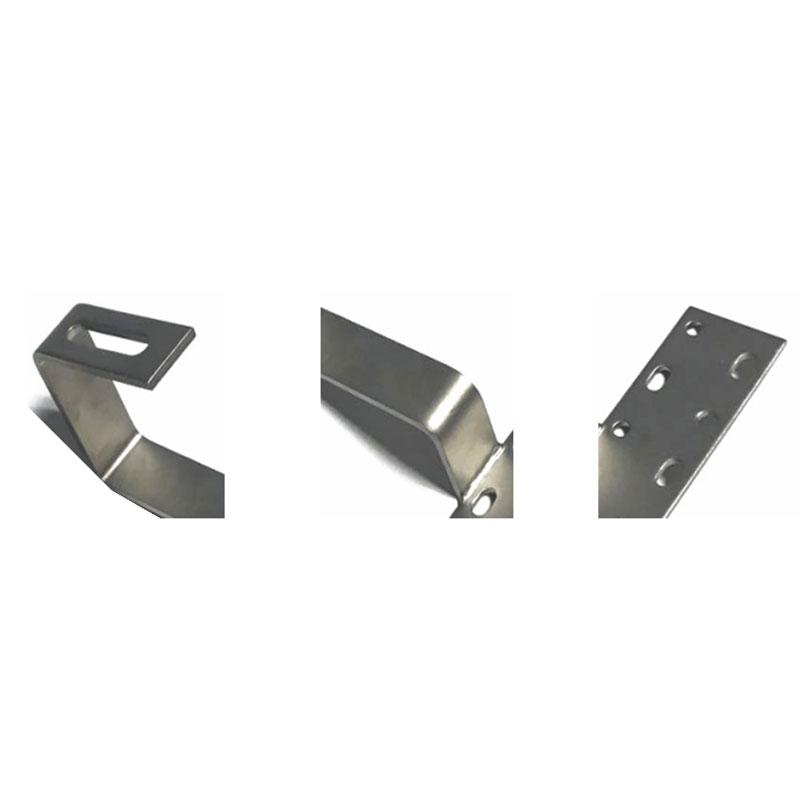

Parts and Components for Solar Curved Tile Roof Hooks, Non-adjustable, Bottom Mounting :

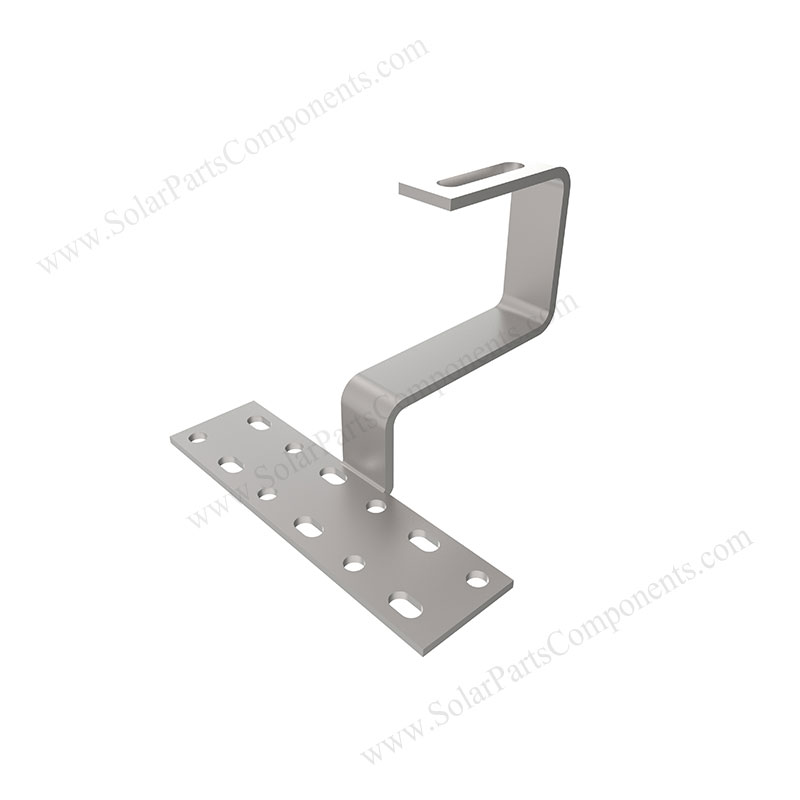

Stainless no adjustment 304 hook with standard slot;

hexagon carriage bolt bolts and nuts ;

T sliding nut block ( Optional );

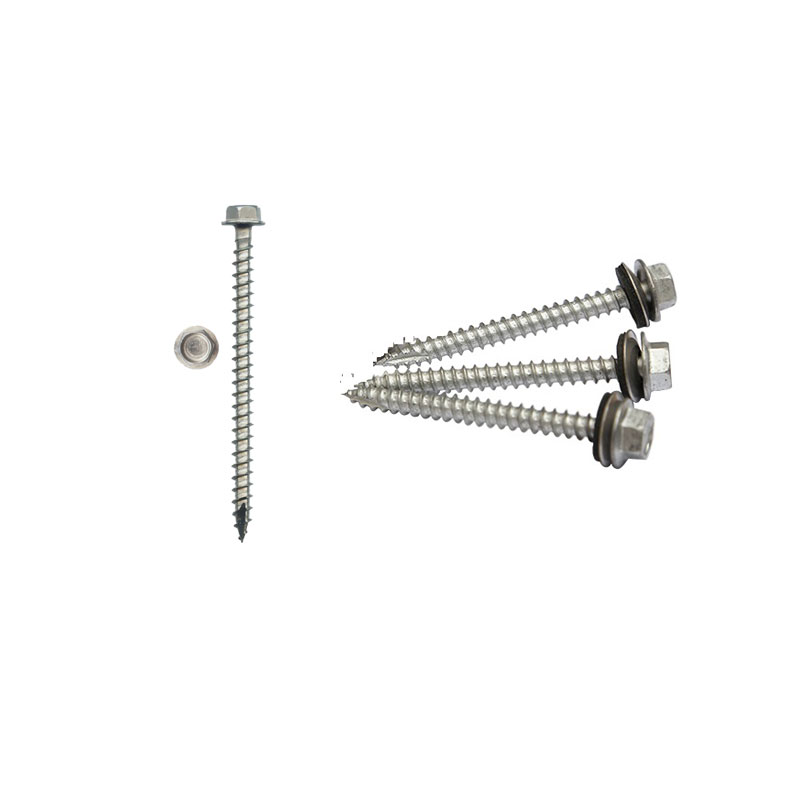

Hex Sharp-point screw with washer .

If you’re interested in solar mounting system, we’d love to discuss with you about more and answer any questions you might have. As a professional manufacturer of PV mounting system, SPC is a great option for you.

Click here for more details and information:

www.SolarPartsComponents.com

Brief Descriptions :

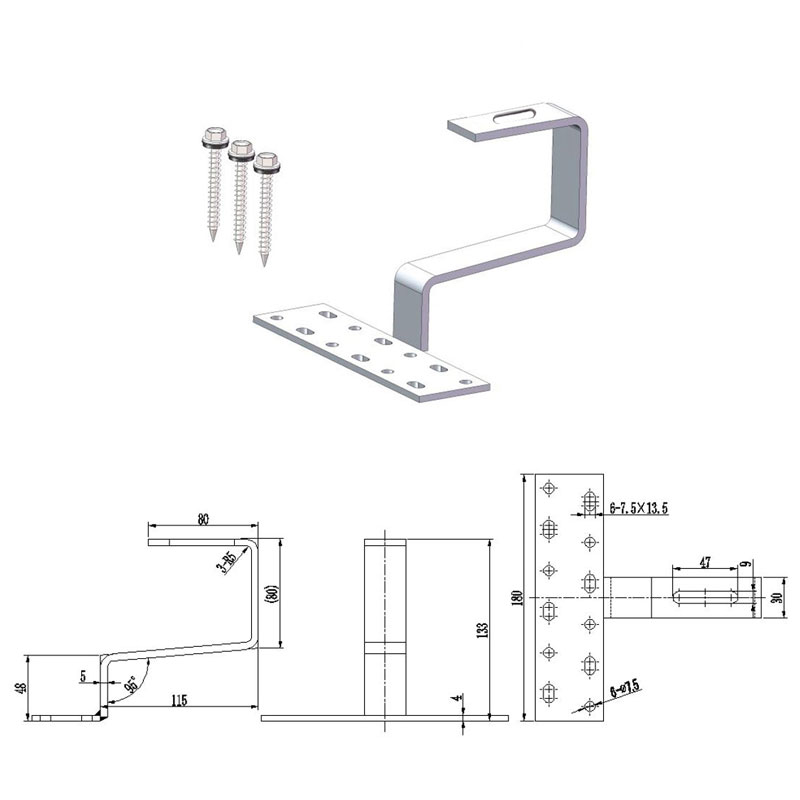

Solar Mounting Components – Curved Tile Roof Hooks, Non-adjustable, Bottom Mounting , 180°
Item type:	Solar Curved Tile Roof Hooks
Type :	Roof Hooks
Installation Site :	Pitched Roofing
Profile Material :	SUS 304 Stainless Steel
Fasten Parts :	Stainless Steel / Aluminum 6005-T5
Color :	Silvery or according to customer requirements
Wind Load :	60 m / s
Snow Load :	≤ 1.4 KN / M²
PV Modules :	Framed, Frameless
Module Orientation :	Portrait and Landscape
Standards :	AS/NZS 1170
	DIN 1055
	GB50009-2012
	IBC2009
	TUV
	JIS C 8955 : 2011
	International Building Code IBC 2009
	California Building Code CBC 2010
Warranty	10 years
Designed Life Span	25 years
Packing Details :
Inner :	Bubble bag+inner box+Carton
Outer :	Wooden Box, Steel Pallet, MDF, etc

Installation Manual for Solar Roof Hooks SPC-IK-07

Please Download PDF version as link >>>

More details, kindly check >>>

Can we customized solar panel roof tile hooks, 5000 pieces?

Inquiry:

Hello

I need 5000 pieces from solar panel tile hook as the specification below:

customized solar panel roof tile hook specification

ABMESSUNGEN IN MM/MEASUREMENTS IN MM

Loch Ø

Hole Ø

Platte

plate

150

4 ±0,1

Haken

hook

106

130

5 ±0,1

11*30

ARTIKELINFORMATIONEN/ARTICLE INFORMATION for this customized solar roof tile hooks:

Art.-Nr.

Artikelbezeichnung

article description

VPE/PU

kg/St.

kg/piece

150x60W

Dachhaken klein

roof hook small

0,577

TECHNISCHE DATEN/TECHNICAL DATA for customized solar panel tile hooks:

Beschreibung

description

handelsübliche Edelstahldachhaken

customary stainless steel roof hooks

Einsatzbereich

range of use

Ziegeldächer ab 20º Dachneigung

tiled roofs from 20º roof pitch

Material

material

Edelstahl A2 1.4301

stainless steel A2 1.4301

Ausführung dispatch

gestanzt, gebogen und sandgestrahlt

stamped, bended and sandblasted

It should be customized in sizes.

If you have exact same, similiar version will be possible.

we’ll need them in 2 months, how long take delivering on ship??

What about transport fee on it??

We’d like buy SAMPLE first and then a come back to you for 5000 pieces in quantity.

Regards

Mit freundlichen Grüßen

Wolfgang Maier

Gewerbegebiet Mitterhof

84307 Eggenfelden

Answer:

Dear Maier

Nice to receive your enquiry about our solar roof hook series .

Yes, since we have to make a new moulding for this customized type solar tile hooks.

As per size you given,

Base on 5,000 units in Quantity,

our wholesale factory price has replied by email for you .

customized solar panel tile hook factory

If you can use ours,the price can be lower .

the plate size of yours is 150 X 60, ours is 140 X 50

If you accept our plate base as our size : 140X50mm, our producing time is 3 – 4 weeks against payment .

The sea freight to munich seaport also replied by email .

Thank you & let me know if you are interested in this service !

SOLAR RACKING PARTS & COMPONENTS FACTORY

solar curved tile roof hooks factory

I am looking for curve tile roof hooks, please send pricing and delivery to Vancouver Canada.

Brackets for tile roof mounting system SPC-IK-07.

Hi, do you need whole mounting system or just need bracket curve tile roof hooks, non-adjustable SPC-IK-07.

please share me pruchase quantity or more details about your solar curve tile roof mounting system.

Only looking for curve tile roof hooks, need 8,000 units,shipping to Vancouver, Canada region,

balance of system needs to be source in Canada.

Well understand, I have sent you our price of 8,000 tile roof hookS SPC-IK-07 and shipping cost to you mailbox.

Please kindly check.

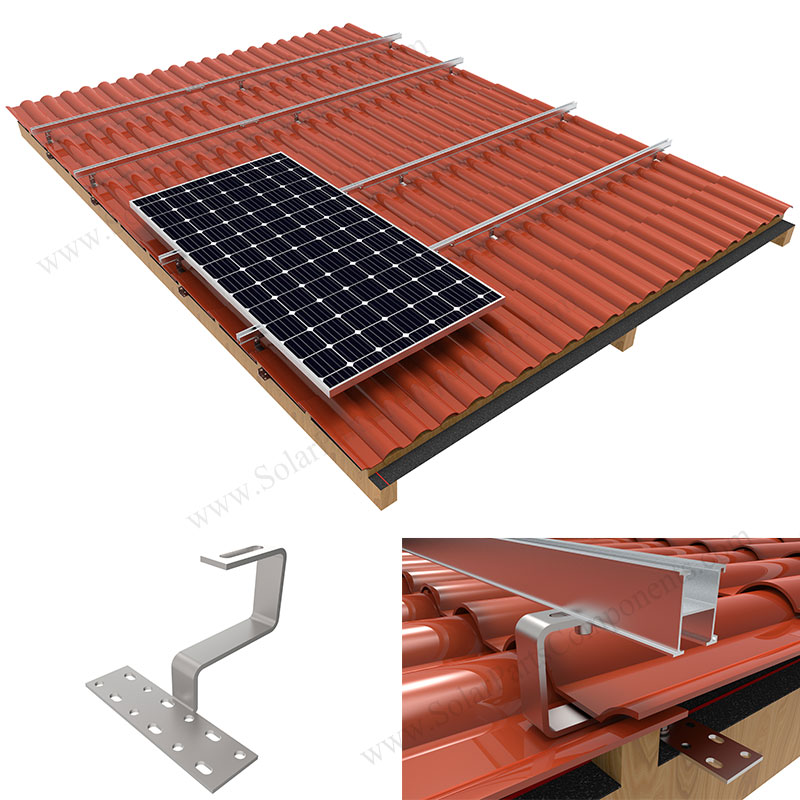

solar tile roof hooks non-adjustable

Solar tile roof hook #07 is a non-adjustable bottom-mounted tile roof hook. The high-quality stainless steel roof attachment made by SPC makes it easy to install solar energy on tiled roofs without cutting tiles. The number of roof hooks required for a particular system design can always be easily calculated and meets building standards.

Feature:

Practical and compatible with a variety of roof solar modules;
Stainless steel fasteners, safe and beautiful, corrosion resistant;
Complete roof accessory solutions for tile roofs;
Fasteners for solar tile roof installation system;
Not adjustable, stable and firm;

solar tile roof hooks non-adjustable

solar tile roof hooks for mounting system

Our solar tile roof hooks are made of stainless steel, which has strong corrosion resistance, durability and high safety.

More details kindly check >>>

Solar Roof Hook For Spanish Tile

How to install solar roof hooks on Spanish Tile?

This post introduces the features of hook, and explains how it works for installation.

More details kindly check >>>

Solar Tile Roof Hooks Non-adjustable Bottom Mounts

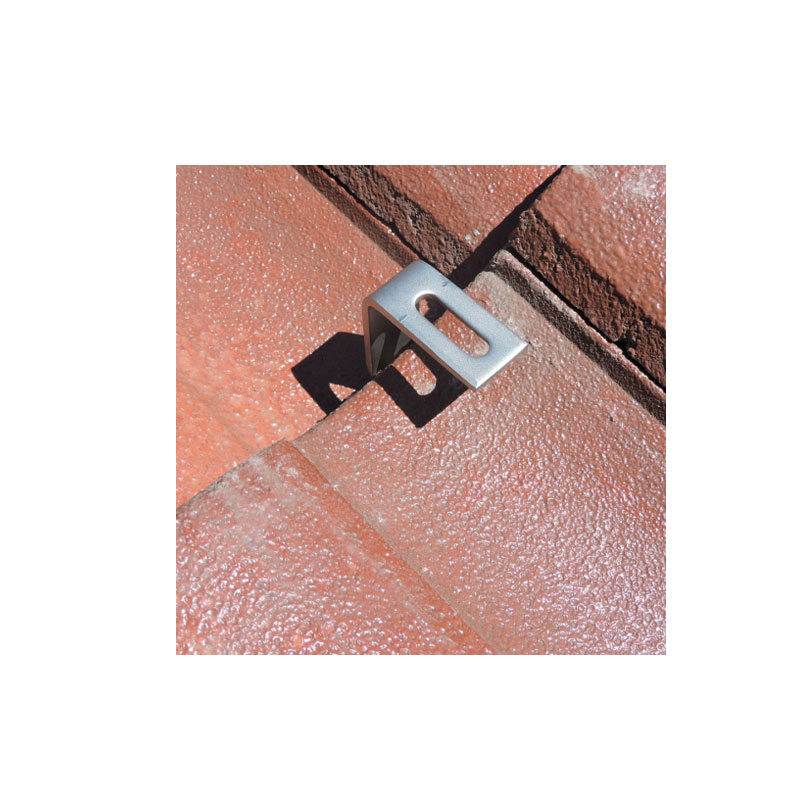

Solar Tile Roof Hooks Non-adjustable, is designed for bottom mount style.Tile roof hook can minumuze penetration on tile roof PV modules mounting, it is mounted to the subsctructures under the tiles.Use our high quality solar tile roof hooks eliminate the need of cutting and welding on site,provide more simple and fast solar roof installation.
