Solar Ground Carport Frame
- Product Type: Ground Mounting Systems for Car
- Product Model:SPC-CPC-H11-Y
- Material: Galvanized Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Ground Terrain
Product Description:

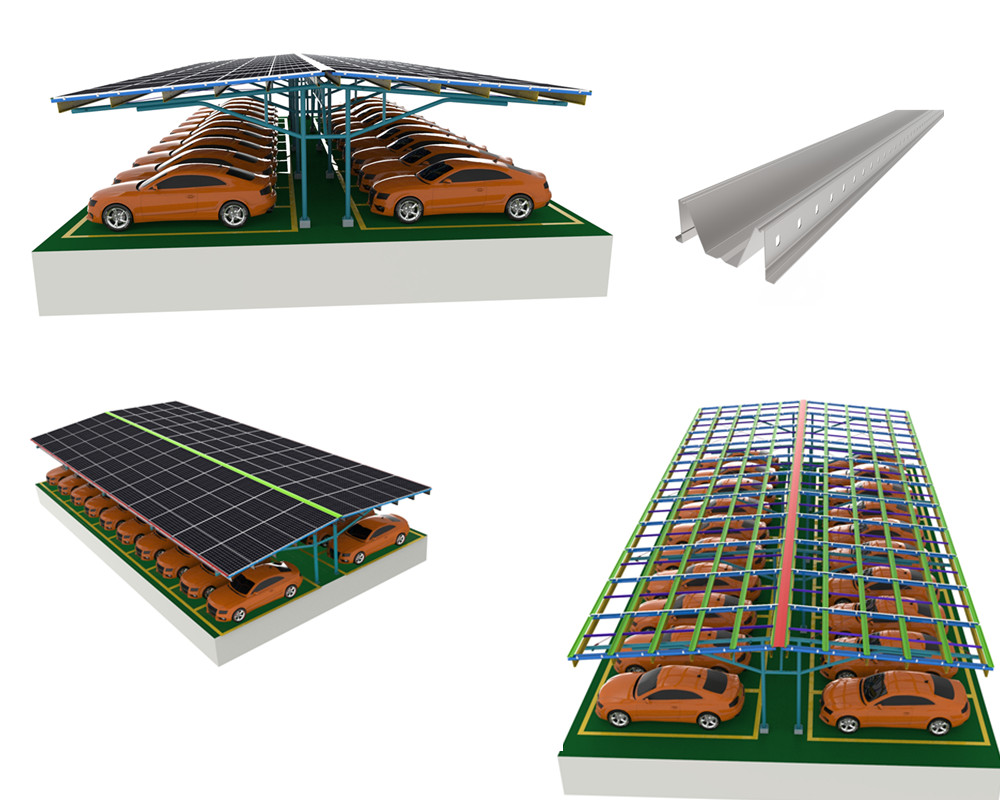

This galvanized steel solar carport frame is designed for 6 cars spaces by 11 Row X 5 Column array.
Other design like: single / double … cars can be customized as required.
Anti-rust in extreme climate with hop dip galvanized carbon steel.
Features of this Galvanized Steel Carport PV Module racking system:
– Can be applicated for both home or business carport installation;
– Open field with pile installed;
– Galvanized steel and good quality fasteners for whole structure;
– 5°~20° tilt angle can be fixed for this carbon steel carport frame;
– Quick installation for pre-assembly packing;
– Utilize idle spaces for energy generation;
– Charging station can be optional;
Parts and Components for this carbon steel Q235 carport racking system SPC-CPC-H11-Y:
– Hop-dipped galvanized steel;
– Rail connectors;
– L connection;
– mid / end clamps;
– column supports
Installation steps for this solar carport mounting system SPC-CPC-H11-Y:
(1) Pile support as per manual book guidance;
(2) Fix upper supports on down supports;
(3) Mounting Q235 steel rails on support;
(4) Put solar panels on rails and fix with mid / end clamps;
Welcome to consult our engineer expert for this galvanized steel solar carport SPC-CPC-H11-Y.
Brief Descriptions: | |
Solar Mounting Systems – Galvanized Steel Carport | |
Item type: | Solar Mounts for car, vehicle |
Type: | SPC-CPC-H11-Y |
Installation Site: | Residential / commercial open places |
Profile Material: | Carbon Steel |
Fasten Parts: | Steel / Aluminum T Sliding Nut |
Color: | Galvanized |
Wind Load: | 60 m / s |
Snow Load: | 1.4 KN / M2 |
PV Modules: | Framed, Frameless |
Module Orientation: | Portrait and Landscape |
Standards: | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C 8955: 2011 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed Lifespan | 25 years |
Packing Details: | |
Inner: | Bubble bag+inner box+Carton |
Outer: | Wooden Box, Steel Pallet, MDF, etc |
What is racking in PV system for galvanized steel carport?
Q:
” Good day, I am interested in your Galvanied steel carport PV Module racking system,
Please contact us for solar carport parts, thanks!”
A:
“Thank you for your inquiry about our carbon steel Q235 carport racking system.
- Do you need waterproof or not?
- Information of your PV modules:
Demension: ___mm Length x___mm Width x__mm Thickness
Amount: _______Nos.
Array: ________Nos. in a row x________Nos. in a column
- How is weather there,such as wind speed and snow load?
___m/s anti-wind speed and____KN/m2 snow load.
- Clearance from the ground
- What is your nearest seaport to your address?
Do you sell solar carport racking system for 4 / 8 cars ?
Yes, as prefessional solar canopy manufacturer.
We can offer whole solution for 2 / 4 / 6 / 8 … cars.
Make your parking lot into pv power plant.

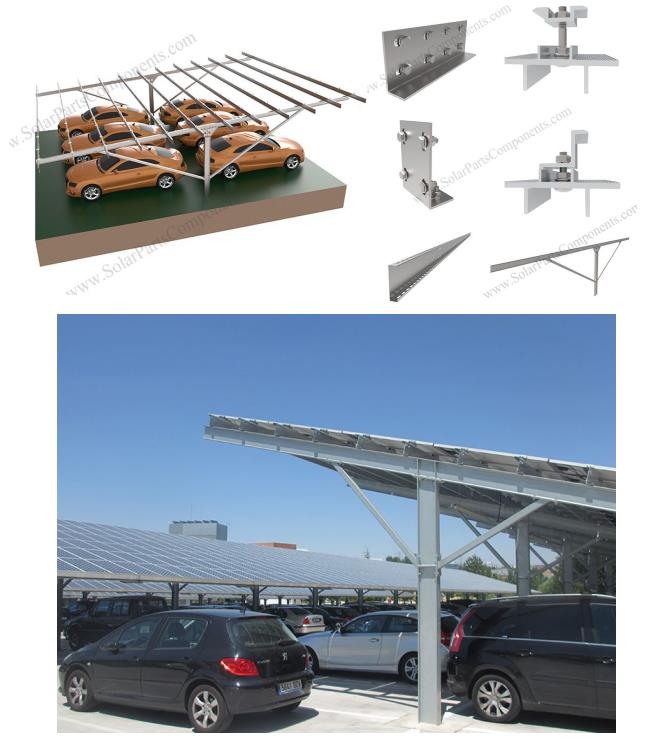

Solar Carport Mounting System Galvanized Steel for 88 panels
Q:
I am interested in your Solar Carport Mounting System Galvanized Steel. I would like help on selecting aluminum/metal mounting rails [and any associated connectors/fasteners] for a small home solar panel system, placing 88 pieces of 250Watt solar panels in portrait orientation on a top-of-pole mount, for use as a solar car parking canopy. Upon your reply, I can go into greater details as to what I am working with. Approximate dimensions in mind, based on solar panel size, is 7.5 to 8 feet horizontally across by ~6 feet vertical. Thank you in advance.

Solar Carport-Mounting System Galvanized Steel
A:
Thank you for your email and inquiry for our solar carport frame.
Please refer to our design & BOM price for your carport as your required.
Thank you and have a nice day!
