Aluminum end clamps for frameless solar panel mounting

Frameless Solar Panel End Clamps

Product Type: Frameless Solar Panel Mounting Systems Hardware
Product Model: Frameless-Solar-Panel-End-Clamps
Material: Aluminium, Steel
Max Wind Load : 60 m/s
Max Snow Load : 1.4 KN / M ²
Application: Frameless Solar Panels Installation

Contact by Email

End Clamps for Frameless Solar Panel Mounting

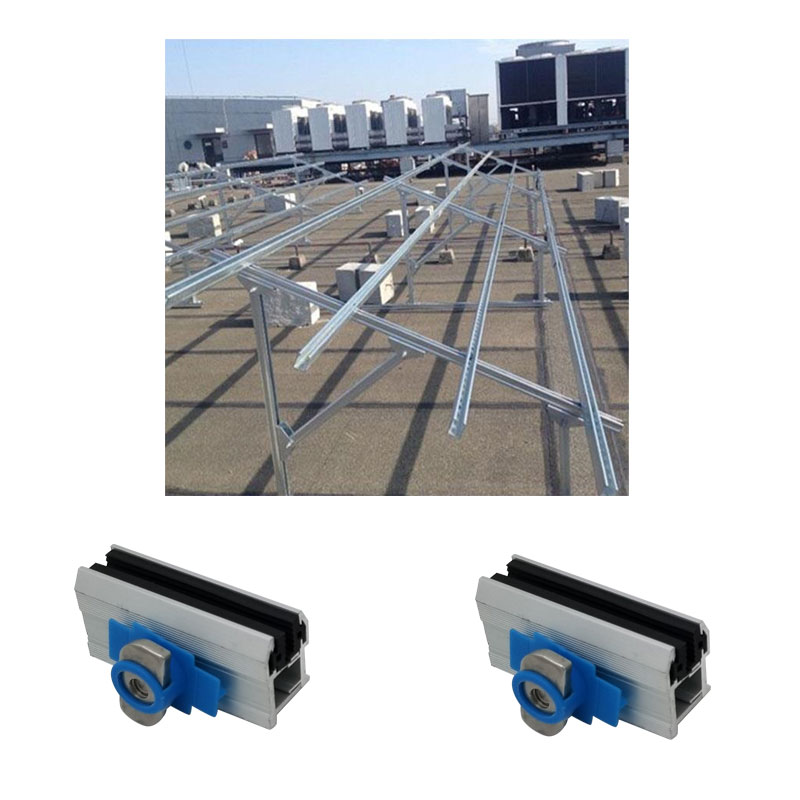

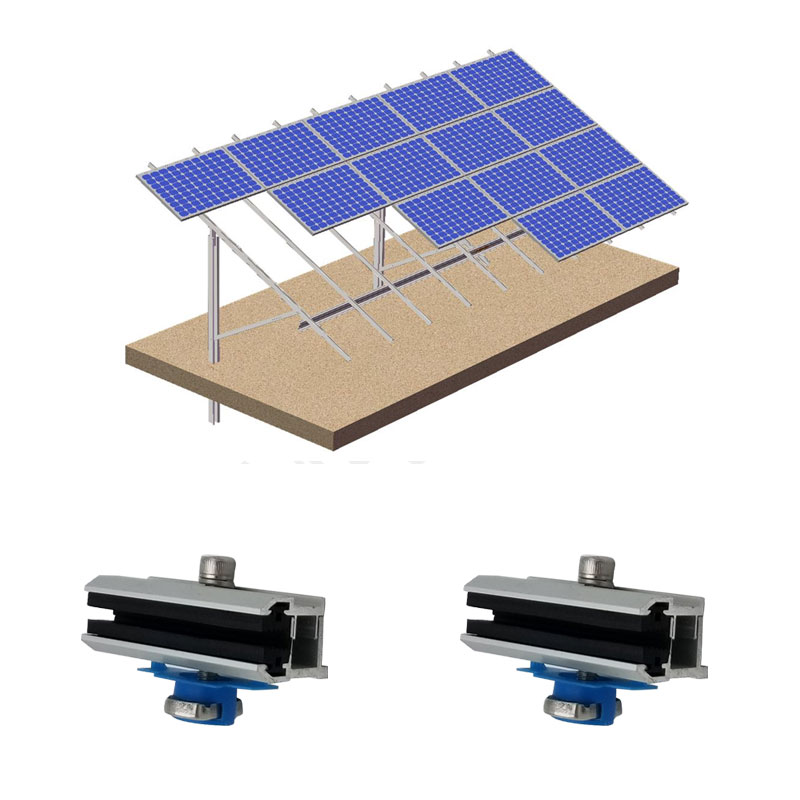

glass thin film module end clamps for Q235 carbon steel

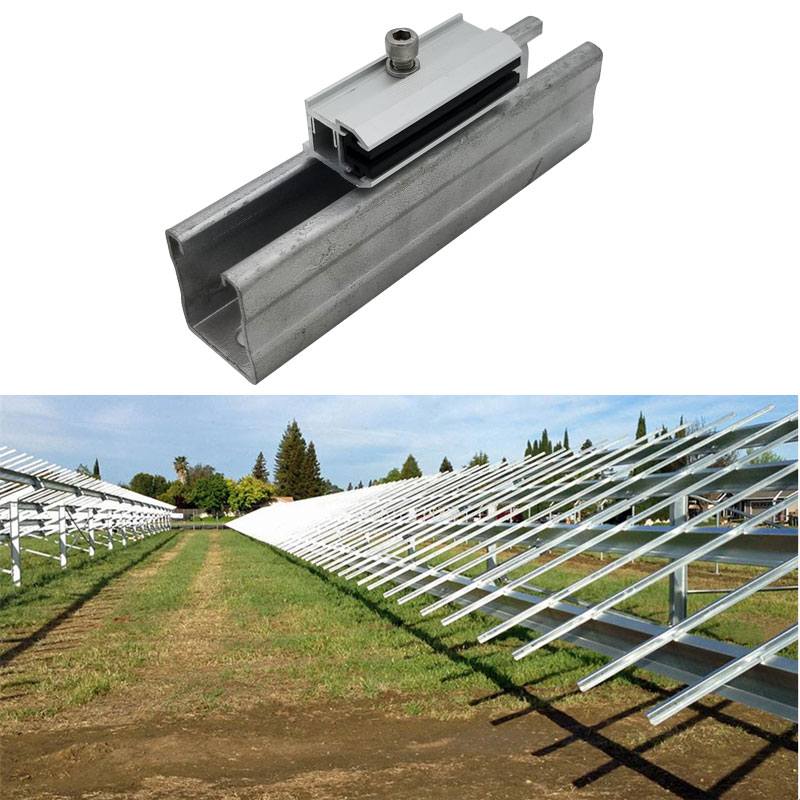

frameless pv module end clamps for carbon steel

Product Description :

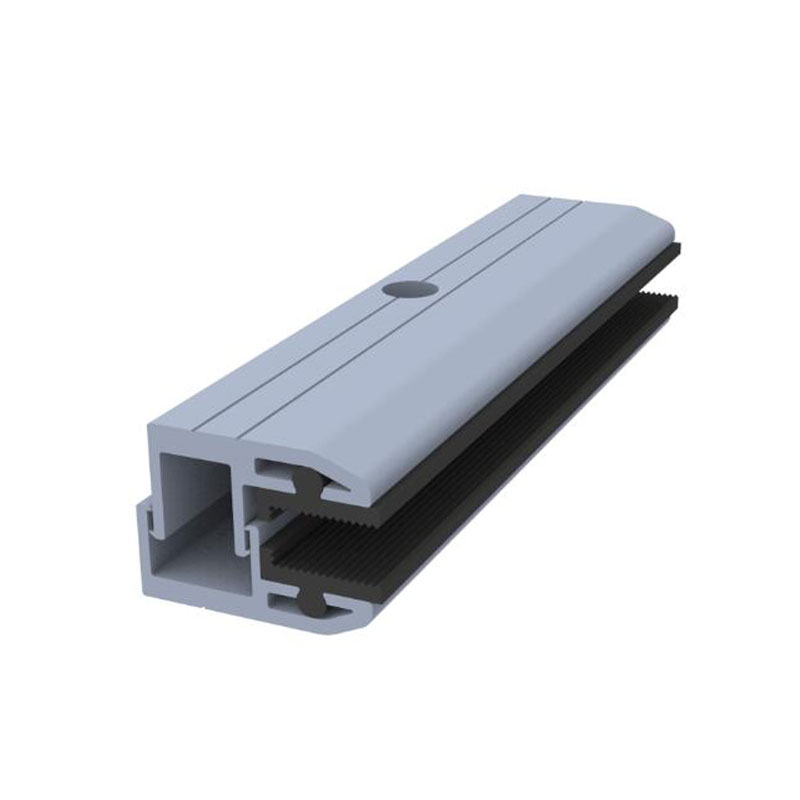

Our frameless solar panel end clamps is 60 mm / 80 mm / 100 mm … and customized length for options .

It’s suitable for thin film solar panels from 4 mm – 10 mm thickness with our solar end clamps .

The rubber strips inside end clamps can prevent unframed solar modules moving .

It’s UV and Ozon resistancy ,Low electrical conductivity, recycalble, weather resistant.

Advantages :

Natural anodized / black color in color with alum 6005-T5 extruded ;

Frameless end clamp fits for double glass solar PV panels ;

This end clamps for frameless solar panel mounting is pre-assembled before delivery ;

EPDM rubber secure hold modules firmly ;

Safe support, cost efficient .

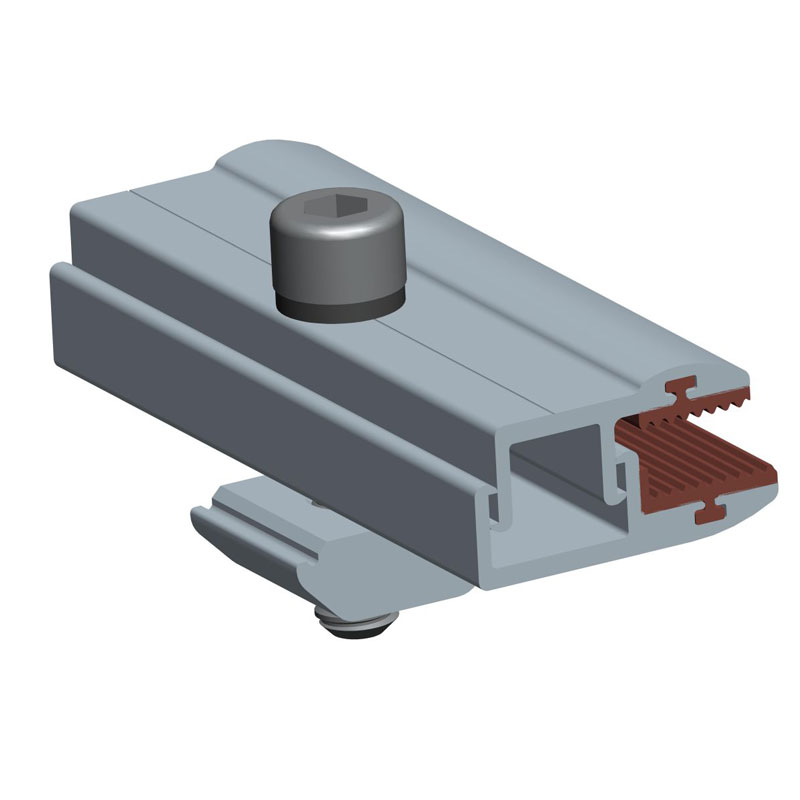

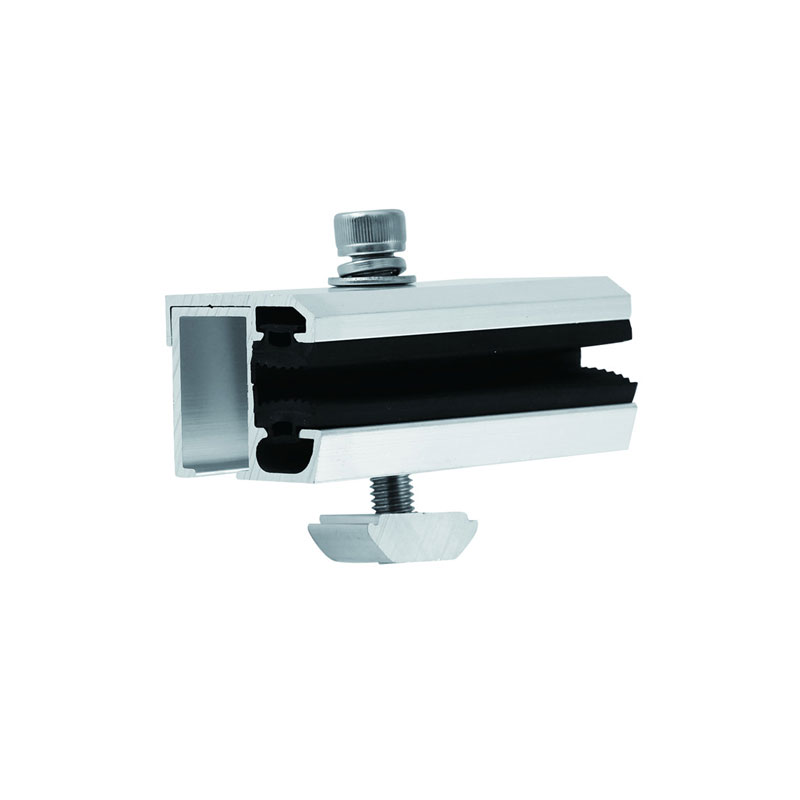

Material List for Frameless End Clamp Solar Mounting Components :

Upper part of aluminum parts;

Lower part of aluminum parts;

Rubber strip in the middle of end clamp ;

T sliding nut block;

Hexagonal Socket head bolt;

Spring Washer

We are good manufacturer of PV mounting components, we carry more type of end clamps and mid clamp to meet different demand, and always keep enough stock of each component in warehouse, can deliver the cargo within shortest time.

Brief Descriptions :
Solar mounting end clamps for frameless solar panels installation
Item type:	Solar Mounting Components
Technical Parameters :
Installation Site :	Ground or Roof frameless solar panel mounting
Profile Material :	AL 6005 – T5 ( Anodized )
Fasten Parts :	SUS 304 Steel
Color :	Silvery or according to customer requirements
Wind Load :	60 m / s
Snow Load :	1.4 KN/M2
PV Modules :	Frameless
Module Orientation :	Portait and Landscape
Standards :	AS/NZS 1170
	DIN 1055
	GB50009-2012
	IBC2009
	TUV
	JIS C 8955 : 2011
	International Building Code IBC 2009
	California Building Code CBC 2010
Warranty	10 years
Designed Life Span	25 years
Packing Details :
Inner :	Bubble bag+inner box+Carton
Outer :	Wooden Box, Steel Pallet, MDF, etc

Inquiry of End Clamps for Frameless Solar Panel Mounting

I am seeking pricing and lead time for End Clamps for Frameless Solar Panel Mounting compatible with Trina DouMax Twin_DEG14C.07(II) modules. Do you carry?

We are looking for 2,302 end clamps and 13,649 mid clamps.

Nice to receive enquiry about our frameless end & mid clamps .

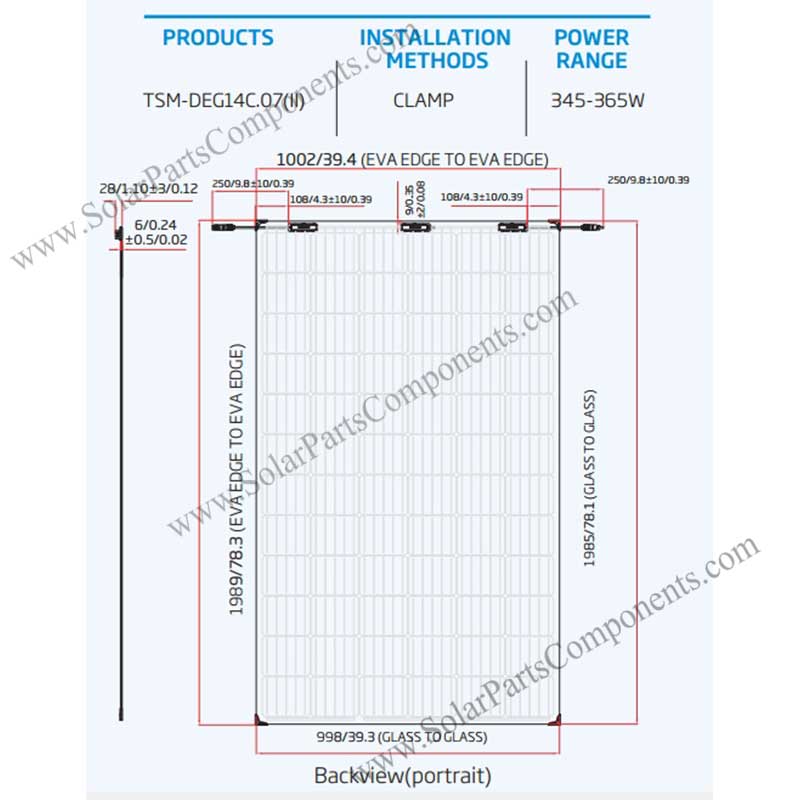

As per Bificial dural glass PV moduel – DUOMAX Twin_DEG14C.07(II) :

End Clamps for Frameless PV Panel Mounting

We recommend our frameless clamps (SPC-FSPE-80 ) :

Please refer to specification & layer prices offer as you need .

Thank you & waiting for your reply !

We are looking at purchasing a combined of around 16,000 units. We are getting final from our panel manufacture and need to know what lead time for delivery to California USA would be and if you could send a sample of each so that we can finalize the engineering meets our requirements.

Sorry for the delay in communications.

Well noted.

I will send free samples in 3 days for you .

By the way, please offer more details of delivery information.

End Clamps for Frameless Solar Panel Mounting

Clamps for Frameless Solar Panel Mounting super nice supplier

Hi,

I am not a business but just a home-owner trying to use some glass solar panes I sourced from a defunct solar far.

I need about 250 of these Clamps for Frameless Solar Panel Mounting to fix a 7mm width glass frameless solar panels please, could I get a price for them as I can’t seem to find anywhere else that does these kind of things

Many thanks

Tim

clamps for framelss solar panel mounting

Thank you for your inquiry for our clamps for framelss solar panel mounting,

Can I know details how will you mount / use these solar frameless clamps?

I would help us more understanding your solar panel application.

end clamps for Frameless Solar Panel Mounting

Thank you so much for this speedy reply, it’s much appreciated.

I have 40 75w glass frameless panels to mount to a wall, there is an example of my clumsy attempt in the image, each panel is 120cm x 60cm. I eventually want 40 panels to feed into a small off grid system to supplement our small (2K) grid tied system. Hope this helps?

Thank you for your info,please refer to our design and BOM price.

Cool, I want this order, I can pay vi PayPal as soon as it lands, thank you so much! Tim

The address is in the UK, and is:

Mr T Crossfield

14 Primrose Close

Wheaton Aston

Staffordshire

England

Well received your payment, thank you.

We will arrange the shipping as soon as possible for you.

Thank you so much, what excellent service! I would like me to leave a review to reflect the superb support I have had:

I recently had an excellent experience with Solar Parts Component Factory, I live in the UK and was searching for some padded solar panel brackets, which I couldn’t find anywhere and reached out to these guys. They were able to source the exact thing I needed very quickly, and I ordered and paid for them eagerly.

I highly recommend this business to anyone, I am just an individual, not a business, and my order was (in the scheme of things) extremely small and yet I felt I got the same attention that someone ordering a very large, corporate order would get.

Overall, excellent service and I’m super impressed by the helping communication I received from both William and Peter, thank you.

Do you accept small order for end clamp SOLAR MOUNTING KITS ?

Do you accept small order for SOLAR MOUNTING KITS – frameless solar panel end clamps ?

Definitely yes,

More details kindly check >>>

Can our frameless bifacial PV module end clamps be customized ?

Yes, our frameless bifacial PV module mid / end clamps can be customized .

As good aesthetics and performance for frameless PV modules, more and more solar projects use bifiacial solar panels today especially for roof tops / carport …

SPC also release mid and end clamps to fit frameless modules for very convenient and quick installation .

Our frameless clamp length can be customized according to different frameless PV modules sizes ;

Our frameless clamp color can be customized base on roof structure like : grey color in default / black color / RED / GREEN / BLUE … They can help your whole solar installation project in very good appearance .

Our unframed clamps accessories can be customized too .

Since clamps are fixed with aluminum rails, we can offer different A2-70 hex screw size like : M8 X 40 , M8 X 30 … and different nuts & bolts …

Following are some of our alu rails which install with our frameless clamps :

frameless bifacial PV module clamps

Features of frameless bifacial PV module clamps :

– 80 / 120 / 150 / 200 MM sizes available;
– Silivery / Black color ;
– Good quality anodized finished AL-6005-T5 Aluminum Material ;
– Application : 3mm – 6mm super thin solar panels / 5 mm – 10.5 mm frameless bifacial panels;

Welcome to customized frameless bifacial PV module MID / END clamps from www.SolarPartsComponents.com

Thin Film Laminate Solar Panel End Clamp Series

Mounting clamps for thin film laminate solar panel Installing

As Thin film frameless laminated solar panels are more and more popular in today’s solar energy market .

Base on different thickness from different PV module manufacturer range from 3 mm – 10 mm .

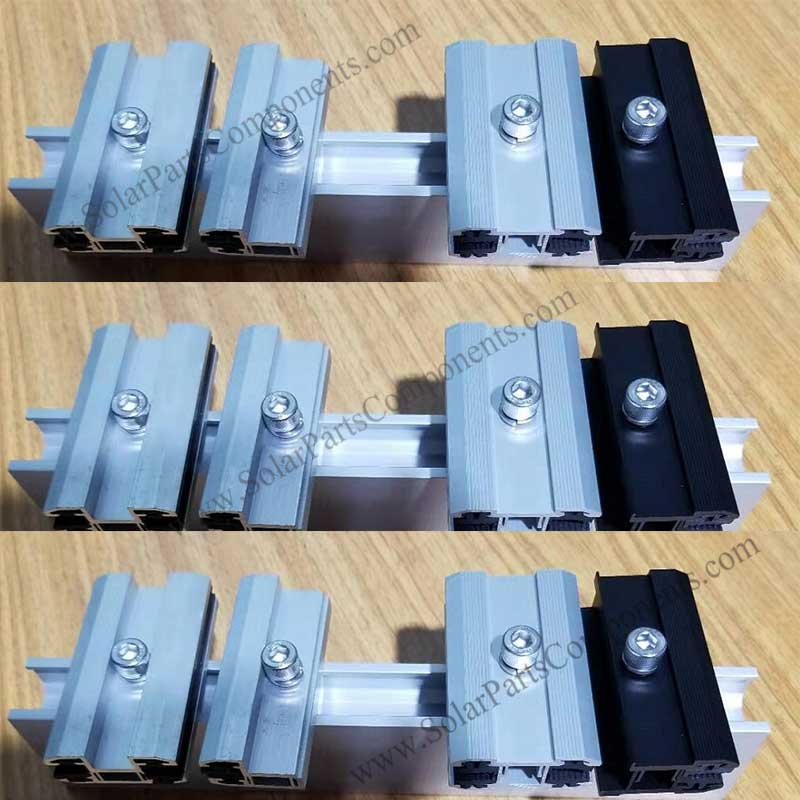

We design two series of laminate clamps for solar panel installation as photo below:

laminate solar panel mid clamps,laminate solar panel end clamps,

One set is designed for 3 mm – 8mm thickness glass PV modules (Left one);

The other set is designed for 5 mm – 10mm thickness glass PV modules (Right one);

Normal color is silvery, we also can do black color as sample we sent .

The standard bolt & nut is hexagon bolt with T sliding nut (for rails);

We also can offer hexagon bolt and hexagon nut ;

We can customize for clients base on aluminum rail extrusion profile given .

More features of this laminate solar panel mid / end clamp series :

– High quality clamps for AL6005-T5 made ;
– EPDM rubber seal inside ;
– Short time delivery ;
– Flexible for different thickness of laminated frameless PV module ;

More details for our mid & end clamps, kindly contact us by [email protected]

Factory direct mid / end clamps for thin film PV laminate solar panel installation.

Manual to fix Glass Solar Panel End Clamps on aluminum Rails

specification of frameless glass solar pv module end clamps mounting instruction,

More details kindly check >>>

Glass Solar Module Mounting End Clamps

This mid / end clamps are designed for frameless Glass Solar PV Modules ,

– 80mm / 120mm / 150mm / 200mm / Customized length for options ;
– Suitable for thin-film solar panels / double glass solar panel / frameless PM modules installation ;
– Body Color : Mill finish / black / others ;
– Thickness Range : 5 mm – 12 mm glass thin film solar module ;
– Material: Anodized 6005-T5 Amuminum + EPDM rubber strips inside ;
– Fasten Parts : SUS 304 hex bolts (A2-70) ;
– Cost effective / Great Value ;
– Wind Speed: Up to 200 KM/Hour ;
– Snow Load: Up to 1.4KN/M2
– Warranty: 12 years in material, 25 years lifespan

Glass Solar Module Mounting Mid / End Clamps

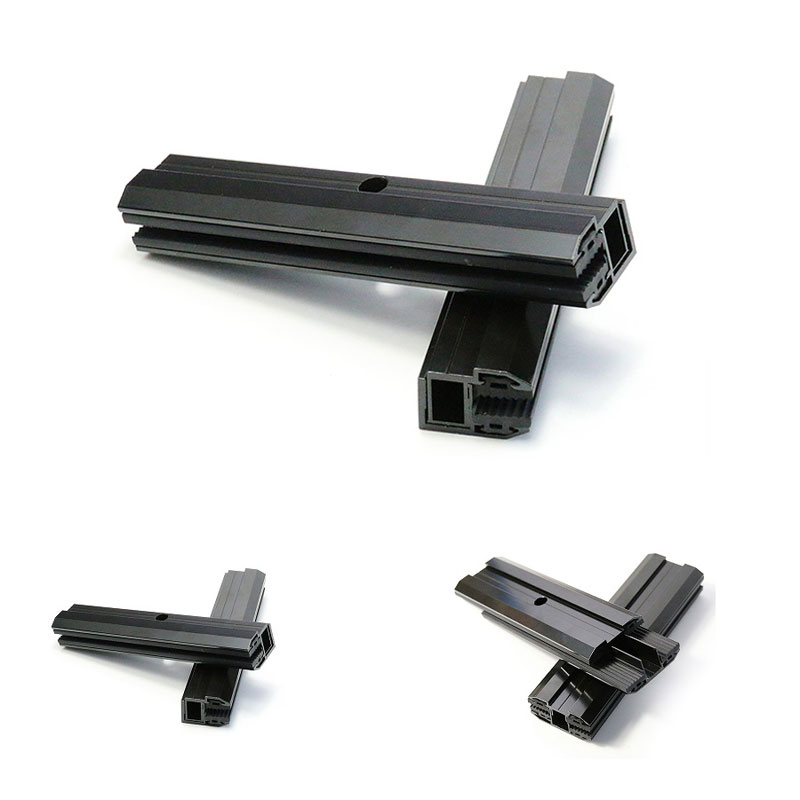

Can Glass PV Module Mounting End Clamps be black in color ?

Yes, We can produce BLACK frameless solar panel end clamps .

Although our default finish color is grey / silvery,

We can customized black / white color if solar mounting project required .

– EPDM rubber inside holding of glass PV module well ;
– Compact & Elegant design ;
– Pre-assembled service available ;
– Anodized in Silvery / Black / White …
– Manufacturer Direct , Price competitive ;
– Quick & Safe Installing ;
