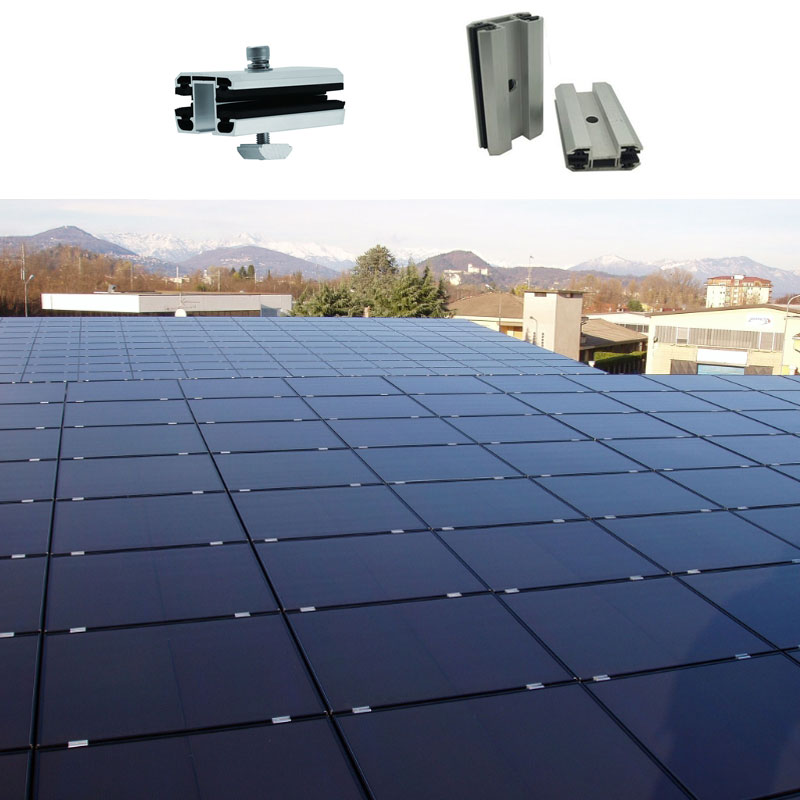

Frameless solar panel interior clamps and exterior clamps mounting solution

How to install frameless solar panels ?

Our 80 mm thin film mounting clamps is customized for frameless PV modules installation .

Suitable for thin film solar panels thickness range from 3.5mm – 12mm .

Besides 80 mm length clamps, we also have 120 mm , 200 mm … for options for this clamp series .

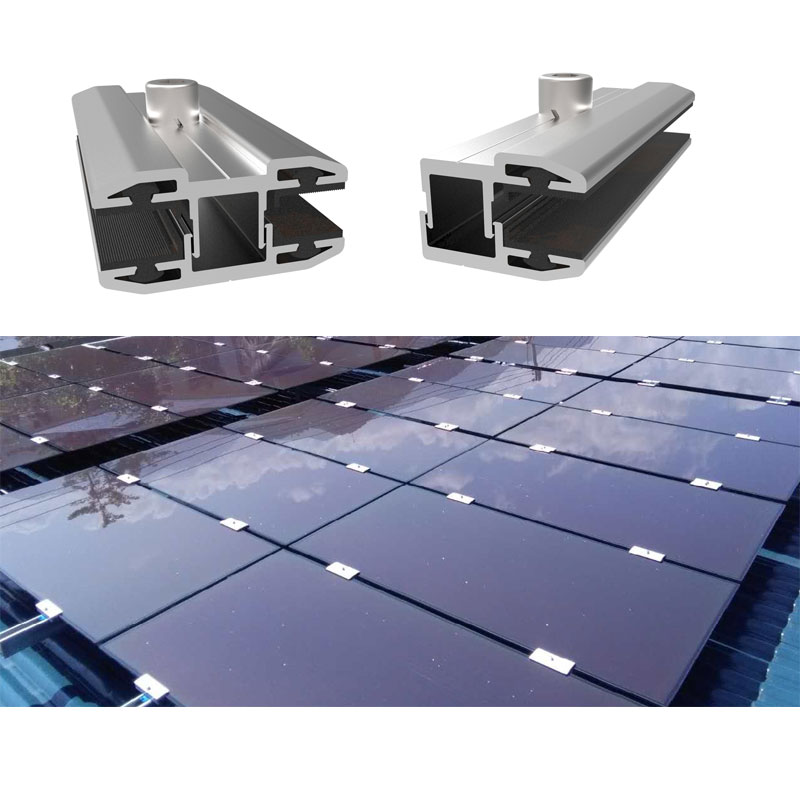

Advantages for this interior and exterior clamp series :

– 15 years warranty, anti-corrosive, durable ;

– Anodized 6005-T5 aluminum + epdm rubber pads inside ;

– Max wind londing : 60 M / S ;

– Meet national standard:IS C 8955:2011,GB 50009-2012,IBC 2009,CBC 2010, AS/NZS 1170,MCS,CSA …

– Easy installing, labor & cost effective ;

– Silivery / Black color ;

– Fits for roof mounting system / ground mounting systems / Carport mounting systems …

EPDM pads inside can prevent unframed thin film PV modules from damage .

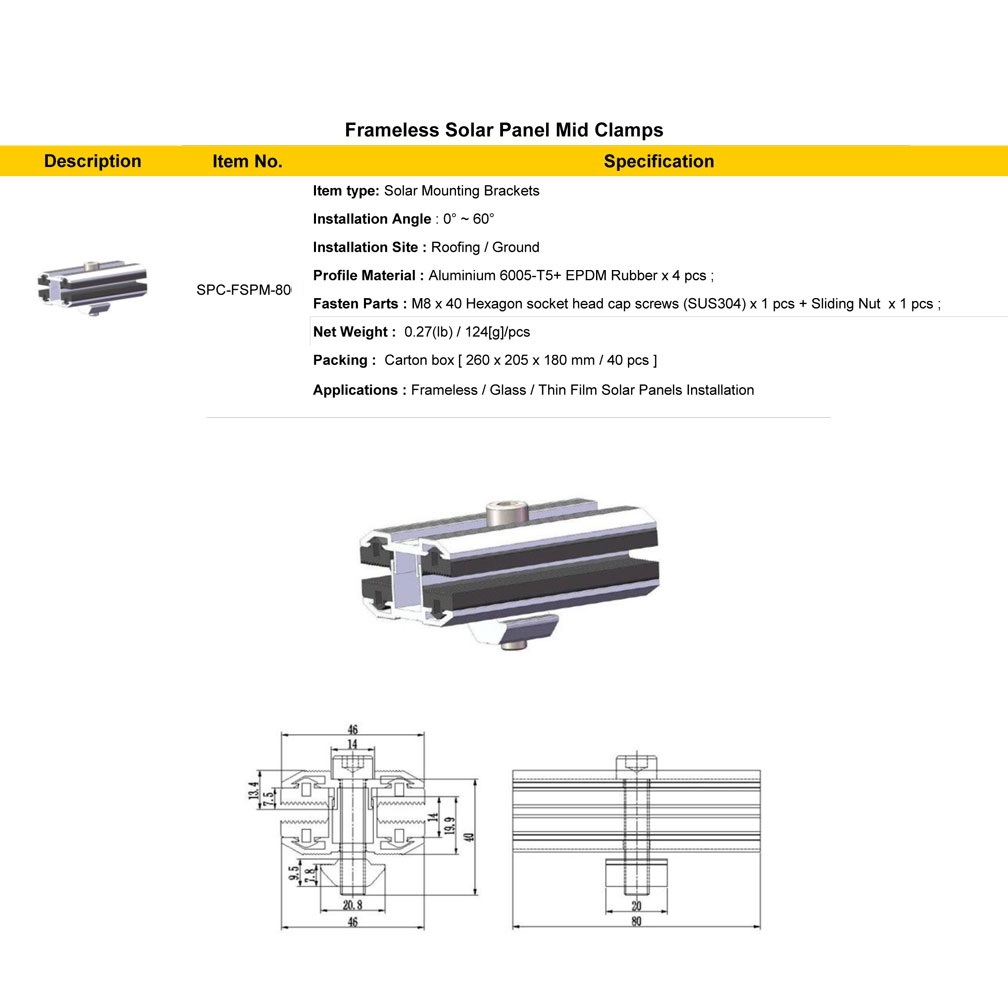

(1) BOM for this thin film interior clamps

Frameless Solar Panel Mid Clamps
Item No.	Specification
SPC-FSPM-80	Item type: Solar Mounting Brackets
	Installation Angle : 0° ~ 60°
	Installation Site : Roofing / Ground
	Profile Material : Aluminium 6005-T5+ EPDM Rubber x 4 pcs ;
	Fasten Parts : M8 x 40 Hexagon socket head cap screws (SUS304) x 1 pcs + Sliding Nut x 1 pcs ;
	Net Weight : 0.27(lb) / 124[g]/pcs
	Packing : Carton box [ 260 x 205 x 180 mm / 40 pcs ]
	Applications : Frameless / Glass / Thin Film Solar Panels Installation

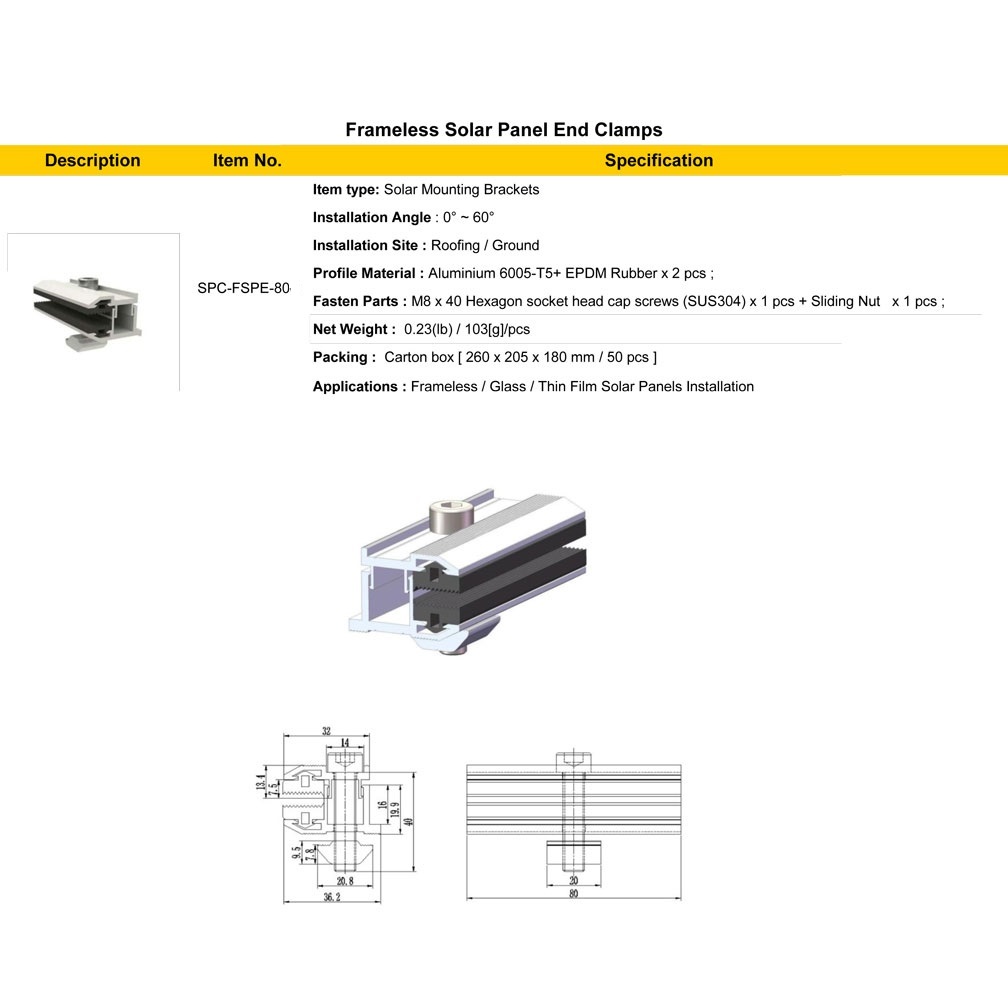

(2) BOM for this thin film exterior clamps

Frameless Solar Panel End Clamps
Item No.	Parameters
SPC-FSPE-80	Item type: Solar Mounting Brackets
	Installation Angle : 0° ~ 60°
	Installation Site : Roofing / Ground
	Profile Material : Aluminium 6005-T5+ EPDM Rubber x 2 pcs ;
	Fasten Parts : M8 x 40 Hexagon socket head cap screws (SUS304) x 1 pcs + T block x 1 pcs ;
	Net Weight : 0.23(lb) / 103[g]/pcs
	Packing : Carton box [ 260 x 205 x 180 mm / 50 pcs ]
	Applications : Frameless / Glass / Thin Film Solar Panels Installation
