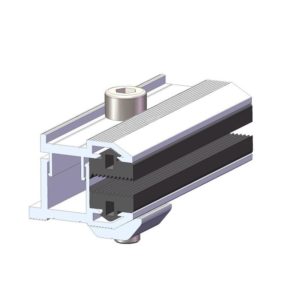

Frameless Solar panel end clamps SPC-End-Clamps-TEC for PV modules fixing
Model : SPC-End-Clamps-TEC
Item : End clamps for frameless solar panels ;
Finishing : Anodized;
Material : AL 6005 – T5 Aluminium, epdm rubber pads ;
Total Size : 80 mm ( Width ) × 36.2 mm ( Deepth ) × 50 mm (Height) /
3 1/8″ (W) × 1 7/16″ (D) × 2″ (H) ;
Mounting Hole Size ( Φ 8.5 mm × 1 hole):
Matched Bolts & Nuts Sizes:
1) SUS 304 Hexagon Head Allen Bolt M8 mm X 40 mm x 1 unit;
2) M8×13 Ribbed Lock washers (SUS304) x 1 ;
3 ) D8 Spring washers ( SUS 304 ) x 1;
4) M8 T sliding nut ;
Two pieces of EPDM rubber pads
P. S.
EPDM rubber (ethylene propylene diene monomer (M-class) rubber), a type of synthetic rubber, is an elastomer characterized by a
wide range of applications. EPDM is an extremely durable synthetic rubber (ethylene propylene diene terpolymer) widely used in
low-slope buildings, outdoor construction, solar mounting installation …
Weight : 103 (g) / 0.23 (lb) ;
Packing : 50 pieces / carton ;
Packing Size : 260 mm ×205 mm × 180 mm /
10 1/4″ × 8 1/16″ × 7 1/8″
This frameless solar panel end clamps Model SPC-End-Clamps-TEC is an aluminium bracket for fixing ground / roofing installation
support .
Our Solar Parts & Components QC Team stictly test following parameters of this end clamps SPC-End-Clamps-TEC item before
delivery.

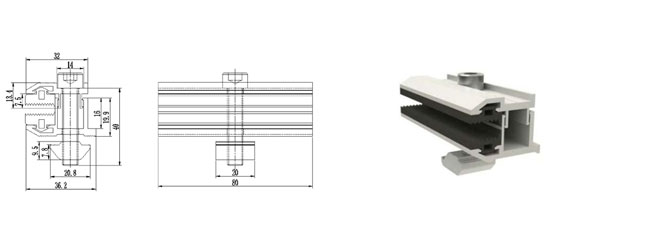

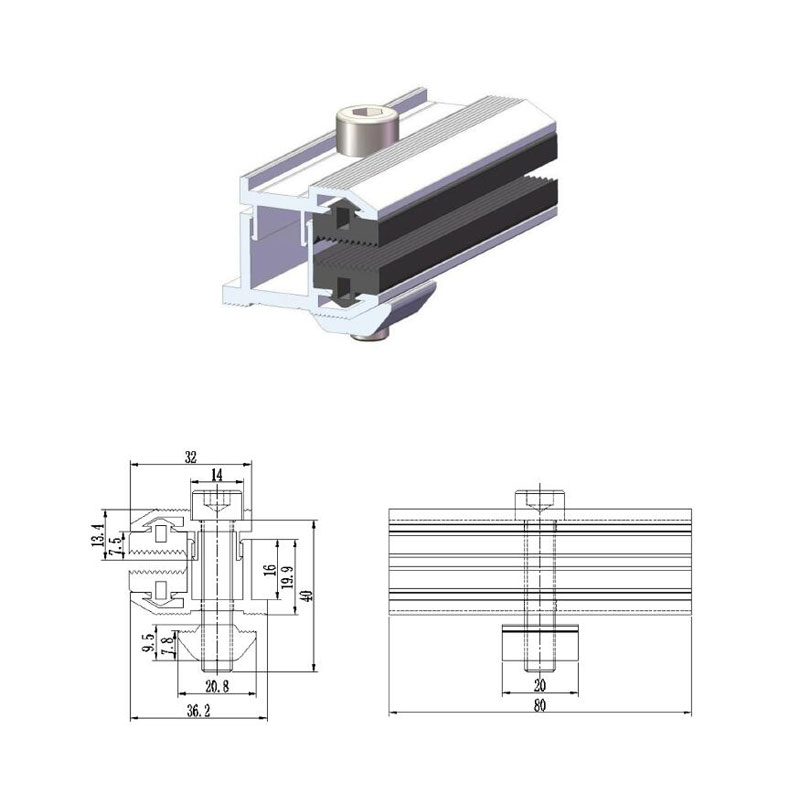

AL6005-T5 frameless PV Modules end clamp drawing, sizes, profile for frame less solar panel mounting, suitable for 6 mm – 10 mm
thickness double-glass solar panel installation .
