U Clamp
- Product Type: Solar panel mounting
- Product Model: SPC-RC
- Material: Aluminum/S350GD-ZM/Q235B
Net weight: 0.25KG - Max Wind Load : 60 m/s
Max Snow Load : 3.6 KN / M 2
Product Description:
Our high-quality U clamps are widely used in solar installations. They perfectly secure M channels and are also suitable for securing U rail and square tube. Made of high-quality AL6005-T5, S350GD-ZM, and Q235 materials, these clamps are durable and provide a tight fit, securing the channel and preventing loosening.

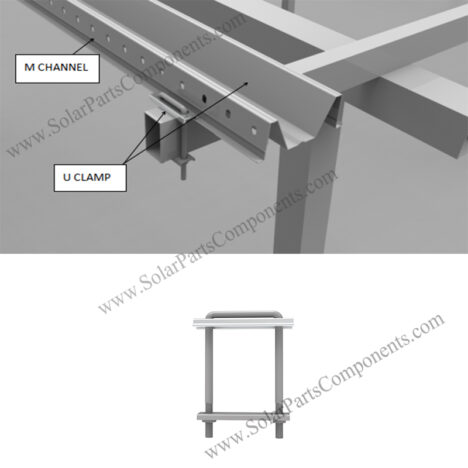

The U clamp consists of four parts:
M channel aluminum clamp
Plate
U bolt
Nut
Features:
High dimensional accuracy
Sturdy construction
Corrosion resistance
Withstands harsh weather conditions
High load capacity
Impact resistance
Reusable
Installation steps:
Firstly, secure the U-shaped bolt to the square tube, press the M channel with the clamp, and adjust the position.
Secondly, tighten the bolt with an electric wrench.
Welcome to contact us anytime, our company website: www.solarpartscomponents.com
| Datasheet | |
| Description: | |
| Balcony solar system Kits | |
| NO.： | SPC-SPCB |
| Product Type: | Balcony solar system Kits |
| Installation location: | Balcony |
| Installation angle: | 5-30 degrees |
| Material : | ZAM275 & Steel/Aluminum/ Stainless Steel |
| Module: | Frame/frame less solar Module |
| Warranty: | 10 Years |
| Lifetime: | 20 Years |
| Orientation： | Landscape,Portrait |
| Wind speed： | 60 M/s |
| Snow load： | 3.6 KN / M2 |
| Standard: | AS/NZS1170 & DIN 1055 |
- Overview
-
Product Description:
Our high-quality U clamps are widely used in solar installations. They perfectly secure M channels and are also suitable for securing U rail and square tube. Made of high-quality AL6005-T5, S350GD-ZM, and Q235 materials, these clamps are durable and provide a tight fit, securing the channel and preventing loosening.
The U clamp consists of four parts:
M channel aluminum clamp
Plate
U bolt
NutFeatures:
High dimensional accuracy
Sturdy construction
Corrosion resistance
Withstands harsh weather conditions
High load capacity
Impact resistance
ReusableInstallation steps:
Firstly, secure the U-shaped bolt to the square tube, press the M channel with the clamp, and adjust the position.
Secondly, tighten the bolt with an electric wrench.
Welcome to contact us anytime, our company website: www.solarpartscomponents.com
