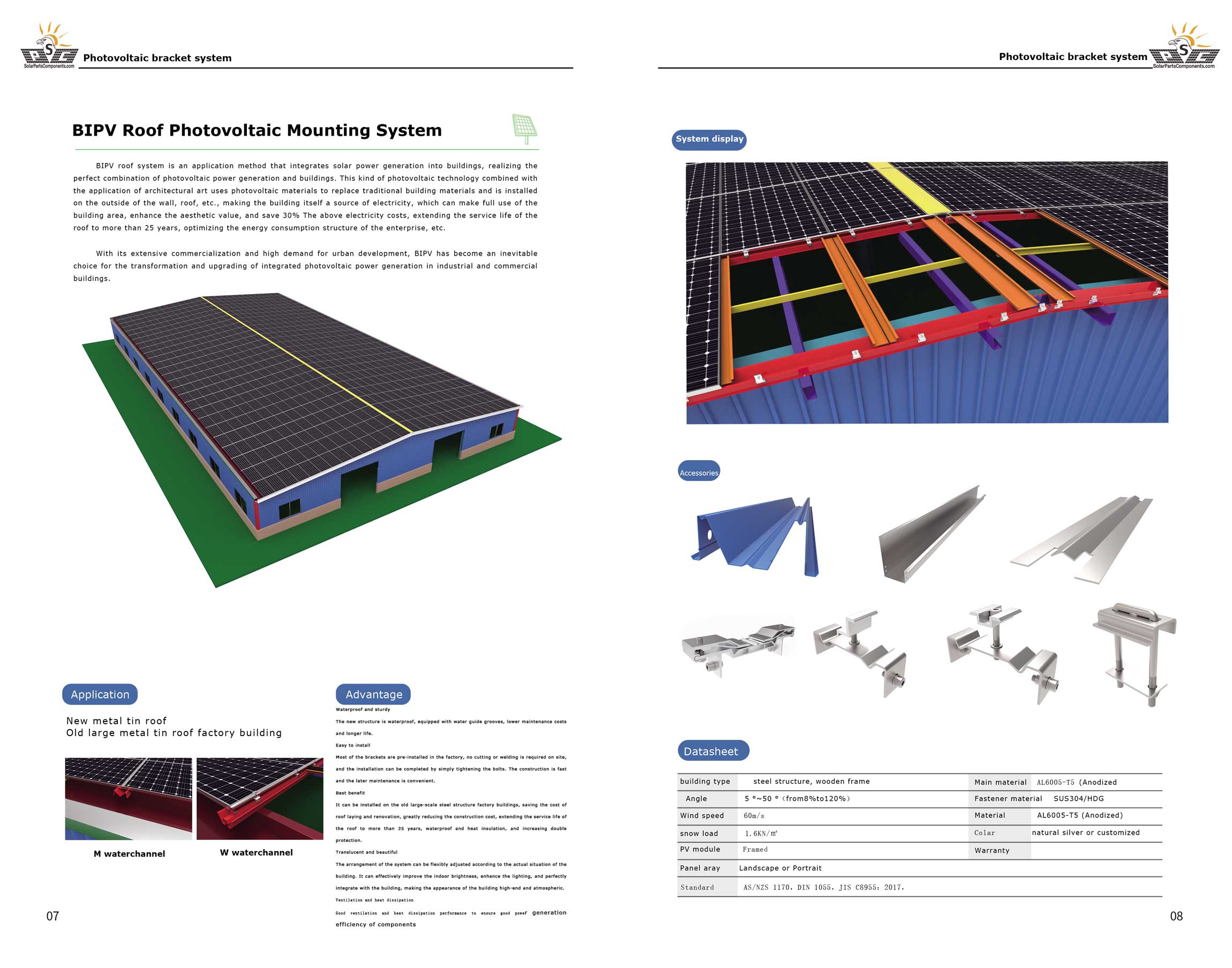

BIPV solar roof mounts SuperDyma
- Product Type: Rooftop Mounting Racking
- Product Model: SPC-BIPV-Roof
- Material:ZM275 SuperDyma steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Rooftop
Product Description:
BIPV solar roof structure ZM275 is perfect designed for energy solar PV mounting system, because the PV modules act as the building roof. This design is cost effective and looks contemporary/ modernistic instead of traditional tile or metal deck roofing. This concept is commonly applied for shed, car porch, bus station, factory and etc. They act as filter of the ultraviolet and infrared radiations, both harmful for the health, besides generating clean and free energy thanks to the sun.
Our BIPV solar roof mounts SuperDyma is approaching a plug-and-play level of installation ease, it reduces the cost of packaging and labor.
The W shape trough is made of ZM275 SuperDyma steel, a new type of high-corrosion-resistance coated steel,even can instead of stainless steel or aluminum in some fields. PV modules attach to the W shape trough with clamps directly. Easy and fast to mount. It provides well waterproofing effect, prevent the roof well from rain leaking.
Components for BIPV solar roof installation ZM275 SuperDyma: PV modules, upper cover,W shape trough, mid clamps,U lateral trough, padding block, baffles, bolts, nuts, adhesive tapes …
Features of this BIPV solar roof structure ZM275:
- ZM275 SuperDyma steel,high-corrosion-resistance;
- Can be fully customized;
- Waterproof the roof;
- High corrosion resistance;
- Elegant appearance;
- Stronger racking and support.
As a professional solar racking factory, we carry a number of PV modules mounting system which are meet for different installation site, like BIPV roof mounts, ground mounts, roof mounts… Welcome to contact us from our website: www.SolarPartsComponents.com.
| Brief Descriptions: | |
| Solar pane mounting systems- BIPV solar roof mounts
| |
| Item type: | SPC-BIPV-Roof |
| Type: | Rooftop Installation |
| Installation Site: | Metal Roof |
| Profile Material: | ZM275 SuperDyma steel |
| Color: | Silvery |
| PV Modules: | Framed or frameless |
| Fasten Parts: | Stainless Steel/Aluminum |
| Module Orientation: | Landscape/Portrait |
| Wind Load: | 60m/s |
| Snow Load: | 1.4KN/M² |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
- Overview
-
Product Description:
BIPV solar roof structure ZM275 is perfect designed for energy solar PV mounting system, because the PV modules act as the building roof. This design is cost effective and looks contemporary/ modernistic instead of traditional tile or metal deck roofing. This concept is commonly applied for shed, car porch, bus station, factory and etc. They act as filter of the ultraviolet and infrared radiations, both harmful for the health, besides generating clean and free energy thanks to the sun.
Our BIPV solar roof mounts SuperDyma is approaching a plug-and-play level of installation ease, it reduces the cost of packaging and labor.
The W shape trough is made of ZM275 SuperDyma steel, a new type of high-corrosion-resistance coated steel,even can instead of stainless steel or aluminum in some fields. PV modules attach to the W shape trough with clamps directly. Easy and fast to mount. It provides well waterproofing effect, prevent the roof well from rain leaking.
Components for BIPV solar roof installation ZM275 SuperDyma: PV modules, upper cover,W shape trough, mid clamps,U lateral trough, padding block, baffles, bolts, nuts, adhesive tapes …
Features of this BIPV solar roof structure ZM275:
- ZM275 SuperDyma steel,high-corrosion-resistance;
- Can be fully customized;
- Waterproof the roof;
- High corrosion resistance;
- Elegant appearance;
- Stronger racking and support.
As a professional solar racking factory, we carry a number of PV modules mounting system which are meet for different installation site, like BIPV roof mounts, ground mounts, roof mounts… Welcome to contact us from our website: www.SolarPartsComponents.com.
- Specification
-
Brief Descriptions: Solar pane mounting systems- BIPV solar roof mounts Item type: SPC-BIPV-Roof Type: Rooftop Installation Installation Site: Metal Roof Profile Material: ZM275 SuperDyma steel Color: Silvery PV Modules: Framed or frameless Fasten Parts: Stainless Steel/Aluminum Module Orientation: Landscape/Portrait Wind Load: 60m/s Snow Load: 1.4KN/M² Standards: AS/NZS 1170 DIN 1055 GB50009-2012 IBC2009 TUV JIS C 8955: 2011 International Building Code IBC 2009 California Building Code CBC 2010 Warranty 10 years Designed Lifespan 25 years Packing Details: Inner: Bubble bag + inner box + Carton Outer: Wooden Box, Steel Pallet, MDF, etc - Leave Message
-
