Hanger Bolts Solar Mounting Components
- Product Type: Solar Panel Mounting Systems Hardware
- Product Model: Solar-Panel-Roof-Hanger-Bolts
- Material: Steel, Rubber, Aluminum
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Solar Panels Roofing Installation
Product Description :
Our solar hanger bolts are a SUS304 fasten parts to fixed rails and roofing mountings .
Two length 200mm and 250mm options can be suitable for adjust distance between brackets / L foot rails and metal roofing .
Our whole hanger bolt lits includes : stainless steel bolt , nuts, EPDM rubber and fasten L foot / small stainless plate …
This solar hanger bolts are designed for trapezoidal / zinc / corrugated / sandwich metal roof profiles .
Our hanger bolts can be pre-assembled with listed parts which consist of : one hanger bolts, 3 collar nuts with riffle, 1 washer, 1 SUS 304
plate with long slot , EPDM nodes .
This solar roof fasten bolts can be well used with adapter plates, L-feet for solar mounting and racking systems .
Our EPDM plasic grommet are good performance in bad weather as roof seal, 12 years warranty offer .
Features of our PV module hanger bolts:
– 7 3/4″ and 9 3/4″ length for choosing ;
– Good load bearing capacity ;
– Quick mounted installation hardware, fast fit system ;
– Precise adjust deepth and height for metal roofs ;
– Well span gap controlled by our longer hanger bolt for roof structure ;
– Includes bolt, rubber pad, flange nuts, support plate ;
– Application: metal roofing , trapezoidal roofs, corrugated metal sheet roofing, sandwich fiber roof, tin roofs …
Installation Guide :
Components includes for roof fastening with our hanger bolt kits, double hanger bolts,
L bracket, mounting rails, mid / end clamps .
(1) Pre-drilled hole on metal roofing profile and wood rafter ;
(2) Screw in hanger bolts , the EPDM seal should slightly compressed roof surface ;
(3) Adjust adapter plate to proper height, then fasten locking nuts well ;
(4) Mounting aluminum rails and rail splice ;
(5) Mounting mid / end clamps .
| Brief Descriptions : | |
| PV Hanger Bolts for roof solar panel installation | |
| Item type: | Roof Mounting Hanger Bolts Components |
| Technical Parameters : | |
| Type : | Solar Panel Roof Hanger Bolts |
| Installation Site : | Home / Indurstrial / Commercial |
| Installation Angle : | 0° ~ 75° |
| Profile Material : | SUS 304 Stainless Steel + EPDM |
| Fasten Parts : | A2 Stainless Steel Bolts , L foot |
| Small Components : | AL 6005 – T5 ( Anodized ) / SUS 304 |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |

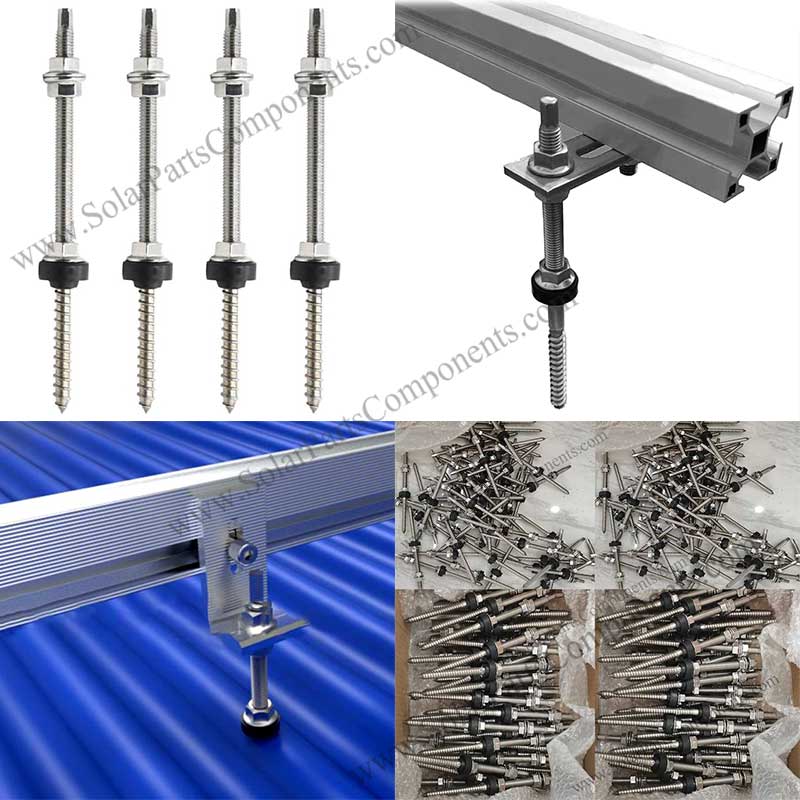

solar hanger bolt for metal roof mounting
Solar hanger bolt kits is one of the most popular solutions for metal roof mounting
Features of Hanger Bolt for Solar Panels
SPC solar hanger bolt, universally used for roof mounting,
SUS 304 solar hanger bolt
solar hanger bolt is the fastening system for installing photovoltaic modules. Its feature is high pre-assembly, allows to minimize installation time. All components are made of aluminum and stainless steel. high corrosion resistance ensures maximum lifetime and provides the possibility of full recovery.
Feature:
1.Full pre-assembled
2.Quickly installation
3.High quality stainless steel SUS304
4.Effectively waterproof
5.Adjustable height
SUS solar hanger bolt
How to use Solar Panel Mounting Hanger Bolt Kits for roof mounting ?
Hanger bolts are one of common pars & components for solar panel mounting installation especially for roof mounts .
Material a2 stainless steel;
Nuts and EPDM must be assembled with the screw (separate nuts and screws are not accepted);
Most standard sizes as following :
(1) M10 X 150mm length hanger bolts with Nuts and EPDM pre-assembled ;
(2) M10 X 200mm length hanger bolts with Nuts and EPDM pre-assembled ;
(3) M10 X 250mm length hanger bolts with Nuts and EPDM pre-assembled ;
(3) M10 X 300mm length hanger bolts with Nuts and EPDM pre-assembled ;
(3) M10 X 300mm length hanger bolts with Nuts and EPDM pre-assembled ;
(4) M12 X 200mm length hanger bolts with Nuts and EPDM pre-assembled ;
(5) M12 X 300mm length hanger bolts with Nuts and EPDM pre-assembled ;
.
.
.
Other sizes can be tailored fabrication, we have M8 / M10 / M12 thread sizes .
Solar Panel Mounting Hanger Bolts
Our A2-70 hanger bolts can be drilled to rafter or steel purlin so that can offer strong support for PV modules .
Applications :
(1) L feet bracket :
Solar Hanger Bolt with L-Bracket, 200mm M10
hanger bolts for solar panel installation with L feet bracket
(2) SUS 304 flat plate :
Solar Hanger Bolt with flat plate, 200mm M10
hanger bolts for solar panel mounting with flat plate
Features of hanger bolts for PV modules installing :
– Anti-corrosion stainless steel made;
– Height adjustable ;
– Quick & Simple Installation;
– Wood thread one end / machine thread the other end ;
– Come with solid washer / nuts ;
– 7/24 tech / logistics support;
Following is one of our inquiry about metal roof mounting :
”
Hey guys putting on 150 panels and looking for a Rack system to add to my roof – I have plenty of room and would like it designed for 6 sets of 25+/- – Going to put on 25 panels to a block and leave 4 feet of space between blocks – This way I can service and clean them
I have attached the type of roof and need a strong mounted rack – I am in a hurricane zone – Also can you send me a quote so I can order it also please include all clips and fasteners and all parts
I have attached pictures of my metal roof for your review
Thank you
Aj Deerey
”
We recommend him using our SUS-304-Hanger-Bolts + L-foot-bracke t+ Aluminum-Rails system as below :
hanger bolts for metal roof PV modules installation
Welcome to buy hanger bolts for solar panel installation from www.SolarPartsComponents.com
How to use solar panel mounting hangers bolts ?
M8 / M10 / M12 hanger bolts for solar panels
Our SUS304 stainless steel hanger bolts are specially designed for PV modules mounting projects .
They can be well install on many kinds of roofing .
Together used with L feet and A2-70 plate , our hanger bolts can fixed aluminum rails on the top side .
With long threads, our solar hanger bolts can penetrate roof surface and wood rafter / steel purlin .
M8 / M10 / M12 hanger bolts for solar panels
Features of this hanger bolts for solar PV module roof installation :
– M8 / M10 / M12 thread sizes available;
– Length 200 / 250 / 300 mm ;
– A2-70 steel in material made ;
– Application : Metal / zin / tin / tile roofs …
– Accessories : 1x EPDM washer and 3x serration nuts;
– Anti Typhoon / hurricane resistant ;
– Pre-assembled packing acceptable ;
Welcome to purchase a2 stainless steel solar hanger bolt kits from www.SolarPartsComponents.com
Hanging Bolts with Nuts and EPDM pre-assembled service
Our hanging bolts for solar panel mounting on roofs, can be sold separately
or pre-assmebling with SUS304 nuts and EPDM so that installers can use them quickly just trim the height a little .

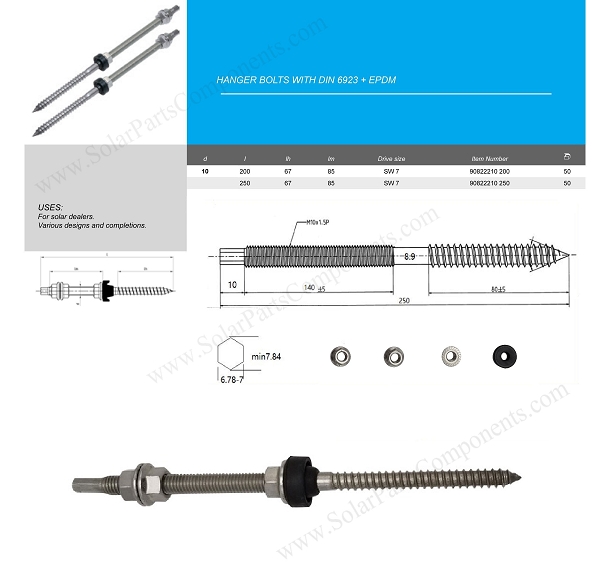

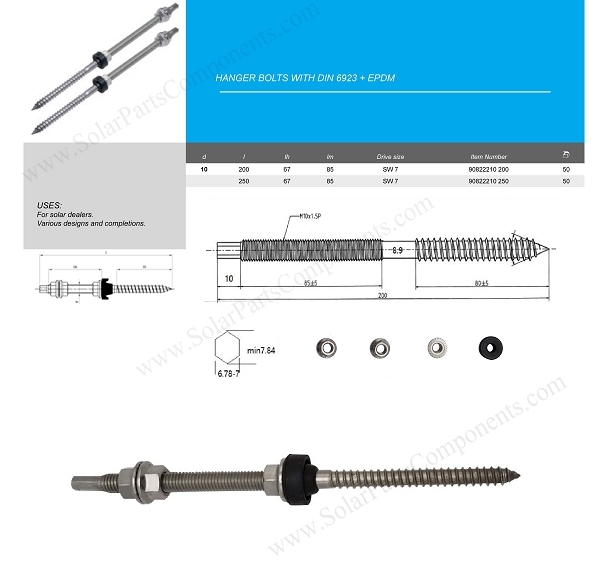

(1) Material a2 stainless steel M10 x 200 mm :
Hanger Bolts M10 x 200mm , SUS304, A2
(2) Material a2 stainless steel M10 x 250 mm :
Hanger Bolts M10 x 250mm , SUS304, A2
Welcome to get more details from Solar Parts & Components Factory .
Solar hanger bolt series
SPC focuses to the range of solar mounting system, aim to fulfill your specific project needs.
Solar hanger bolt – pointed head & flat head. It is designed for solar metal roof mounting system.
Can be used for wooden rafter & steel purlin.
Highly recommend today .
Solar hanger bolt for wooden rafter & steel purlin
