Metal Rooftop Mounting System – L feet
- Product Type: solar metal roof mounting Kits
- Product Solar-Metal-Roof-Mounting-Systems-L-Feet
- Material: Alum, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Pitched Metal Roofing Slope Tin Rooftop
Product Description :

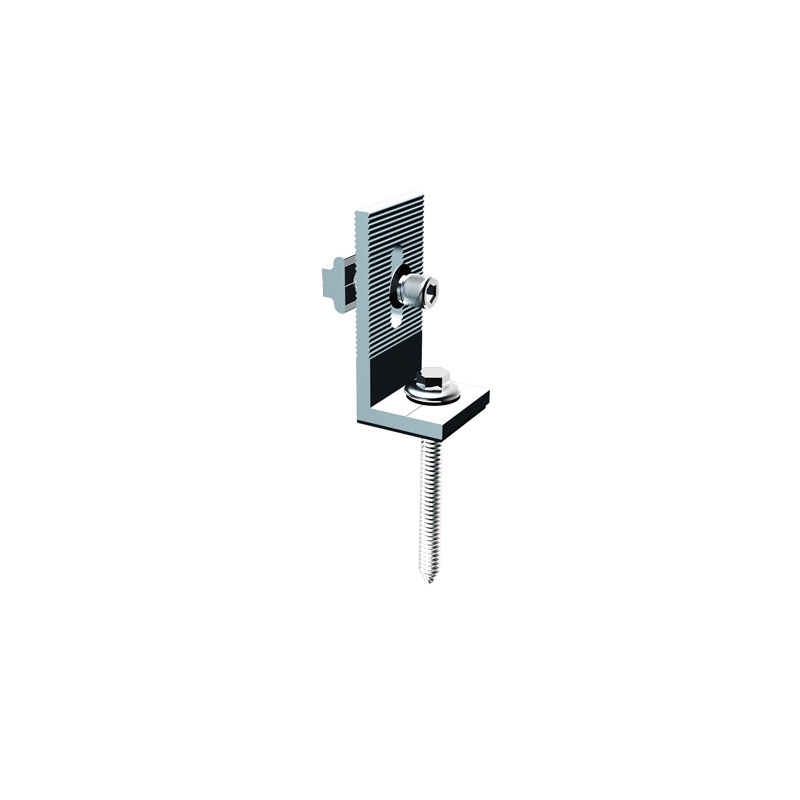

Aluminum made ” L ” feet component is anodized AL 6005 – T5 in material , can be flexible for all module types .
With our sound mounting parts , this L foot can be used on universal types of metal roofing such as standing seam , corrugated, trapezoidal profiles …
Anodized treatment for L feet can keep anti-rust in bad weathers . IP 65 class waterproof with our silicone rubber pads .
This L foot tin roof mounting solution can be suitable for most all type of metal rooftops and flat roofs .
Cost-effective for both framed and unframed solar panel mounts , tilt angle can be from 5 – 60 dedgrees .
L feet bracket kit can have several measurement design as waterproof bracket and anchor to fit different solar rails for tin roofs .
Advantages :
(1) L feet Widely install on Trapezoid, corrugated other tin roofs ;
(2) Pre-assemble kits makes quick installation ;
(3) Premium quality alum with 10 years warranty and 20 years service life designed ;
(4) Fixed to roof with screws directly – simple, fast and labour cost effective ;
Parts and Components for this L feet solar panel metal roof racking mounts system:

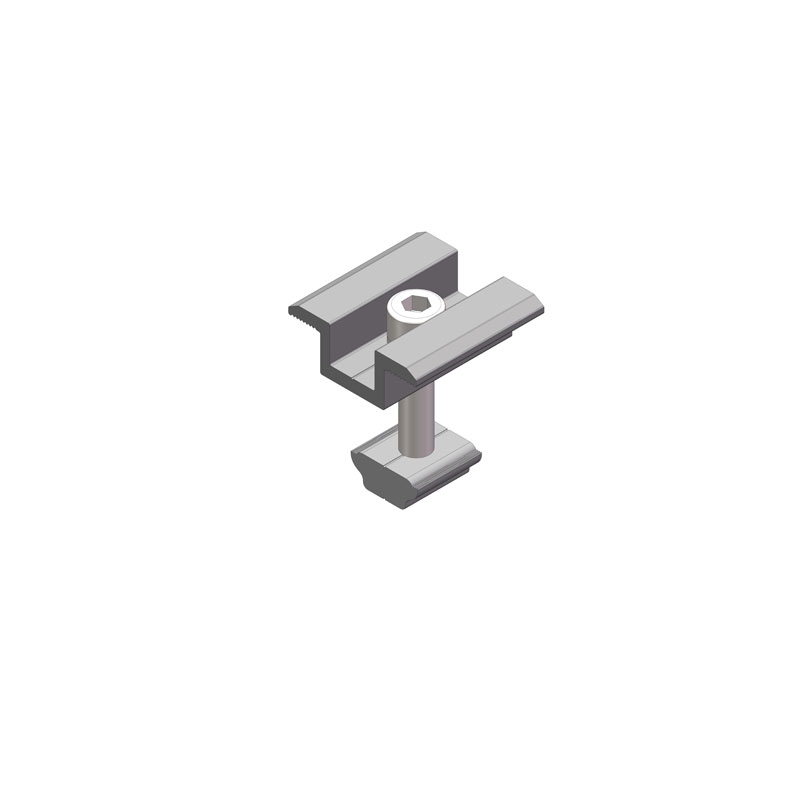

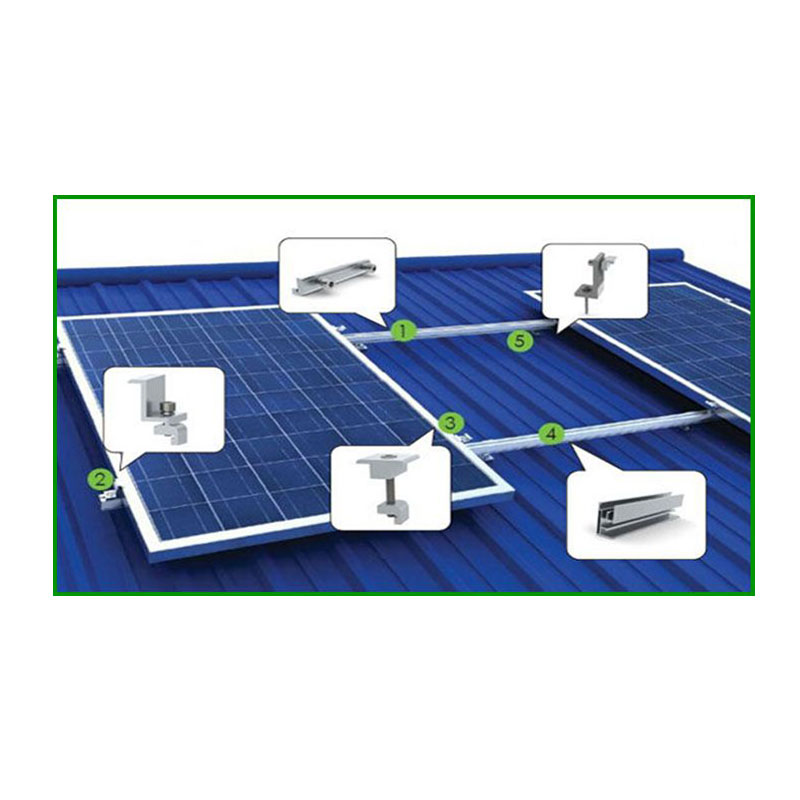

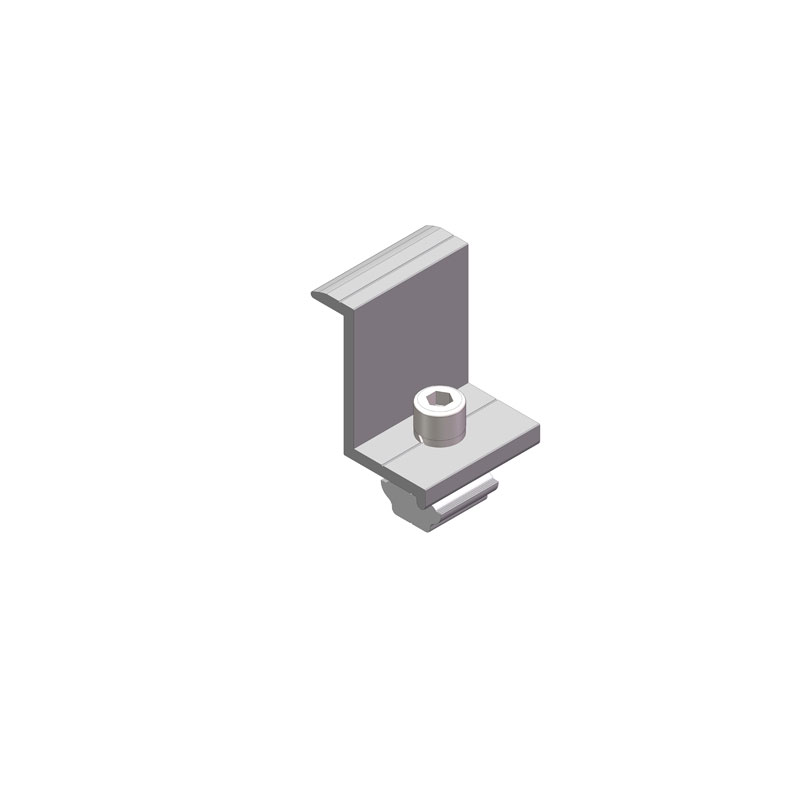

L Feet brackets , Mid clamps , End clamps , Aluminium Rail, Rail Splice …
Anodized, high anti-corrision, great compatible performance make your solar project success .
Installation Guide :
Coming with alum bolts, wood screws and arc rubber pads , ensures leak free and quick mounts .
| Brief Descriptions : | |
| L Feet with Wood Screw Kits mounting systems for metal roof top solar panel installation | |
| Item type: | Metal Roof Mounting Systems |
| Technical Parameters : | |
| Type : | L Feet Solar Panel Mounting Kits |
| Installation Site : | Metal roof top |
| Installation Angle : | Pitched Roof 5° ~ 60° |
| Profile Material : | High Class Aluminum Alloy AL6005-T5 |
| Fasten Parts : | Stainless Steel 304 |
| Small Components : | Alum & Stainless Steel |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s ( 130 mph ) |
| Snow Load : | 1.4 KN / M2 ( 30 psf ) |
| PV Modules : | Framed or Thin film modules |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | 40 Sets / Box,160 Sets / Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
What is the L Feet Solar Metal Roof Mounting?
L Feet Solar Metal Roof Mounting kit exceeds the competition in quality, reliability and efficiency, it not only can be used with our Aluminum rail profiles, but also with other manufacturers rail is ok. Application to metal roof or flashed mounting systems.
L foot for metal roof
About L Feet Solar Metal Roof Mounting items
【for tin roofs】hold the rails on tin roofs flexibly, support rails at your desired height, ranging 33-68mm high, provide an optimal height to allow proper air flow between the panel and the roof surface, assuring your panel to stay cool in high temperatures
【heavy duty aluminum】rust proof, capable of withstanding weather conditions, such as high winds or heavy snow loads
【universal use for tin roofs】adapted to any tin roof substructure
【considerate accessory assortment】including 1 sets of M8*25mm bolt and fixture block, 1 wood screws or 1 self-tapping screws for easy installation. please choose wood screw for wood beam or self tapping screw for steel beam
【fixture block 】Kindly note the fixture block included in the package only fits our rails. If the fixture block does not fit your rails, please consider to only use the L shape body. We offer risk-free purchase service and satisfying customer service.
Inquiry of Metal Rooftop Mounting System
Q:
I am looking for a price on a railing system for a corrugated metal roof (not sure exactly of the make). I will be installing 8 blocks of 4 panels (2 x 2) in portrait (32 panels in total). Panels are standard size (1650mm x 998mm). So 16 rails at about 2.2mtr, 48 mounting brackets,64 end clamps, 32 mid clamps – assuming I go for a railed system. What system would you suggest?
Many thanks
A:
Nice to recieve enquiry about this Metal Rooftop Mounting System .
I would like to recommend “L” foot mounting system for you base on 8 blocks ( 32 PV modules in total) .
Nice to recieve enquiry about this solar panel roof mounting project .
I would like to recommend “L” foot mounting system for you base on 8 blocks ( 32 PV modules in total) .
- Each rail should need 3 bracket ( L foot in this system), totally 32 rails should need 96 mounting brackets ;
- Each rail would need 2 end clamps, totally 32 rails should need 64 end clamps ;
- Each rail would need 1 mid clamps, totally 32 rails should need 32 mid clamps ;
- Each mid clamp would need 1 Grounding Clips , totally should need 32 units of it ;
- Each rail would need 1 ground lug, totally 32 rails should need 32 lugs.
Metal Rooftop Mounting System
Solar tin roof mounting system with aluminum L feet
The L feet ensure quick and easy installation for the roof. High-quality stainless steel and aluminum ensure the most durable components.
Solar tin roof mounting system with aluminum L feet

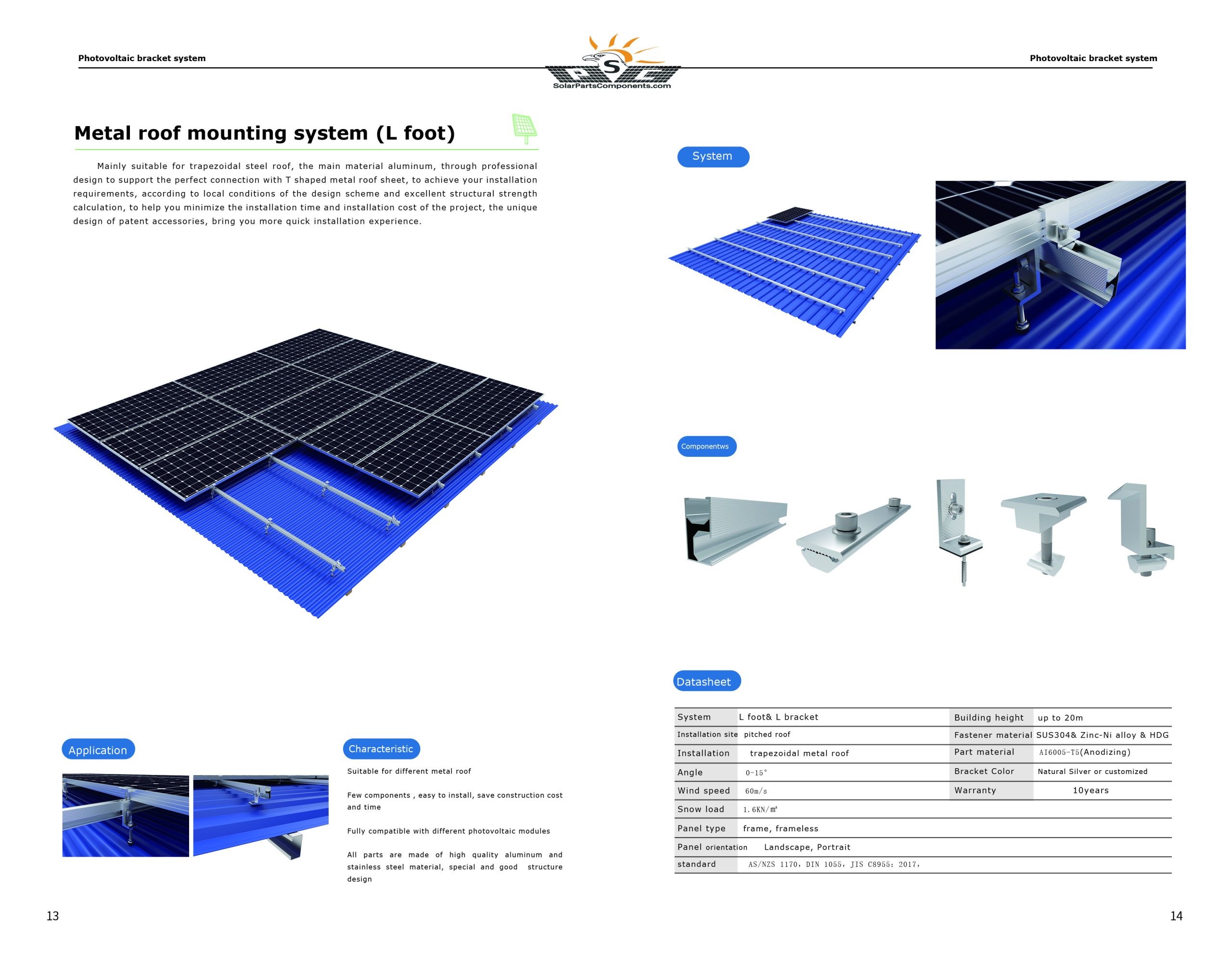

Metal Rooftop Mounting System-L feet, mainly suitable for trapezoidal steel roof, the main material aluminum, through professional design to support the perfect connection with T shaped metal roof sheet, to achieve your installation requirements, according to local conditions of the design scheme and excellent structural strength calculation, to help you minimize the installation time and installation cost of the project, the unique design of patent accessories, bring you more quick installation experience.
Characteristic
Metal Rooftop Mounting System-L feet is suitable for different metal roof
Few components , easy to install, save construction cost and time
Fully compatible with different photovoltaic modules
All parts are made of high quality aluminum and stainless steel material, special and good structure design
Metal Rooftop Mounting System-L feet
