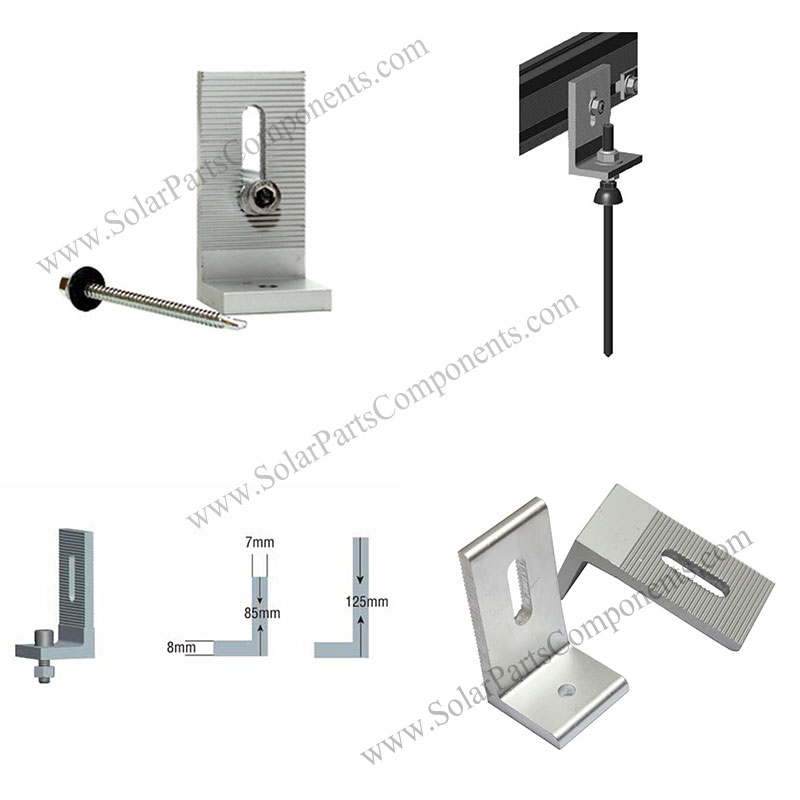

Solar panel mounting system aluminum L feet is used as a mounting accessory for photovoltaic brackets of solar panels. It is designed to be used with wood screws and can be quickly installed on the roof. The L feet are fixed to the wooden beams under the iron eaves to provide a firm fixation and ensure maximum stability.
| Product type: | L feet |
| Material: | Aluminum |
| Wind speed: | 60m/s |
| Snow load: | 1.4KN/㎡ |
| Color : | Silvery or according to customer requirements |
| Warranty： | 10 years |
| Designed Life Span： | 25 years |
L feet bracket for metal roof mounts speed up installation, improves reliability and provides a cost-effective installation system. The L-feet bracket of the solar metal roof installation system is suitable for corrugated metal panels and trapezoidal metal roofs. The system complies with wind and snow load standards and is suitable for a variety of climate zones.
Feature:
1. Realize simple, fast and cost-effective installation;
2. High-grade anodized aluminum;
3. Fasteners and nuts are used together;
4. Save extra parts purchase;
5. Made of high-grade aluminum and stainless steel hardware;

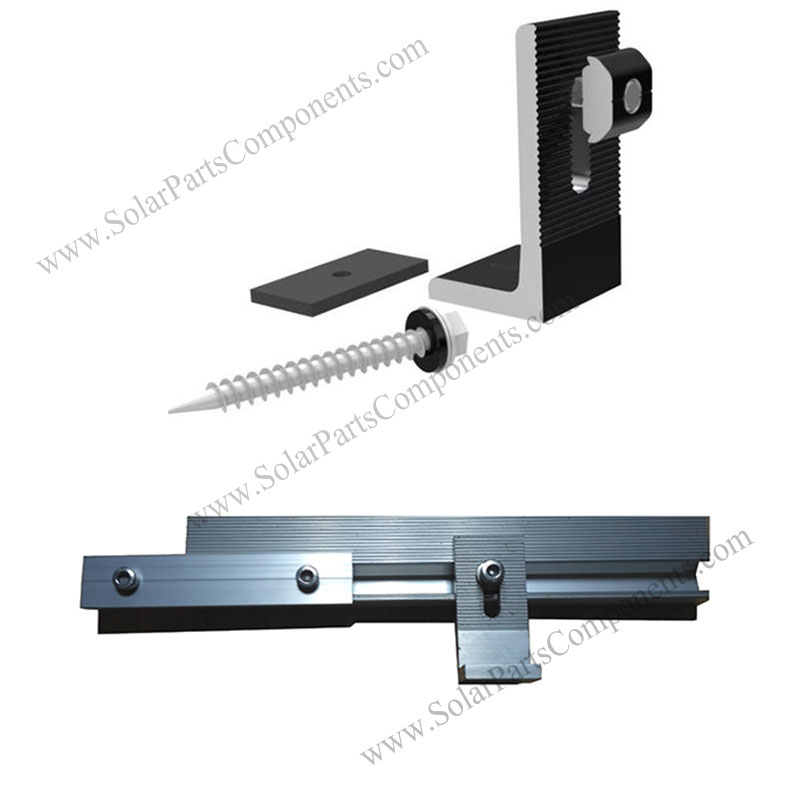

Solar tin roof mounting component L feet is a structure with wood screw connection options and is suitable for all leading brackets to achieve maximum versatility. The L-shaped feet can be easily installed on the tin roof and speed up the installation speed on the roof. It can be rotated 360 degrees to obtain the best adjustability and rail position for best versatility. Suitable for most iron roofs, used with side mounting rails, and wood screw connection options are provided.
The L feet can be used for most types of tin roofs. Solar energy can be installed and installed without damaging the tin roof. Highly pre-installed components have been assembled in our factory, so you can save your installation time and labor costs.
