Ground Screws for PV Modules Ground Mounts
- Product Type: solar ground mounting screws adjustable
- Product Model: SPC-solar-screws-A50
- Material: Carbon Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Ground Solar Panels Installation
There are several types of PV modules mounting systems for defferent projects such as farm house , sea shore , grassland, hills …
Installers should choose defferent mounting structures for solar panels, so that can fix PV modules firmly base on national wind and snow standards.

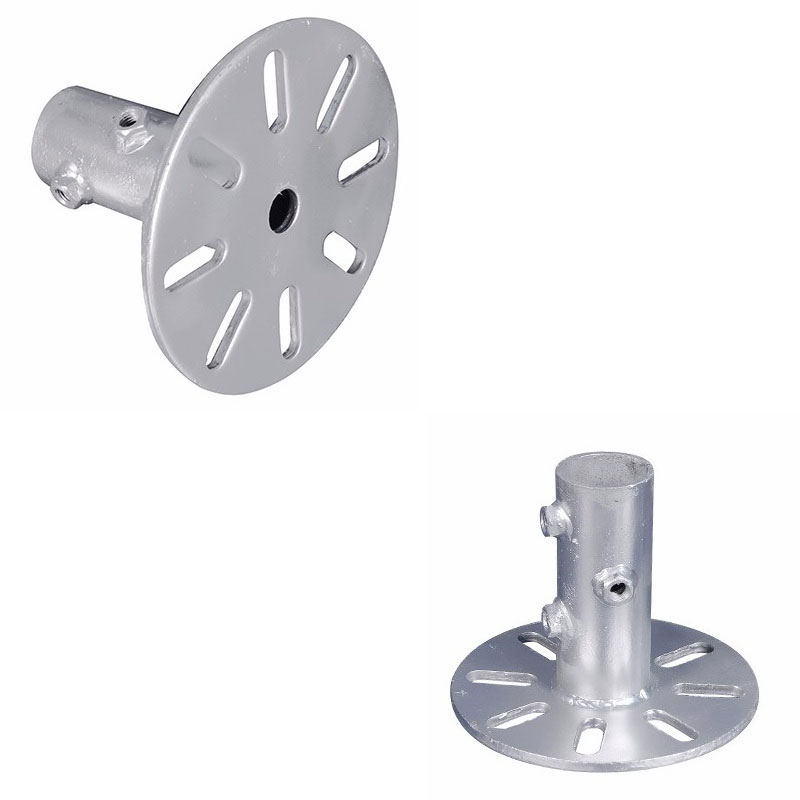

This ground screws with adjustable flange model SPC-solar-screws-A50 is specially designed for solar panel ground mounts.
The most advantage is installers can fine adjust height of ground screws with our none fixed flange .
By screwing up 3 units of nuts, the flange can be firmly fixed . Engineers can also select different steel flange according to sizes of base mounting nuts .
This can help keep all helical ground piles can keep all in a horizontal surface . So that can offer a good mounting base for solar panels .
The solar ground anchors with flange is very suitable for wide range of soft soid and ground circumstance : sandy, soft soil, desert, mountain ground… with strong foundation supports .
We adopt Q235 standard carbon steel for material and hot dipped galvanized finishing, this solar ground screw is super study, corrosive resistant, rusty resistant for more than 15 years .
Adjustable Flange sizes available :
|No.||Part. No.||L1 Size ( Flange Height )||Weight (KGS / Piecs)|
|1||Flange-H-1||400 mm||3.68 kgs|
|2||Flange-H-2||600 mm||4.56 kgs|
|3||Flange-H-3||800 mm||5.36 kgs|
|4||Flange-H-4||1000 mm||6.25 kgs|
|5||Flange-H-5||1200 mm||7.18 kgs|
Some most popular screw pole without flange sizes available :
|No.||Part. No.||L Size ( Pole Height )||Weight (KGS / Piecs)|
|1||A50-1200||1200 mm||7.85 kgs|
|2||A50-1400||1400 mm||8.45 kgs|
|3||A50-1600||1600 mm||9.75 kgs|
|4||A50-1800||1800 mm||14.80 kgs|
|5||A50-2000||2000 mm||15.68 kgs|
Different screw poles and adjustable flanges can be matched according to solar mounting requirements .
– Ground screw length for solar panels with adjutable flanges :
600 mm (24″), 800 mm (32″), 1000 mm (40″), 1200 mm (48″), 1600 mm (64″), 1800 mm (72″), 2000 mm (80″), 2200 mm (86″),
2500 mm (100″), 3500 mm (138″) …
Wall thickness optional : 2.5 mm (0.1″), 2.75 mm (0.11″), 3.0 mm(0.12″), 3.25 mm (0.13″), 3.5 mm (0.14″), 4.0 mm(0.15″) …
– Changeable flange types for ground screws :D180 x 8 mm, D200 x 8 mm, D220 x 8 mm …
– 20 years life guarantee ;
– Strong Steel Pallet Packing , suitable for shipping by sea ;
– This ground screws can be also used for fencing, street lamp, camping tent, wood house … besides solar PV modules ground
– Easy and fast installation .
More types of height adjustable solar screws are available from Solar Parts & Components factory .
We are a professional manufacturer of solar bracket and accessories, to provide more types of height adjustable flange pile, beautiful price, quality service! For more details, please visit our website: www.solarpartscomponents.com.
|Brief Descriptions :|
|Adjustable Flange ground screws for solar mounting racking, solar panels ground installation|
|Item type:||Solar Ground Screws SPC-solar-screws-A50|
|Technical Parameters :|
|Installation Site :||solar panel ground mounting|
|Profile Material :||Q235 Carbon Steel|
|Surface processing :||Hot dipped galvanized|
|Length :||0.6 m, 0.8 m, 1.0 m, 1.2 m, 1.6m, 1.8 m, 2.0 m, 2.2 m, 2.5 m, 3.5 m, customized|
|External diameter :||48 mm, 60 mm, 76 mm, 89 mm, 114 mm , customized|
|Wall thickness :||2.5 mm, 2.75 mm, 3 mm, 3.25 mm, 3.5 mm, 4.0 mm, customized|
|Connector :||Adjustable Flange|
|Flange diameter :||180 mm, 200mm, 220mm, customized|
|Flange thickness :||8 mm|
|Application :||Solar power mounting, ground base, fences, carport, mobile house and flag poles.|
|Standards :||AS/NZS 1170|
|JIS C 8955 : 2011|
|International Building Code IBC 2009|
|California Building Code CBC 2010|
|Designed LifeSpan||25 years|
|Packing Details :|
|Inner :||shrinkable wrap|
|Outer :||Iron plate|
Can you customized solar ground screws as drawing?
Could you customized solar ground screw as drawing below?
Requirements for solar ground screws customized model:
1. unspecified matters such as material, length and surface treatment should be in
accordance with the relevant provisions of the company's material description and technical
2. After the surface treatment of welding nut, the thread shall be trapped;
3. The welding marks and sharp edges shall be blult, the burrs shall be removed and the
hand shall not be scratched;
4. the material thickness dimension is the dimension before surface treatment and other
dimensions are the dimension after surface treatment;
5. the material tolerance should be as agreement in contract;
We must follow customer spec. So please see more simply info as below to know
File attachment is together to know GROUND SCREW
1 – The thickness of body pipe; 3mm ±0.25mm; Size length: 1400mm
• The thickness of Helix Thickness is 4mm, Diameter is 176mm (Small type), Big type is 248mm
• How many bolts & nuts…per set? Pls detail with image of each 6 Nuts per set, 4 Bolts per set,
2 – The standard should be followed by ASCE 7-05, and the Galvanized thickness could be customized for different demand, for this project we suggest an 80μm average.
3 – Quantity is at least 100,000 pcs for first step
4 – You can offer FOB
Please show your spec and detail with quote
Yes, we can do as your drawing given.
Please refer to our similiar ground screw model we export:
and some of other types of solar screws for ground mounts:
SOLAR GROUND SCREW FACTORY
How to using this adjustable ground screws for solar panels ?
More details kindly check >>>
some key details you should pick out when you purchase solar ground screws
Adjustable flange ground screws is a kind of ground anchors with adjustable head which can be used for various ground mounting structures .
Following are some key parameters before you purchase our ground screws :
First of all is Q235 carbon Steel Ground Screw Poles :
(1) Diameter of screw poles ,
usually there are 48 mm, 60 mm, 76 mm, 89 mm, 114 mm and more for options
The diameter is bigger when the length of pole is longer,
it should be matched well for national standards .
(2) Q235 pole wall thickness,
There are 2.5 mm, 2.75 mm, 3 mm, 3.25 mm, 3.5 mm, 4.0 mm and more for options,
The thickness should be thicker when the length of pole is longer .
(3) Thickness of hot dipped galvanized surface,
The national standard is 65 μ , 80μ …
Secondly is Q235 carbon Steel Screw Frange Details :
(1) Diameter of outter screw flanges ,
usually there are 180 mm, 200mm, 220mm and more for options,
The diameter of inner pole connector should be matched with screw poles .
(2) Length of screw flanges ,
usually there are 400 mm, 500mm, 600mm and more for options
(3) Q235 flanges wall thickness: 8 mm;
(4) Thickness of hot dipped galvanized surface,
The national standard is 65 μ , 80μ …
I.E. one of our clients choose some models of this solar adjustable flange ground screw series :
|Solar Ground Screws|
|Description||Item No.||Parameters||No.||Part. No.||External diameter||Wall thickness||Length|
|Carbon Steel Ground Screws||SPC-solar-screws-A50||Model : SPC-solar-screws-A50||1||A50-76-3-2M||76 mm||3 mm||2 Meter|
|Profile material: Q235 Carbon steel||2||A50-89-3.5-2.5M||89 mm||3.5 mm||2.5 Meter|
|Finishing : Hot dipped galvanized||3||A50-114-4-3M||114 mm||4 mm||3 Meter|
|Material : AL 6005 – T5 Aluminium ;||NOTE:
Please select correct series no. Before purchase.
|Connector : Adjustable Flange|
|Flange Diameter: D:200mm L:600mm|
|Flange Thickness: 8 mm|
|Applications : PV Modules Ground Mounting|
