Ground Screws for PV Module Ground Racking
- Product Type: solar panel ground mounting screw
- Product Model: SPC-solar-screws-A40
- Material: Carbon Steel Q235
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Soft Soil Ground Solar Panels Installatiing
Product Description :

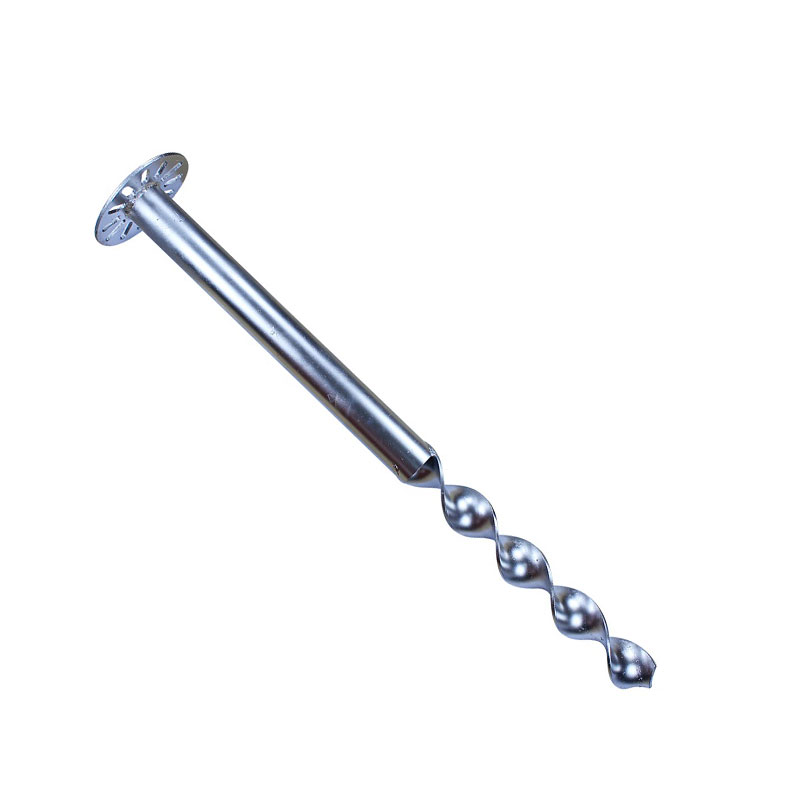

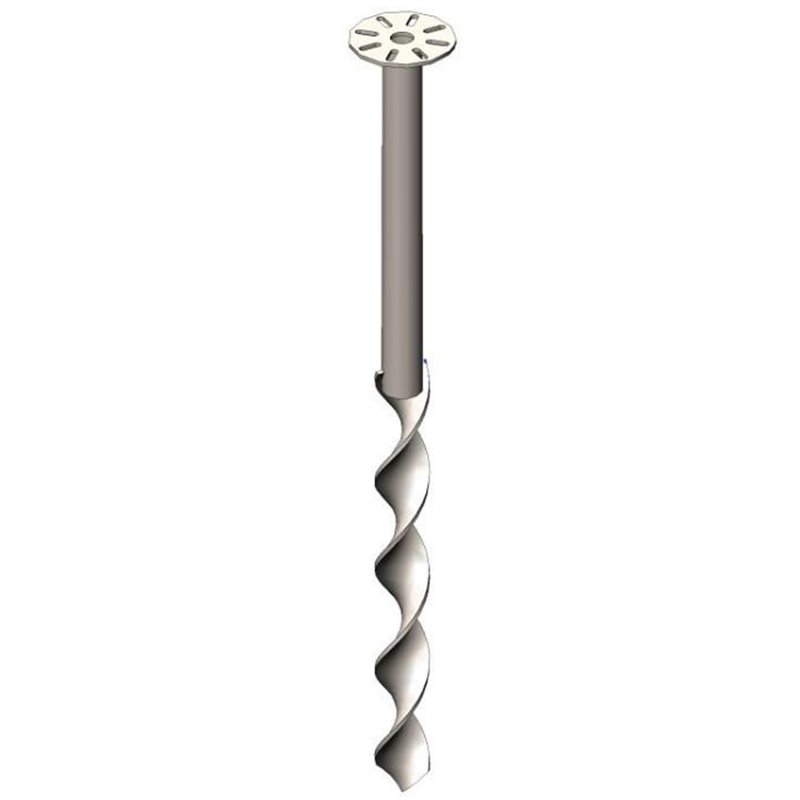

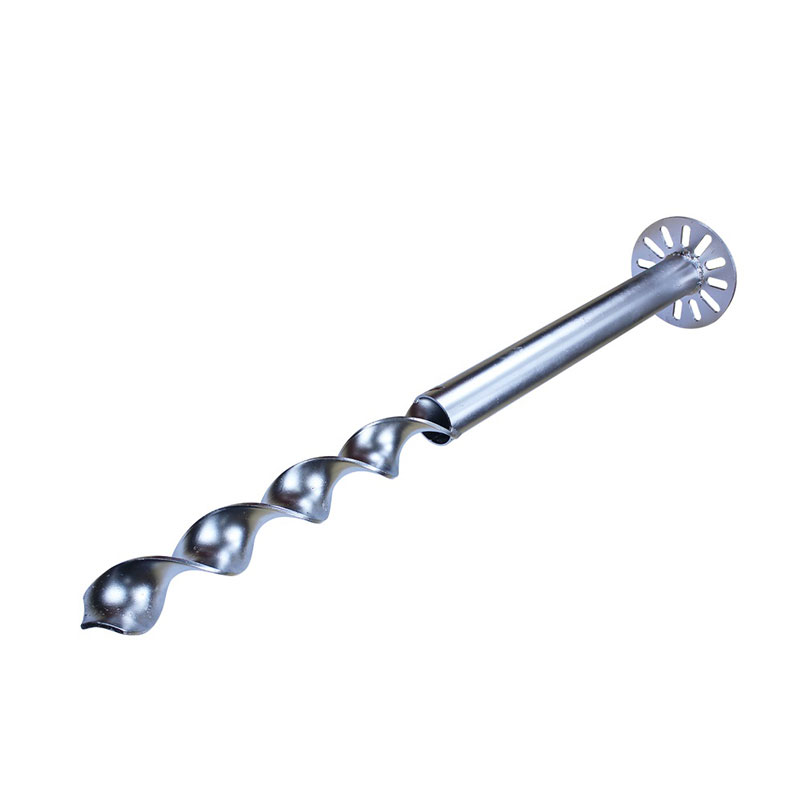

This hot dipped galvanized carbon steel ground screws are specially design for solar rackings .
The helical style is suitable for soft soil , sand land, beach, boggy land, swampland …
Our solar racking ground screws model SPC-solar-screws-A40 can offer strong supports base on wind load and snow load project required .
| No. | Part. No. | L Size ( Height ) | Weight (KGS / Piecs) |
| 1 | A40-1200 | 1200 mm | 11.32 kg5 |
| 2 | A40-1400 | 1400 mm | 12.48 kgs |
| 3 | A40-1600 | 1600 mm | 13.68 kgs |
| 4 | A40-1800 | 1800 mm | 14.89 kgs |
| 5 | A40-2000 | 2000 mm | 15.88 kgs |
| 6 | A40-2200 | 2200 mm | 16.98 kgs |
| 7 | A40-2500 | 2500 mm | 18.89 kgs |
| 8 | A40-2800 | 2800 mm | 20.15 kgs |
Advantages :

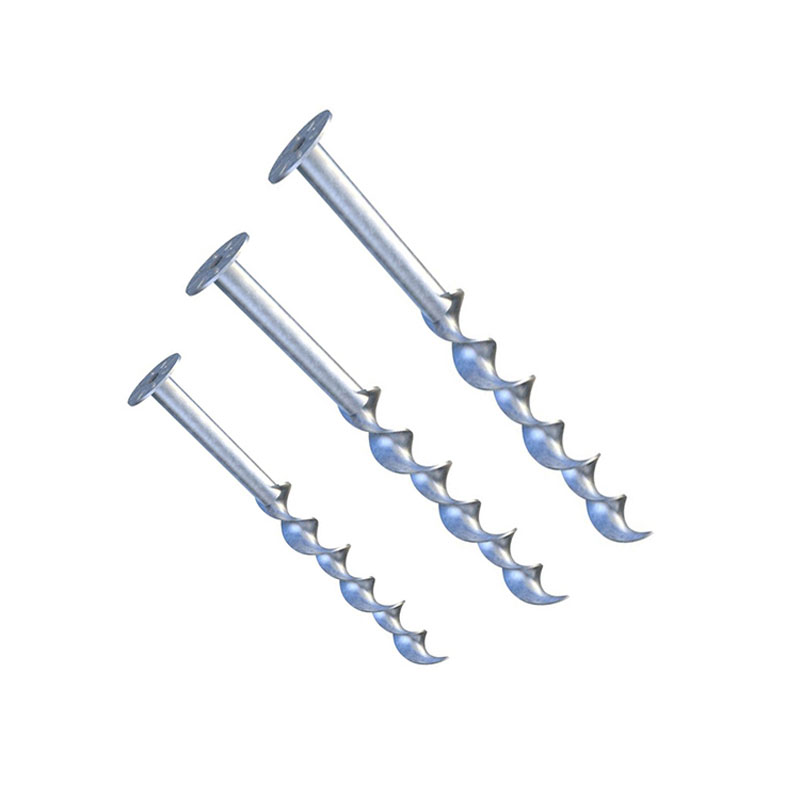

– custimized ground screw length for solar panels accepable : 1200 mm, 1600 mm, 1800 mm, 2000 mm, 2200 mm, 2500mm, 2800mm …
– Wall thickness is 3.0 mm in default, other customized like : 2.75mm, 2.5mm, 3.25mm, 3.5mm, 4mm … are available .
– Suitable for foundations of PV modules, fense, flag pole, traffic sign, billboad signage, camping tent …
– OEM service base on drawing accepted for this ground anchors with flange for solar racking ;
– No digging / concrete needed, easy installation ;

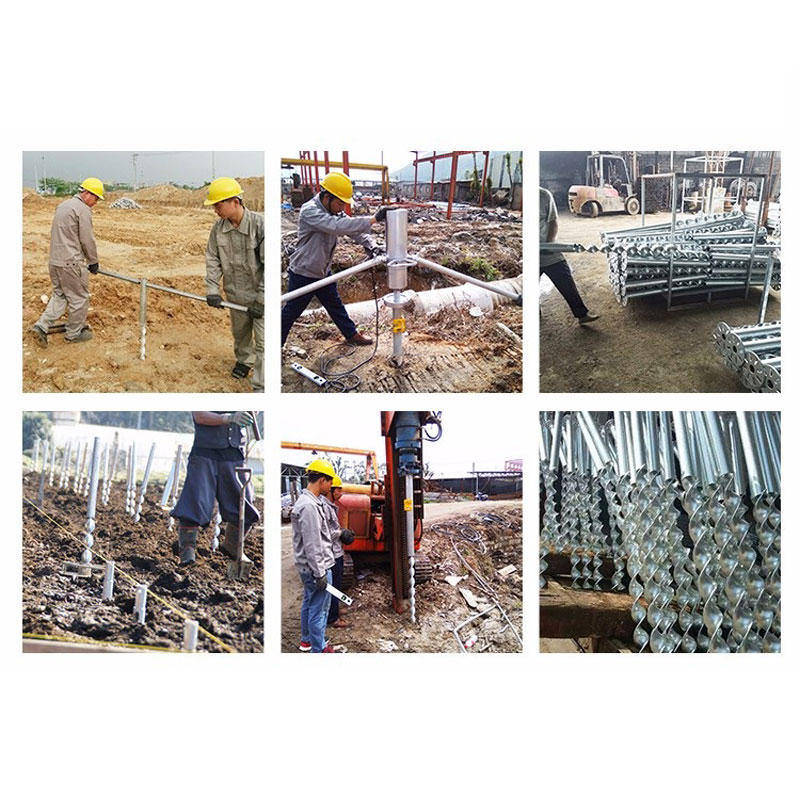

– Can be installed by machines / labor
| Brief Descriptions : | |
| Ground Screws with flange for solar mounting racking, solar panels ground installation | |
| Item type: | Solar Ground Screws SPC-solar-screws-A40 |
| Technical Parameters : | |
| Installation Site : | solar panel ground mounting |
| Profile Material : | Q235 Carbon Steel |
| Surface processing : | Hot dipped galvanized |

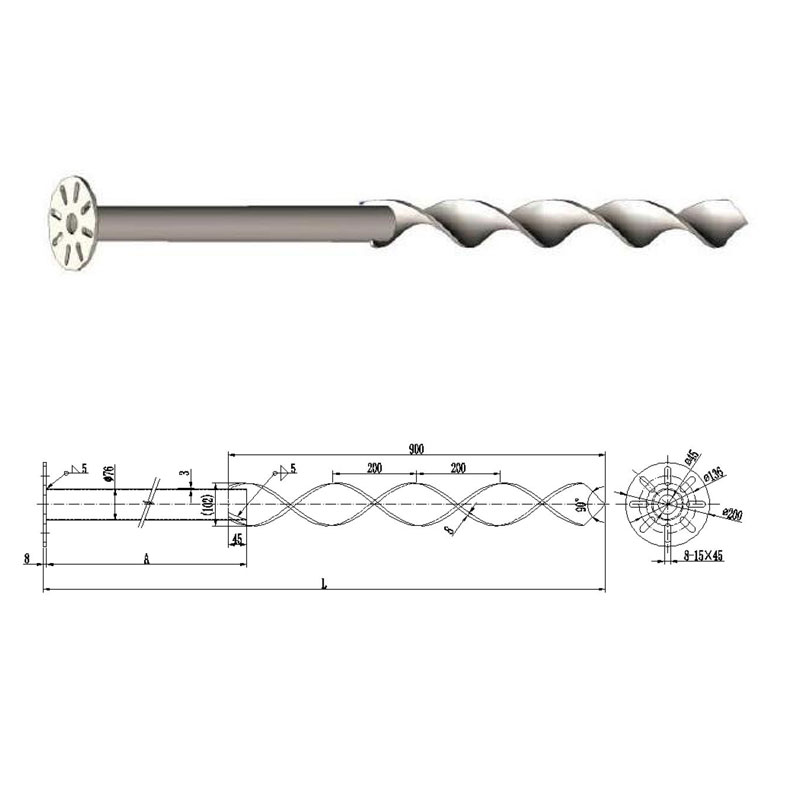

| Length : | 1.2 m , 1.4 m, 1,6 m,1.8 m, 2.0 m, 2.2 m, 2.5 m, 2.8 customized |
| External diameter : | 102 mm ( 4″) |
| Wall thickness : | 3 mm ( 0.12″) |
| Connector : | Flange |

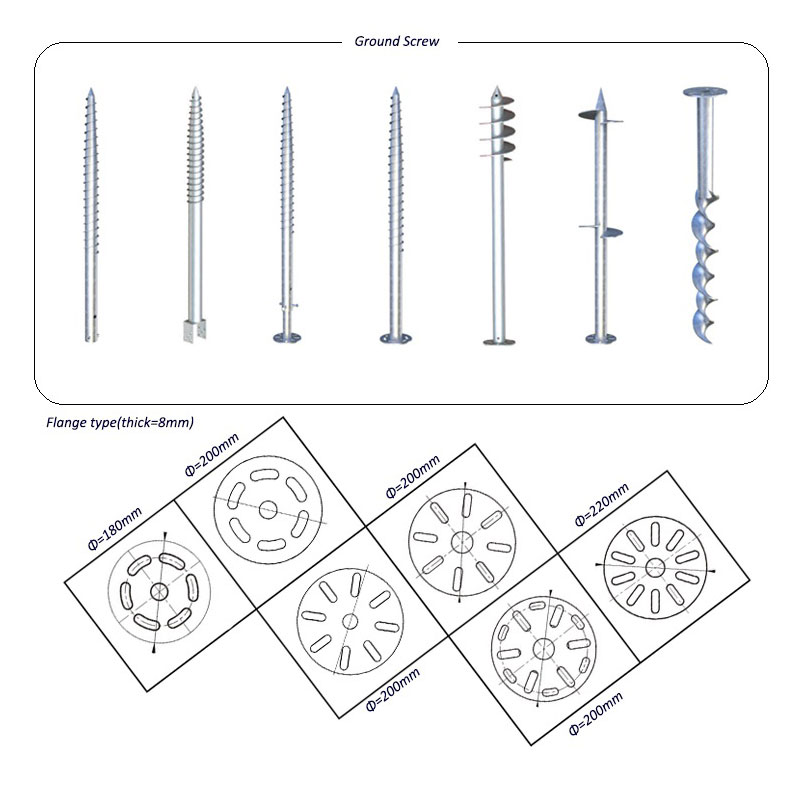

| Flange diameter : | 180 mm 200mm 220mm 240mm 250mm |
| Flange thickness : | 8 mm |

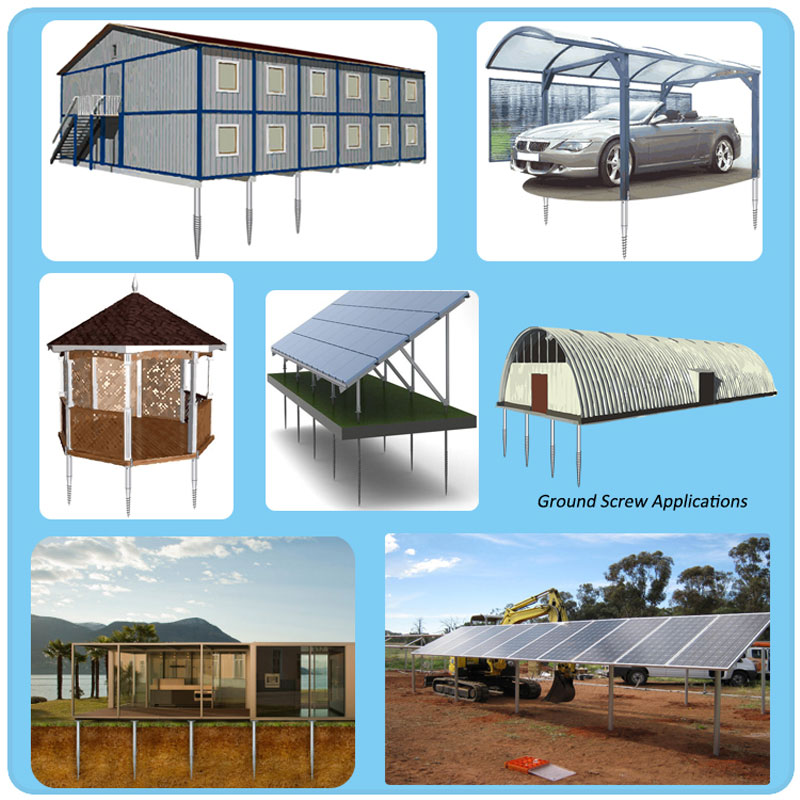

| Application : | Solar panel ground mounting, house foundation, fences, carport base, movable house and flag pole. |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | shrinkable wrap |
| Outer : | Iron plate ( 80 pieces / steel pallet ) |
What kind of screws are used in solar panels?
Ground Screw are suitable for the installation of most solar panels on the market, as they are available in various sizes and can be matched to different installation situations.
The following Fixed flange Ground Screw for solar panels is one of the best selles.
Q:
Please provide pricing.
A:
Hello ,Thank you for your email.
Please share us pitcture/web link of the items you need and the quantity.
I will come back to your our quotation.
Our products covering Roof/Grounding/Carport mounting system, Mounting accesssories…etc.
Click to Read more of our catalogue:
www.solarpartscomponents.com/images/SPC-Catalogue.pdf
Q:
I have a pole with flat square base with 8-screw holes-attachment.
Requesting price on ground screw attached picture.
Such as: Fixed flange Ground Screw for solar panels
A:
Thank you for your fast response.
As per our factory price are base on its quantity.
How many quantity of this Ground Screw for solar panels would you need
and what is the nearest sea port from your delivery address.
I will come back to you quotation with freight cost for your reference.
Q:
What is the quotation for 1500unit?
For more details, see the attachment
A:
Please see the attachment for details on shipping costs and product quotations.
Q:
Thank you! How long does it take to receive the goods after placing an order?
How to using this ground screws for solar racking ?
More details kindly check >>>
