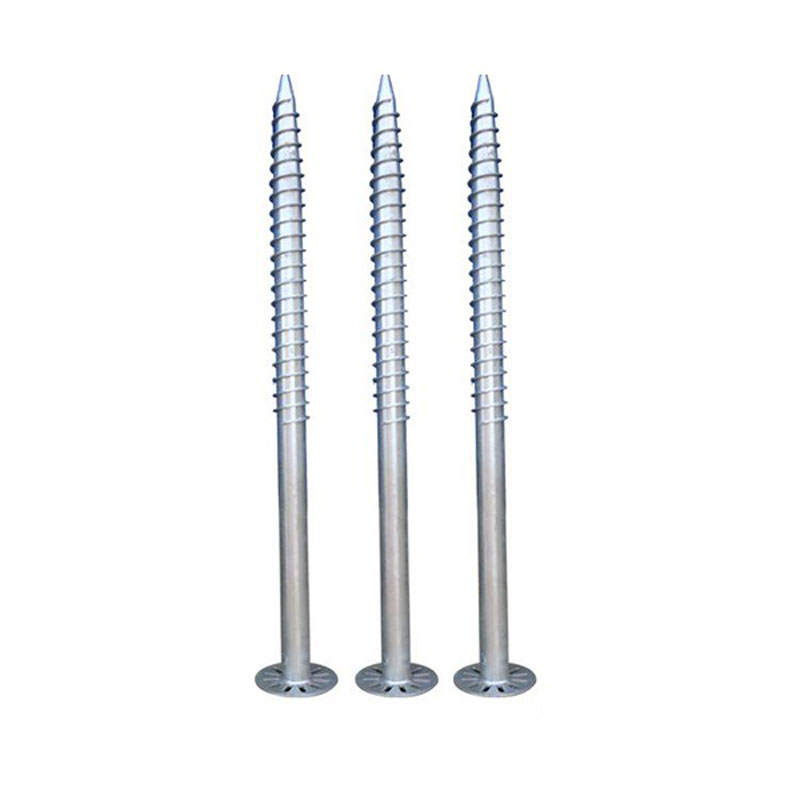

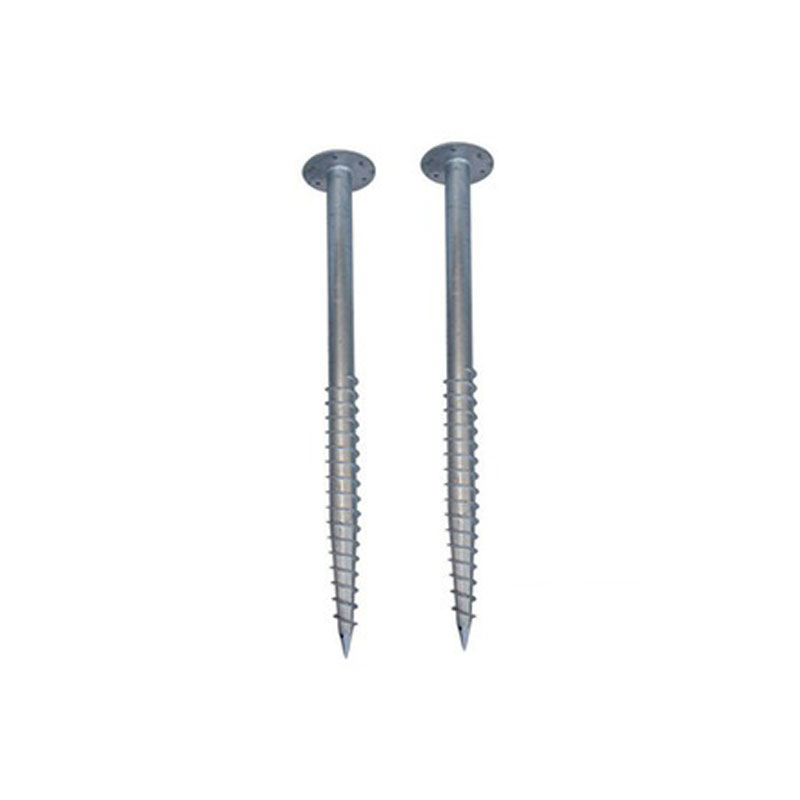

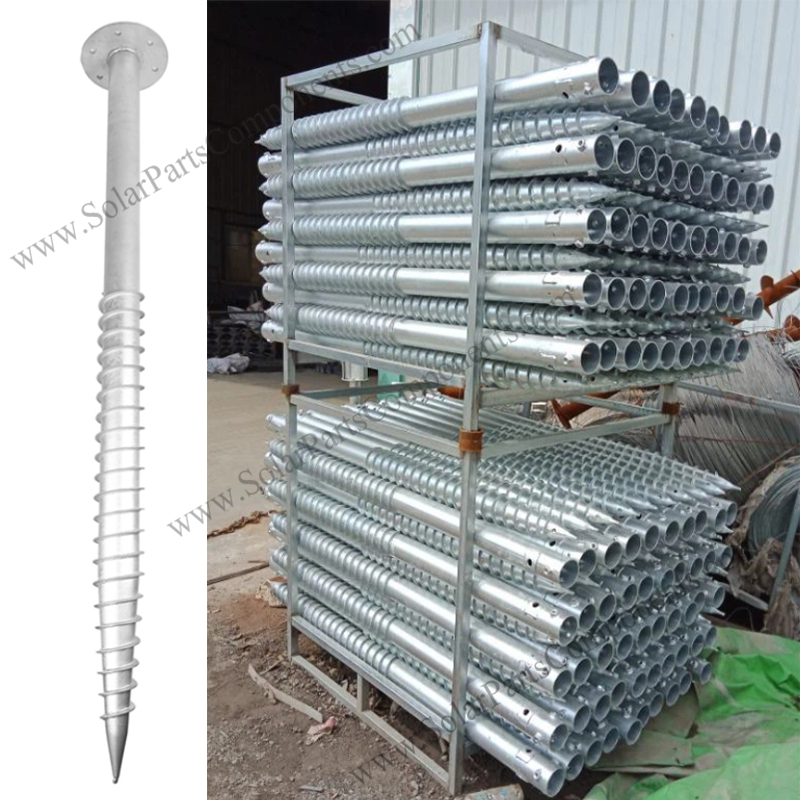

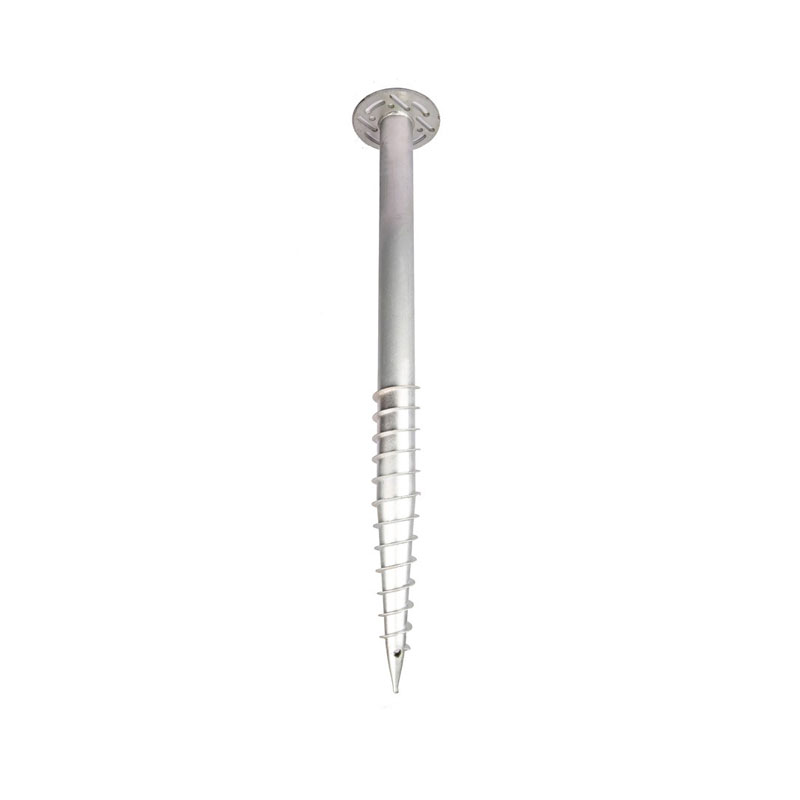

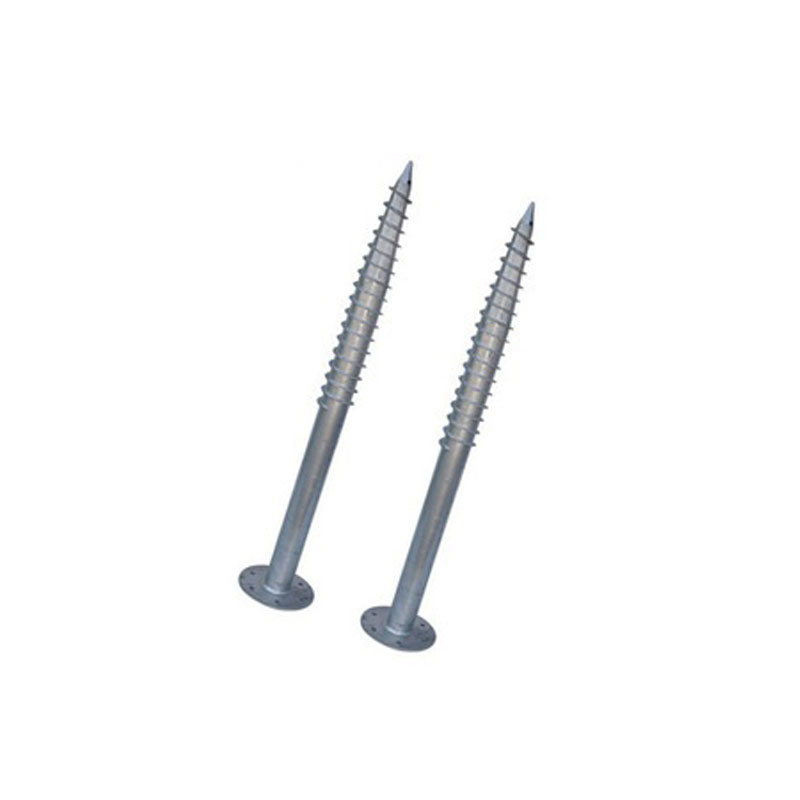

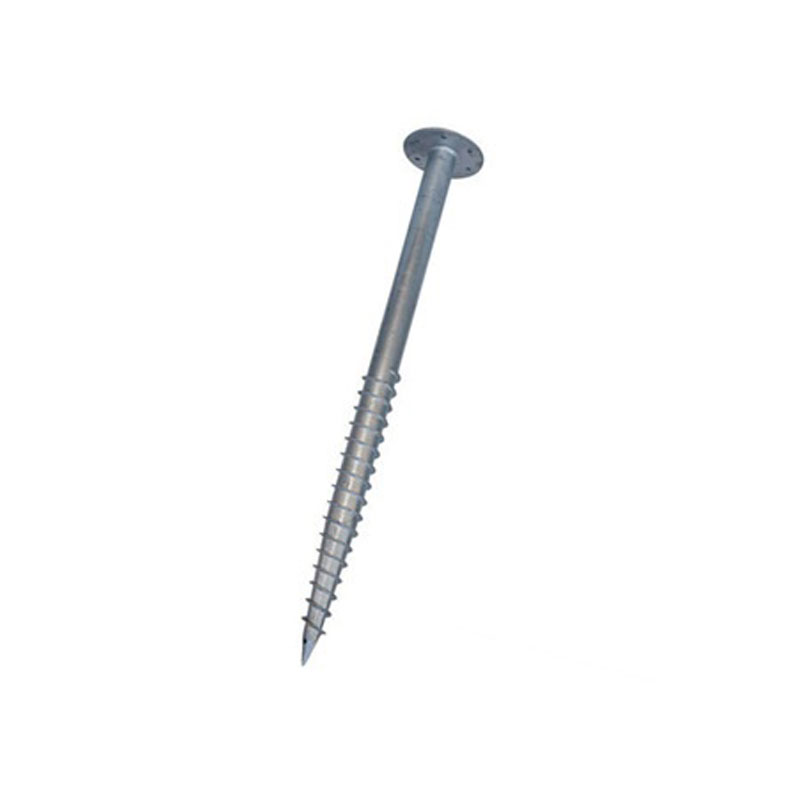

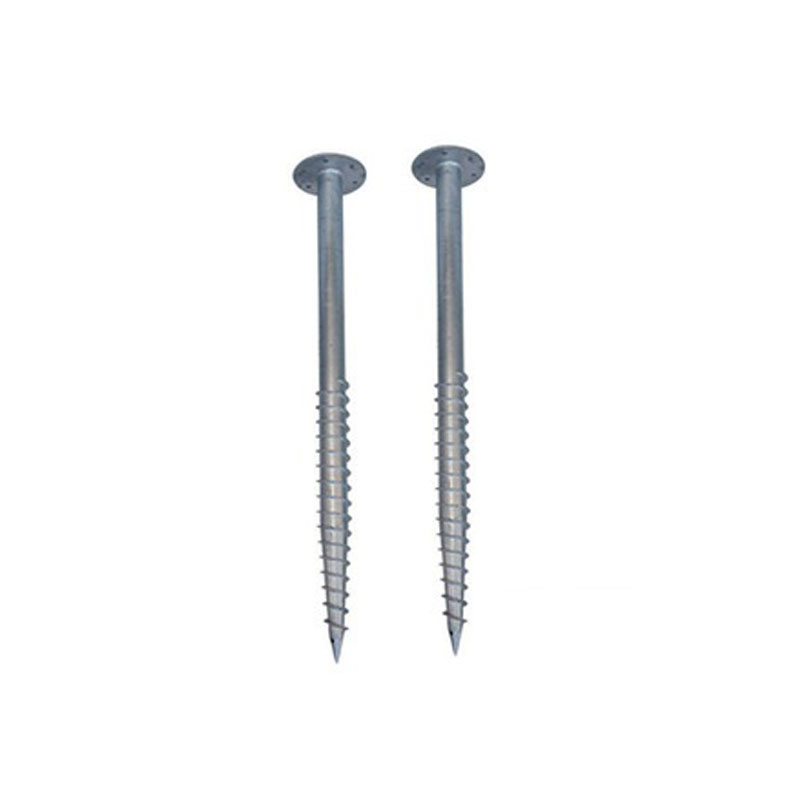

Solar Ground Screw System With Fixed Flange
- Product Type: Solar Ground Screws
- Product Model:Flange-Solar-Ground-Screws
- Material: Steel Q235
- Processing : Hot dipped galvanized
- Connector : Fixed Flange
- Application: Solar ground installing, fences, billboards, wood houses and flag poles …
Product Description

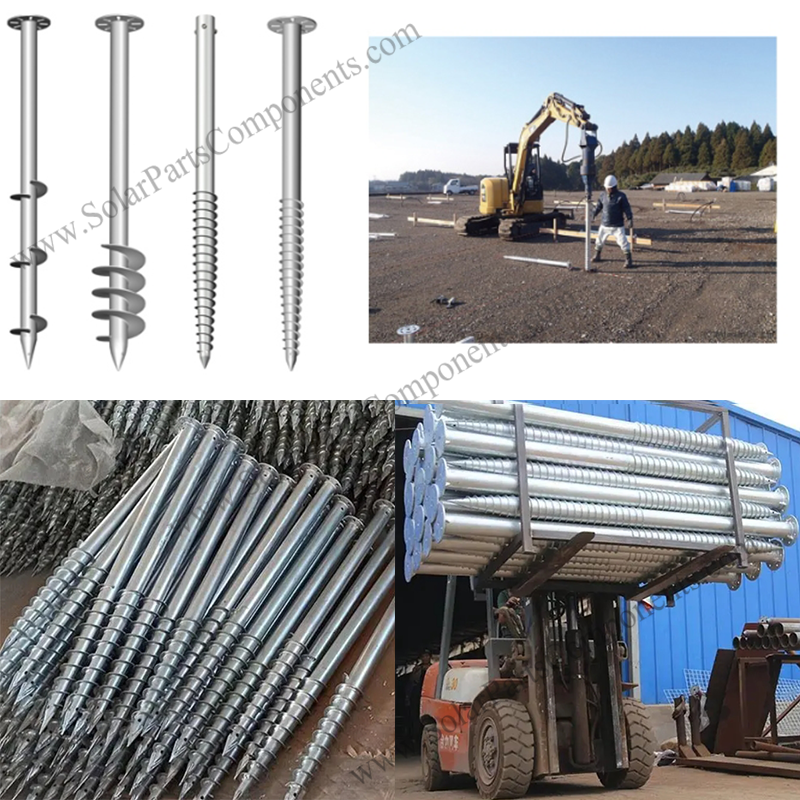

This solar ground screw with flange can be installed quickly and simply with pile driver or machine.
Our solar flanged helical anchors is very solid and strong after digging into ground.

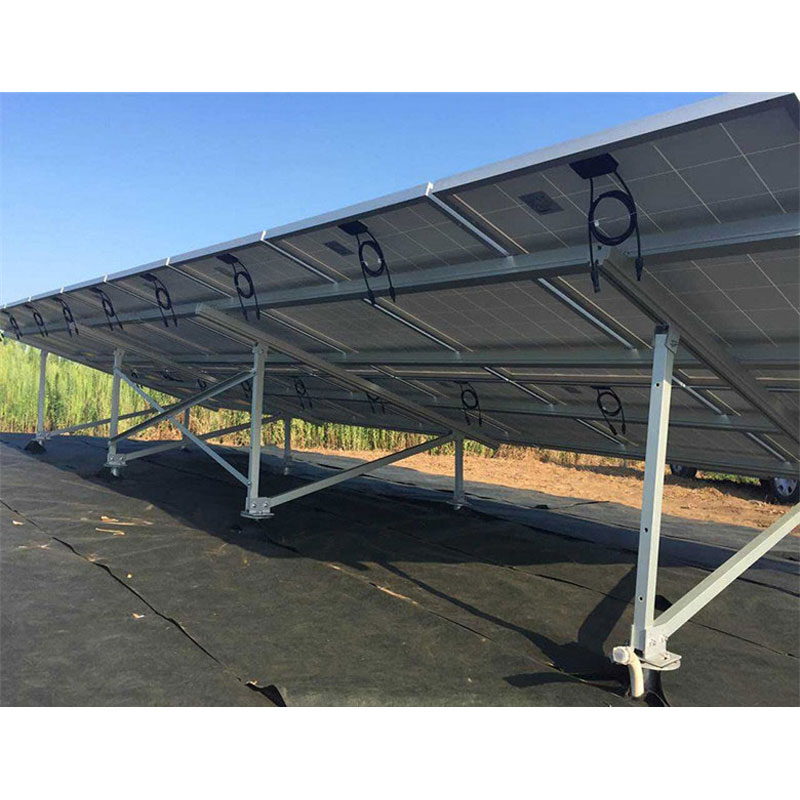

The flange solar helical piers is specially designed for solar ground mounting installation which can support whole solar station systems.
This helical screw is good alternative for traditional wooden or concrete base where requires a solid footing.
It can wild applied for different hard and stony soil or sand area .
Fixed flange solar ground anchors are all made of hot-digging galvanized Q235 steel, long life and anti-corrosive.
Easy for screw or unscrew these solar ground anchors,
in other word it’s resuable.
This fixed flange solar ground screw system have had with strictly test from wind loads and lateral pull, to horizontal load and lift …
Besides solar helical screw works as foundation systems for solar ground mounts, it’s also suitable for mesh fence, wood house and flag poles …
Advantages :
- Seamless welded helix, quality consistency ;
- Hot dipping galvanizing with ISO 1461 standard ;
- High efficent installation ;
- Various dimension and diameters for choosen;
- Widely ground for different terrain – class 5~7.
Our company has developed different series of screws to meet varied applications. The flange solar ground screws is installed with a number of specific aids and machines, perfectly perpendicular at the exact point after minutes. As per practical requirements, the solar mounting ground screw pile is able to be planned and customized in the factory to avoid welding and cut on the spot, saving your time and cost.
More details for you. Contact us by our website:
www.SolarPartsComponents.com
| Brief Descriptions : | |
| Ground Screw with Flange for solar mounting systems, ground solar panels installation | |
| Item type: | Solar Ground Screws |
| Technical Parameters : | |
| Installation Site : | Ground solar panel mounting |
| Profile Material : | Q235 Steel |
| Surface processing : | Hot dipped galvanized |
| Length : | 1.2m, 1.6m, 1.8m, 2.0m, 2.5m, 3.0m, customized |
| External diameter : | 76 mm ( 3″) |
| Wall thickness : | 3 mm ( 0.12″) |
| Connector : | Flange |

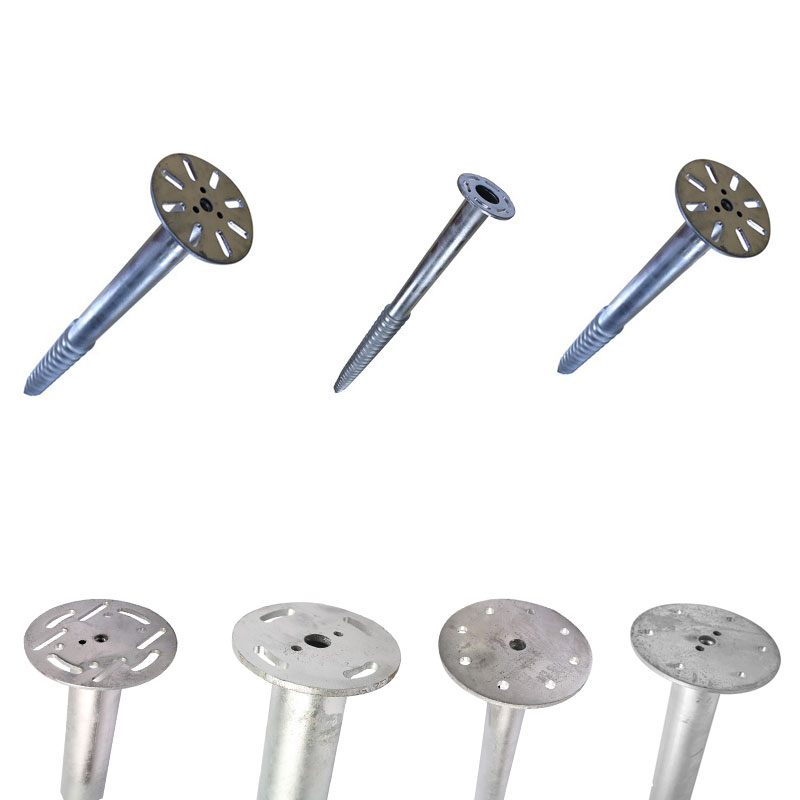

| Flange diameter : | 160mm 170mm 185mm 200mm 220mm 240mm 250mm |
| Flange thickness : | 8 mm |
| Application : | Solar power stations, fences, cabins, billboards and flagpoles. |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |

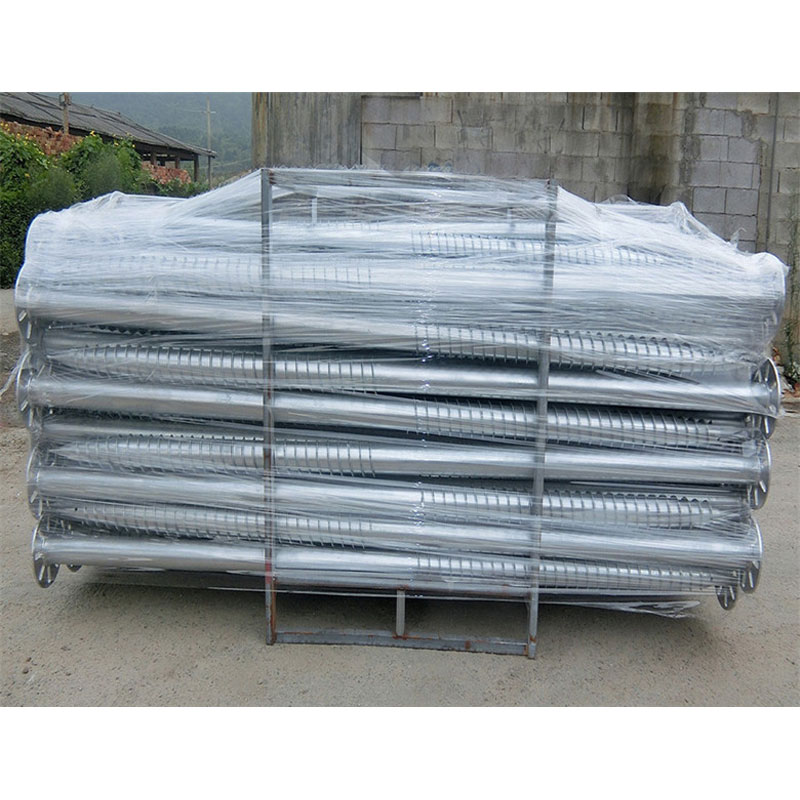

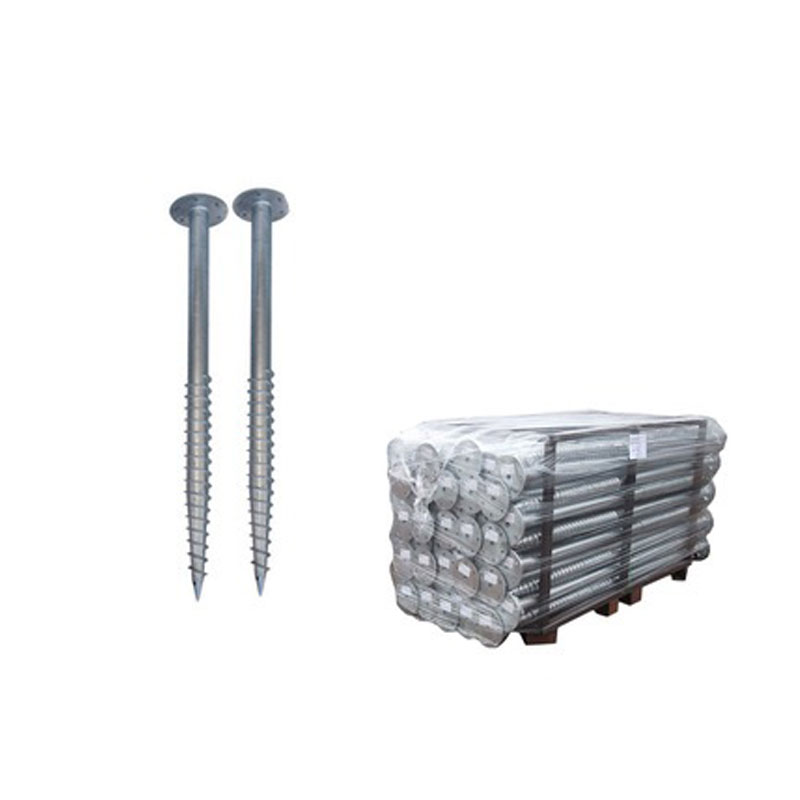

| Packing Details : | |
| Inner : | shrinkable wrap |
| Outer : | Iron plate |

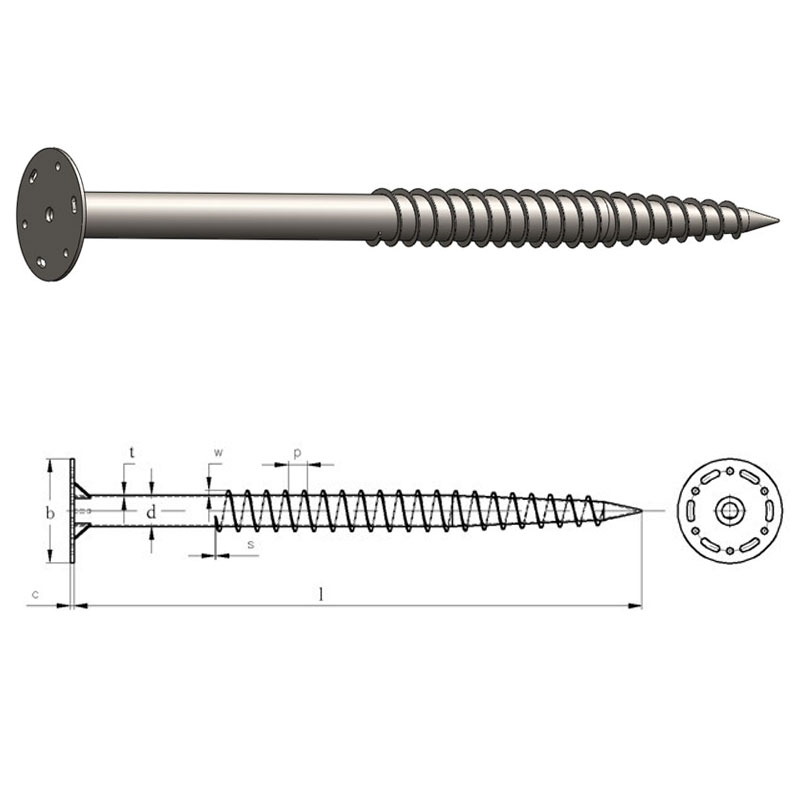

Drawing for this Flange Solar Ground Screws
Flange Solar Ground Screws Factory
Q:
Hi I’m interested in your ground mount anchors looking for 1600 mm long and with a 200 mm flange for a solar application, The quantity will be need 8800 pieces.
