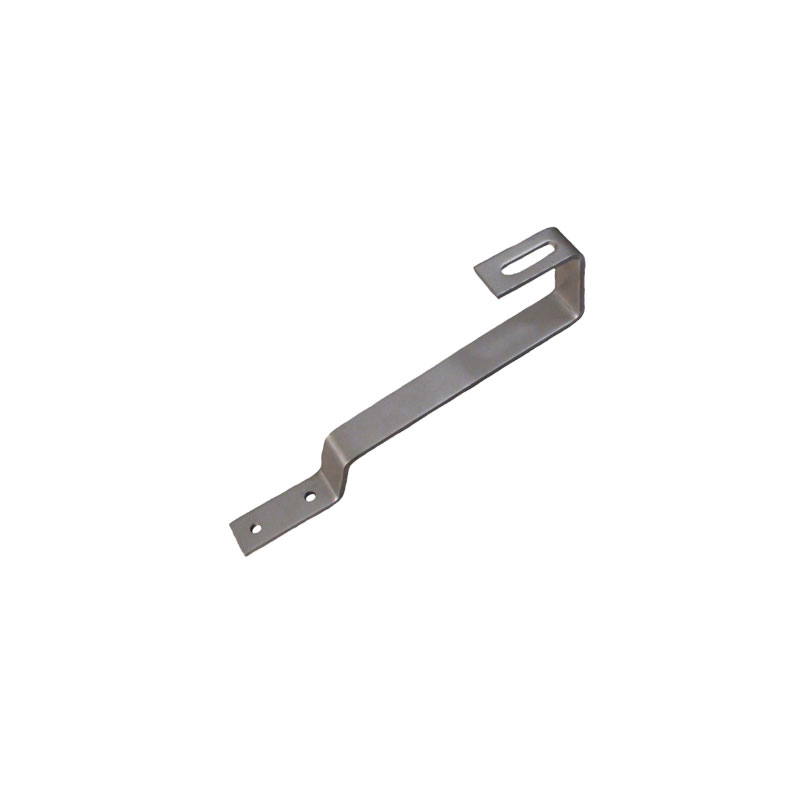

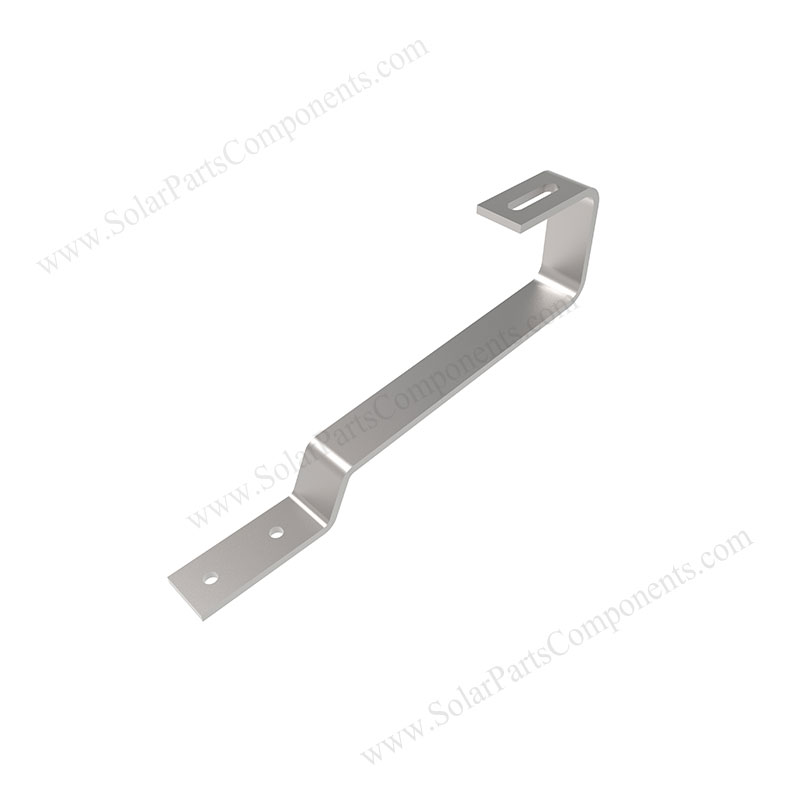

Flat Tile Roof Hooks, Non-Adjustable, Bottom Mounting
- Product Type: Solar Flat Tile Roof Hooks
- Product Model: SPC-IK-11
- Material: SUS 304 Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Pitched Flat Roof Installation
Product Description :
Non-Adjustable solar roof hooks for flat tiles .
The installation is for Bottom rail mounting – 180 degree horizontal .
180° Flat Tile Roof Hook is fixed height of 85 mm .
We connect wood beams by hexagon Spring Washer screws during hook base holes.
This diameter of mounting screw holes is 9 mm .
Our stainless 304 flat tile hooks are excellent corrosion resistance and value , which contains 18 percent chromium and 8 percent nickel.
( Fe, <0.08% C, 17.5-20% Cr, 8-11% Ni, <2% Mn, <1% Si, <0.045% P, <0.03% S )
This solar flat roof hooks are strictly complied with industry size standards and waterproof well.
Before determine right tile hooks for your project, our samples can be quickly expressed as requirements, since we have stock and warehouse for regular models.
This solar tile roofing hook which has slot at upper side, works with 99% aluminum racks by using 5/16 Inch or 3/8 Inch bolts.
Advantages :
- Fast Installation with pre-assembling packing ;
- Specially design for flat tile roofing structure for Bottom mounted rails ;
- Ten Years Quality Gurantee for our flat roofing hooks ;
Parts and Components for this Solar Flat Tile Roof Hooks, Non-Adjustable, Bottom Mounting :
stainless flat tile roof hook ;
Hexagon socket head bolts;
T sliding nut block;
Spring Washer
Sharp-point screw
As a professional solar roof hooks manufacture factory, more types of different rook hooks are available for us .Contact Solar Parts & Components factory for more details.
| Brief Descriptions : | |
| Solar Mounting Components – Flat Tile Roof Hooks, Non-Adjustable, Bottom Mounting,SPC-IK-11 | |
| Item type: | Solar Flat Tile Roof Hooks |
| Type : | Flat Roofing Hooks (SPC-IK-11) |
| Installation Site : | Pitched Roof |
| Profile Material : | SUS 304 Stainless Steel |
| Fasten Parts : | Stainless Steel / Aluminum T Sliding Nut |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |

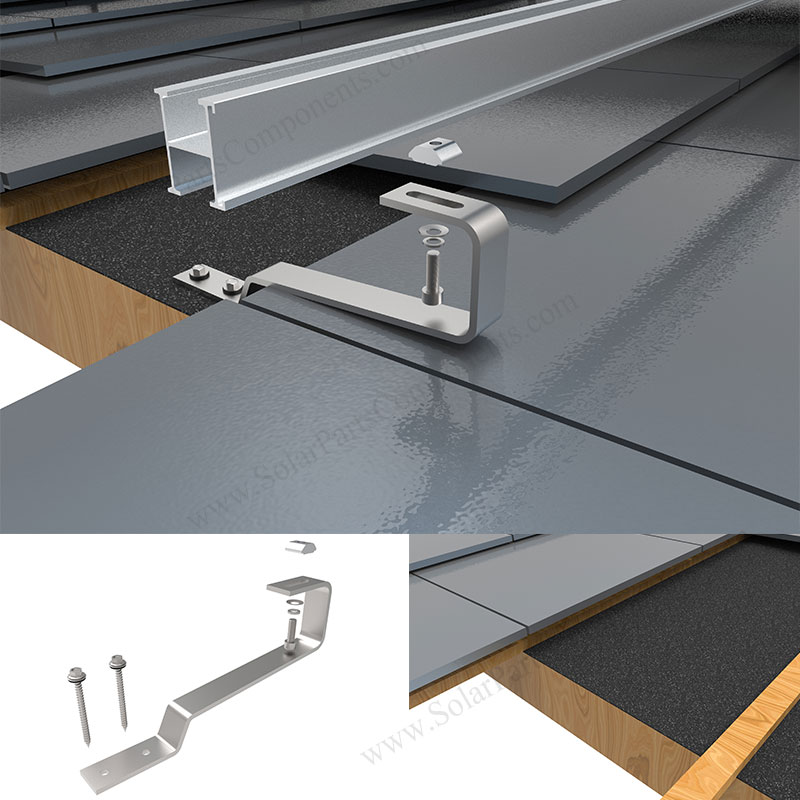

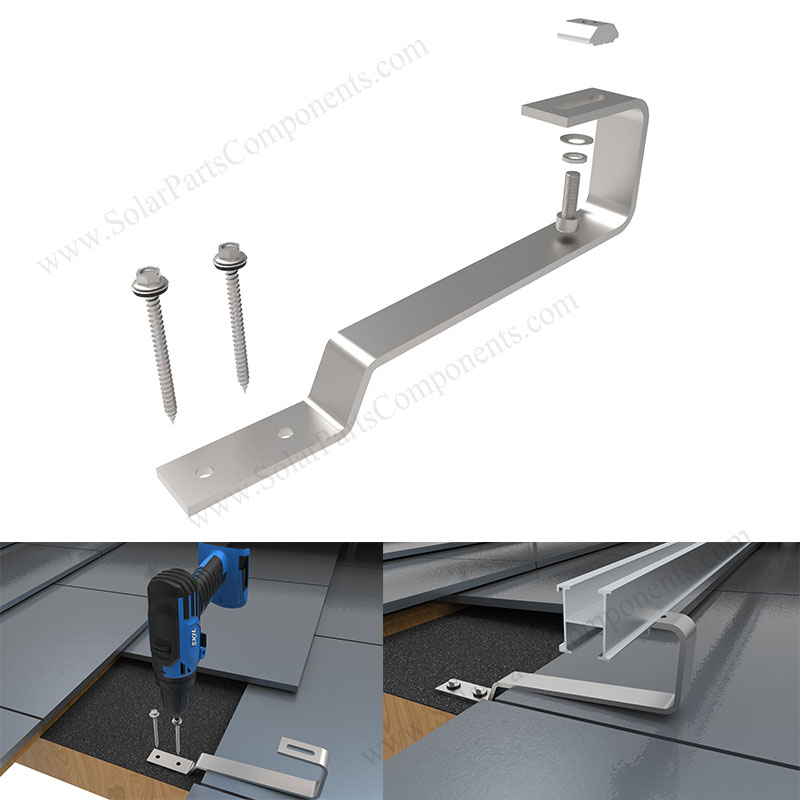

Installation Manual for Solar Flat Tile Hooks SPC-IK-11
Prices of different Solar Flat Tile Roof Hooks products
Because the products vary in how difficult they are to make and how much material they use, the prices for different Solar Flat Tile Roof Hooks vary.
Q:
Kindly share your contact details to get enquiry of the above product
Part# 17585 – All Tile ADJS-90-38MM Hook 10/CS – 1440/CS (14,400/ea)
Part# 17508 – S-Tile 90-S-38MM Hook 20/C – 960/CS (19,200/ea)
Part# 17548 – SC-Steel ADJH-90-Short Hook 20/CS – 192/CS (3,840/ea)
Part# 17568 – S-Tile ADJS 90-42MM Hook 10/CS – 144/CS (1440/ea)
Part# 17540 – F-Tile 90-H-38MM Hook 20/CS – 576/CS (11,520/ea)
A:
Nice to receive enquiry.
Base on quantities given, following is our factory price in RMB.
Please check.
Best regards
Q:
Could you let me know price FOB and currency USD.
Thank you
OEM service for this Solar Panle Flat Roof Hooks
As a PV mounting hardware factory, SPC can offer customized service for our all solar hooks , clamps , clips .
customized solar panel flat tile roofing hooks
Features of flat tile roof hook
Flat tile roof hooks – it is widely applied for solar flat tile roofing, due to its cost-effective design, it has been one of the hot-sale hooks.
Features
– Easy installation, one-piece design makes easier and faster assembly;
– Longer durability, SUS304 material to prevent corrosion;
– High suitability, can be used for most flat tile roofs;
– Cost-effective, lower price and faster installation.
flat tile roog hook

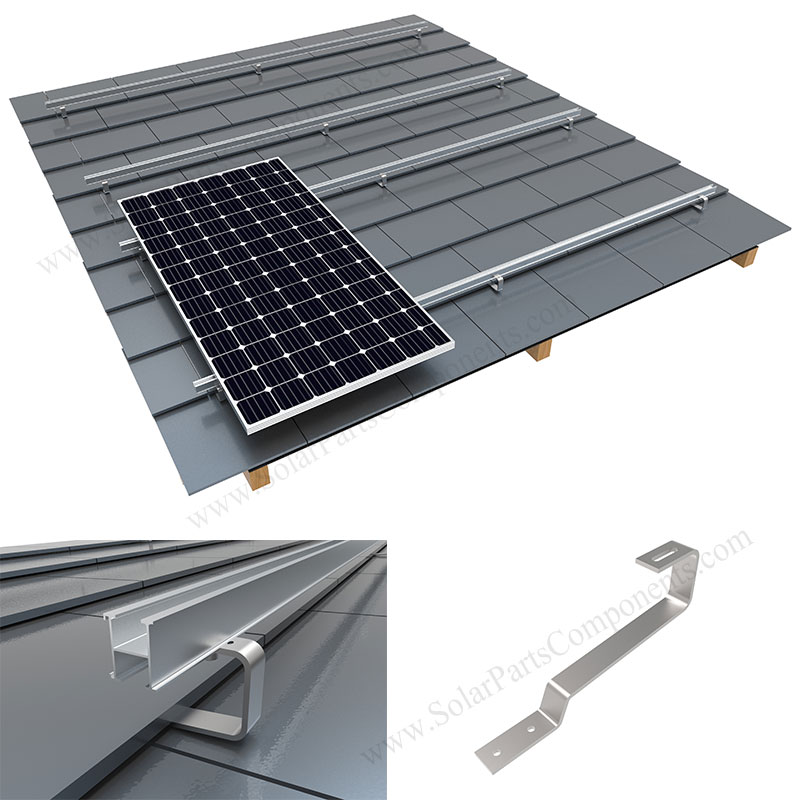

solar roof mounting hook for flat tie roof
It is an economical tile roof accessory solution and one of the important mounting accessories for flat tile roofs. It can be used on flat tile roofs.

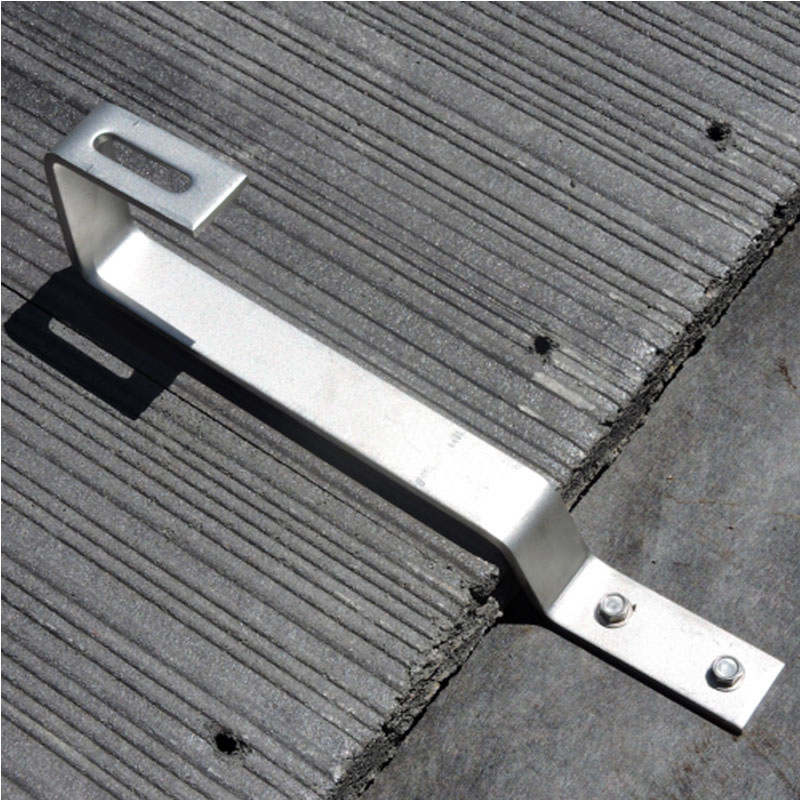

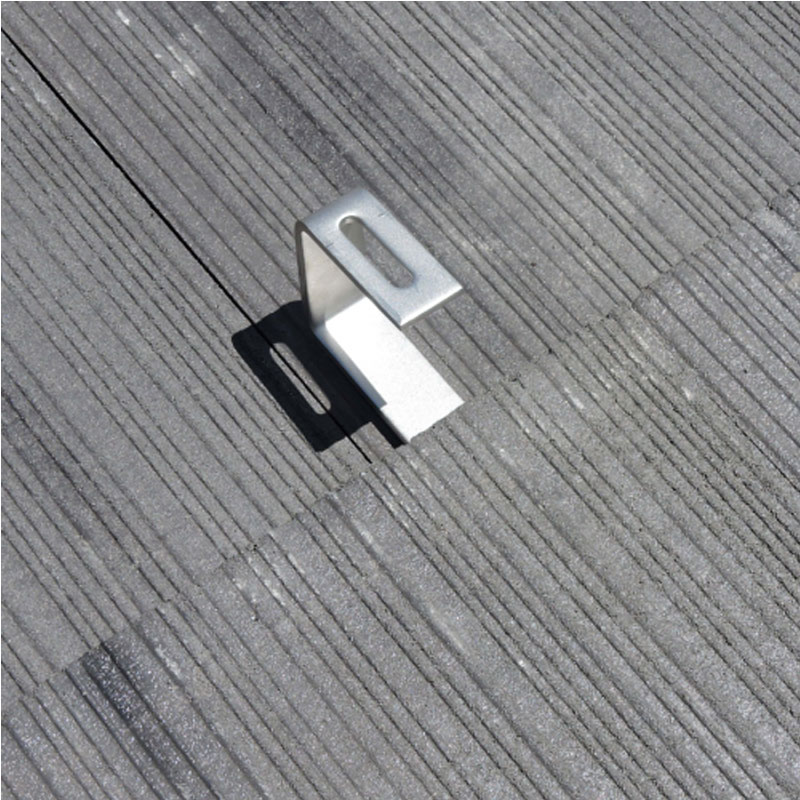

solar roof hooks for flat tile roofing installation
SPC solar file roof hook is the most universal and strongest. It offers a professional solution for residential and commercial application.

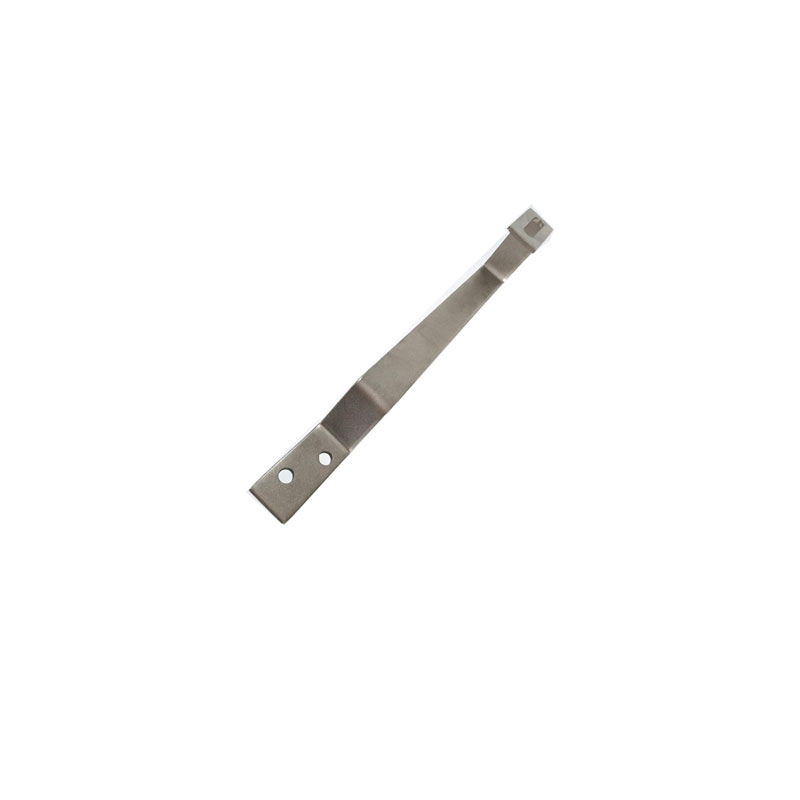

Flat tile roof hooks manufacturer
Flat tile roof hooks for rails bottom mounted style, the fixed heigh of the bar is 46mm,rail attachment slot M9x 39mm,suitable for M8 or M6 mounting screw.This tile roof bracket can minimize penetration on tile roof surface.
flat tile roof hooks factory
Flat tile roof hooks manufacturer

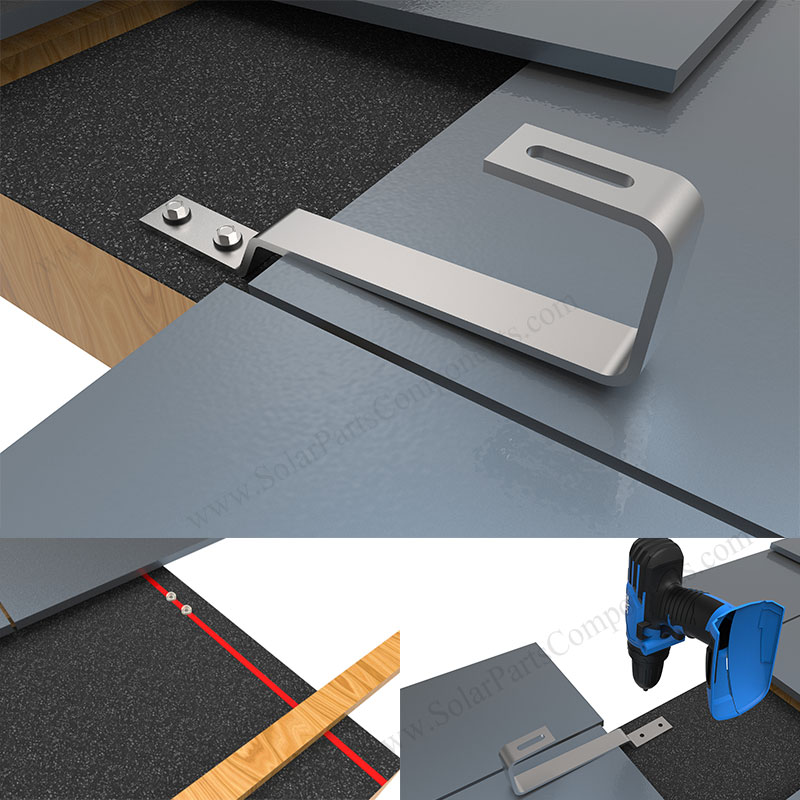

Tile roof hook #11 installation

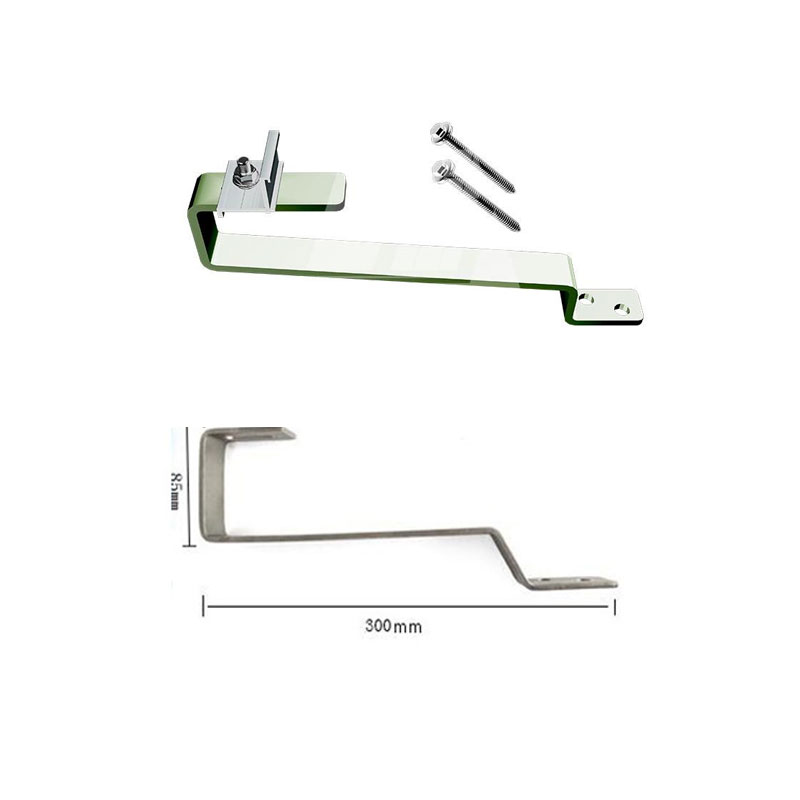

Drawing for this Solar Flat Roof Hooks

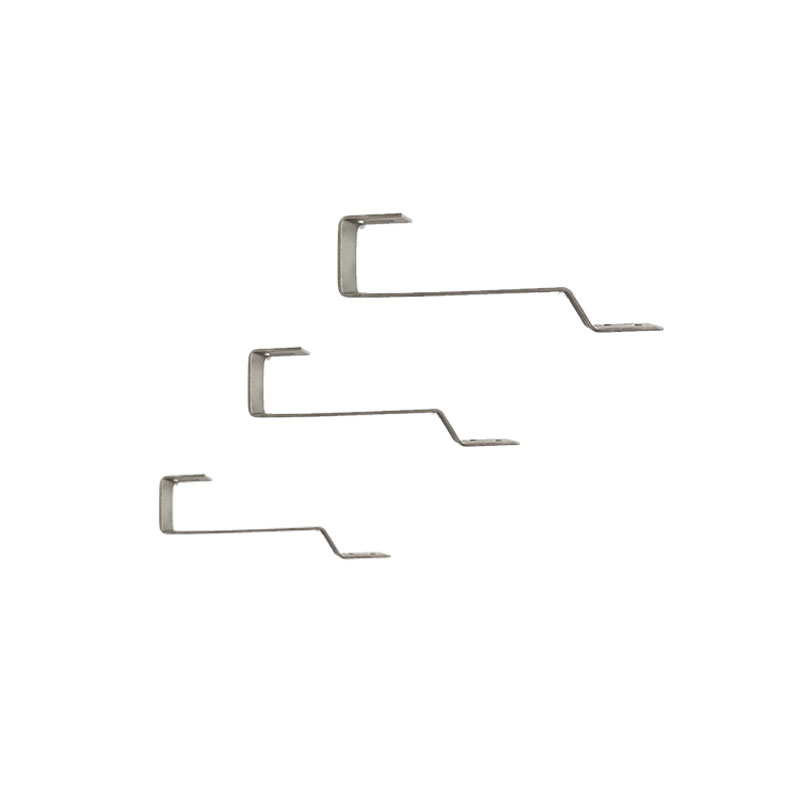

Solar Flat Roof Hooks, Bottom Mounted Wholesale
Bottom Mounting installation kind roof hooks for flat tile roofing .
