We can tailored solar hooks for YOU !
Flat tile roofing is a very common type made of slate, asphalt, concrete, wood …
Some PV module mounting installers have his own system for different roofs, grounds, carports …
The shapes and sizes vary with different mounting system designers, engineers .
Customized sizes are required to fit whole system comparing our standard sizes in our factory .
As a professional solar hooks & clamps manufacturer, we can help this come true .
To mount solar panels on roofs, sus 304 hooks are essential components for whole mounting system .
It’s used to support whole racking structure between PV modules and roof rafters .
To get maximum sun radiation, we also have adjustable solar panel roof hooks for chosen , so that we can get best tilt angle from 20° and 40° .
Our universal mounting hooks can adjust tilt angle and increase height of aluminum rails, to get optimized solar panel arrays .
Asphalt shingle and slate tile are one of most common roof types besides curved tile roof and corrugated metal roofs .
We can use our SPC flat tile hooks to nail onto roof substrate .

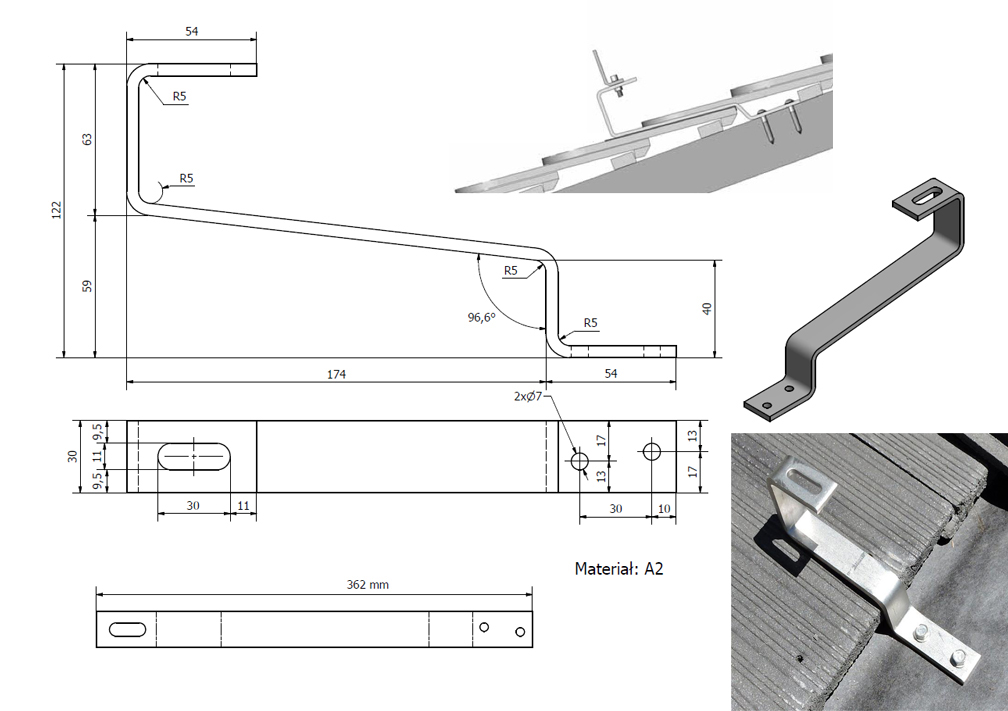

Following is one of tailored solar roof hooks for flat tiles required from one UK customers:
a) Mounting screw holes : D 7 mm X 2 holes;
b) Rail attachment slot : 11 X 30 mm ;
c) Length of roof hooks : 362 mm;
d) Bottom end to top end : 122 mm;
e) Thickness: 5 mm A2 class stainless steel ;

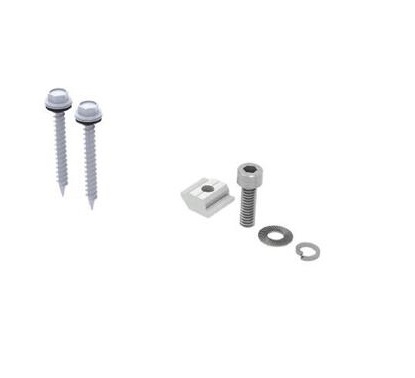

Fasten parts & accessories for this OEM solar flat tile roof hooks :
(1) 5/16″ X 3″ Stainless Steel Screws, 2 units;
(2) 3/8″ rail attachment slot bolt X 1 unit;
(3) Ribbed washer X 1 unit;
(4) Spring washer X 1 unit;
(5) T sliding nut X 1 unit ;
Features for this customized solar panel flat tile roofing hooks :
– suitable for interlock / concrete / composite / clay plain roofs ;
– no tile augmentation requires;
– no cutting, prevent breakages;
– lower cost solution for flat roof mounting;
– simple use for installers, practical, sturdy ;
– save & strong support for photovoltaic modules;
Welcome to get more info about our customized tile roof solar mounting system from www.SolarPartsComponents.com .
