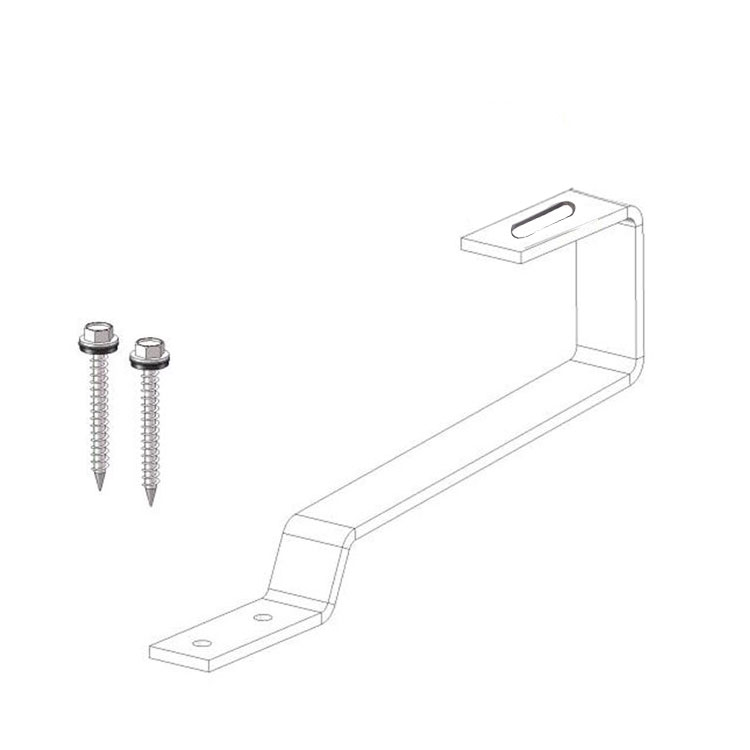

Solar panel flat roofing hooks SPC-Tile-Hooks-AD007-001, super sturdy to support tile roof structure .
180° Tile Roof Hook , non-adjustable , bottom mounting, with screws, nuts and slots for flat roofing mounting .
Model : SPC-Tile-Hooks-AD007-001
Item : Solar Panel Tile Roof mounting Hooks ;
Finishing : Sandblasting;
Material : SUS 304 Stainless Steel ;
Total Size : 30 mm ( Width ) × 286 mm ( Deepth ) × 121 mm (Height) /
1 3/16″ (W) × 11 1/4″ (D) × 4 3/4″ (H) ;
Thickness : 5 mm ;
Rail Slot Size : 9 mm × 47 mm ( 3/8″ ×1 7/8″ );
Matched Bolts & Nuts Sizes:
1) SUS 304 Hexagon Head Allen Bolt M 8 mm X 25 mm x 1 unit;
2) M8×13 Ribbed Lock washers (SUS304) x 1 ;
3 ) D8 Spring washers ( SUS 304 ) x 1;
4) M8 T Sliding Nut x1 unit ;
Mounting Screws for base ( 2 holes size : Φ 7.5 mm):
Matched Screws Size: Hex Washer Head timber screw 6.3 mm (1/4″) x 80 mm ( 3 1/8” ) x 2 units ;
Weight : 621 (g) / 1.37 (lb) ;
Packing : 50 pieces / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21 1/4″ × 8 11/16″ × 7 7/8″
This Solar Tile Hook Model SPC-Tile-Hooks-AD007-001 is a stainless steel bracket for fixing Flat roofing support .
Our Solar Parts & Components QC Team stictly test following parameters of this tile hooks SPC-Tile-Hooks-AD007-001 item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…

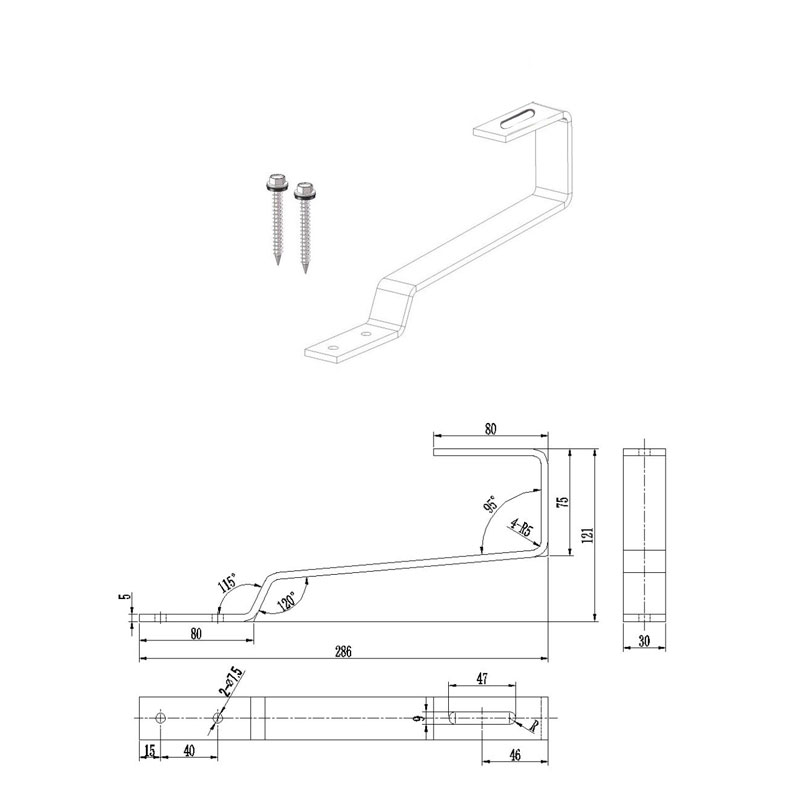

SUS 304 stainless steel PV Modules bottom mounting hooks drawing, sizes, profile for flat tile roofing, non-adjustable .
