Do you carry Solar farmland ground racking system?
”
Hello,
I need more informations and price of the Product Type: solar ground rack mounting system.
Product Model: Solar-Ground-Mounting-Systems-Farmland.
I need about 5 sets, i develop agrivoltaic system in France
Here you find some informations for your structures:

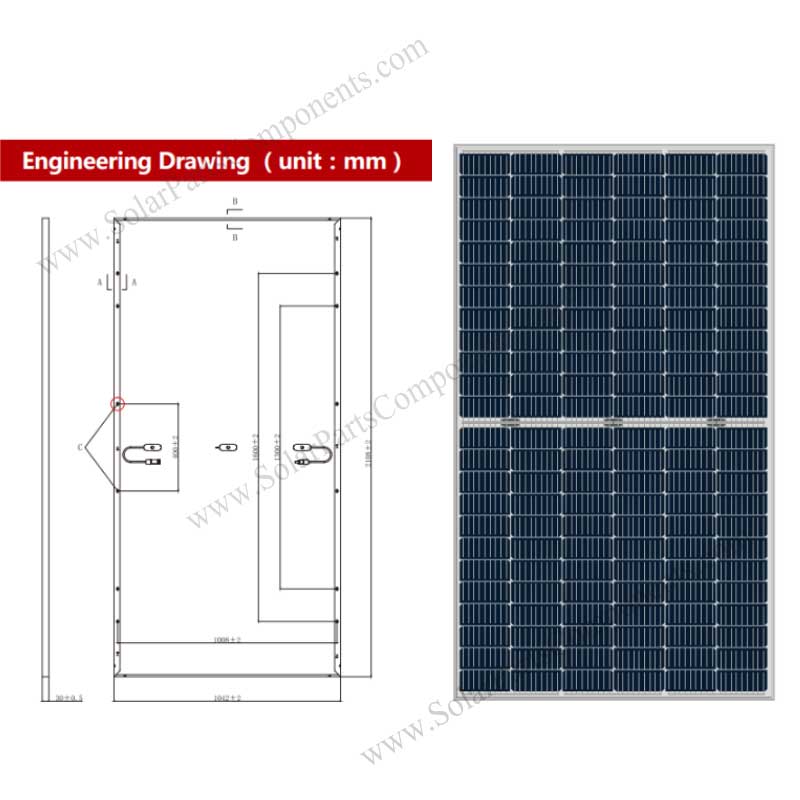

(1) The pv panels dimension as below:
2108 mm Length x 1042mm Width x 30mm Thickness
(2) What’s the height of this solar farmland ground racking system?
For the moment, I would like to have the price of your farland racking structures at 3.5 meters.
I wanted to know if there were heights greater than 3.5 meters
because we also want to develop parking lots for trucks and buses with these types of structures.
So 3,5 meters of 4,5 meters, 2 versions would be preferable.
(3) The nearest seaport is Anvers or Rotterdam
(4) Here you have location situation: 50°37’44.5″N 3°21’30.8″E

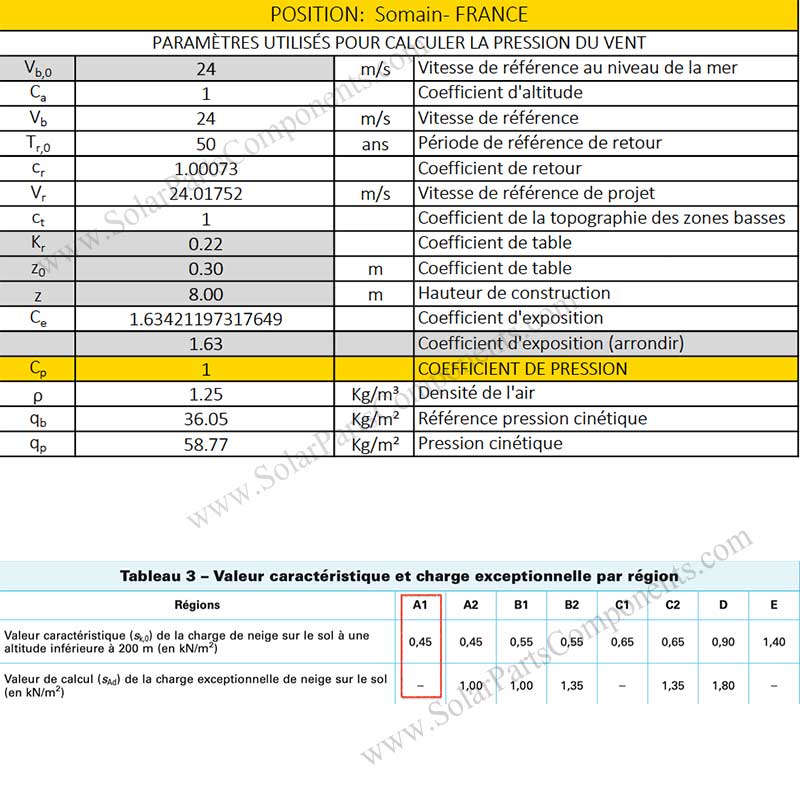

Wind and snow references below:
(5) How about the oriention the solar panels :
Orientation: I need the 2 versions if it is possible.
Regards
Dumoulin Olivier
“
”
Dear Olivier
Appreicated for your inquiry about solar farmland racking structure.
Well understanding you have no concrete order for solar farmland mounting as no total solar panel quantities available currently.
Email with files attached are 3.5 meter and 4.5 meter height versions for your reference.

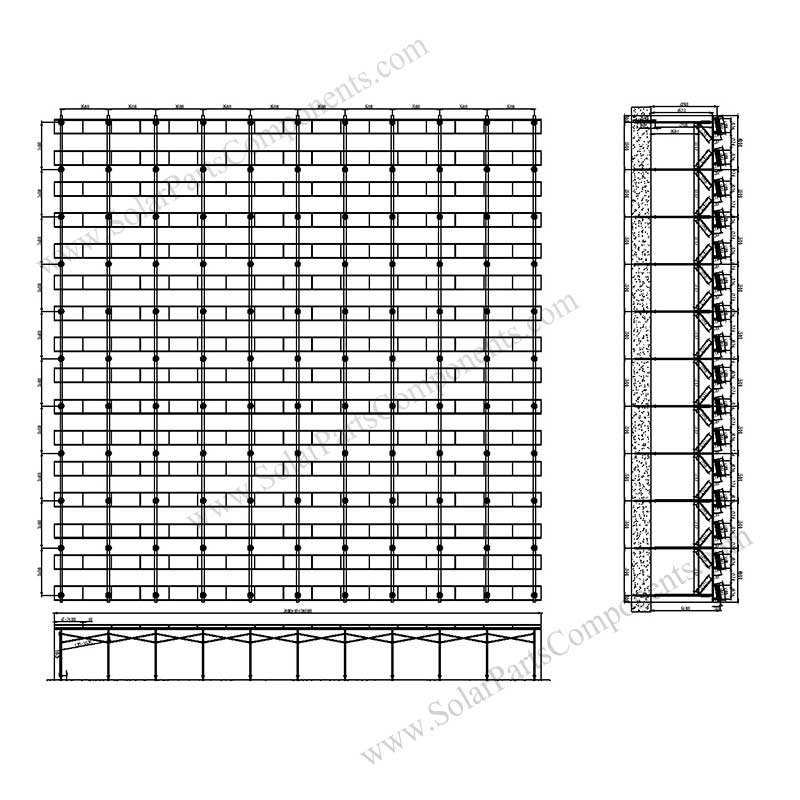

Solar farmland ground racking system design:

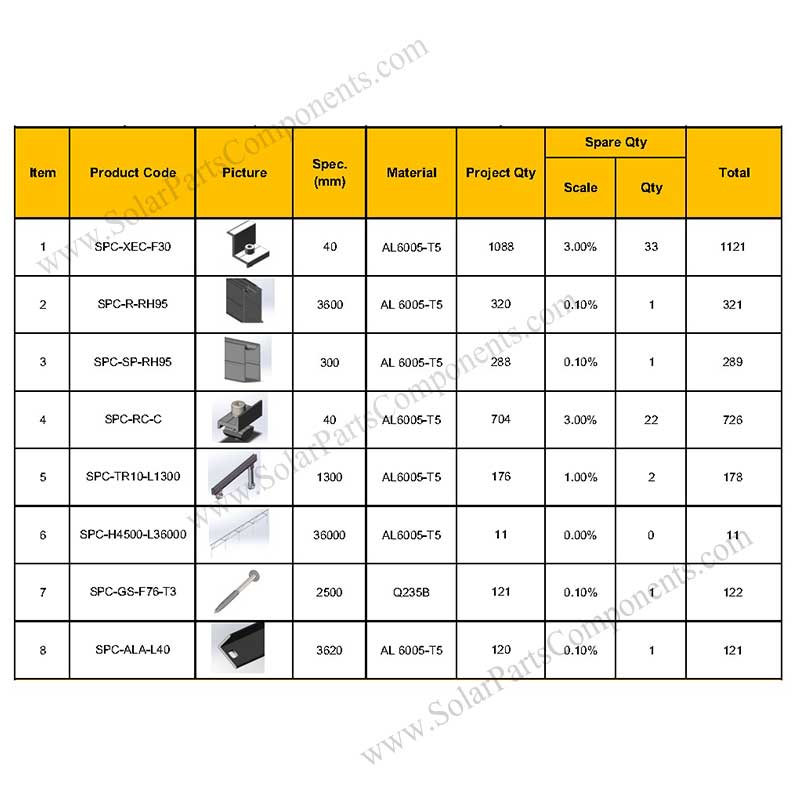

Solar farmland ground racking system BOM:

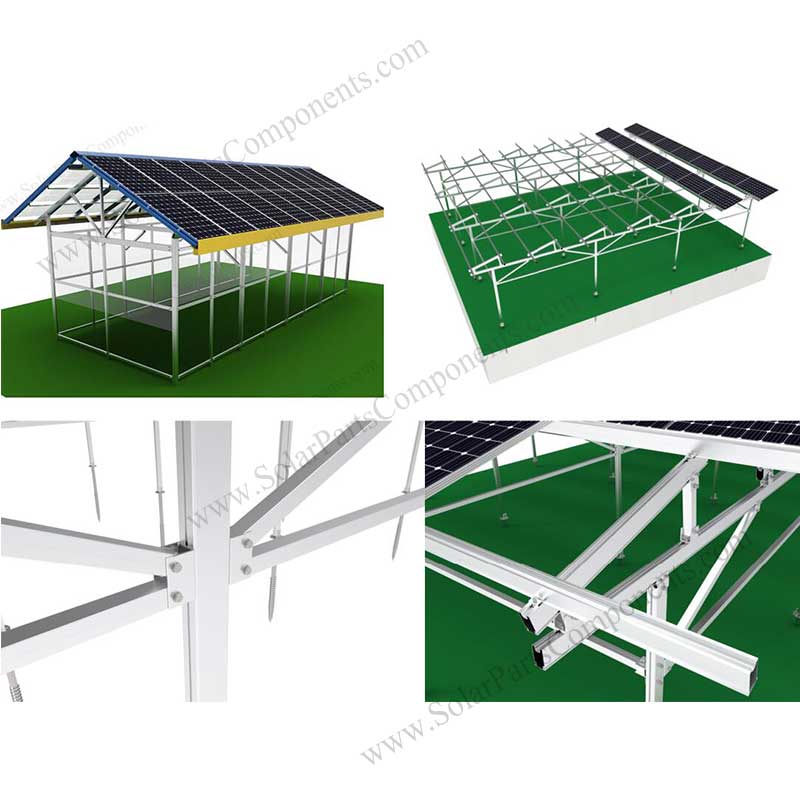

Following are more introduction for our PV farmland structure.
Too much sunlight can’t promote the growth of crops. It is economic and important to solar energy conversion. Solar farmland ground racking system with solar panels, which is widely applied in farmland with ground screw foundation is one of the systems for solar energy conversion. This system provides the perfect combination for both electricity generation and cultivation. Farmers can fully exploit the sun energy for daily basic activities like irrigation, heating, lighting, etc. The excess electricity can be sold to the grid for revenue. Solar farmland ground racking system with solar panels can make full use of sunlight to generate electricity without affecting the growth of crops. The solar panels can be tilted at certain angle, leaving some gaps from each side of the solar panels to meet the sunlight demands of crops. The farmland with solar panels makes the farmland dual-use successfully. The highly pre-assembled structure makes the installation easily and save the time and cost.
The steps for installing Solar farmland ground racking system with solar panels are below:
- Fasten the ground screw;
- Install and fasten the pillar to make the whole structure of the system;
- Install and fasten the beam and pillar;
- Install and fasten the triangle bracket and the rails;
- Install and fasten the solar panels.
Features of Solar farmland ground racking system with solar panels:
- Land utilization is high: can be used for both power generation and planting crops;
- The electricity can be used for farming, lowering the power generation cost;
- High corrosion resistance;
- The pre-assemble components save construction time and labor cost;
You also can refer to our carport structure if you also want racking for buses and trucks:
We offer a variety of solar accessories and PV mounting solutions. The best quality materials are used in the manufacturing process to ensure the best performance. You’re a wiser to choose our SPC. We are kindly welcome for you to be our partner.
Contact us and we will be in touch with you shortly.
www.SolarPartsComponents.com
Thank you !
Best regards,
SPC solar salesteam
“
