Solar Pole Ground Mounting Systems
- Product Type: Pole Ground Mounting Systems
- Product Model:SPC-JA-4H-PW
- Material: Aluminium
- Solar Module Orientation: Portait or Landscape
- Application: Ground Terrain
Product Description:
Single pile ground mounting system (SPC-JA-4H-PW) is a kind of cost-effective racking solution for large scale / small utility PV projects.
Not like ground screws which need pile driving machine, our single pole design can be labor and time saving.
If the open ground is flat and clear, the galvanized steel piles are punched into the ground,
If the open ground is uneven, the piles should be adjusted to horizontal plane first,
Then the aluminum racking system is fixed to the beams.
Just several steps for this pile PV gournd mounting structure: Ram piles, installing T joint, adjustable joint, pre-assembled kit, rail splice, clamps…
Features of this single pole ground mounting systems SPC-JA-4H-PW:

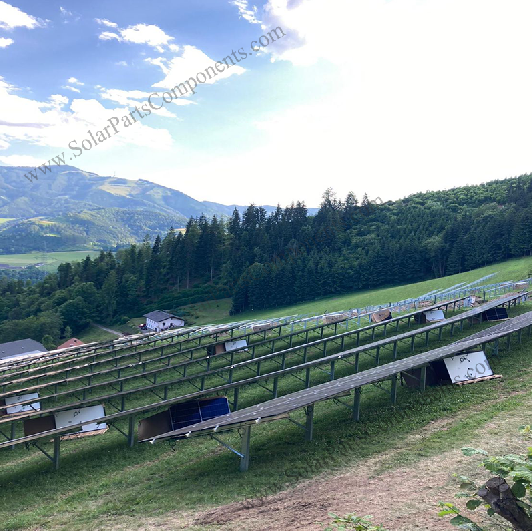

1. Suitable for both flat or slope uneven terrain;
2. No need excavation work but ramming pole in the ground;
3. Quick piling installation, easy maintenance.
4. Elevation installing angle: 0° – 45°
5. Wind speed: 60 m/s;
6. Snow loading: 50 cm;
7. 10 years factory direct manufacture experience for PV racking systems;
8. ISO-certified
Parts and Components for PV ground racking systems SPC-JA-4H-PW:
– Inter & End clamps;
– Post joint;
– Adjustable joint;
– T joint;
– Rail;
– Rail splice;
– pre-assembled kit;
Welcome to contact SPC for this economical photovoltaic modular mounting system in open areas.
Continuously contribute to renewable energies and help earth GREEN is Xiamen Top Best Tech’s mission.
Brief Descriptions: | |
Solar Panel Mounting Systems – Solar Single Pole Ground Mounting System | |
Item type: | Solar Racking Structure |
Type: | SPC-JA-4H-PW |
Installation Site: | Open Terrain |
Profile Material: | Aluminum Alloy |
Fasten Parts: | Anodized aluminum 6005 T5, stainless steel, Hot dipped galvanize steel |
Color: | Silvery |
Wind Load: | 60 m / s |
Snow Load: | 1.4 KN / M2 |
PV Modules: | Framed, Unframed |
Module Orientation: | Portrait and Landscape |
Standards: | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C 8955: 2011 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed Lifespan | 25 years |
Packing Details: | |
Inner: | Bubble bag+inner box+Carton |
Outer: | Wooden Box, Steel Pallet, MDF, etc |
How to install this solar pole ground racking system ?
