10 KW Kenya Project, Solar Panel Metal Roof Mounting Structure
Solar Parts & Components (SPC) is specialized in PV modules projects whatever big or small .
Following is one currently finished for one Kenya mounting project for metal roofs .

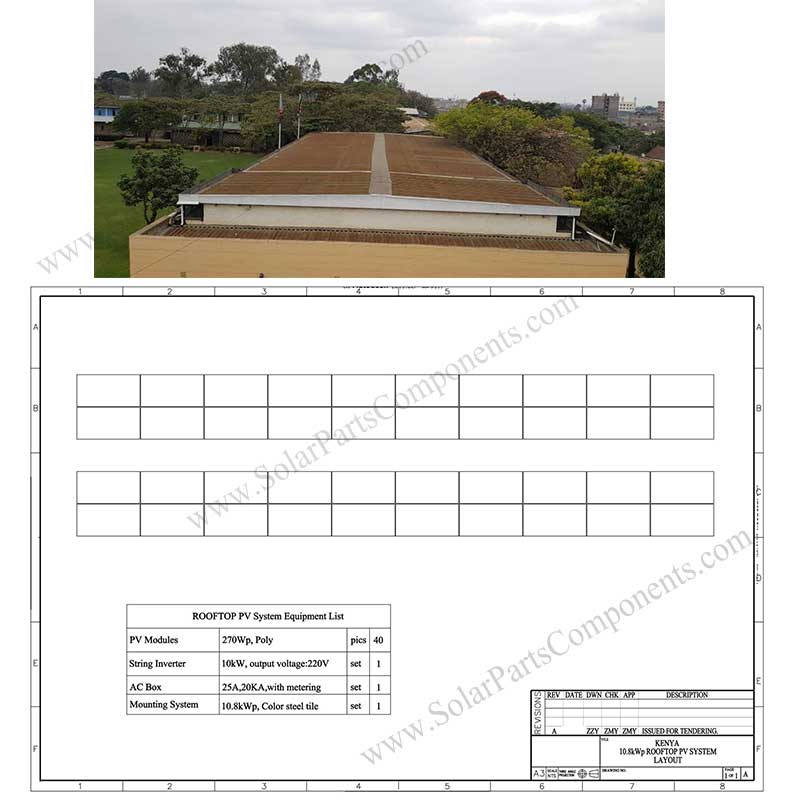

The installing site is located in suburbs of Nairobi city , the capital of Kenya .
Basic mounting technical parameters as following :
(1) The total installed capacity for this solar engergy system is 10.8 KW ,
Using 40 units of polycrystalline PV modules, 270 Wp,
Size 1648mm x 990mm x 35mm ,
Module orientation is landdcape arraying ;
(2) The roof structure is corrugated metal roof , tilt angle 15 degree , symmetrical ridge roofing type ,
Each face will install 2 Row x 10 Columns (20 units of solar panels) ;
(3) Since Nairobi belongs to tropical savanna climate ,
there is no necessary to consider Snow loading parameter,
the wind loading is 30 M / S for this project ;
Base on specification above, we choose L foot clamp with aluminum rail system for this mounting order .
The BOM ( Bill of Material ) is as following :
(1) Aluminum Rails 40 units ;
(2) Mid clamps 40 units ;
(3) End clamps 80 units ;
(4) L foot metal clamps 120 units ;
(5) Self-tapping screws 120 units ( Self-Drilling);
(6) Stainless Grounding Clips 40 units ;
(7) Copper Grounding Lugs 40 units ;
|Kenya,10kW, PV Module Metal Mounting List|
|ITEM NO.||DESCRIPTION||LENGTH (mm)||MATERIAL||QTY|
|SPC-RR-CL2||aluminum rail||2100||Al 6005-T5||40|
|SPC-MC-C-F35||mid clamps||40||AL6005-T5 & |
|SPC-EC-C-F35||End Clamps||40||AL6005-T5 & |
|SPC-TR-LFM-01||L foot||80||AL6005-T5 & SUS304||120|
|SPC-SS-STS||Tapping Screws||6.3*63||SUS 410||120|
|SPC-GS-N-RGL-02||Grounding Lugs||/||AL6005-T5 & SUS304||40|
Welcome get more details from www.SolarPartsComponents.com for this L foot solar mounting system .
