frameless solar panel mid clamps, AL 6005-T5, 8

frameless solar panel mounting mid clamps

Frameless Solar Panel Mid Clamps

Product Type: Unframed Solar Racking
Product Model: SPC-FSPM-80-150MM
Material: Aluminum alloy, rubber
Max Wind Load : 60 m/s
Max Snow Load : 1.4 KN / M ²
Solar Module Orientation: Landscape / Horizontal
Application: Unframed / Bifacial / Frameless modules

Contact by Email

unframed solar panel mounting mid clamps

Overview
Specification
FAQ
Leave Message

Product Description:

Frameless solar panel mid clamps is an important component in solar mounting installation, using for frameless solar panel, secure 2 solar panels to the mounting rails.

frameless solar panel mounting mid clamps (Model: SPC-MC-L80) are made of Anodized Aluminum AL6005 T5 and SUS304 fasteners. Our mid clamps contain EDPM pads, avoid damage the glass and can suck them firmly.

As solar power components supplier, our Mid clamps can offer a comprehensive method for fasten frameless pv modules. Frameless solar module mid clamps are easy to adjust the height according the thickness of the panel.

Features of this frameless solar panel mid clamps:

(1) Made of Anodized Aluminum 6005 T5, A2-70 fasteners;

(2) Clamping between 2 frameless solar panels or glass PV panels strongly;

(3) Pre-assembled;

(4) Easy to install;

(5) Strength and durability;

Wide application for solar frameless panels installation, be used connect two panels / glass firmly.

Welcome to consulate and purchase more other economical solar energy mounting solutions, mid / end clamps and accessories, our website is: www.solarpartscomponents.com.

Brief Descriptions:
Solar Mounting Components – Frameless solar panel mid clamps
Item type:	Solar Panel Components
Type:	Solar Panel Fasten Hardware
Installation Site:	Ground/Roof solar Panel Mounting
Profile Material:	AL 6005-T5 (Anodized)
Color:	Silvery/customer requirements
PV Modules:	Frameless or Glass
Module Orientation:	Landscape and Portrait
Standards:	AS/NZS 1170
	DIN 1055
	GB50009-2012
	IBC2009
	TUV
	JIS C 8955 : 2011
	International Building Code IBC 2009
	California Building Code CBC 2010
Warranty	10 years
Designed Lifespan	25 years
Packing Details:
Inner:	Bubble bag+inner box+Carton
Outer:	Wooden Box, Steel Pallet, MDF, etc

frameless solar panel mid clamps for 5mm thickness

Hi,I’ve Solar panel with thickness of 5 mmI’m looking for:

-3000 x Mid Clamps for Frameless Solar Panel Mounting

-2000x End Clamps for Frameless Solar Panel Mounting

I would like to pay with Paypal if possibleIs this possible ?

thanks

Regards

Jacques POUYAUD41

Chemin de la bergerie34270 LE TRIADOU

FRANCE

Hello Pouyaud

Thank you for your inquiry for our frameless solar mid and end clamps.

Yes, we have suitable items can meet your requirement.

I recommend our frameless solar panel mid and end clamps SPC-FSPM-80-150MM can fit for solar panel thickness range from 3 to 8mm

frameless solar panel mid-clamps 5mm

Ok, I’m ok for the frameless solar panel clamps 3mm <> 8mm range

Can you send me an invoice and I will proceed to the payment.

Hi Pouyaud

Please refer to our Invoice as file attached.

Just let us know when you done the payment.

Hi Pouyaud

Well received your payment for the frameless solar panel 3000 mid and 2000 end clamps with much appreciated.

The cargos were shipped today.

frameless solar panel-mid clamps 3-8 mm

Thank you.

SOLAR CLAMPS FACTORY SALE TEAM.

Do frameless solar panel clamps fit into unistrut?

I am interested in purchasing Frameless solar panel mid clamps SPC-FSPM-80 (quantity around 1100) and End solar panel mid clamps SPC-FSFE-80 products (quantiy 320). Do these clamps fit into unistuct? Would you be able to provide a quote? When they be able to arrive? Thank you!

Appreciated for your inquiry on our solar framless clamps SPC-FSPM-80 and SPC-FSFE-80.

Yes, Our clamps can fit UniStrut rails with our proper nuts.

frameless solar panel clamp for unistrcut

frameless solar panel clamps for unistrcut

I have sent our CNF quotation to your email, please kindly check.

The producing time is 5-7 days.

SAMPLE ORDER for Frameless solar panel mid clamps 10mm

Question:

Dear Madam/Sir

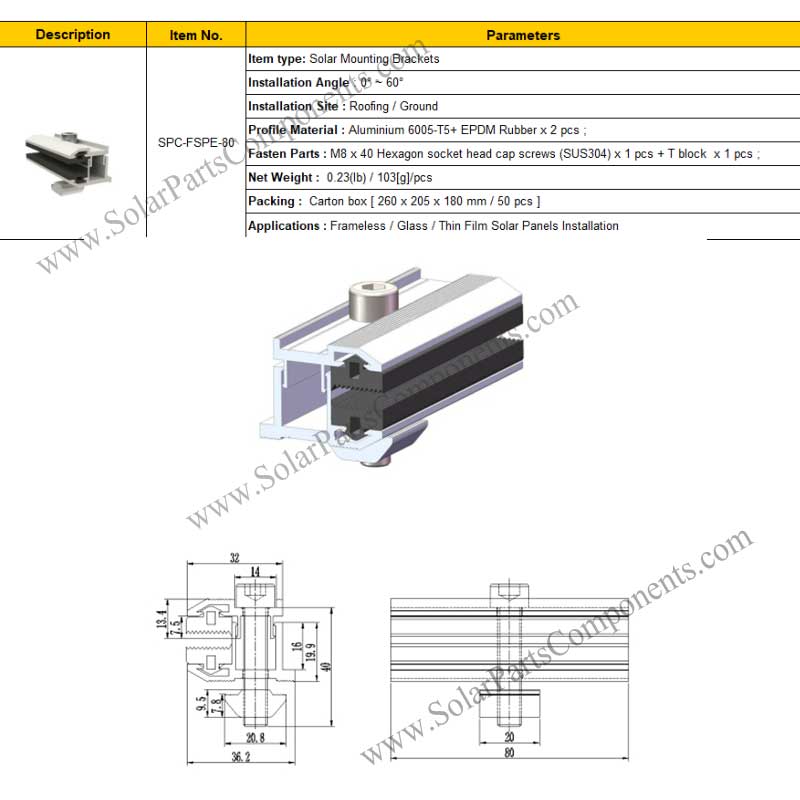

Could you provide me with a drawing or datasheet of a frameless solar panel end clamp and mid clamp for a glass/glass solar module with a thickness of 10mm.

When possible please send me a quote as well for 120 end clamps and 40 mid clamps.

Frameless solar panel mid clamps 10mm

These frameless clamps are for test projects in various configurations so the numbers in this case are correct.

Will come with bigger orders if quality are GOOD.

With kind regards,

Nico Kooke

Answer:

Dear Mr. Niko

Nice to recieve your enquire about Our frameless GLASS PV module mid & end clamps for 10mm glass thickness.

Base on 120 units for end clamps and 40 units for mid clamps,

Please refer email with our specification & our factory prices of these two models of Frameless solar panel clamps.

Frameless solar panel mid clamps 10mm

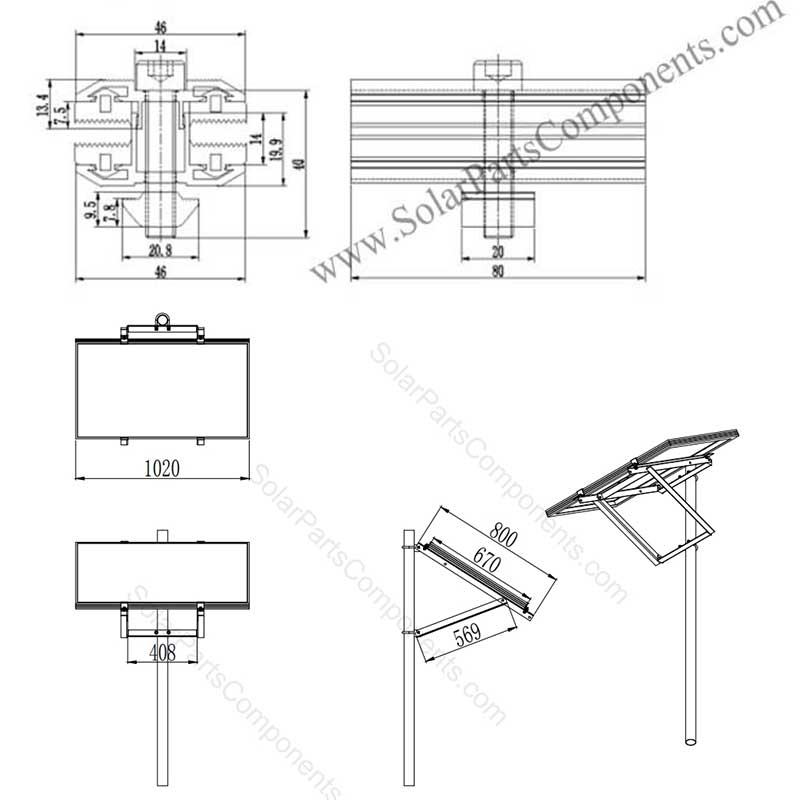

frameless solar panel thickness from : 5mm – 12mm ;

The length of these clamps are 80 mm as specification I given.

Frameless solar panel end clamps 10mm

if you would share me your mounting drawings & manual for solar power projects,

my pleaure to assist with our engineer and make sure everything are all right .

We can ship them in 3-5 days against payment.

Thank you !

SOLAR PARTS COMPONENTS FACTORY

Frameless solar panel clamps factory

Good Afternoon,

I am looking at your Frameless solar panel clamps:

Bifacal solar panel mid clamp: 5mm to 10.5mm (Bifacial – Glass Glass)

Please could I ask for quote for the following you are able to offer:

1) Mid Clamp 150mm – Black QTY: 120, 240

2) End Clamp 150mm – Black QTY: 2040

Flexible solar clamps – aluminium, with seals – 2m or 4m lengths (Or specify max length please) QTY: 102,040

With fixings for rail such as SPC-U62#-L-T2 (also consider atlenative rail

Please could I also ask for rail costs for 3m Lengths of the rail, plain (QTY: 2550,1080)

Please confirm weight etc. or shipping costs to UK.

Your assistance is appracieted

Best Regards

James Blythe

frameless solar clamp factory

Hello James

Thank you for your inquiry from our solar clamp factory.

Yes we can provide all you need.

Please refer to our quotation as file attached.

Thank you.

Where to buy the frameless solar panel mid clamps?

“Who is your sale partner in the netherlands EU for clamps frameless PV modules?”

“Glad to know you are interested in our frameless solar panel mid clamps.

I’m sorry that we haven’t partner in Netherlands yet. But you can buy from our factory in China, directly.

We recommendate our frameless mid clamp for you in the email. Please refer to our specification of these two models as the files attached.

It would be good if you can share me your project details.I will let our engineer check it out for you.

We are manufacture factory can deliver to you directly.Can you have rough quantity details?

If I can get your delivery address, I will also come back to you quotation with freight info too.

Yours early reply would be much appreciated.”

Mid clamps for Sunpreme bifacial solar panels?

“Hi, I am looking for frameless solar panel mid clamps for Sunpreme bifacial solar panels.

I will need about 850 of these clamps to be delivered in United states.

Will you ship to US and what is your total cost? Thanks.”

“Nice to receive your inquiry on our mid clamps for frameless solar panels.

Yes, our bifacial mid clamps can be fit for Sunpreme bifacial solar panels.

I have sent price of 850 units of this framelss mid clamp with freight cost to your email.

Please kindly check.

Frameless solar panel clamps for 3mm to 8mm

Hello

I’ve Solar panel with thickness of 5 mm

I’m looking for:
-3000 x Mid Clamps for Frameless Solar Panel Mounting
-2000 x End Clamps for Frameless Solar Panel Mounting

I would like to pay with Paypal if possible

Is this possible ?

thanks

Regards

Jacky
Chemin de la bergerie
34270 LE TRIADOU
FRANCE

Hi Jacky

Appreciated for your inquiry on our solar bifacial mid and end clamp.

Well understand your request for the frameless solar panel clamps.

Yes, we are professional solar mounting clamps wholesale factory.

We carry some types of framelss clamps can suit solar panel thickness range from 2mm to 15mm.

Base on 5mm of the thickness of your solar panel, we recommend one of our our bificial clamp can fit range from 3mm to 8mm

Frameless solar panel clamps 3mm to 8mm

I have sent your price for this framelss mid and end clamps to your email, please kindly check.

OK, I’m ok for the 3mm <> 8mm range

can you send me an invoice and I will proceed to the payment

Please refer to the Invoice as file attached for 3000 framless mid clamp and 2000 frameless end clamps.

Just let us know when you arrange the payment.

We will arrange the shippmet as soon as possible against payment.

Thank you.

SPC Framless Solar Panel Clamps Factory!

Do you sell clamps for frameless panels to Australia?

Hello

The mid clamps for frameless panels need about 30;
The end clamps for frameless panels need about 20;
Delivery deepwater qld 4674.

Also do u sell the frames that they mount too?

Just wanting to know how much these are please

Thanks

Sarah

Hi Sarah

Appreciated for your inquiry on our solar bifacial mid and end clamp.

Yes, we are professional solar mounting clamps wholesale factory.

1. Bifacial solar panel mid clamps
More details kindly check>>

Frameless solar panel mid clamps, AL 6005 -T5

2. Bifacial solar panel end clamps
More details kindly check>>

Bifacial Solar Panel End Clamps for 10-15mm thickness

3. Bundaberg, Queensland 4674, Australia freight cost to this address has sent by email.

We are a solar panel mounting system and components factory direct,

I recommend you purchase solar frames directly from manufacturers without middle cost.

Thank you,

SPC Solar Clamps Factory!

Can you offer Frameless Solar Panel Clamps for steel rails?

Question:

Dear Sir & Madam,

I am writing you as we have found your products from your website and we are interested.

Our company specializes in the installation of solar panels and we would like to purchase clamps from you.

Requirements:

1) Frameless module clamps

2) 500 Middle and 100 end clamps

Can you please give me a quotation of Frameless Solar Panel Clamps for steel rails?

We would have a further requirement for another 3000 pieces in couple of months.

Can you make these frameless clamps for stainless steel structure as below:

Frameless Solar Panel Clamps for steel rails

Also can you include cost for shipping to Limassol, Cyprus for the first 600 units,

Vrisidos 12,
Limassol,
Cyprus
3087

Director
Andreas

For clamp nuts, they should be matched for our steel rails well:

solar steel rail sizes

Our initial design is made of plate with size as below:

Solar Panel Clamp Plate Nut

Hope our information can help you understanding what we need.

Thank you in advance,
Andreas P.

Answer:

Dear Andreas

Nice to recieve your enquiry about our frameless module clamp series .

Base on 500 units for mid clamps and 100 units for end clamps ,

Our prices are send by email for you.

We can ship them in 7-10 days against payment.

For 3,000 units, we can give you more discount base on that Quantity .

As professional solar mounting factory, we can offer different components for aluminum rails .

After study the drawing given, our engineer recommend you use our stainless steel nut as below :

(1) Similar size but thickness is 3 mm for plate mounting nuts

frameless solar panel mounting plate

frameless solar panel clamp racking nut

(2) our engineer recommend you use our stainless steel nut which is specially design for steel rails:

solar frameless panel mount nuts

solar frameless panel rack plate

Thank you,

Frameless solar panel clamp factory

Question:

Hi,

We would like to proceed with the solution of second solution for the nuts.

Also please send me a proforma invoice for the below quantities

630 x Middle clamps
20 x end clamps

Our panels are 5mm thick so please give us the clamps that support this thickness.

Also please give us the cost for air freight and sea freight.

Thank you for professional service.

Andreas P.

Overview

Product Description:

Frameless solar panel mid clamps is an important component in solar mounting installation, using for frameless solar panel, secure 2 solar panels to the mounting rails.

Features of this frameless solar panel mid clamps:

(1) Made of Anodized Aluminum 6005 T5, A2-70 fasteners;

(2) Clamping between 2 frameless solar panels or glass PV panels strongly;

(3) Pre-assembled;

(4) Easy to install;

(5) Strength and durability;

Wide application for solar frameless panels installation, be used connect two panels / glass firmly.

Welcome to consulate and purchase more other economical solar energy mounting solutions, mid / end clamps and accessories, our website is: www.solarpartscomponents.com.

Specification

Brief Descriptions:
Solar Mounting Components – Frameless solar panel mid clamps
Item type:	Solar Panel Components
Type:	Solar Panel Fasten Hardware
Installation Site:	Ground/Roof solar Panel Mounting
Profile Material:	AL 6005-T5 (Anodized)
Color:	Silvery/customer requirements
PV Modules:	Frameless or Glass
Module Orientation:	Landscape and Portrait
Standards:	AS/NZS 1170
	DIN 1055
	GB50009-2012
	IBC2009
	TUV
	JIS C 8955 : 2011
	International Building Code IBC 2009
	California Building Code CBC 2010
Warranty	10 years
Designed Lifespan	25 years
Packing Details:
Inner:	Bubble bag+inner box+Carton
Outer:	Wooden Box, Steel Pallet, MDF, etc

FAQ

frameless solar panel mid clamps for 5mm thickness

Hi,I’ve Solar panel with thickness of 5 mmI’m looking for:

-3000 x Mid Clamps for Frameless Solar Panel Mounting

-2000x End Clamps for Frameless Solar Panel Mounting

I would like to pay with Paypal if possibleIs this possible ?

thanks

Regards

Jacques POUYAUD41

Chemin de la bergerie34270 LE TRIADOU

FRANCE

Hello Pouyaud

Thank you for your inquiry for our frameless solar mid and end clamps.

Yes, we have suitable items can meet your requirement.

I recommend our frameless solar panel mid and end clamps SPC-FSPM-80-150MM can fit for solar panel thickness range from 3 to 8mm

frameless solar panel mid-clamps 5mm

Ok, I’m ok for the frameless solar panel clamps 3mm <> 8mm range

Can you send me an invoice and I will proceed to the payment.

Hi Pouyaud

Please refer to our Invoice as file attached.

Just let us know when you done the payment.

Hi Pouyaud

Well received your payment for the frameless solar panel 3000 mid and 2000 end clamps with much appreciated.

The cargos were shipped today.

frameless solar panel-mid clamps 3-8 mm

Thank you.

SOLAR CLAMPS FACTORY SALE TEAM.

Do frameless solar panel clamps fit into unistrut?

Appreciated for your inquiry on our solar framless clamps SPC-FSPM-80 and SPC-FSFE-80.

Yes, Our clamps can fit UniStrut rails with our proper nuts.

frameless solar panel clamp for unistrcut

frameless solar panel clamps for unistrcut

I have sent our CNF quotation to your email, please kindly check.

The producing time is 5-7 days.

SAMPLE ORDER for Frameless solar panel mid clamps 10mm

Question:

Dear Madam/Sir

Could you provide me with a drawing or datasheet of a frameless solar panel end clamp and mid clamp for a glass/glass solar module with a thickness of 10mm.

When possible please send me a quote as well for 120 end clamps and 40 mid clamps.

Frameless solar panel mid clamps 10mm

These frameless clamps are for test projects in various configurations so the numbers in this case are correct.

Will come with bigger orders if quality are GOOD.

With kind regards,

Nico Kooke

Answer:

Dear Mr. Niko

Nice to recieve your enquire about Our frameless GLASS PV module mid & end clamps for 10mm glass thickness.

Base on 120 units for end clamps and 40 units for mid clamps,

Please refer email with our specification & our factory prices of these two models of Frameless solar panel clamps.

Frameless solar panel mid clamps 10mm

frameless solar panel thickness from : 5mm – 12mm ;

The length of these clamps are 80 mm as specification I given.

Frameless solar panel end clamps 10mm

if you would share me your mounting drawings & manual for solar power projects,

my pleaure to assist with our engineer and make sure everything are all right .

We can ship them in 3-5 days against payment.

Thank you !

SOLAR PARTS COMPONENTS FACTORY

Frameless solar panel clamps factory

Good Afternoon,

I am looking at your Frameless solar panel clamps:

Bifacal solar panel mid clamp: 5mm to 10.5mm (Bifacial – Glass Glass)

Please could I ask for quote for the following you are able to offer:

1) Mid Clamp 150mm – Black QTY: 120, 240

2) End Clamp 150mm – Black QTY: 2040

Flexible solar clamps – aluminium, with seals – 2m or 4m lengths (Or specify max length please) QTY: 102,040

With fixings for rail such as SPC-U62#-L-T2 (also consider atlenative rail

Please could I also ask for rail costs for 3m Lengths of the rail, plain (QTY: 2550,1080)

Please confirm weight etc. or shipping costs to UK.

Your assistance is appracieted

Best Regards

James Blythe

frameless solar clamp factory

Hello James

Thank you for your inquiry from our solar clamp factory.

Yes we can provide all you need.

Please refer to our quotation as file attached.

Thank you.

Where to buy the frameless solar panel mid clamps?

“Who is your sale partner in the netherlands EU for clamps frameless PV modules?”

“Glad to know you are interested in our frameless solar panel mid clamps.

I’m sorry that we haven’t partner in Netherlands yet. But you can buy from our factory in China, directly.

We recommendate our frameless mid clamp for you in the email. Please refer to our specification of these two models as the files attached.

It would be good if you can share me your project details.I will let our engineer check it out for you.

We are manufacture factory can deliver to you directly.Can you have rough quantity details?

If I can get your delivery address, I will also come back to you quotation with freight info too.

Yours early reply would be much appreciated.”

Mid clamps for Sunpreme bifacial solar panels?

“Hi, I am looking for frameless solar panel mid clamps for Sunpreme bifacial solar panels.

I will need about 850 of these clamps to be delivered in United states.

Will you ship to US and what is your total cost? Thanks.”

“Nice to receive your inquiry on our mid clamps for frameless solar panels.

Yes, our bifacial mid clamps can be fit for Sunpreme bifacial solar panels.

I have sent price of 850 units of this framelss mid clamp with freight cost to your email.

Please kindly check.

Frameless solar panel clamps for 3mm to 8mm

Hello

I’ve Solar panel with thickness of 5 mm

I’m looking for:
-3000 x Mid Clamps for Frameless Solar Panel Mounting
-2000 x End Clamps for Frameless Solar Panel Mounting

I would like to pay with Paypal if possible

Is this possible ?

thanks

Regards

Jacky
Chemin de la bergerie
34270 LE TRIADOU
FRANCE

Hi Jacky

Appreciated for your inquiry on our solar bifacial mid and end clamp.

Well understand your request for the frameless solar panel clamps.

Yes, we are professional solar mounting clamps wholesale factory.

We carry some types of framelss clamps can suit solar panel thickness range from 2mm to 15mm.

Base on 5mm of the thickness of your solar panel, we recommend one of our our bificial clamp can fit range from 3mm to 8mm

Frameless solar panel clamps 3mm to 8mm

I have sent your price for this framelss mid and end clamps to your email, please kindly check.

OK, I’m ok for the 3mm <> 8mm range

can you send me an invoice and I will proceed to the payment

Please refer to the Invoice as file attached for 3000 framless mid clamp and 2000 frameless end clamps.

Just let us know when you arrange the payment.

We will arrange the shippmet as soon as possible against payment.

Thank you.

SPC Framless Solar Panel Clamps Factory!

Do you sell clamps for frameless panels to Australia?

Hello

The mid clamps for frameless panels need about 30;
The end clamps for frameless panels need about 20;
Delivery deepwater qld 4674.

Also do u sell the frames that they mount too?

Just wanting to know how much these are please

Thanks

Sarah

Hi Sarah

Appreciated for your inquiry on our solar bifacial mid and end clamp.

Yes, we are professional solar mounting clamps wholesale factory.

1. Bifacial solar panel mid clamps
More details kindly check>>

Frameless solar panel mid clamps, AL 6005 -T5

2. Bifacial solar panel end clamps
More details kindly check>>

Bifacial Solar Panel End Clamps for 10-15mm thickness

3. Bundaberg, Queensland 4674, Australia freight cost to this address has sent by email.

We are a solar panel mounting system and components factory direct,

I recommend you purchase solar frames directly from manufacturers without middle cost.

Thank you,

SPC Solar Clamps Factory!

Can you offer Frameless Solar Panel Clamps for steel rails?

Question:

Dear Sir & Madam,

I am writing you as we have found your products from your website and we are interested.

Our company specializes in the installation of solar panels and we would like to purchase clamps from you.

Requirements:

1) Frameless module clamps

2) 500 Middle and 100 end clamps

Can you please give me a quotation of Frameless Solar Panel Clamps for steel rails?

We would have a further requirement for another 3000 pieces in couple of months.

Can you make these frameless clamps for stainless steel structure as below:

Frameless Solar Panel Clamps for steel rails

Also can you include cost for shipping to Limassol, Cyprus for the first 600 units,

Vrisidos 12,
Limassol,
Cyprus
3087

Director
Andreas

For clamp nuts, they should be matched for our steel rails well:

solar steel rail sizes

Our initial design is made of plate with size as below:

Solar Panel Clamp Plate Nut

Hope our information can help you understanding what we need.

Thank you in advance,
Andreas P.

Answer:

Dear Andreas

Nice to recieve your enquiry about our frameless module clamp series .

Base on 500 units for mid clamps and 100 units for end clamps ,

Our prices are send by email for you.

We can ship them in 7-10 days against payment.

For 3,000 units, we can give you more discount base on that Quantity .

As professional solar mounting factory, we can offer different components for aluminum rails .

After study the drawing given, our engineer recommend you use our stainless steel nut as below :

(1) Similar size but thickness is 3 mm for plate mounting nuts

frameless solar panel mounting plate

frameless solar panel clamp racking nut

(2) our engineer recommend you use our stainless steel nut which is specially design for steel rails:

solar frameless panel mount nuts

solar frameless panel rack plate

Thank you,

Frameless solar panel clamp factory

Question:

Hi,

We would like to proceed with the solution of second solution for the nuts.

Also please send me a proforma invoice for the below quantities

630 x Middle clamps
20 x end clamps

Our panels are 5mm thick so please give us the clamps that support this thickness.

Also please give us the cost for air freight and sea freight.

Thank you for professional service.

Andreas P.

Leave Message

Frameless solar panel mid clamps, AL 6005 -T5
