Is aluminum clamp used in solar panel Mounting system?
Aluminum Clamps are widely used for Solar Mounting system and they can be customized for sizes.
Following is one of our clients requirements.
We have a Solar project based in Dammam Saudi Arabia are a global steel supplier for Solar PV mounting system.
Please provide the quotation + Data Sheet for below table with competitive price & availability of stock.
Please quote for the below request as follows.
Kindly provide the drawing/Picture & mention the weight per set & delivery lead time Ex-Works Dammam, Saudi Arabia by ocean cargo.
|1||Mid clamp 35mm with insulating piece, Grounding plate with bolt 8×50, Nut, Washer, Spring Washer (As per attached file/Drawing)||22072||Set|
|2||End Clamp 35mm with insulating piece, Grounding plate with bolt 8×40, Nut, Washer, Spring Washer (As per attached file/Drawing)||2106||Set|

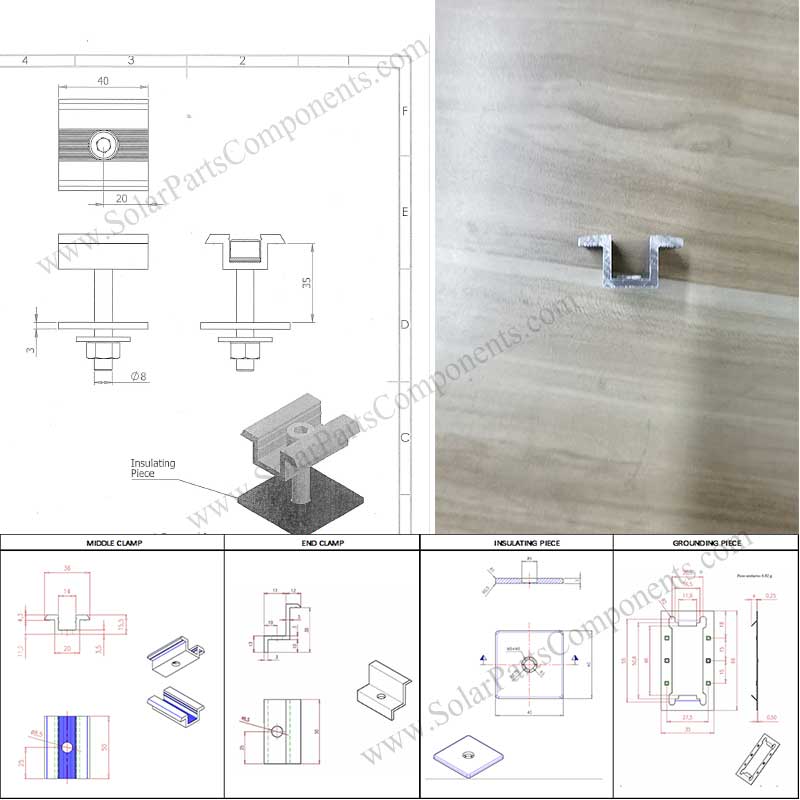

The size drawing Mid Clamps for Solar Mounting system:

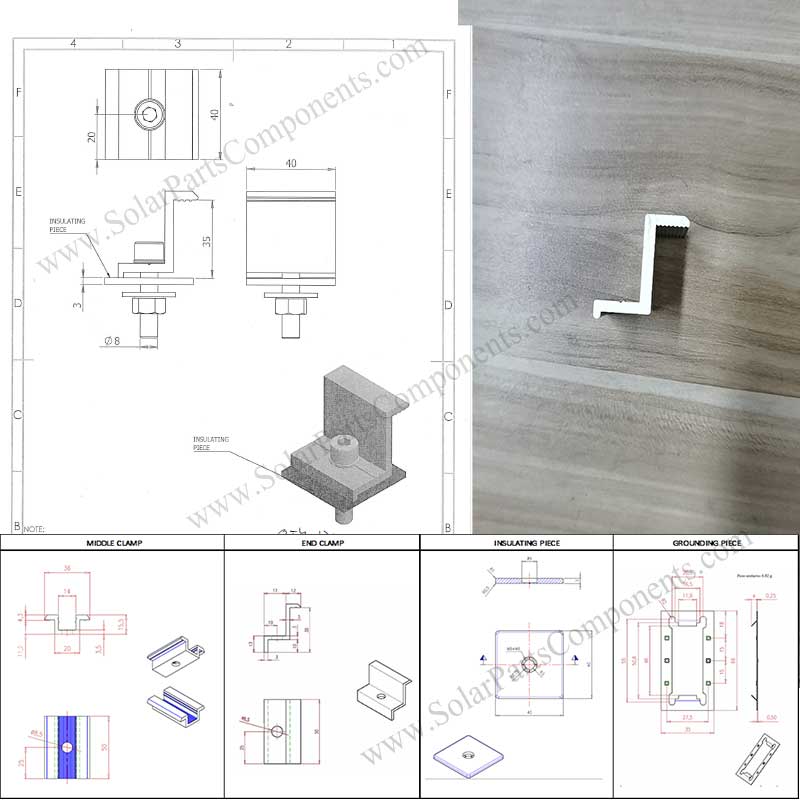

The size drawing End Clamps for Solar Mounting system:
Kindly provide the photos & data sheet of Mid clamp & End clamp for Solar Mounting system which you are going to offer to check with our client for approval.
And also send official quotation too as per our request or set wise price. And mention the grade of the material of all items.
Mention the Delivery & payment terms & condition.
Waiting for your feedback at your earliest.
|MIDDLE CLAMP SET (with grounding plate) – PANEL THICKNESS = 40 mm|
|Grounding plate||AISI 304||51||51|
|Screw M8 x 60||DIN 912||(Inox A4-80)||102||102|
|Washer M8||DIN 9021||(Inox A4-80)||102||102|
|Washer Grower M8||DIN 7980||(Inox A4-80)||102||102|
|Nut M8||DIN 934||(Inox A4-80)||102||102|
|END CLAMP SET – PANEL THICKNESS = 40 mm|
|Screw M8 x 40||DIN 912||(Inox A4-80)||12||12|
|Washer M8||DIN 9021||(Inox A4-80)||12||12|
|Washer Grower M8||DIN 7980||(Inox A4-80)||12||12|
|Nut M8||DIN 934||(Inox A4-80)||12||12|
We also accpet customized exactly same clamps for Solar Mounting system base on drawing given.
Official quotation / weight per set / transportation / delivery period has sent through email.
More Good Quality Mounting Component Series can be reached at : www.SolarPartsComponents.com
SPC solar sales team
Dear SPC factory,
Reference to our discussion over telephone, Kindly confirm the price in US dollars & delivery lead time. Quantity maybe +/- at the stage of final order.
- Mid clamp 35mm with insulating piece, Grounding plate, bolt 8×50, Nut, Washer, Spring Washer – 5000 Sets
- End Clamp 35mm with insulating piece, Grounding plate, bolt 8×40, Nut, Washer, Spring Washer – 5000 Sets.
- Hexa. head screw ISO 4017 – M12 × 45 – 8.8, Din 933 – 25000 Pcs
- Hexagon nut ISO 4032 – M12 – 8, Din 934 – 25000 Pcs
- Washer ISO 7089 – M12 – 8.8, Din 933 – 50000 Pcs
Awaiting for your quick reply ASAP
Hope you are enjoying everything.
Appreciated updated inquiry of for mid / end clamps from us, factory price offer base on quantity list is sent by email.
Our producing time is 2-3 weeks.
Totally around 3500KGS, 3 cubic meter in dimension.
Thank you !
Solar Parts Components Factory
