Sealing Strip
- Product Type: Framed panel
- Product Model: SPC-RG-03
- Material: EPDM
Weight: 110G per meter

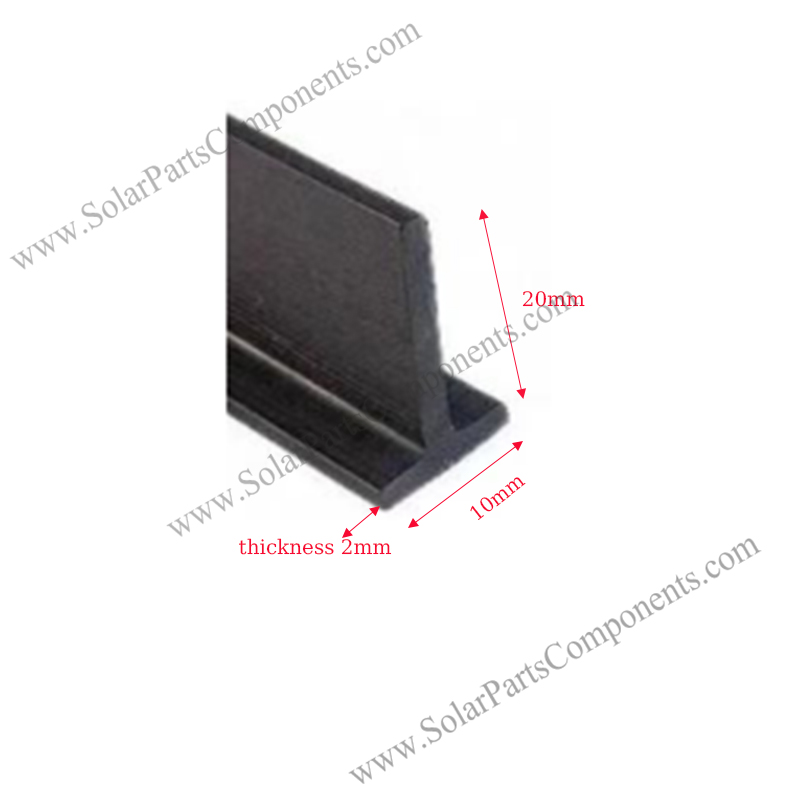

Measurement:Height 20mm*Width 10mm*Thickness 2mm
Accommodate gaps: 2mm - Max Wind Load : 60 m/s
- Max Snow Load : 3.6 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
Product Description:

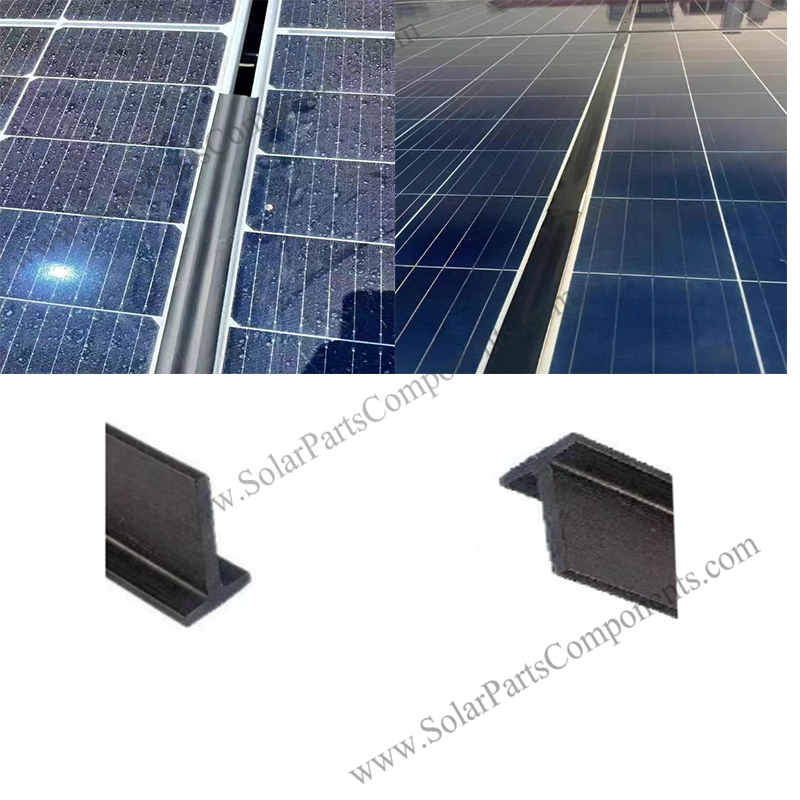

Sealing strip for solar panels: Crafted from high-quality dense EPDM rubber, it’s perfectly suited for solar panel installations. Featuring T shape, it effectively covers wide gaps and enhances waterproof performance, while boasting both flexibility and reliability. Its advantages include durability, easy installation, excellent flexibility and light weight, ensuring minimal resistance when solar panels expand due to heat from sunlight.
Made of premium EPDM material, this solar panel rubber sealing strip offers great anti-aging properties and a long service life, making it ideal for long-term outdoor use. It’s specifically designed for sealing gaps in photovoltaic solar panels.
Installation step:
1. First, clean the solar panel edge and the sealing strip installation surface, thoroughly removing any dust, debris, oil, and other debris. Wipe with a dry cloth until dry and clean to prevent debris from affecting the seal’s fit and sealing effectiveness.
2. Based on the solar panel edge dimensions and the seal strip installation method (e.g., embedded, adhesive, etc.), precisely position the seal strip along the panel edge to ensure it is not misaligned. Then, secure the seal strip according to specifications, applying gentle pressure to the surface to ensure a tight fit against the solar panel edge, ensuring no gaps or warping.
3. After securing, first inspect the overall seal strip for looseness. Then, carefully inspect the seal strip for cracks, deformation, or localized bulges. Verify the seal’s fit and sealing. Any abnormalities should be adjusted or reinstalled promptly to ensure the seal meets operational requirements.
Welcome to contact us anytime, our company website: www.solarpartscomponents.com
| Datasheet | |
| Description: | |
| Sealing Strip | |
| NO.： | SPC-SG-03 |
| Product Type: | Sealing strip |
| Installation location: | Solar panel installation |
| Material : | EPDM |
| Module: | Framed Module |
| Warranty: | 10 Years |
| Lifetime: | 20 Years |
| Orientation： | Landscape,Portrait |
| Wind speed： | 60 M/s |
| Snow load： | 3.6 KN / M2 |
| Standard: | AS/NZS1170 & DIN 1055 |
- Overview
-
Product Description:
Sealing strip for solar panels: Crafted from high-quality dense EPDM rubber, it’s perfectly suited for solar panel installations. Featuring T shape, it effectively covers wide gaps and enhances waterproof performance, while boasting both flexibility and reliability. Its advantages include durability, easy installation, excellent flexibility and light weight, ensuring minimal resistance when solar panels expand due to heat from sunlight.
Made of premium EPDM material, this solar panel rubber sealing strip offers great anti-aging properties and a long service life, making it ideal for long-term outdoor use. It’s specifically designed for sealing gaps in photovoltaic solar panels.
Installation step:
1. First, clean the solar panel edge and the sealing strip installation surface, thoroughly removing any dust, debris, oil, and other debris. Wipe with a dry cloth until dry and clean to prevent debris from affecting the seal’s fit and sealing effectiveness.
2. Based on the solar panel edge dimensions and the seal strip installation method (e.g., embedded, adhesive, etc.), precisely position the seal strip along the panel edge to ensure it is not misaligned. Then, secure the seal strip according to specifications, applying gentle pressure to the surface to ensure a tight fit against the solar panel edge, ensuring no gaps or warping.
3. After securing, first inspect the overall seal strip for looseness. Then, carefully inspect the seal strip for cracks, deformation, or localized bulges. Verify the seal’s fit and sealing. Any abnormalities should be adjusted or reinstalled promptly to ensure the seal meets operational requirements.
Welcome to contact us anytime, our company website: www.solarpartscomponents.com
- Specification
-
Datasheet Description: Sealing Strip NO.： SPC-SG-03 Product Type: Sealing strip Installation location: Solar panel installation Material : EPDM Module: Framed Module Warranty: 10 Years Lifetime: 20 Years Orientation： Landscape,Portrait Wind speed： 60 M/s Snow load： 3.6 KN / M2 Standard: AS/NZS1170 & DIN 1055 - Leave Message
-
