Asphalt shingle roof hook #14 installation
Model:SPC-IK-14
Installation instructions for stainless steel asphalt roof hook #14

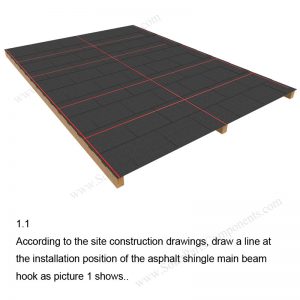

1.1 According to the site construction drawings, draw a line at the installation position of the asphalt shingle main beam hook as picture 1 shows.

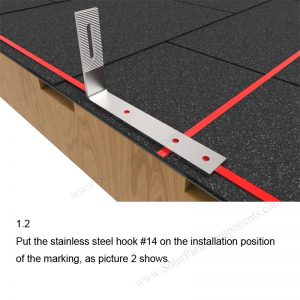

1.2 Put the stainless steel hook #14 on the installation position of the marking, as picture 2 shows.

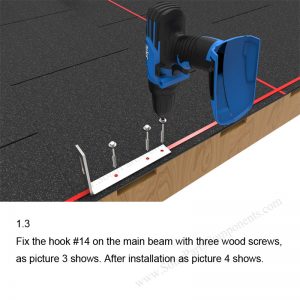

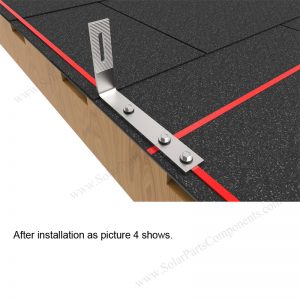

1.3Fix the hook #14 on the main beam with three wood screws, as picture 3 shows. After installation as picture 4 shows.

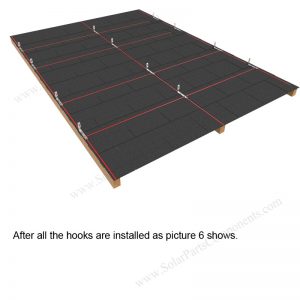

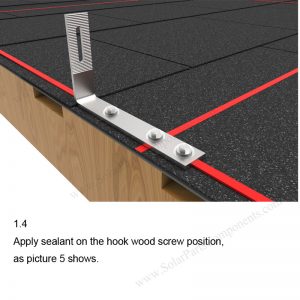

1.4 Apply sealant on the hook wood screw position, as picture 5 shows. After all the hooks are installed as picture 6 shows.

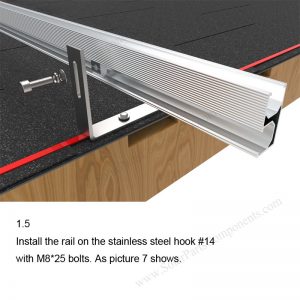

1.5 Install the rail on the stainless steel hook #14
with M8*25 bolts. As picture 7 shows.

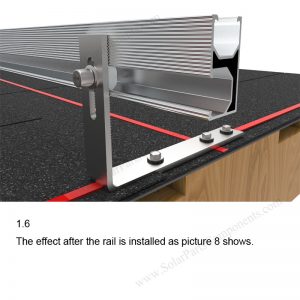

1.6 The effect after the rail is installed as picture 8 shows.
