Universal Trapezoidal Metal Roof Brackets
- Product Type: Solar Metal Roof Clamps
- Product Model:SPC-CK-02
- Material: Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Trapezoidal Metal Sheet Roofing Installation
Product Description :
SPC has released one universal mounting clamps for trapezoid type metal rooftops .
This utility bracket can fit any sizes of trapezoidal type metal roof sheets .
As they are various section different from different roof tile manufacturers and traders,
it cause different to offer general mounting solutions to fix PV modules / aluminum rails / clamps / roof rafters together.
After study all type of metal roofings, SPC engineers make an adjustable A2-70 stainless steel clamps which can fit defferent sizes of trapezoid metal roofing .
www.SolarPartsComponents.com can provodes full PV mounting system ranges for various metal roof like : standing seam / corrugated / trapezoid / R-panel …
The width and height of this bracket can rotate to fit various trapezoidal metal roofs with different profiles .
It can fit most of trapezoidal metal roofing with rib top width range from 0.8″ – 3″ and height 1″ adjustable .

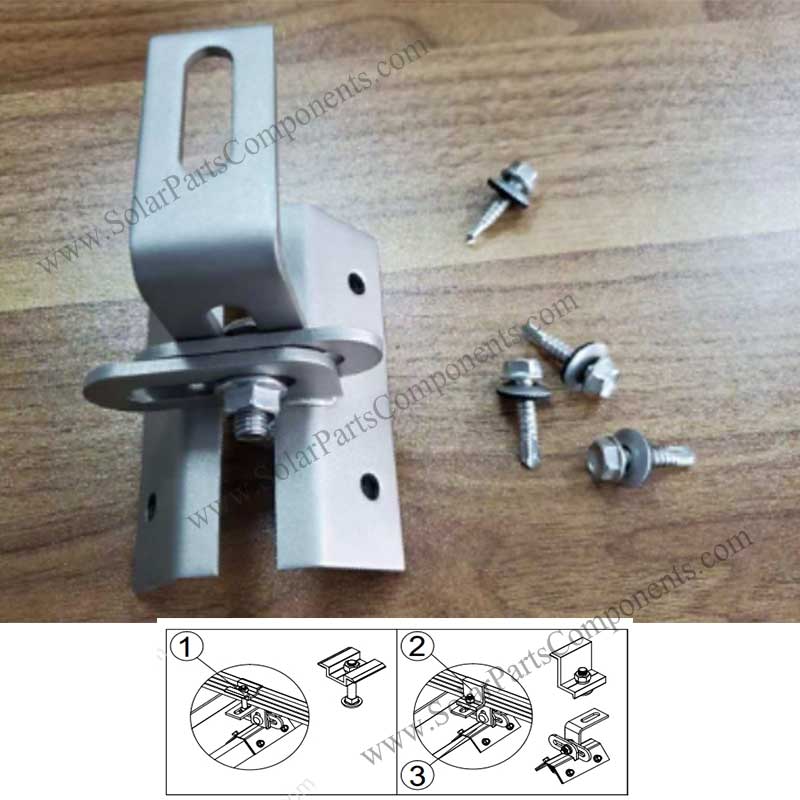

SPC-CK-02 bracket comes with “L” bracket that has lateral and vertical adjustment capability, all of our this series of clamps come with 4 pieces of 1/4″ A2-70 self-tapping screws and EPDM rubber washers .
Multifunctional Bracket is the perfect match for our PV Kit and spares you the hassle of cold bridging.
For a solar attachment solution that is both economical and easy to use, choose our SPC universal Brackets.
Features and benefits for this multifunctional trapezoid metal roofing clamps:
– Compatible with SPC rails and solar panel mounting systems;
– Adjustable mounting clamps for trapezoid shape metal roof;
– 1/4″ self-tap SUS304 screws, 4 pcs as fasten parts;
– Suitable for trapezoidal metal roofs;
– Cost and installation time effective;
Accessories for this trapezoidal roofing bracket:
| Photo | Item No. / Technical Data |
 Stainless Steel Self Tapping Screw |
4 pieces of 1/4″ (6.3mm) Diameter – 1″ (25mm)
Length – Stainless Steel Self Tapping Screw with Hardened Steel Piercing Point – 5/16″ (8mm) Hex Head – 5/8″ (16mm) Stainless Steel / EPDM Sealing Washer |
Installation instruction for versatile roof clamps:
The Multifunctional Bracket is designed to fit most trapezoidal sheet shapes.
1. Wipe away excess oil and debris;
2. Peel off adhesive release paper;
3. Align and mount bracket directly onto crown of metal roof sheet, straddling the profile;
4. Secure the bracket through pre?punched holes, using the hardened drill point our screws;
5. When Multifunctional Bracket is used in conjunction with the PV Kit, an additional nut is required during installation.
Besides the multifunctional trapezoid metal roofing clamps, our SPC provides the different products including the components and the solar mounting system to meet your needs.
Welcome to contact and get more information for solar mounting brackets for trapezoid metal roof and other roofing types .
| Brief Descriptions: | |
| Solar Mounting Components – Multifunctional Metal Roof Bracket for PV Module Mounting | |
| Item No. | SPC-CK-02 |
| Item type: | Solar Roof Brackets |
| Installation Site: | Trapezoid Metal / Tin / Iron Rooftop |
| Profile Material: | SUS 304 Stainless Steel (A2-70) |
| Fasten Parts: | Self-tapping screws |
| Color: | Silvery or according to customer requirements |
| Max Wind Load: | 60 m / s |
| Max Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Installation Manual for Solar Metal Roof Clamps, SPC-CK-02
Solar Panel Universal Mounting Clamps railless solution
