ROOF SOLUTION
Installation Manual for Roof Bracket, SPC-CK-02

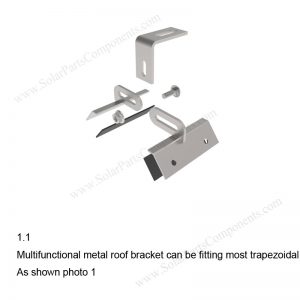

1.1 Multifunctional metal roof bracket can be fitting most trapezoidal sheet profiles, It consists of left part, right part, L connector, screw bolts and waterproof Rubber Pad composed of five parts.
As shown photo 2

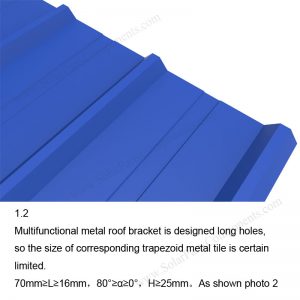

1.2 Multifunctional metal roof bracket is designed long holes, so the size of corresponding trapezoid metal tile is certain limited.
70mm≥L≥16mm，80°≥α≥0°，
H≥25mm。As shown photo 2

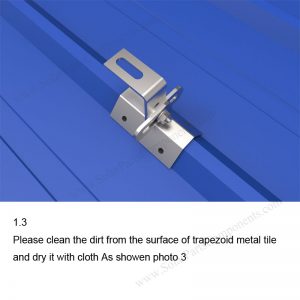

1.3 Please clean the dirt from the surface of trapezoid metal tile and dry it with cloth
As showen photo 3

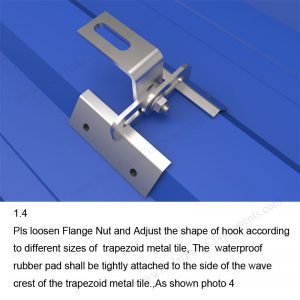

1.4 Pls loosen Flange Nut and Adjust the shape of hook according to different sizes of trapezoid metal tile, The waterproof rubber pad shall be tightly attached to the side of the wave crest of the trapezoid metal tile.
As shown photo 4

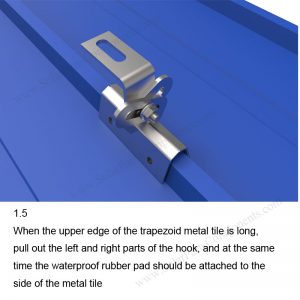

1.5 When the upper edge of the trapezoid metal tile is long, pull out the left and right parts of the hook, and at the same time the waterproof rubber pad should be attached to the side of the metal tile

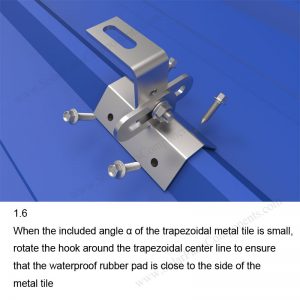

1.6 When the included angle α of the trapezoidal metal tile is small, rotate the hook around the trapezoidal center line to ensure that the waterproof rubber pad is close to the side of the metal tile

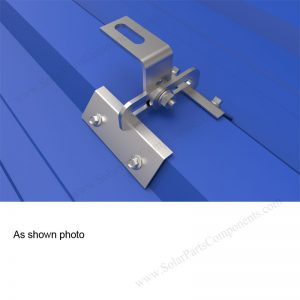

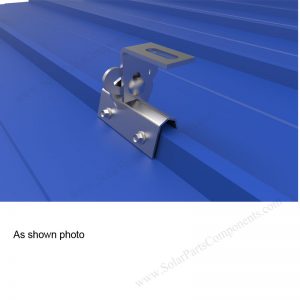

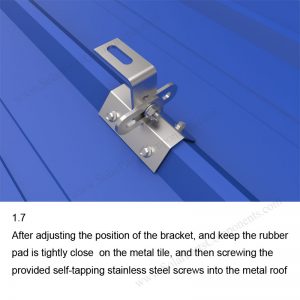

1.7 After adjusting the position of the bracket, and keep the rubber pad is tightly close on the metal tile, and then screwing the provided self-tapping stainless
steel screws into the metal roof

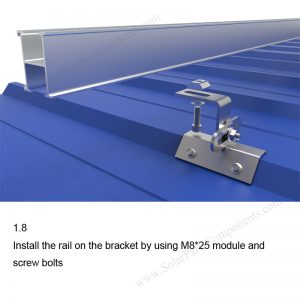

1.8 Install the rail on the bracket by using M8*25 module and screw bolts

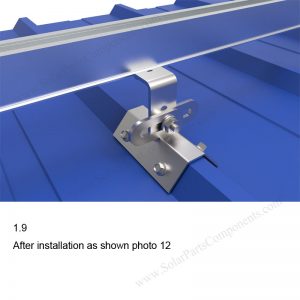

1.9 after installation as shown photo 12
