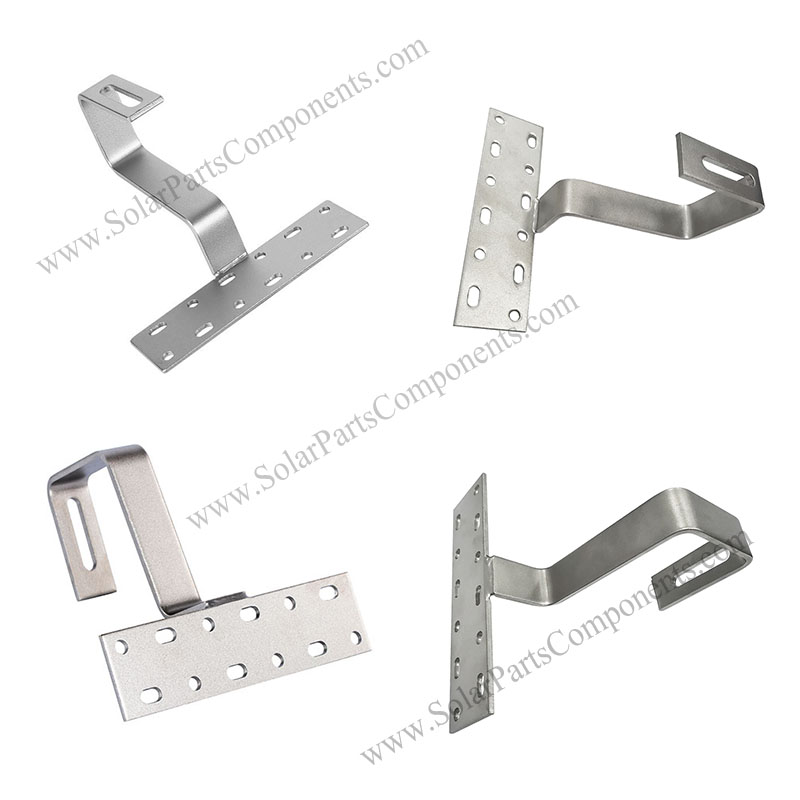

Solar Panel Roof Hooks SPC-IK-07 are made from stainless steel material, which are widely used in Spanish tile roof installation. Due to its high compatibility, it has been greatly welcomed by the European and American markets.
Features Highlight
– Anti-corrosive, high quality SUS304 material;
– Easy and fast installation, pre-assembly holes, no reassemble requires all save time and labor cost;
– Versatility, suitable for most Spanish tile roofs installation;
– Good-value, lower in price, easier assembly than other mounts;
– Quality guarantee, 10 years’ warranty and 25 years’ service life.
| Solar Roof Hook Spanish Tile | |
| Model Number | SPC-IK-07 |
| Material | SUS304 Stainless Steel |
| Color | Natural or Customized |
| Installation Site | Spanish Tile Roof |
| Mounting Style | Bottom Mount |
| Module Orientation | Portrait or Landscape |
| Solar Module | Framed or Frameless |
| Snow Load | 1.4KN/m2 |
| Wind Speed | 60m/s |
| Warranty | 10years |
| Service Time | More than 25 years |
| Standard | AS/NZS 1170, JIS C8955:2011 |
Solar Roof Hook Installation

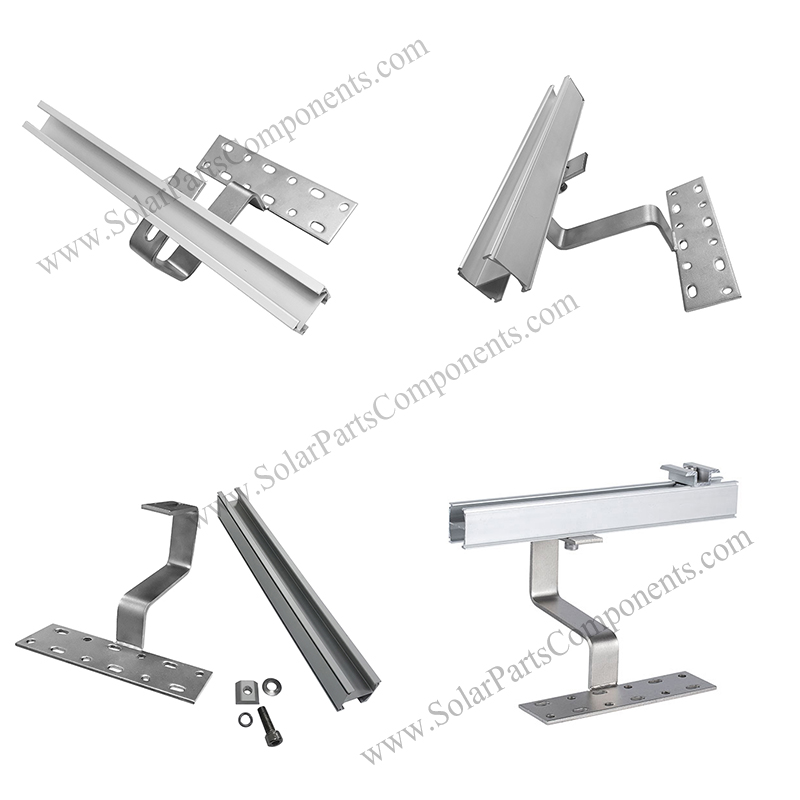

SPC solar tile roof mounting system is composed by a stainless steel hook, H rail, 3 wood screws, socket head screw, sliding nut, spring washer and lock washer. Through fasteners 3 units (screw/sliding nut/washers), solar hook can easily install in 180 degree on the bottom of H rail. Installing solar panels on Spanish tile is not difficult as well. Just to find an appropriate position, remove the tile, then drive into 3 screws on the beam. Finished! Of course, don’t forget to recover the tile on.
SPC H rail and fasteners are made of high quality anodized aluminum and SUS304 materials. To make sure whole solar tile roof mounting structure has longer durability. Meanwhile, SPC solar roof hook is also fit for most rails with bottom mounted on markets. It is with a wider range of suitability than other styles.
Furthermore, SPC also provides solutions for flat roofs, shingle tile roofs, and metal roofs, more details please check our web: https://www.solarpartscomponents.com/
