Solar panel mid clamps are the aluminium parts used between two neighbouring PV modules to fix both modules onto the same mounting rail. They are needed on every roof and ground mounting system, and they are always used together with end clamps, which fix the two outer edges of each row.
Solar panel mid clamps SPC-mid-Clamps-IDS for PV modules fixing
Model : SPC-mid-Clamps-IDS
Item : mid clamps for solar panels
Finishing : Anodized
Material : AL 6005 – T5 Aluminium
Total Size : 38 mm (Width) × 39.7 mm (Depth) × L (Height) /
1 1/2″ (W) × 1 9/16″ (D) × L” (H)
This mounting mid clamp series have several height options for different PV modules thickness as below :
| No. | Part. No. | Solar Panel Thickness | L Size ( Height ) | Weight |
| 1 | IDS35 | 35 mm | 40 mm | 54 g |
| 2 | IDS38 | 38 mm | 45 mm | 56 g |
| 3 | IDS40 | 40 mm | 45 mm | 56 g |
| 4 | IDS42 | 42 mm | 45 mm | 56 g |
| 5 | IDS45 | 45 mm | 50 mm | 58 g |
| 6 | IDS50 | 50 mm | 55 mm | 60 g |
To choose the right model, simply match the clamp to the frame thickness of your module: a 40 mm frame takes IDS40, a 35 mm frame takes IDS35, a 45 mm frame takes IDS45, and so on. If your frame thickness falls between two sizes, or your module uses a special profile, send us a drawing or a sample and we will confirm the correct clamp before you order.
WhatsApp: Get a quote now
E-mail: info@SolarPartsComponents.com
Thickness : 4.8 mm
Mounting Hole Size ( Φ 8.5 mm × 1 hole)
Matched Bolts & Nuts Sizes:
1) SUS 304 Hexagon Head Allen Bolt M8 mm x L x 1 unit;
2) M8×13 Ribbed Lock washers (SUS304) x 1;
3 ) D8 Spring washers ( SUS 304 ) x 1;
4) M8 T sliding nut;
Weight : 54 – 60 (g) / 0.12 – 0.13 (lb) ;
Packing : 100 pieces / carton ;
Packing Size : 260 mm ×205 mm × 180 mm /
10 1/4″ × 8 1/16″ × 7 1/8″
Mid Clamp vs End Clamp
Mid clamps fix the gap between two neighbouring modules, while end clamps fix the outside edge of the first or last module in a row. Both are matched to the same module frame thickness, so a system usually needs end clamps for the two outer edges and mid clamps for every joint between modules. If you are building a complete roof kit, the matching solar panel end clamps and mid clamps for the same module thickness are listed together on our solar panel end clamps and mid clamps page.
This Solar panel mid clamps Model SPC-mid-Clamps-IDS is an aluminium bracket for fixing ground / roofing installation support .
Our Solar Parts & Components QC Team strictly test following parameters of this mid clamps SPC-mid-Clamps-IDS item before delivery.

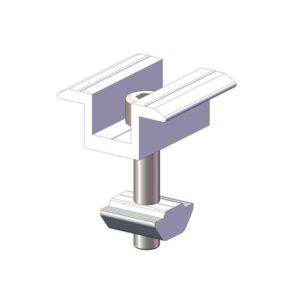

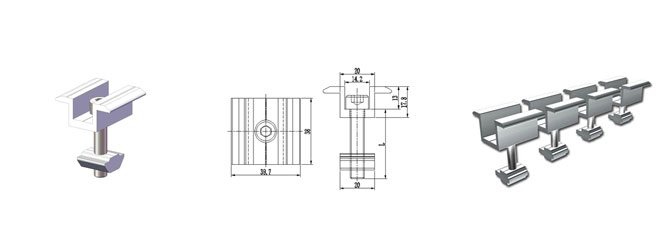

AL6005-T5 PV Modules mid clamp drawing, sizes, profile for solar panel mounting .
More models of our mid clamps and brackets are available in www.SolarPartsComponents.com
Solar Panel Mid Clamps - FAQ
What is the difference between a mid clamp and an end clamp?
A mid clamp holds two neighbouring modules onto one rail and is used at the joints inside a row; an end clamp holds the outside edge of the first or last module. A typical row needs both.
Which mid clamp do I need for a 40 mm solar panel frame?
A 40 mm frame takes the IDS40 model. Check the frame height on your module datasheet or measure it with a calliper – the number you read is the model you order.
Are the bolts, washers and T-nut included with each clamp?
Yes. Each clamp is delivered complete with one M8 SUS304 Allen bolt, one M8x13 ribbed lock washer, one D8 spring washer and one M8 T-sliding nut.
What is the MOQ and lead time?
Trial orders and samples are welcome. For wholesale and OEM quantities, lead time depends on order size and finish – both are confirmed in the quotation.
Can I get a sample before placing a bulk order?
Yes. For most countries we can send a small parcel by express courier; the sample is free or at cost depending on quantity, and the freight is charged to you.
