We manufacture solar hanger bolts for attaching photovoltaic mounting systems to timber or steel roof structures. Designed for metal-roof applications, each bolt can be supplied with a roofing seal, mounting adapter, and compatible nuts and washers, depending on the system design.
Available in customized lengths, thread sizes, materials, and finishes to suit different roof profiles and project requirements.
We always provide good solutions for EPC contractors, project developers, roof installers and distributors. Currently, our factory design three types of the hanger bolts to meet different demand for solar roof mount:
-
For wood rafter:SPC-FA-H020, SUS 304 stainless steel, sharp pointed head.
This is the pointed-head version for a wooden beam. The self-tapping thread drives down through the corrugated or trapezoidal sheet into the timber rafter beneath, pulling the sheet tight against the EPDM gasket as it goes. It ships pre-assembled with flange nuts and mates with an L-feet bracket with hanger bolt for roof mount or a SUS 304 connecting plate to carry the rail. Full sizes are listed on solar hanger bolts for metal roof installation SPC-FA-H020.
2. For steel purlin, self-drilling: SPC-FM-020, zinc-nickel alloy body, stainless steel M10 flange nuts.
This is the version for a steel beam, and it removes a step from the job. The self-drilling head cuts through the metal sheet and into — or through — the steel purlin with no pilot hole. Three stainless steel M10 flange nuts come fitted: the bracket locks between the upper two so height can be corrected on uneven purlins, and the lower nut clamps the sheet. Zinc-nickel alloy is chosen because the head has to cut steel and keep its corrosion resistance. Rated for metal roofing from 0 to 60 degrees, also used on stone-coated steel roofs. See solar hanger bolt for steel purlin.

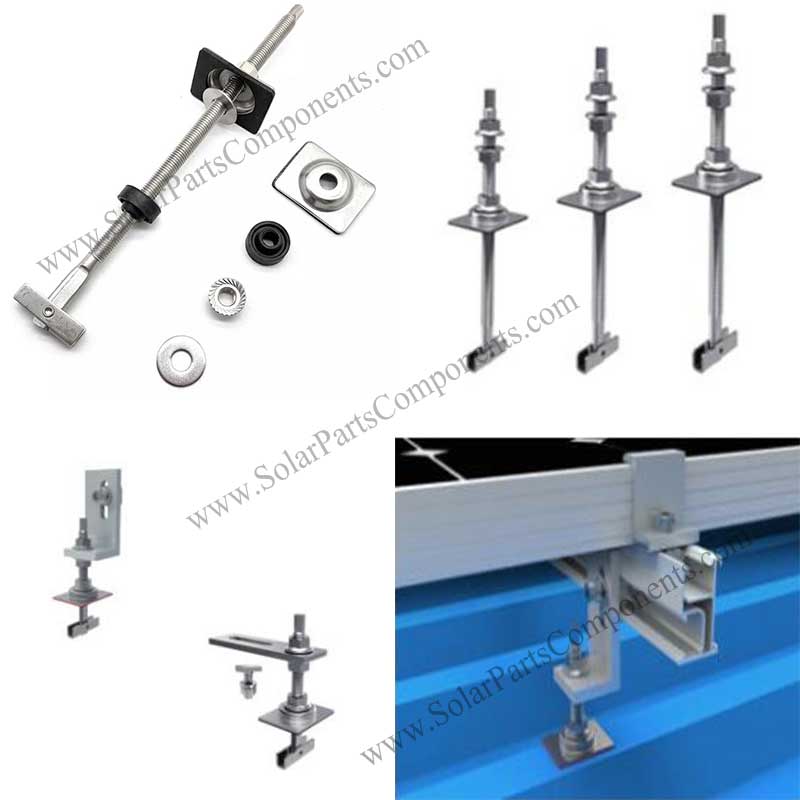

3. For steel purlin, fast install: A2 stainless steel bolt, adjustable clip end, SUS 304 fastening parts, fast installation with the pre-drilled
Same steel-beam application, different install logic. Push the bolt through a pre-drilled hole in the purlin, shake it, and the adjustable clip at the end swings vertical and hooks the bottom flange — replacing the traditional lower nut. The set ships complete: bolt with clip, EPDM rubber, stainless steel plate with EPDM pad, and flange nut. Specify this one when a drill jig is already on site. Full description at solar hanger bolts for purlin.
- Sealing:one EPDM rubber gasket per penetration
- Loads:max wind load 60 m/s, max snow load 1.4 kN/m²
- Standards referenced:AS/NZS 1170, DIN 1055, GB50009-2012, IBC 2009, CBC 2010, TUV, JIS C 8955:2011
- Warranty / lifespan:10 years warranty, 25 years designed lifespan
- Packing:bubble bag + inner box + carton; outer wooden box, steel pallet or MDF
- Service:structure analysis and drawings; samples available; freight quoted against your spec.
